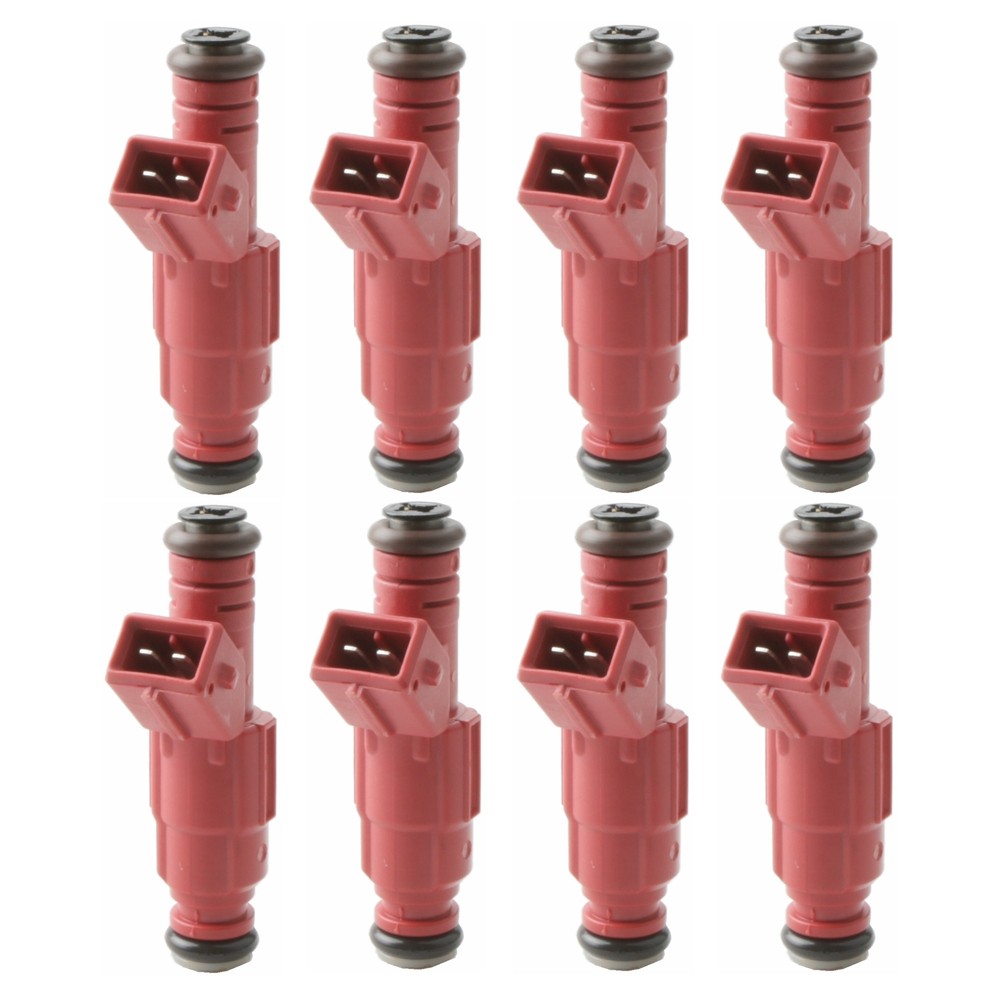

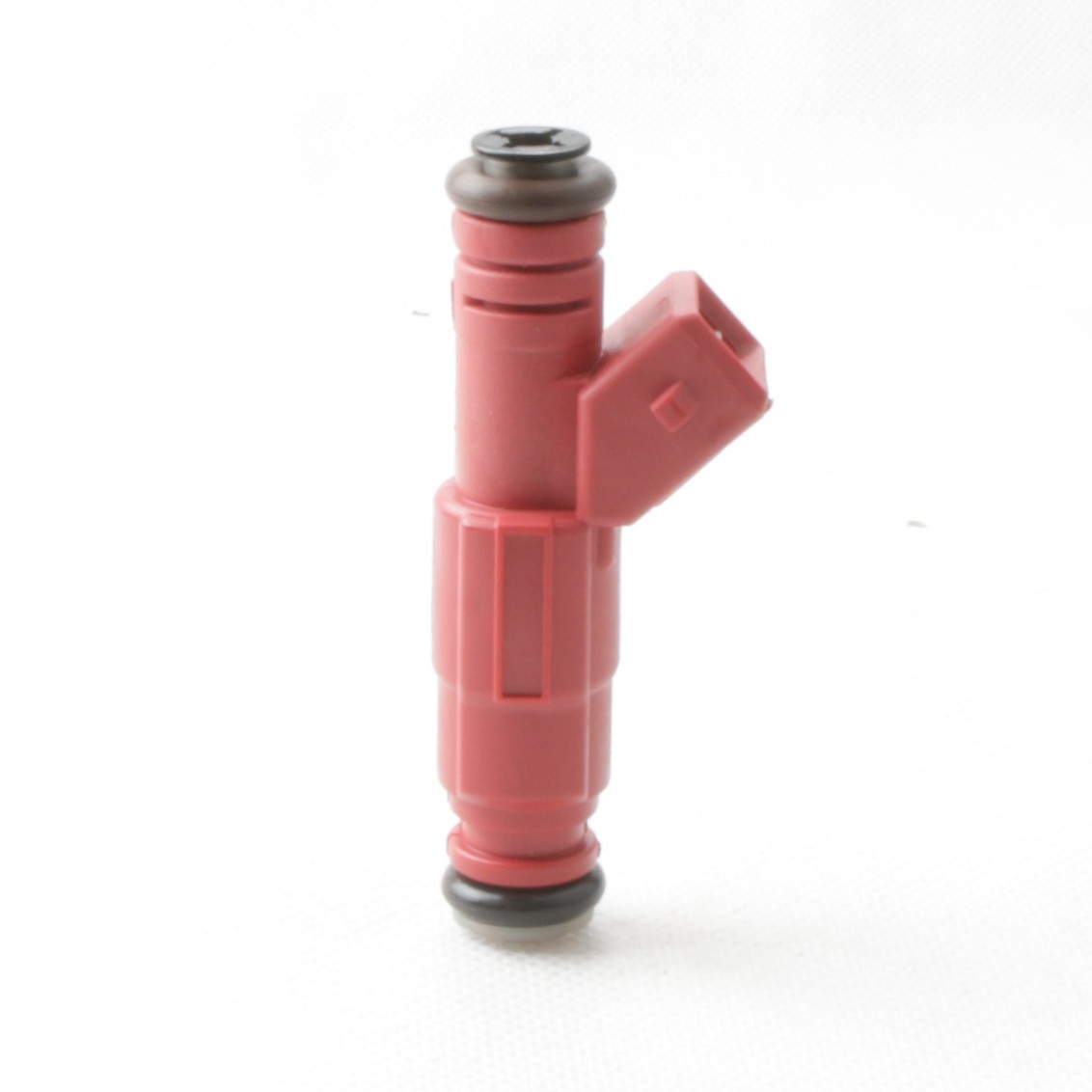

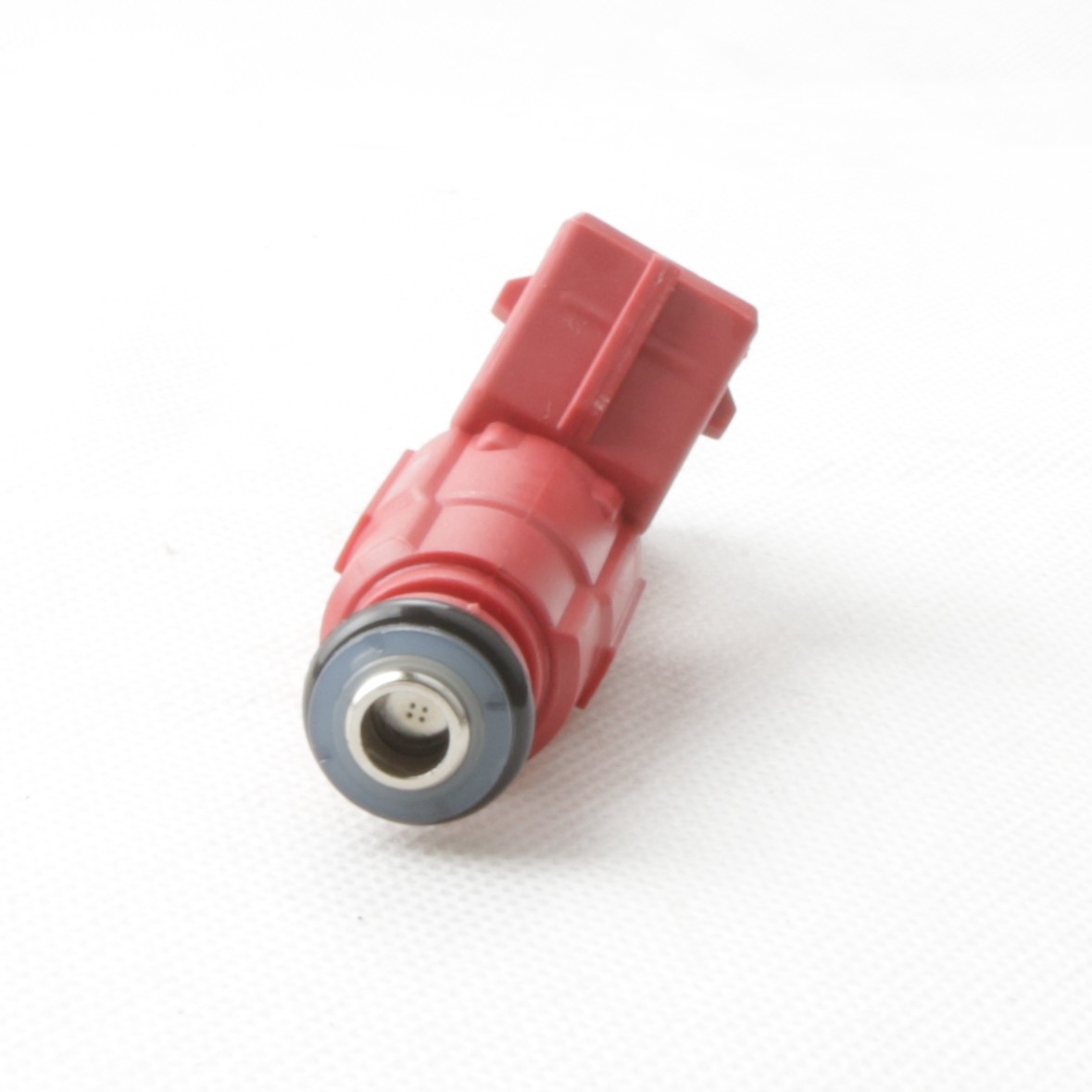

8PC 30lb RED Fuel Injectors Racing Type For Mustang V8 4.6 5.4L EV1 Style
Product Description
Condition:NEW
Package included:8 PCS
0280150945
Fuel Injector For Chevy Corvette and Camaro V8's
Pontiac Firebird and TransAm V8's
1986-1995 Ford Mustang GT, LX and Cobra 5.0L
1996-2004 Ford Mustang GT
The following models must change injector plugs, we will include EV1 plugs for free after receiving the extra message in order
1999/2001 Ford Mustang Cobra
2003-2004 Ford Mustang Cobra
2005-2012 Ford Mustang V8
Features
Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Technical Data
Coil Resistance: Approx.12 Ohms / High Impedance
Static Flow Rate: 30 lb/hr = 315cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Length: 3" (74mm)
Diameter: 16mm
O-Ring Diameter: 14.5mm
Package included:8 PCS
0280150945
Fuel Injector For Chevy Corvette and Camaro V8's
Pontiac Firebird and TransAm V8's
1986-1995 Ford Mustang GT, LX and Cobra 5.0L
1996-2004 Ford Mustang GT
The following models must change injector plugs, we will include EV1 plugs for free after receiving the extra message in order
1999/2001 Ford Mustang Cobra
2003-2004 Ford Mustang Cobra
2005-2012 Ford Mustang V8
Features
Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Technical Data
Coil Resistance: Approx.12 Ohms / High Impedance
Static Flow Rate: 30 lb/hr = 315cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Length: 3" (74mm)
Diameter: 16mm
O-Ring Diameter: 14.5mm
