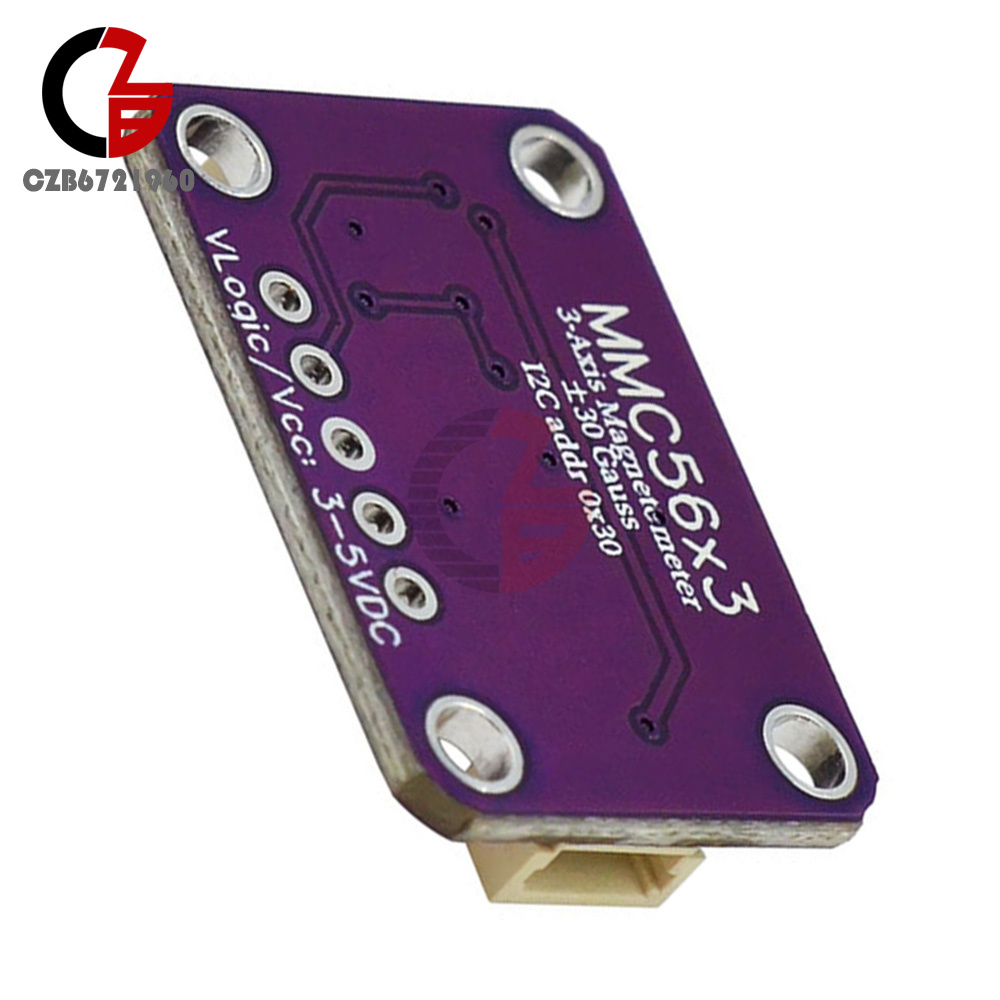

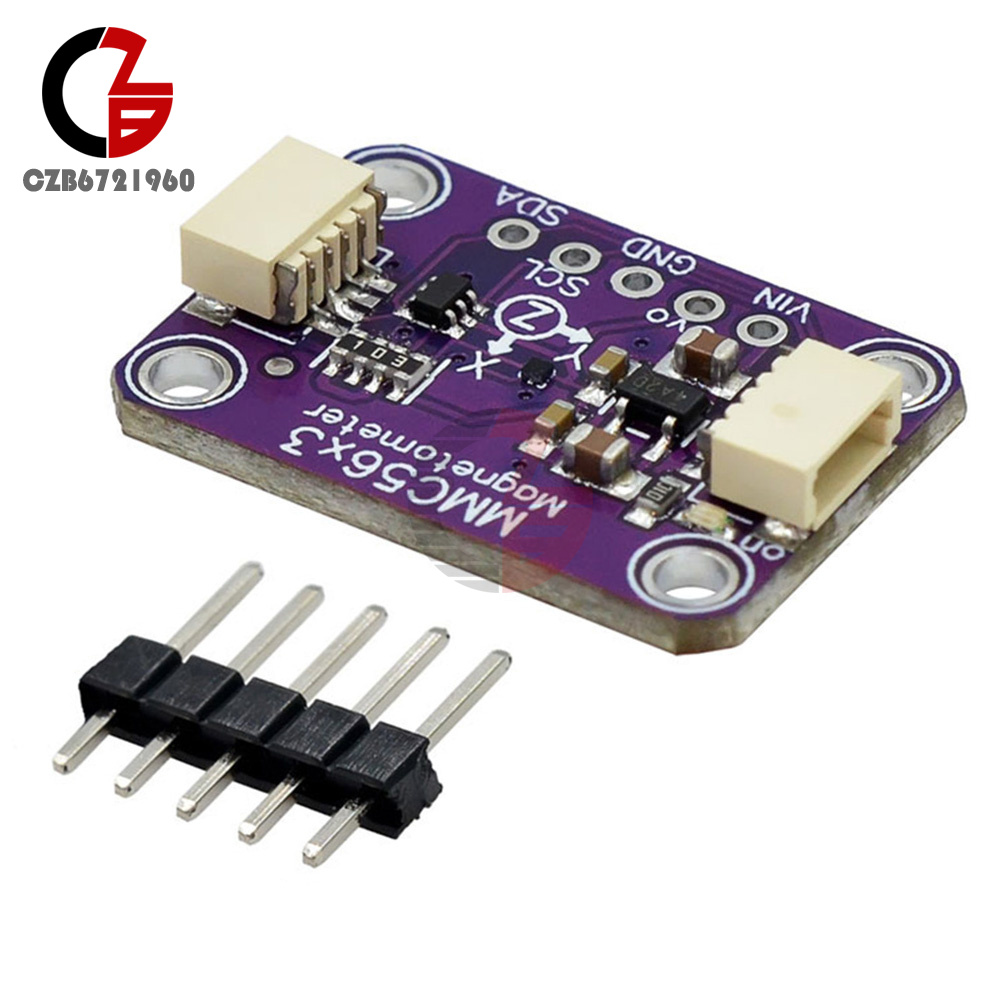

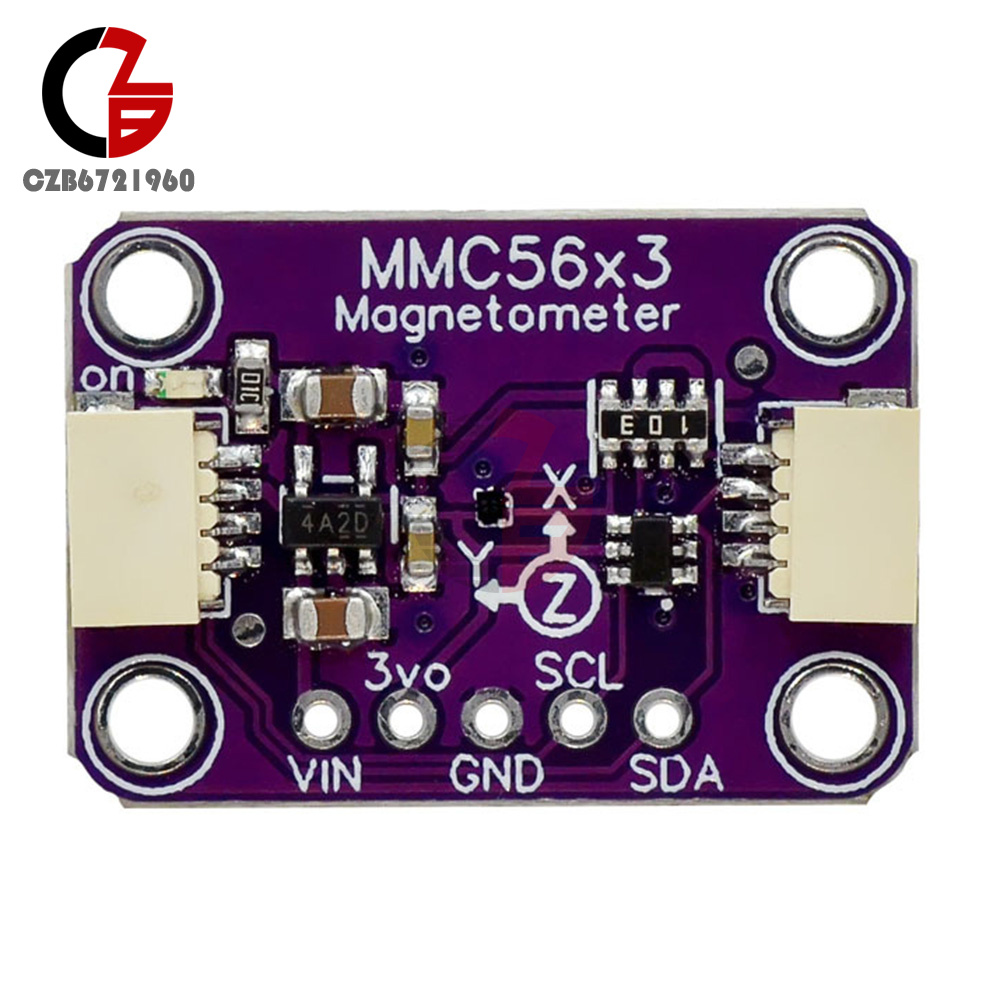

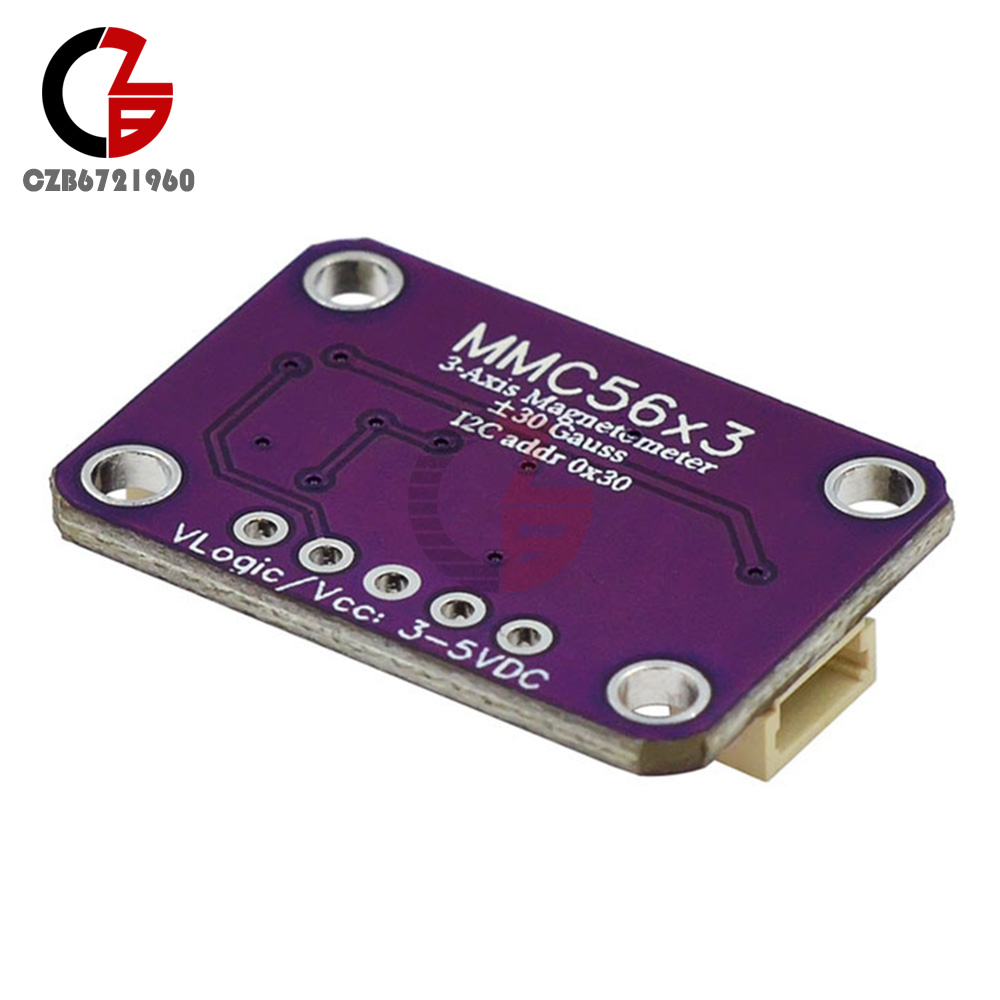

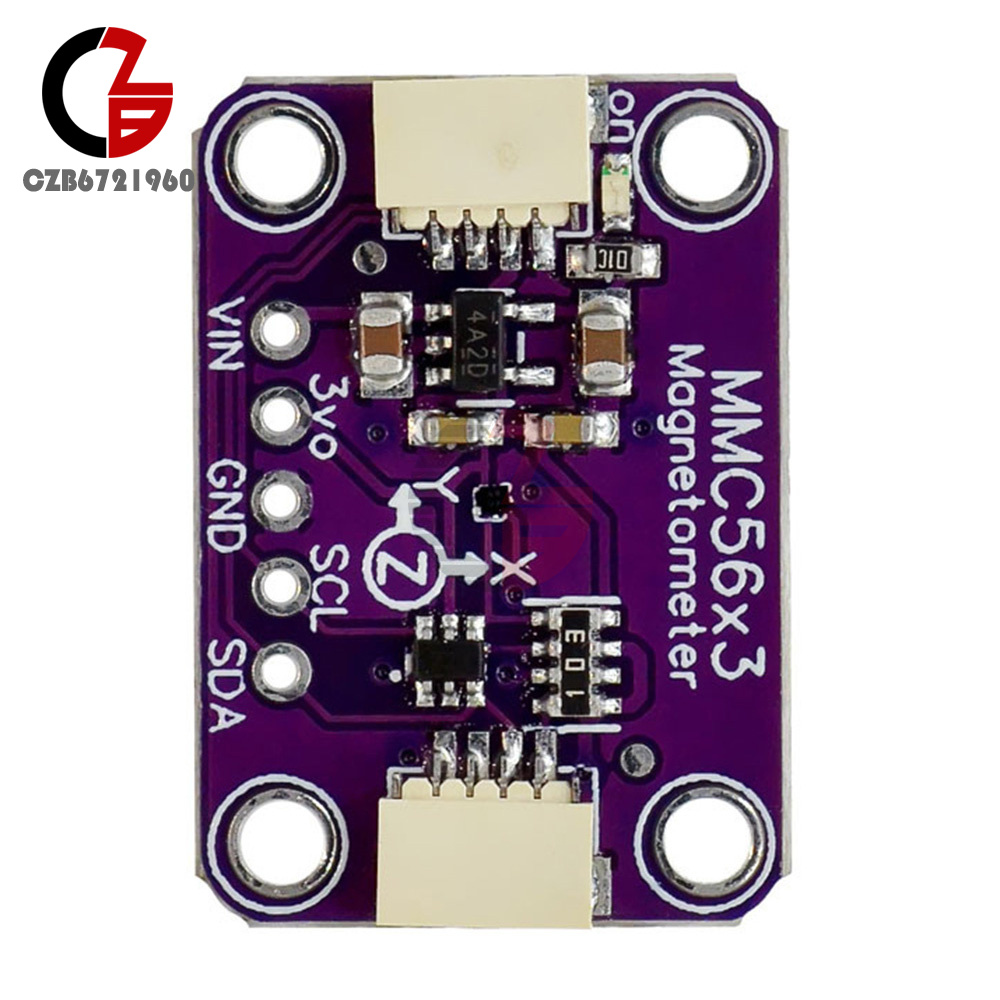

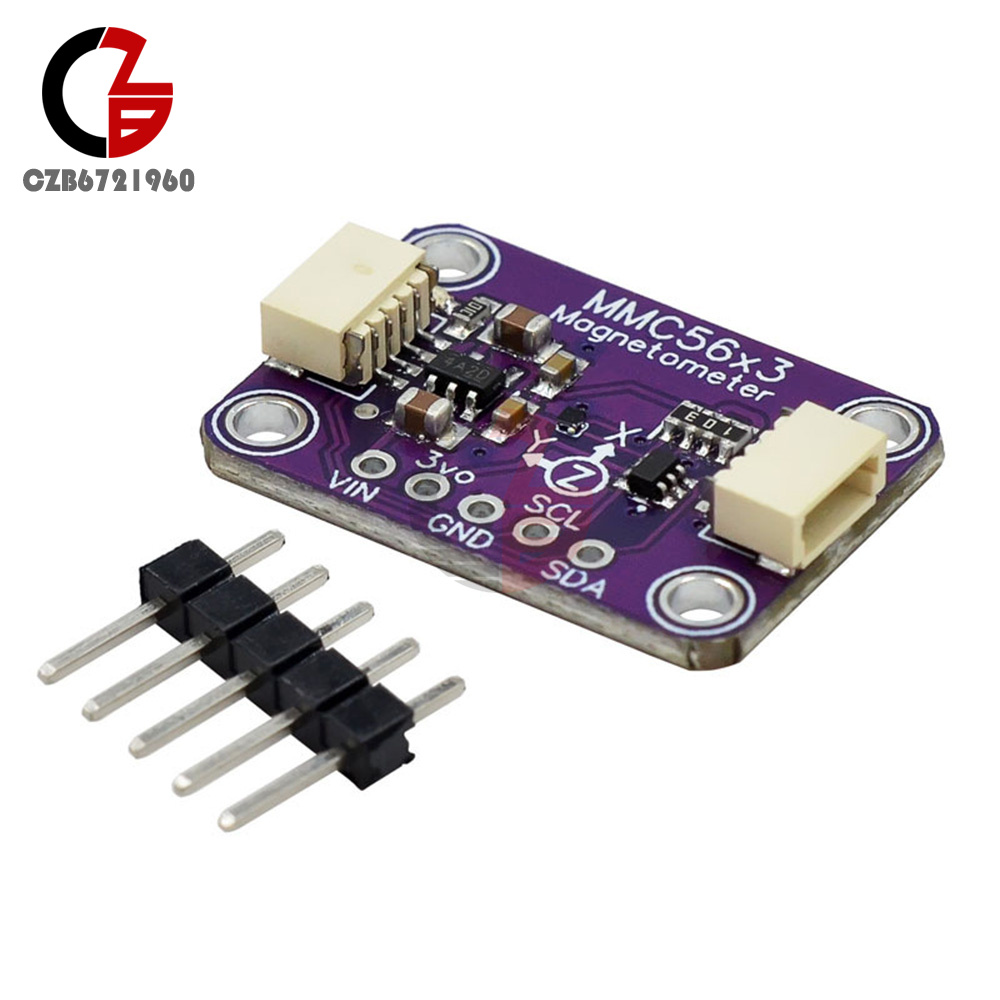

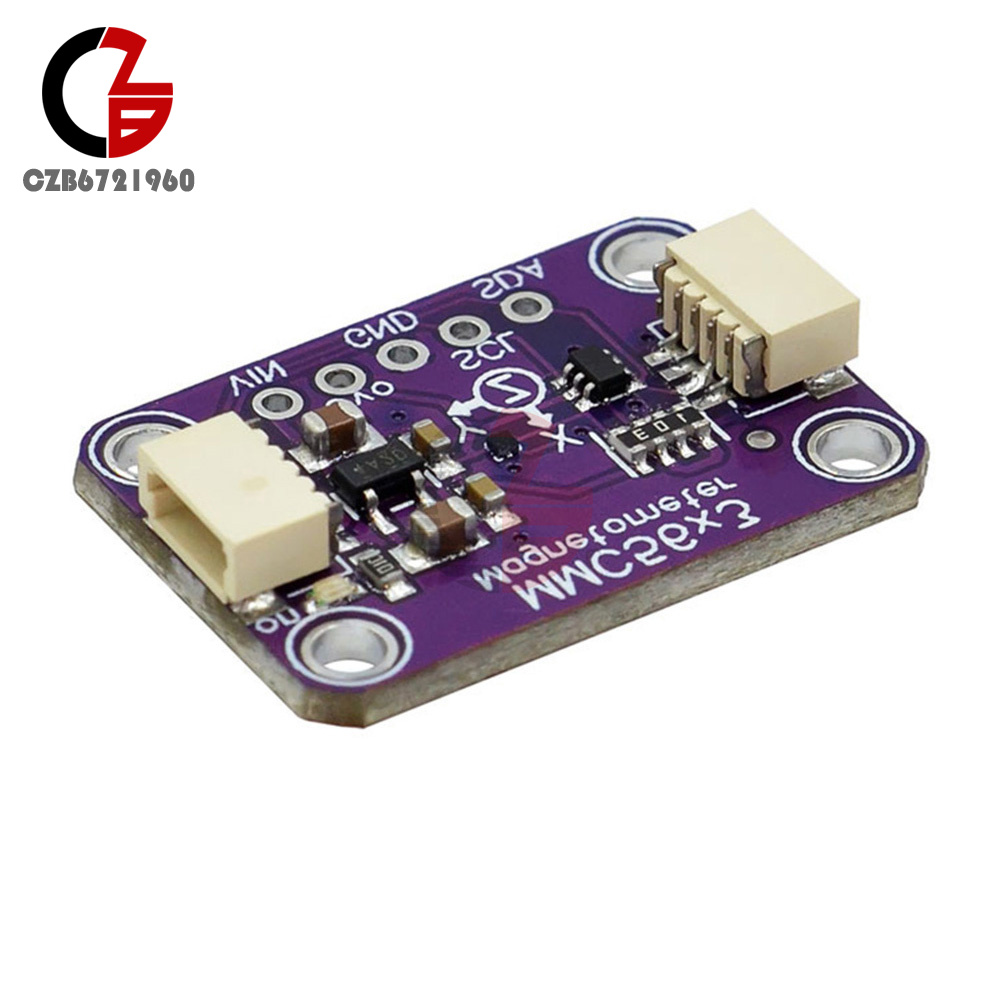

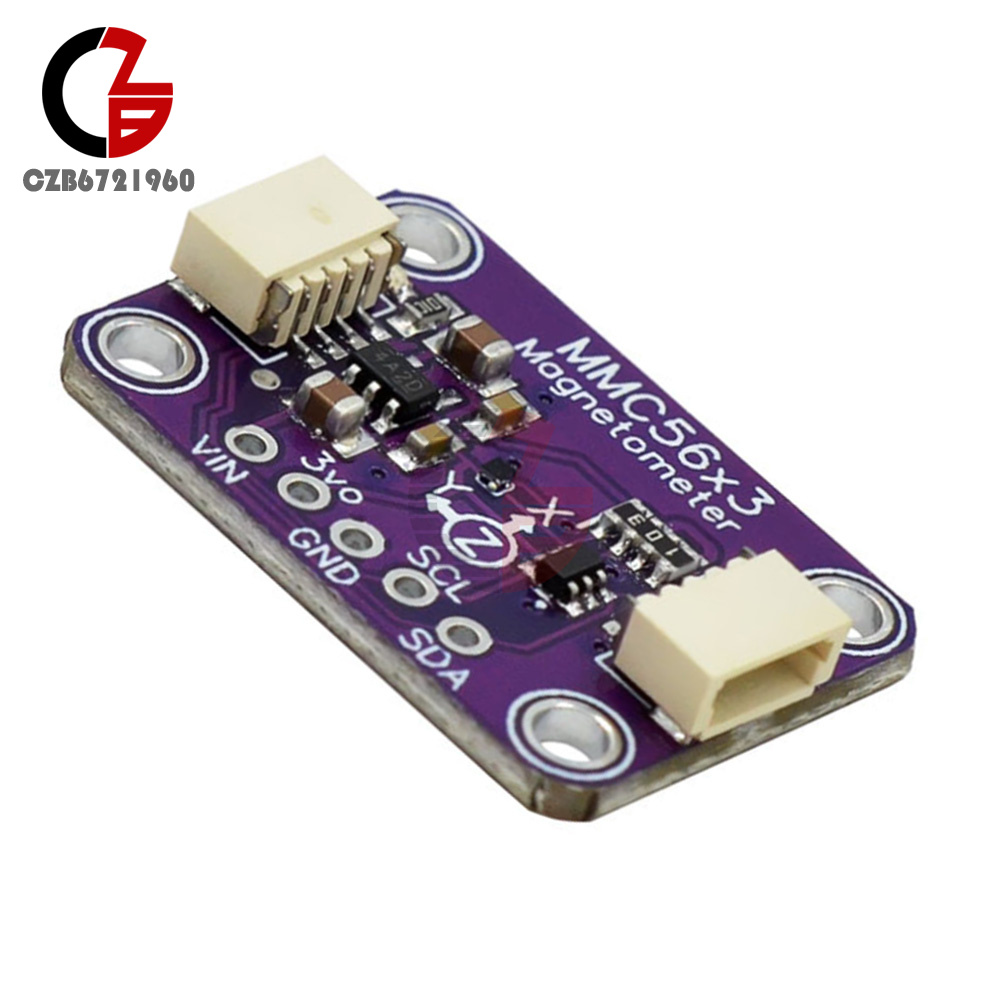

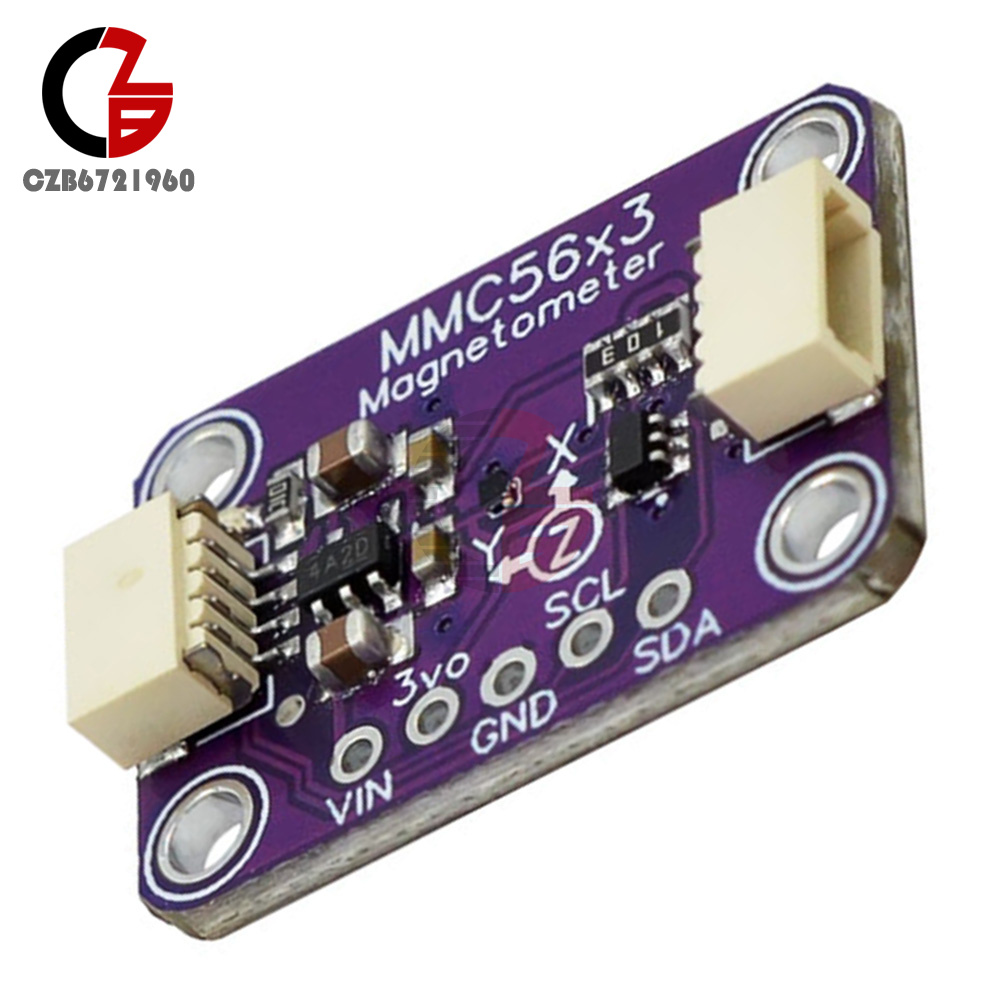

3-Axis Magnetic Sensor Triaxial Magnetometer Module MMC5603 For STEMMA QT/Qwiic

Popular

    Product Introduction

    Features:
    1. use high quality material, quality is guaranteed
    2.Magnetometer can sense where the strongest magnetic force comes from and can be used to measure the magnetic field
    3.This product does not require soldering! Just connect to your favorite microcontroller and get magnetic measurement as soon as possible!
    4. The sensor can sense over a range of ±30 gauss (±3000uT or ±3mT) with no range setting required, and the full 20-bit output reads up to a 1000Hz rate. This range is ideal for reading the earth's magnetic field (maximum value of about 0.6 gauss) or some basic magnets.

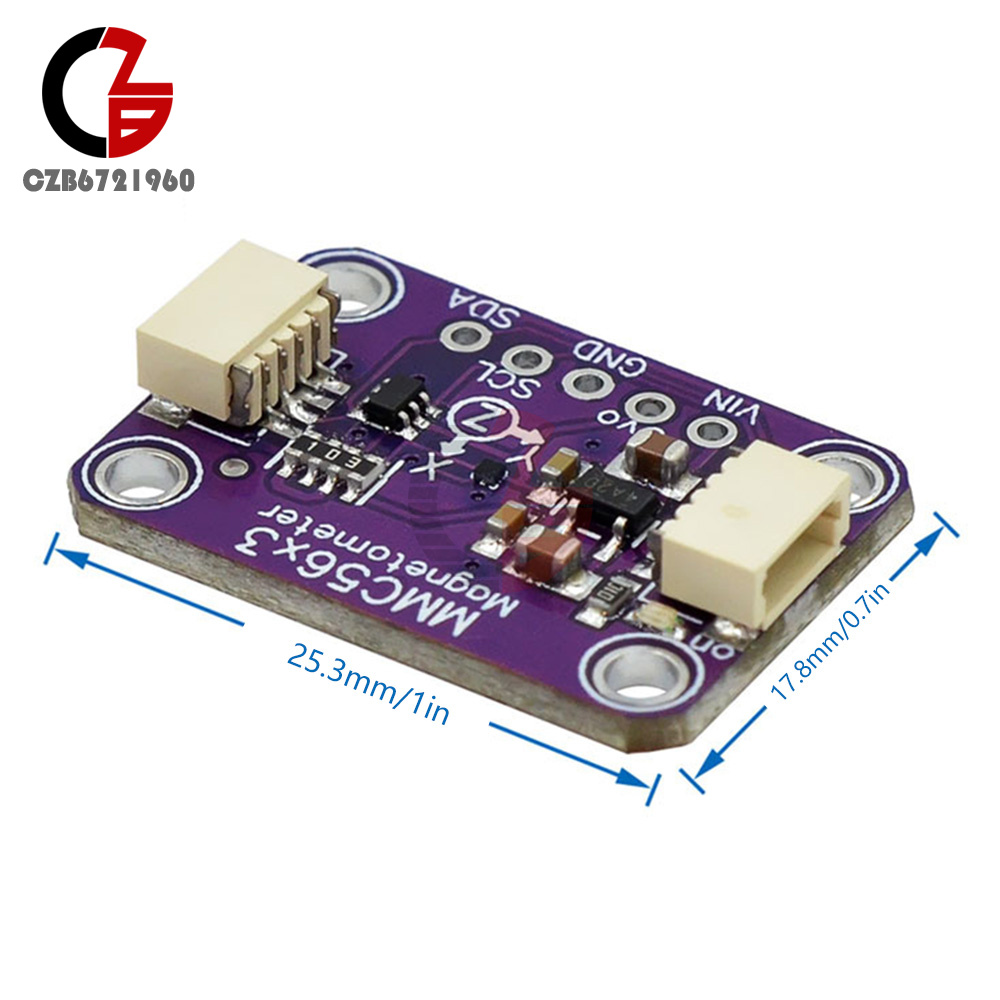

    5. This product is fully assembled and tested. Comes with a little 0.1" standard connector in case you want to use it with a breadboard or perforated board. Four 2.5mm (0.1") mounting holes for even easier installation
    Product Parameters:
    l2C address 0x30
    Monolithic integrated 3-axis AMR magnetic sensor
    Excellent dynamic range and accuracy:
    ±30 G FSR
    20-bit operating mode
    0.0625mG resolution per LSB
    2mG total RMS noise realized
    1° heading accuracy
    Sensor true frequency response up to 1 KHz
    l2C peripheral, fast (≤400 KHz) mode
    On-chip automatic demagnetization with built-in SET/RESET function
    Eliminates offset errors caused by thermal changes (null field output)
    Removal of residual magnetization from strong external fields
    On-chip sensitivity compensation, on-chip temperature sensor

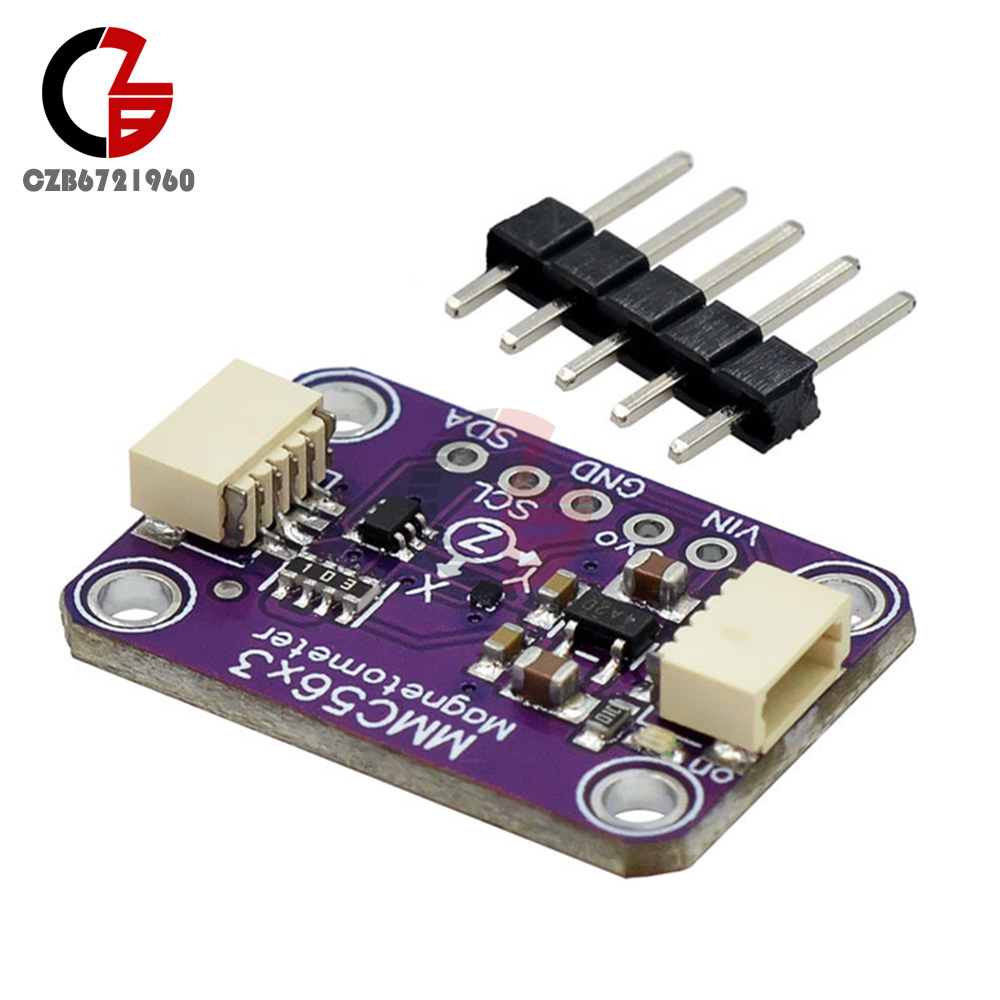

    Package list:
    Magnetometer module*1
    row of pins *1
