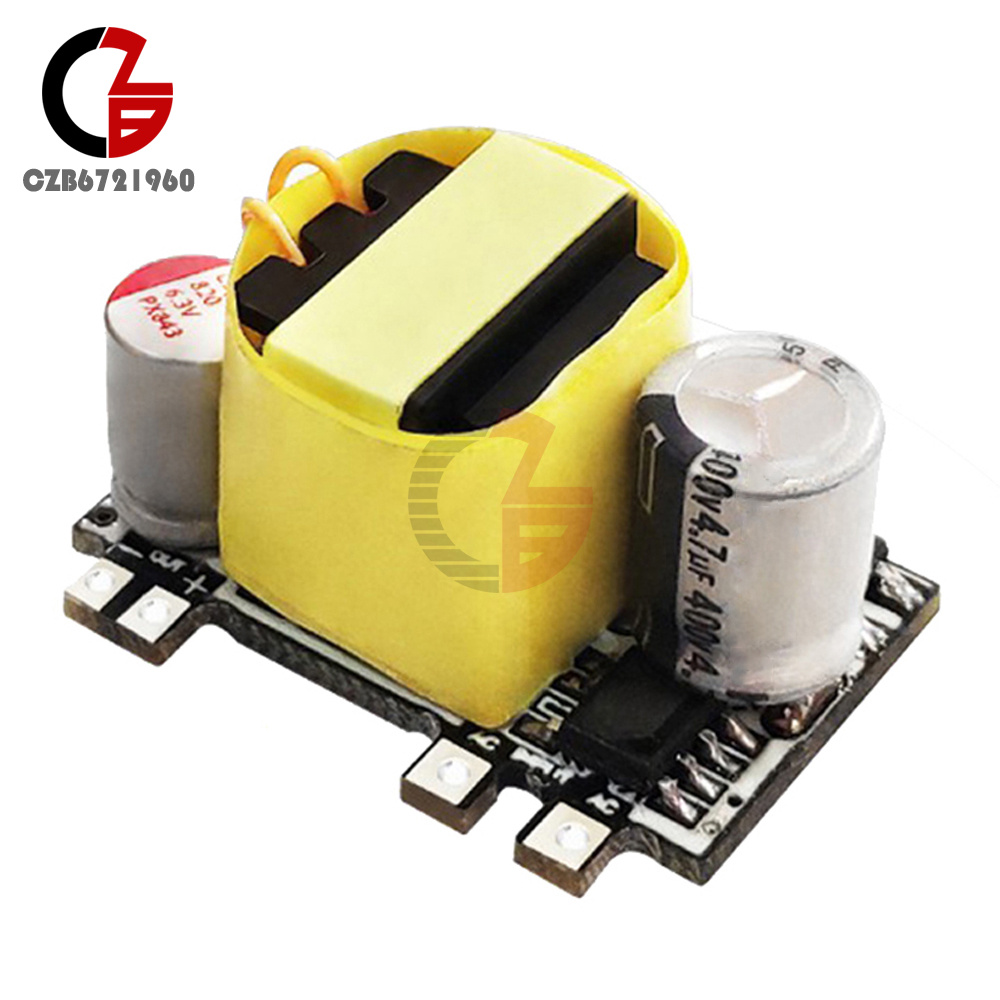

5V-12V AC-DC Isolated Switching Power Supply Module Buck Module Step Down Module

Popular

    Product Introduction

    Features
    Over-current protection, over-temperature protection
    Overload protection, short circuit protection
    components double-sided layout volume more compact, tiny volume installed more convenient.
    with temperature protection, small size, stable performance and high cost performance.
    Applicable to industrial instruments and instruments, intelligent home switch and socket host, etc., civilian electronic products, toys, chargers and other products

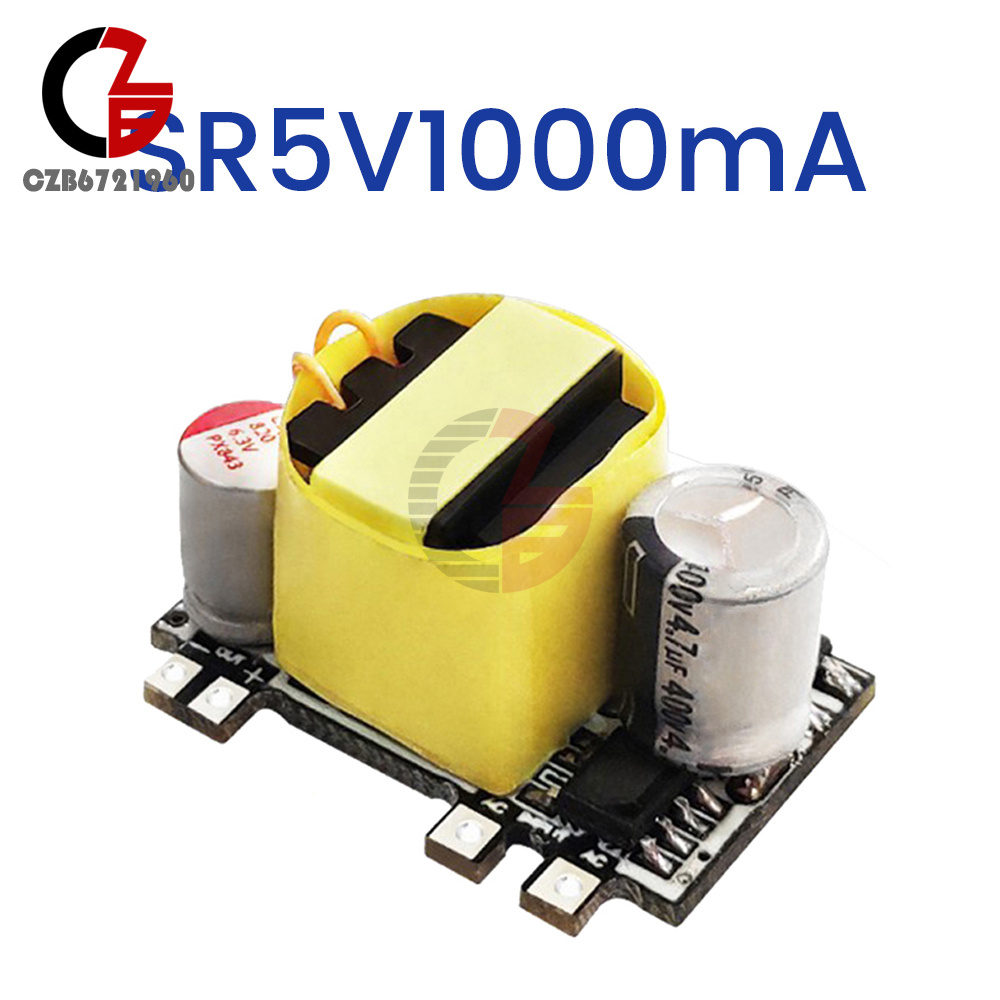

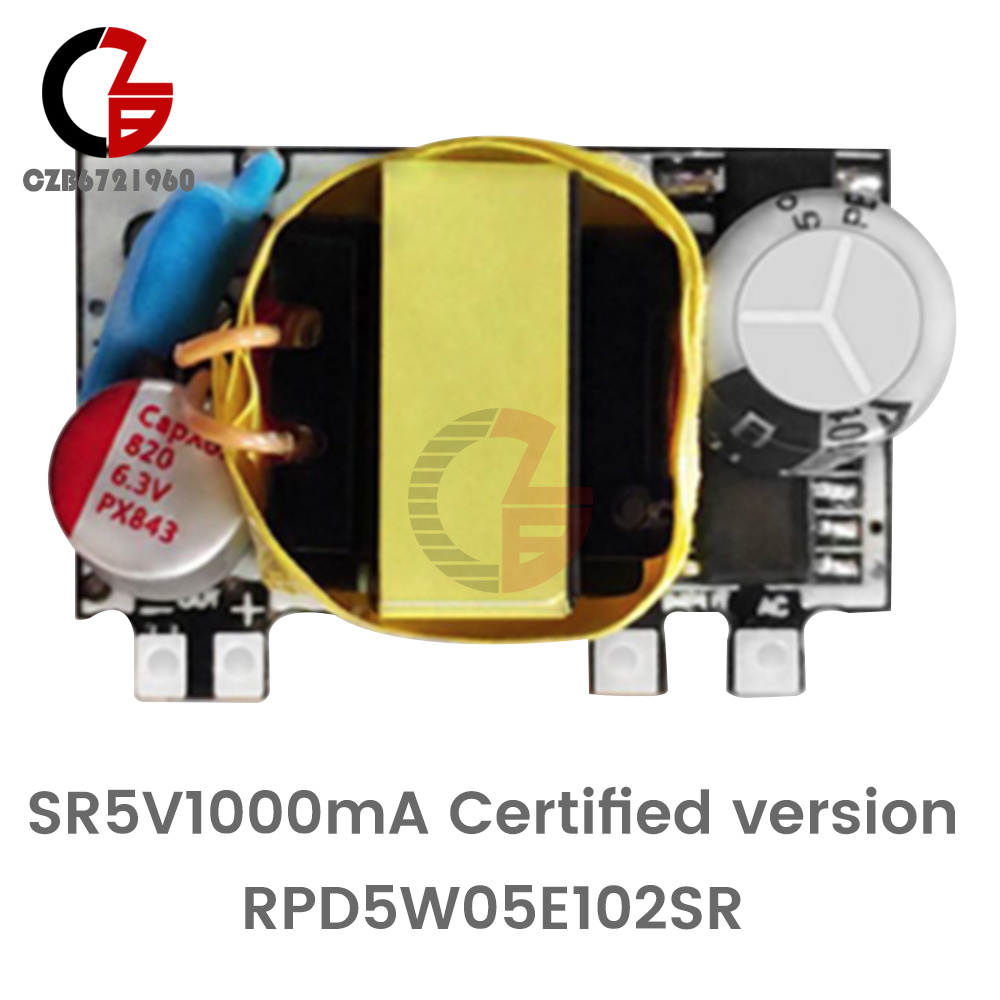

    5V 1000MA
    Input: AC70-270V, DC100-380v
    Output voltage: DC 5V (±0.1V)
    Output current: 1000MA

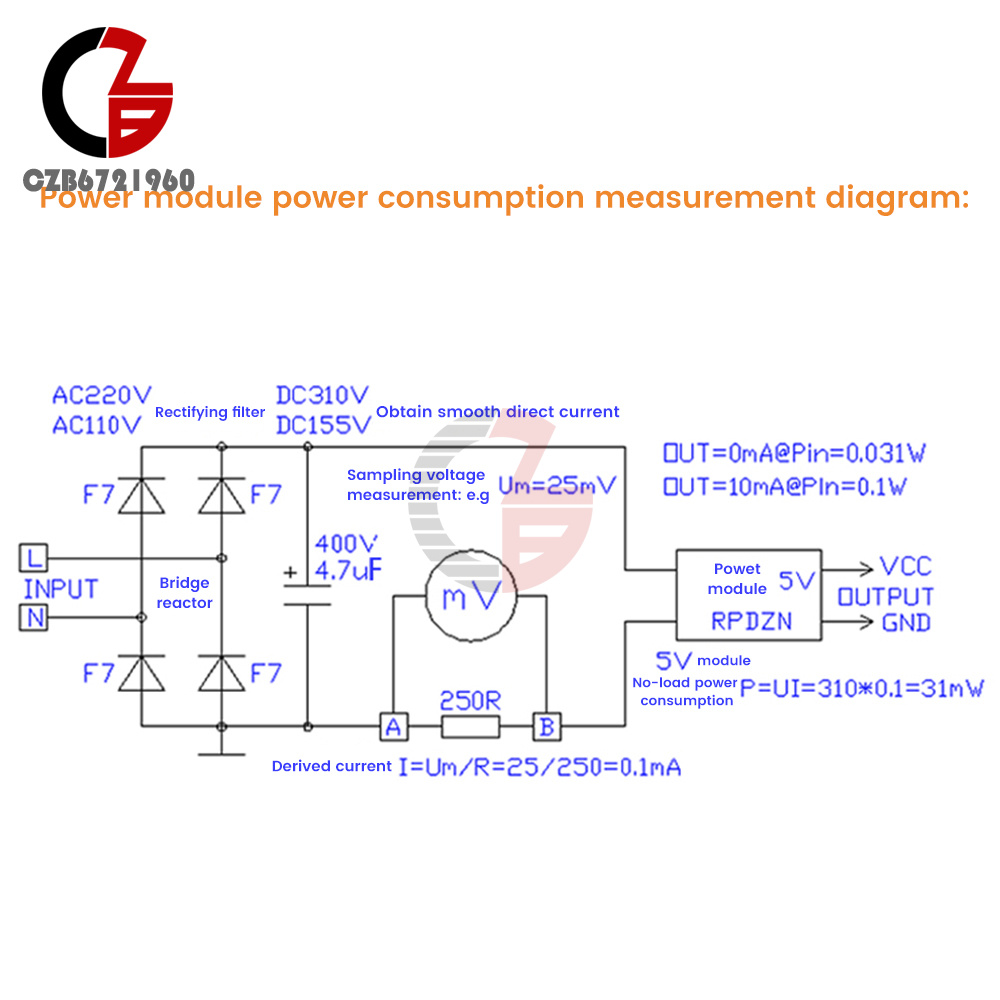

    No-load power: 0.03W
    Frequency range (Hz): 47-63
    Operating temperature: -25-70°C (maximum temperature resistance of components 105°C) (not recommended to be used at higher than 70°C)
    Efficiency: ≥73%-80%;

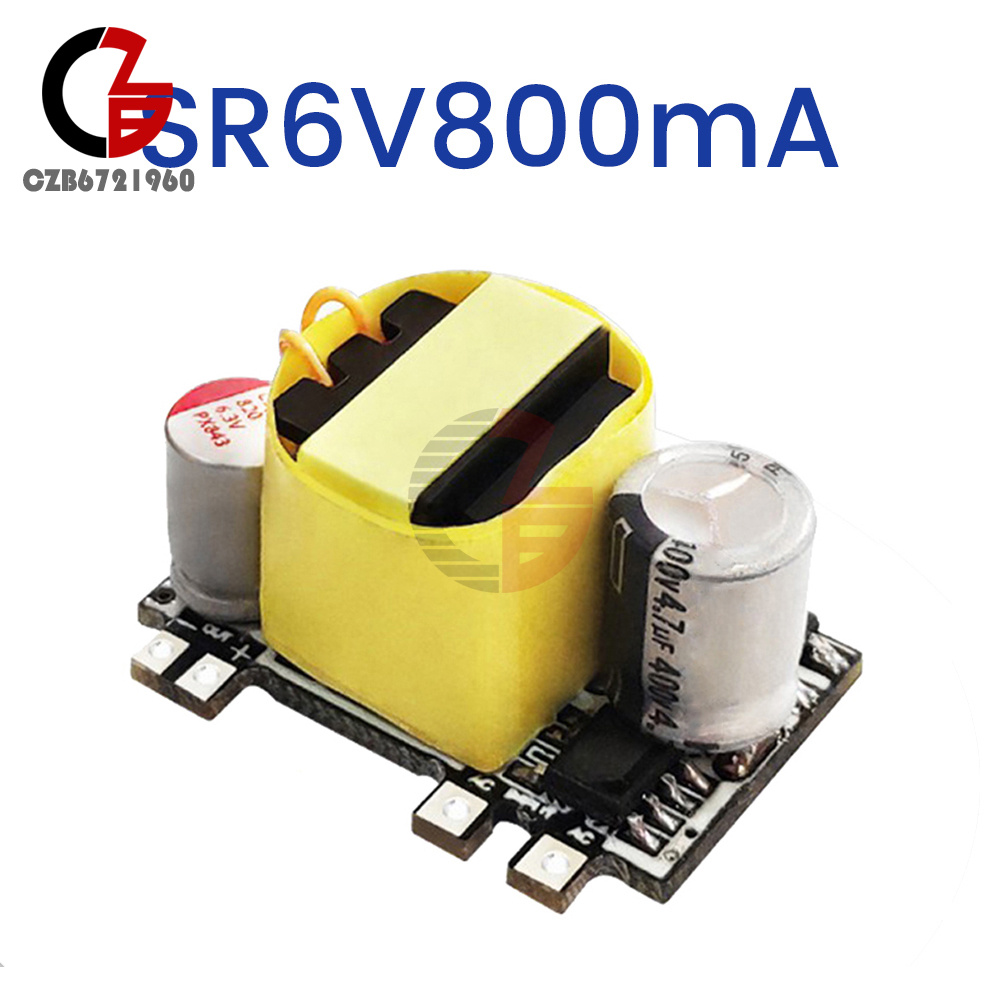

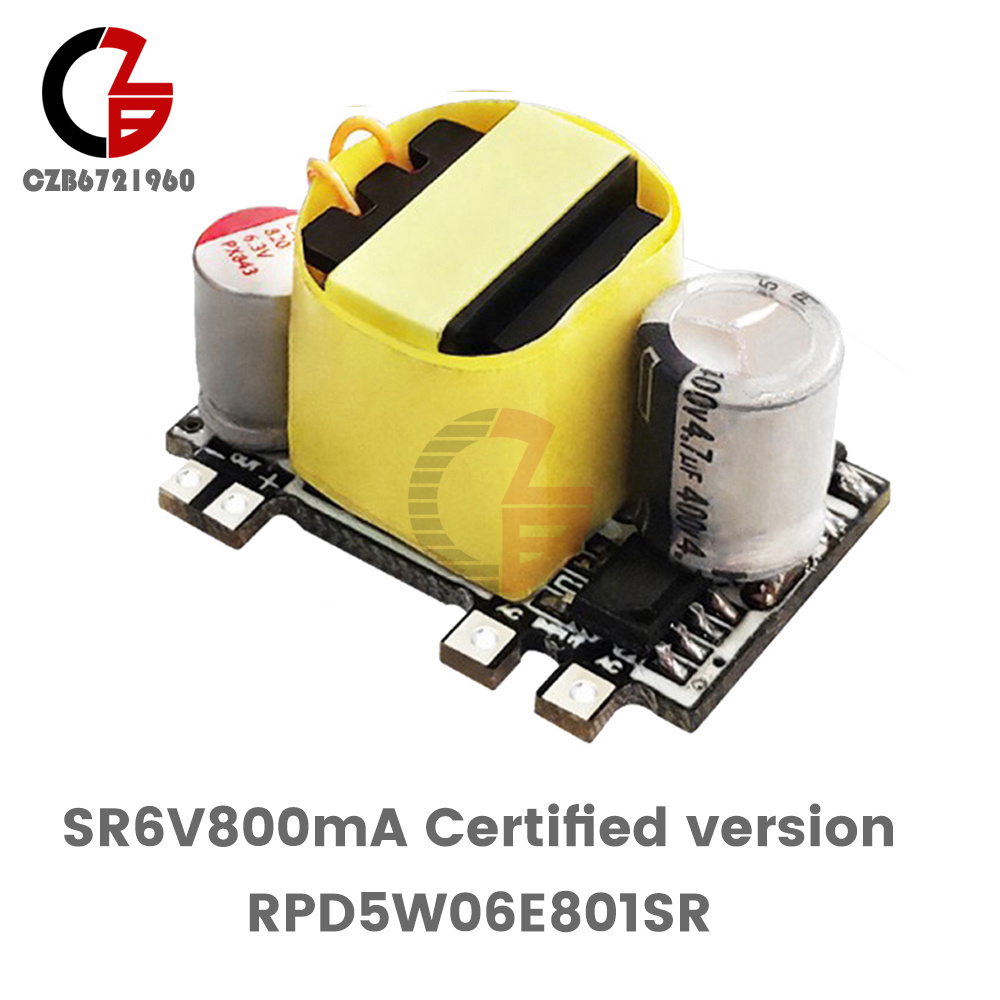

    6V 800MA
    Input: AC70-270V, DC100-380V
    Output voltage:DC 6V (±0.1V)
    Output current:800MA
    No-load power: 0.03W
    Frequency range(Hz):47-63
    Operating temperature: -25-70°C (maximum temperature resistance of components 105°C) (not recommended to be used at higher than 70°C)
    Efficiency: ≥73%-80%;

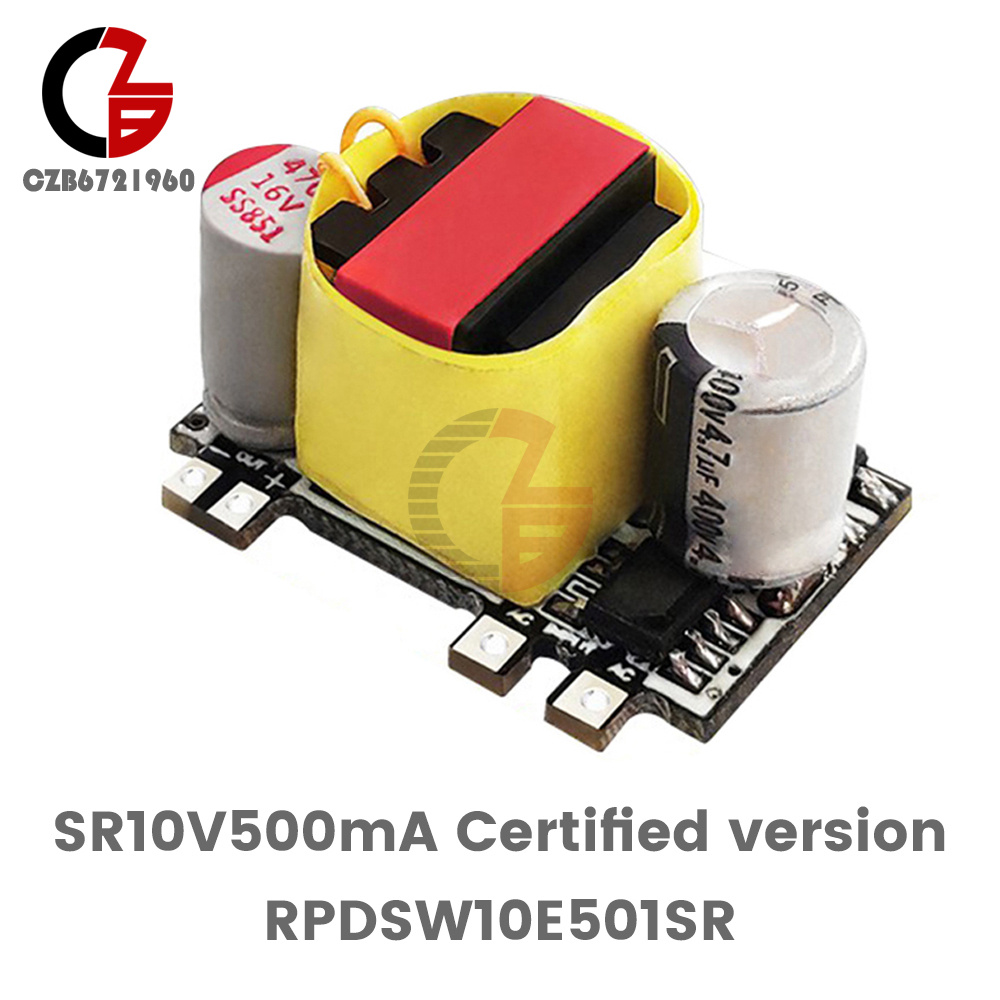

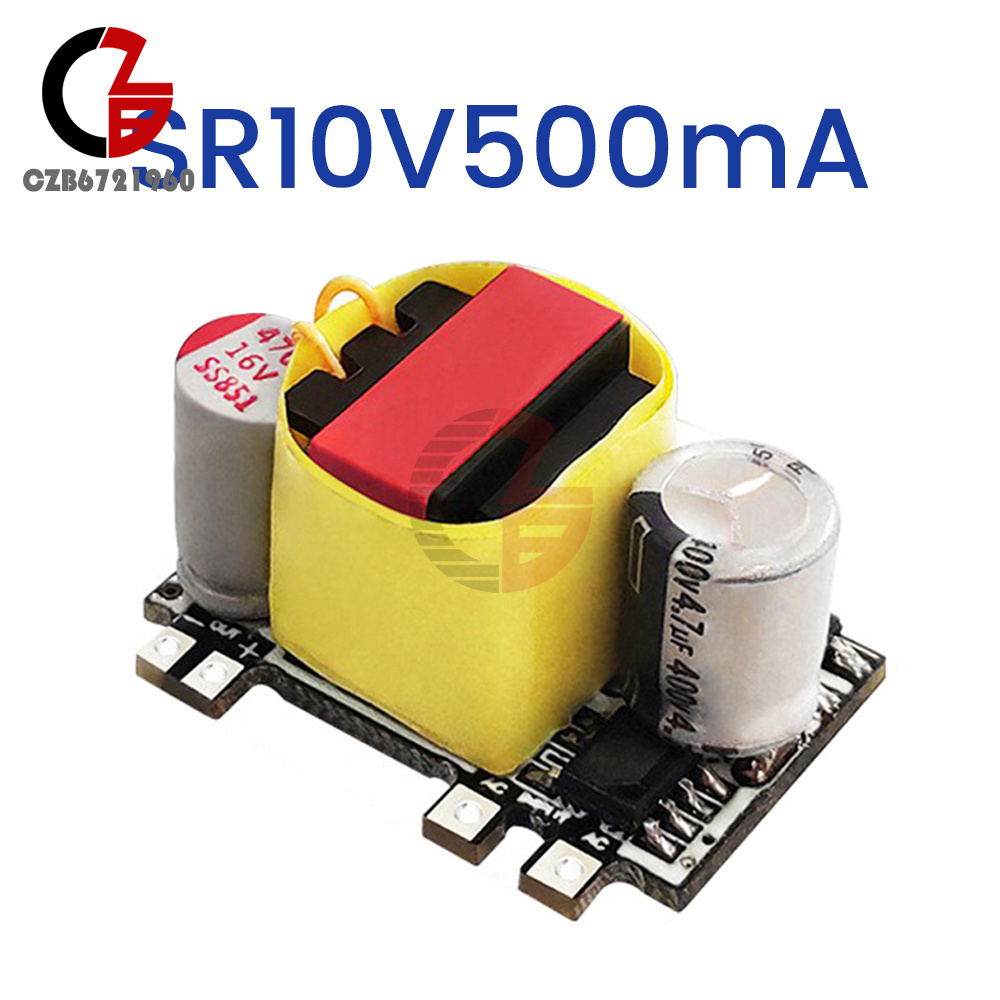

    10V 500MA
    Input: AC70-270V, DC100-380V
    Output voltage:DC 10V (±0.1V)
    Output current:500MA
    No-load power: 0.07W
    Frequency range(Hz):47-63
    Operating temperature: -25-70°C (maximum temperature resistance of components 105°C) (not recommended to be used at higher than 70°C)
    Efficiency: ≥73%-80%;

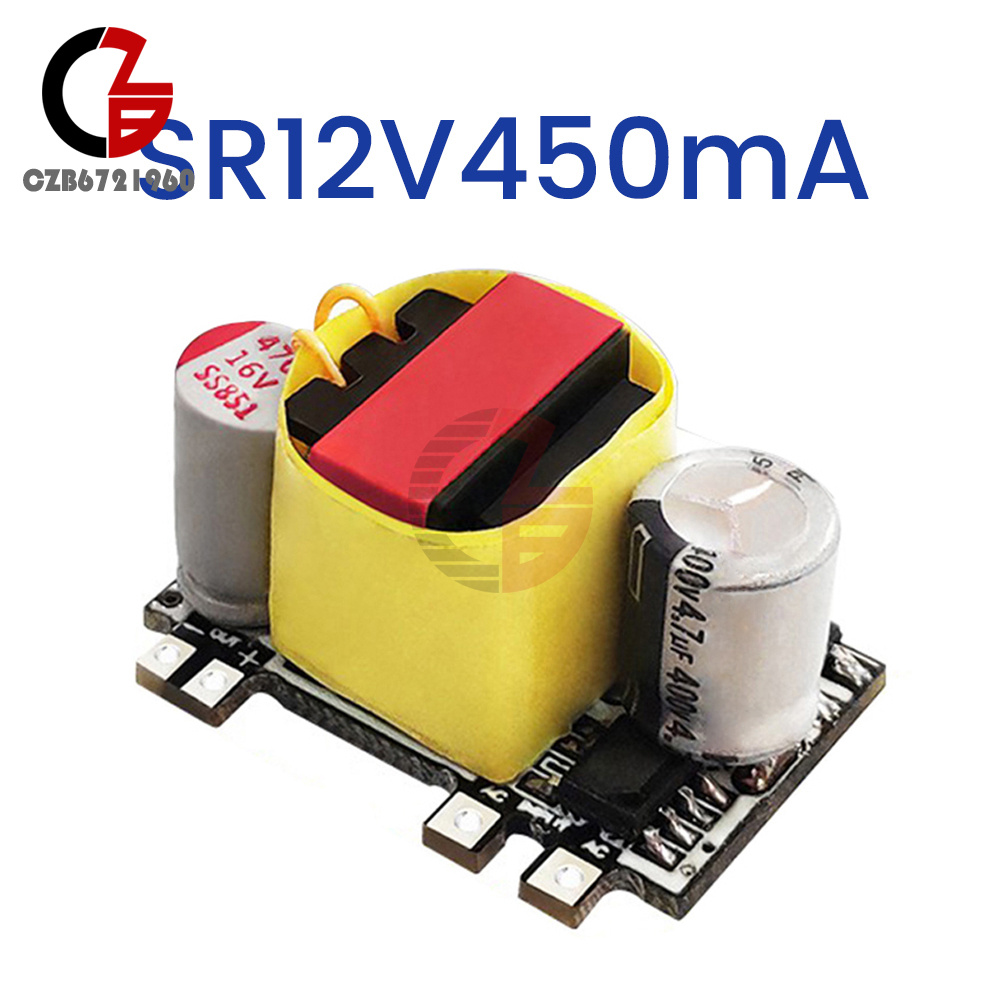

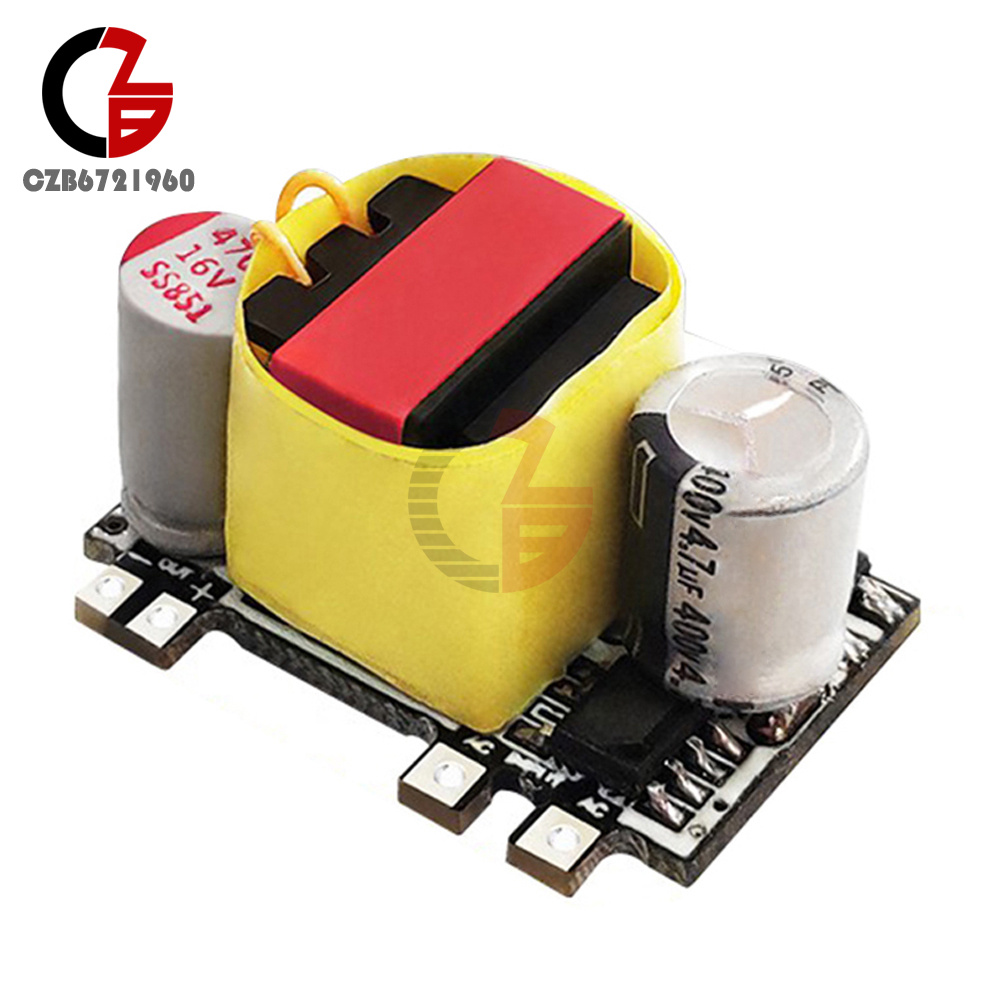

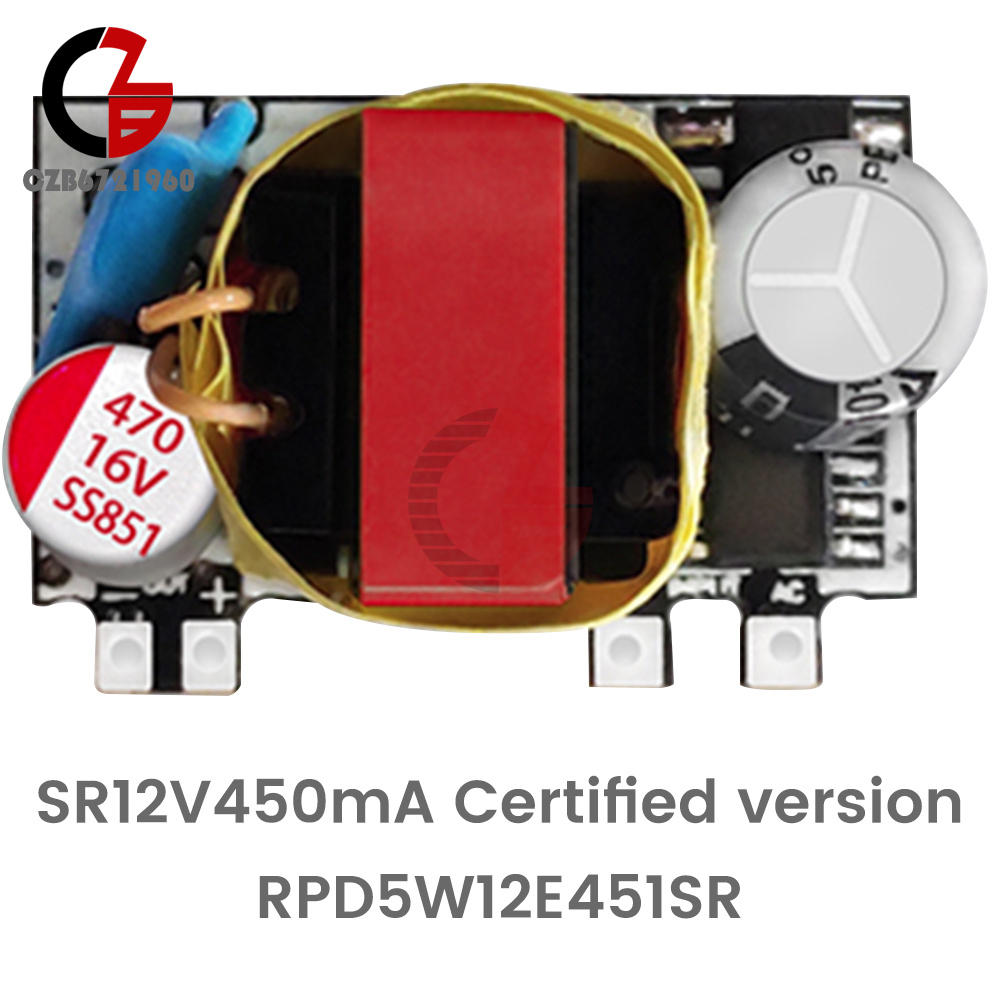

    12V 450MA
    Input: AC70-270V, DC100-380V
    Output voltage:DC 12V (±0.1V)
    Output current:450MA
    No-load power: 0.07W
    Frequency range(Hz):47-63
    Operating temperature: -25-70°C (maximum temperature resistance of components 105°C) (not recommended to be used at higher than 70°C)
    Efficiency: ≥73%-80%;

    List
    1 x Power Module

    Note
    -Please do not press heavily above the transformer to avoid crushing the coil.
    -This power supply as far as possible in the board to open the hole straight plug installation, there is no need to use the curved pin vertical installation, if you need to straight pin lying installed or paste the board installation, please note that the place of contact with the power supply module do not go line, in order to avoid pin scratching the line caused by short circuit.
    -Performance for no output, or output voltage fluctuations, such as the occurrence of the situation, please contact us in a timely manner, the power supply factory is 100% test shipments, the usual situation out of improper use.
