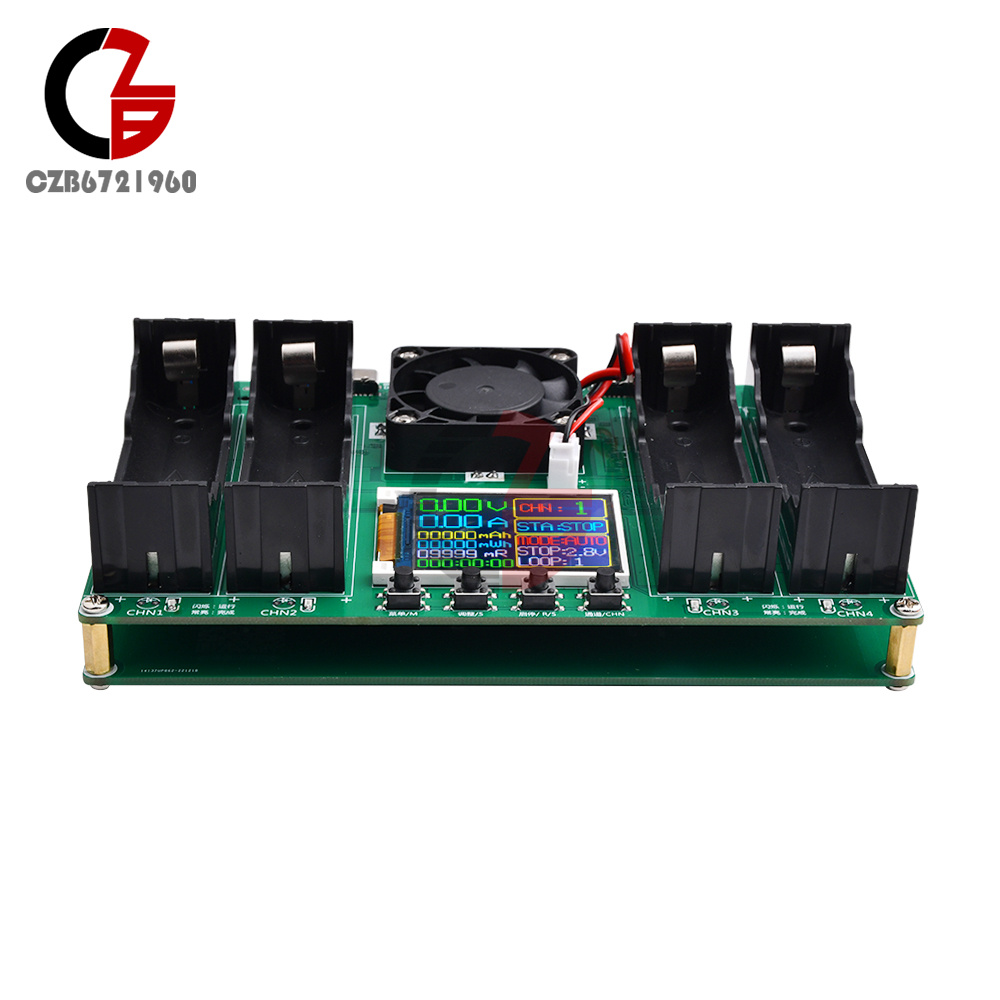

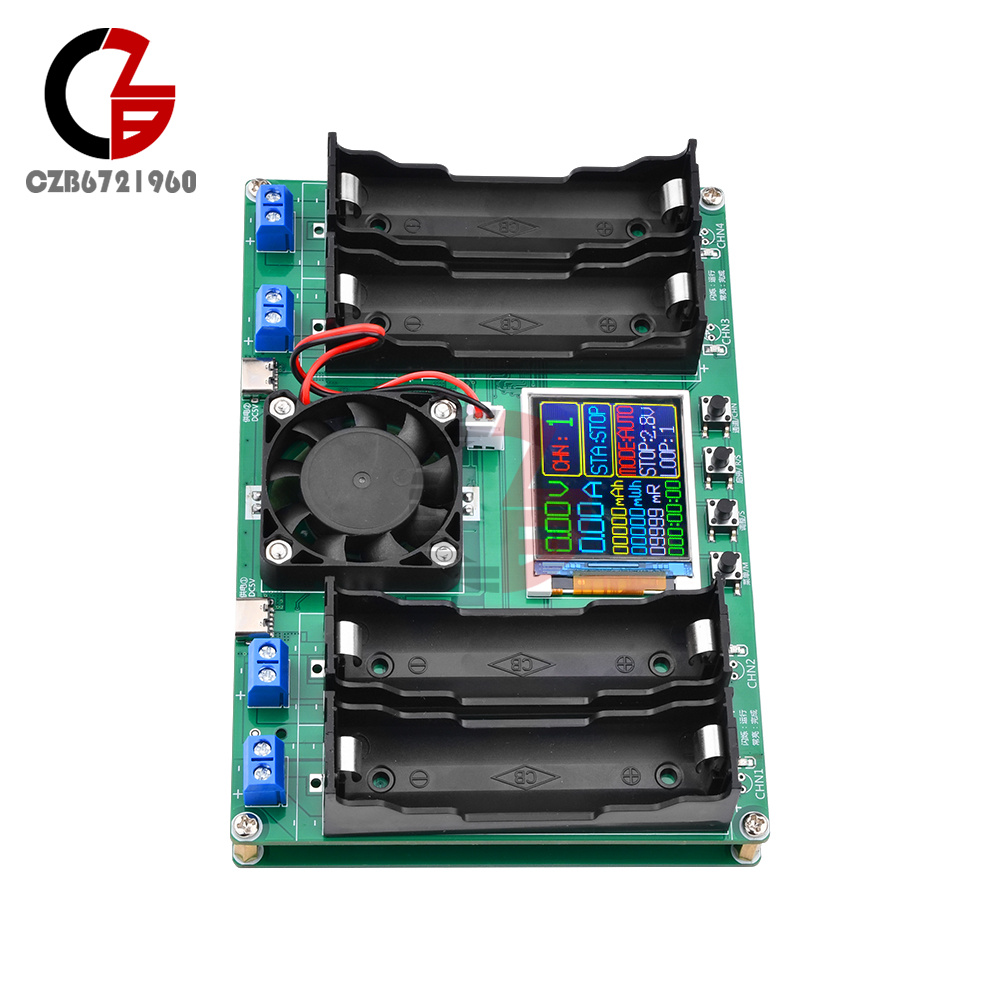

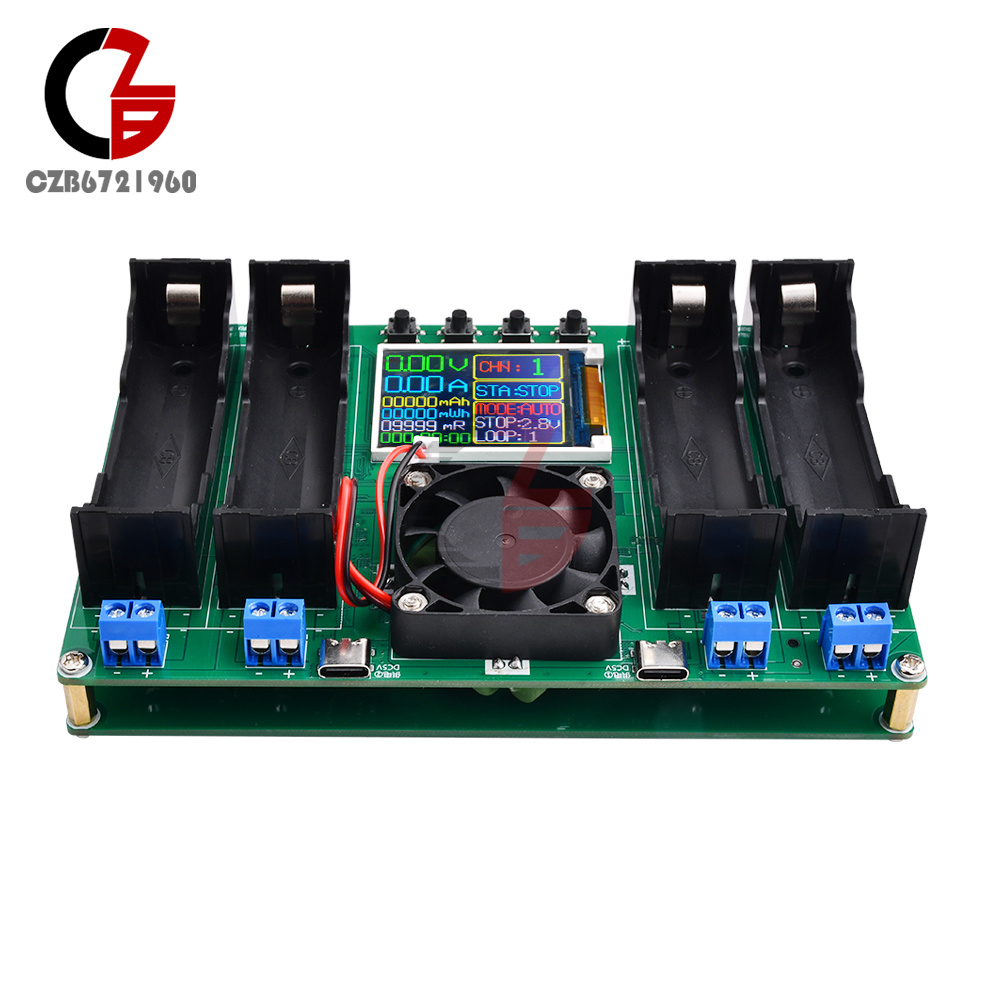

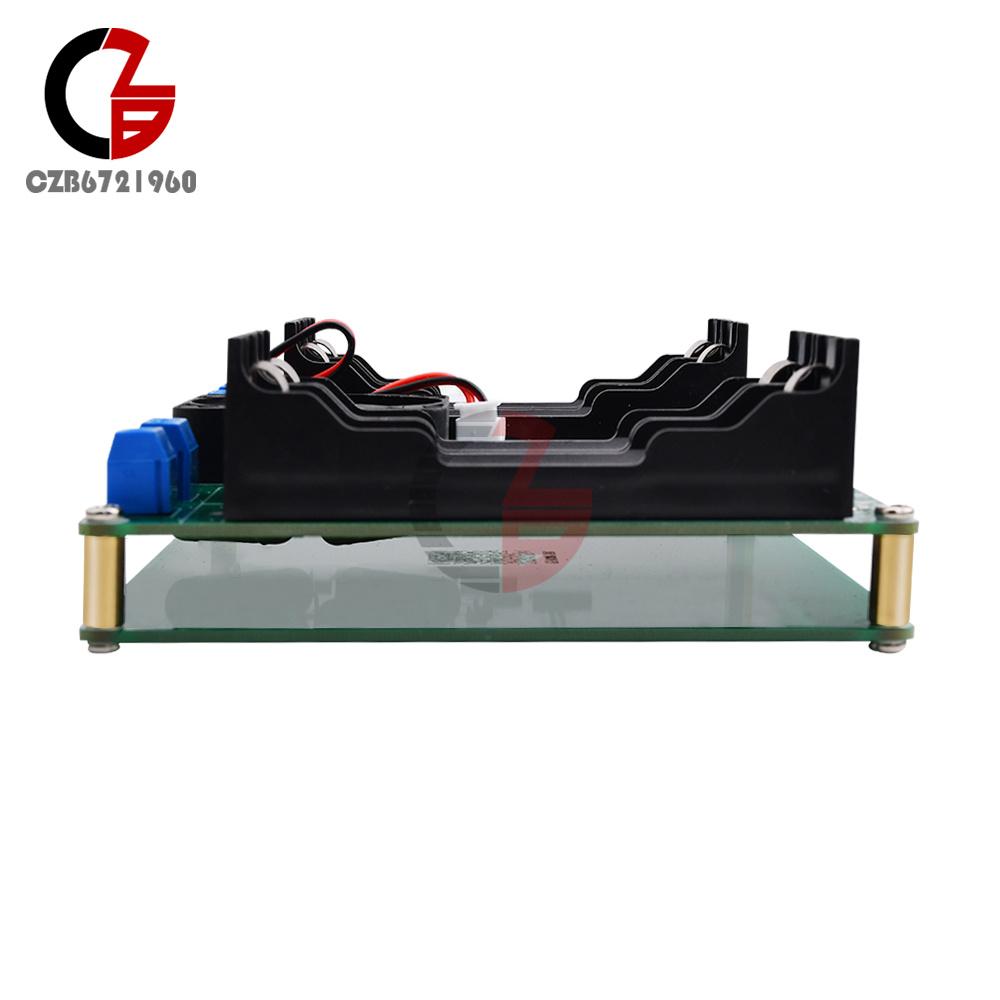

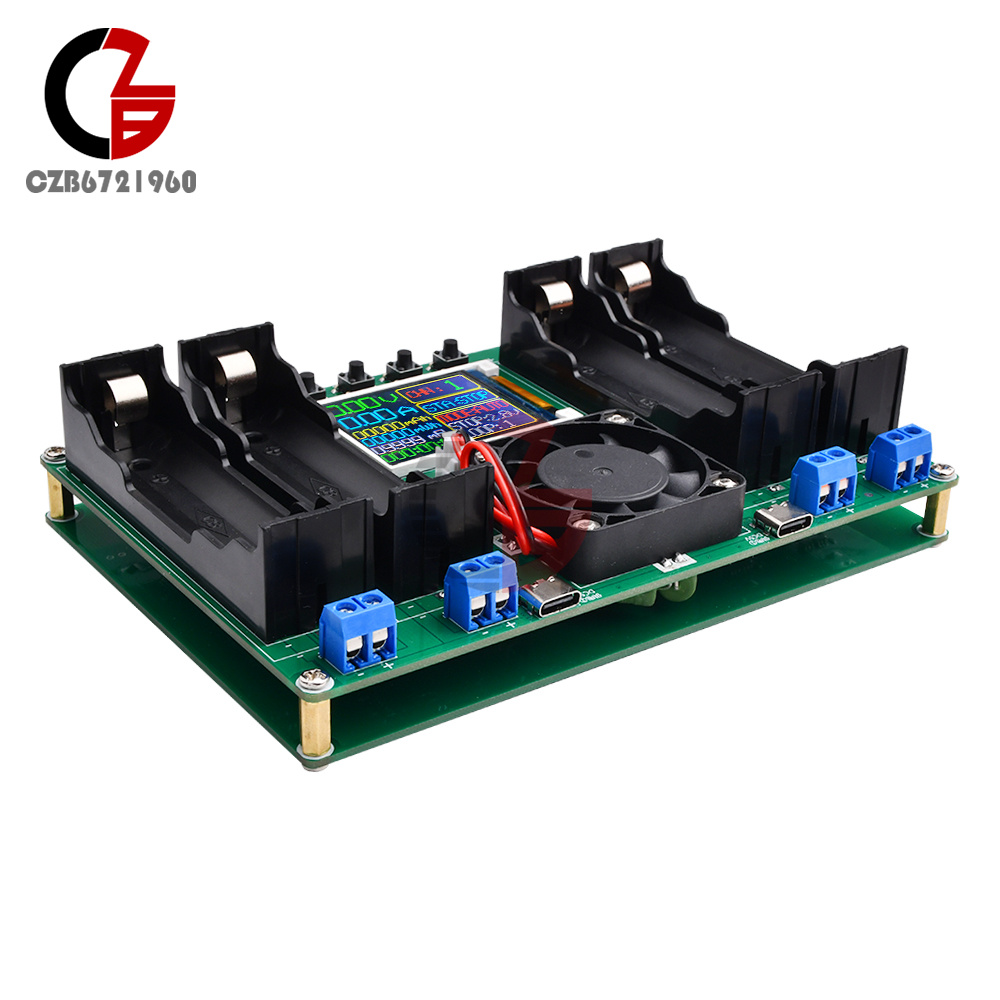

4-CH 18650 Battery Capacity Tester Automatic Internal Resistance Tester Type-C
Popular
Product Introduction
Product Features:
Product supports four-channel capacity and internal resistance measurement
Support separate charging, separate discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of each other, set up separately, independent operation, no interference
18650 battery holder using compact battery holder, suitable for flat battery measurement
Fan active heat dissipation Support overheating protection
Using DC two-wire method to test internal resistance
Product supports four-channel capacity and internal resistance measurement
Support separate charging, separate discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of each other, set up separately, independent operation, no interference
18650 battery holder using compact battery holder, suitable for flat battery measurement
Fan active heat dissipation Support overheating protection
Using DC two-wire method to test internal resistance
Note: does not support the charging of lithium iron phosphate batteries
Basic parameters:
Operating voltage: DC5V
Operating voltage: DC5V
Applicable battery: Meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery are applicable

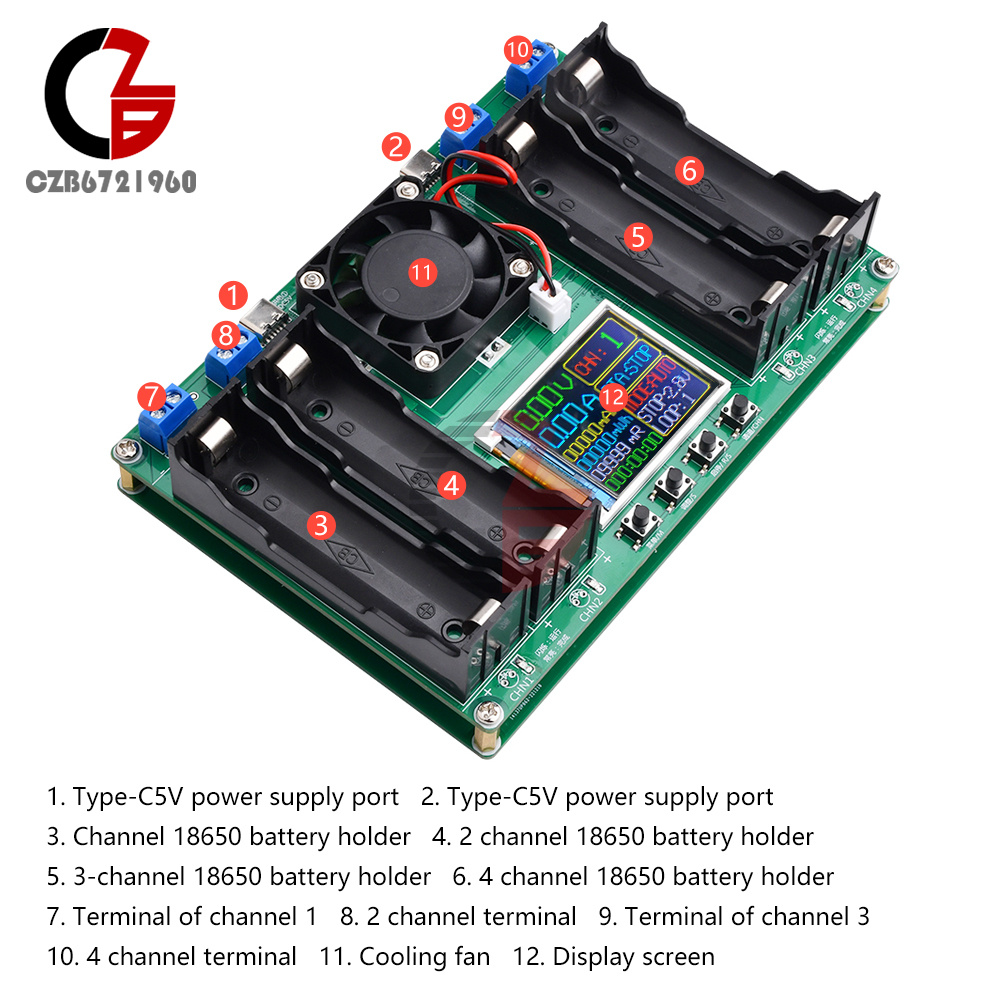

Power supply interface: two Type-C power supply interface (power supply and power cable provided)
System language: English / Chinese switchable
Test quantity: 4-channel charging and discharging measurement
Internal resistance measurement: support, using the DC two-wire method to test the internal resistance
Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)
Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: support, automatic mode ends when the battery is fully charged
Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)

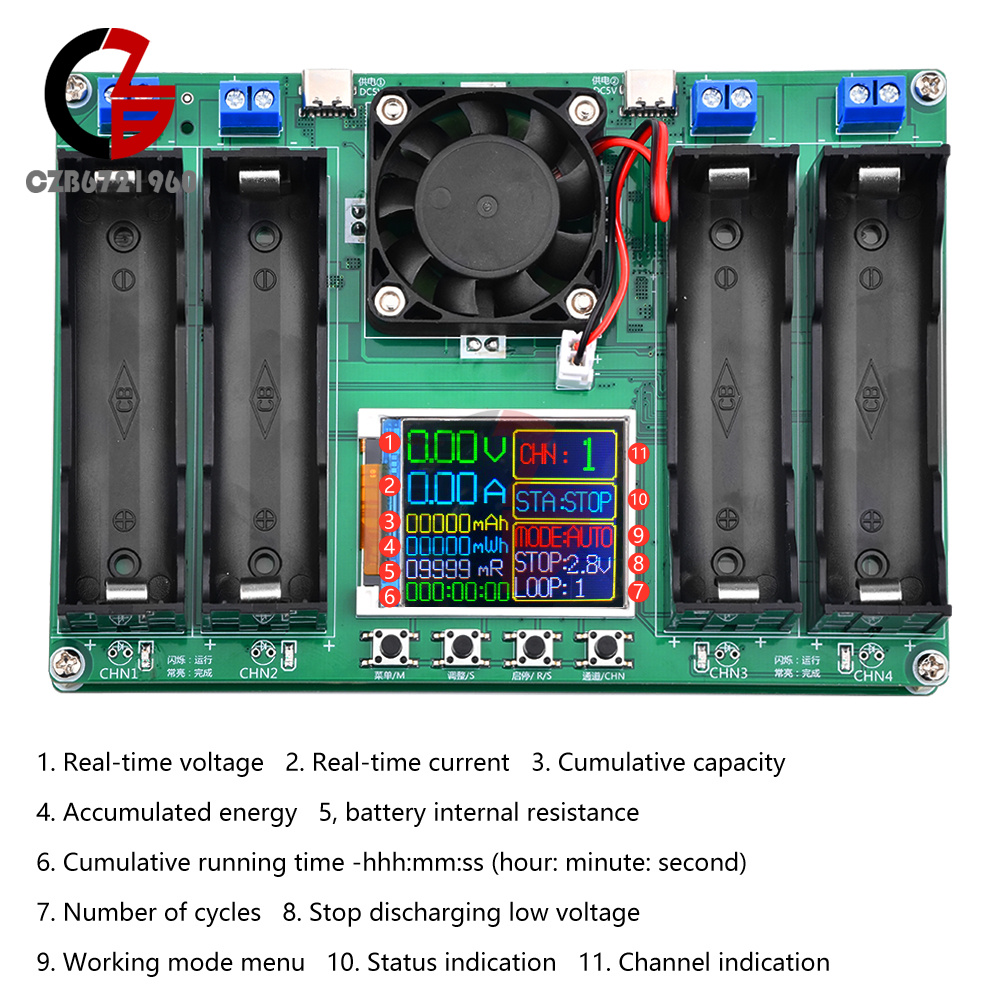

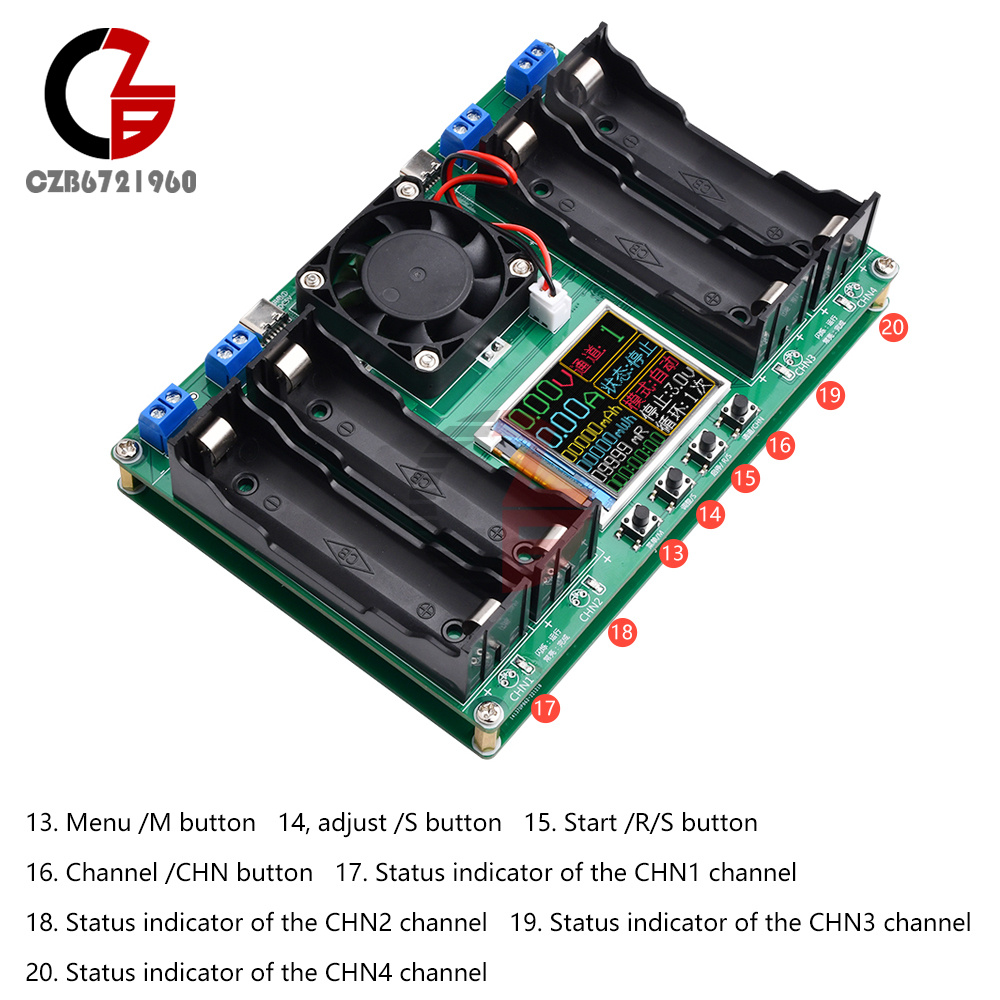

Status alert: support
Heat dissipation mode: fan active heat dissipation
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 grades adjustable
Discharge current: maximum about 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, maximum of about 1A charging, full charge voltage 4.2V
Power failure save: only save the setting parameters, not save the measurement data

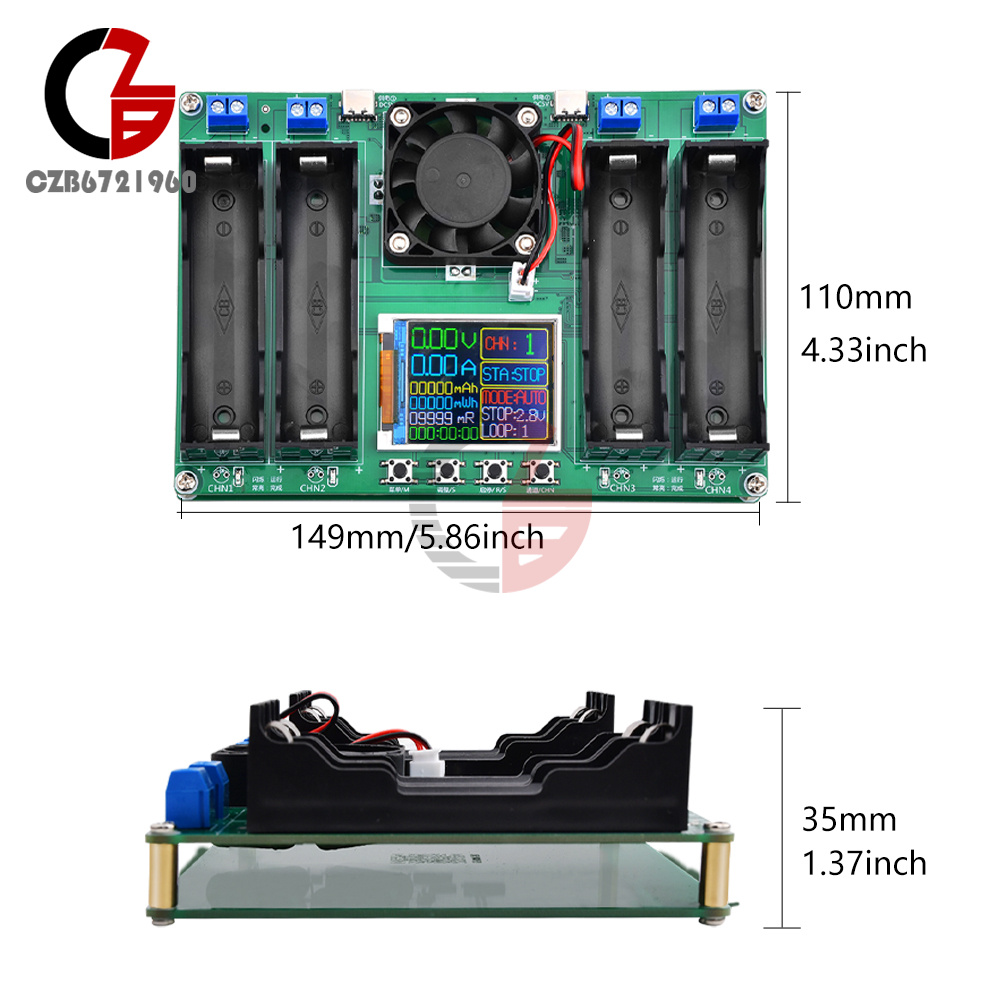

Product size: 150×103×36mm
Package size: 182×112×50mm
Power supply interface: two Type-C power supply interface (power supply and power cable provided)
System language: English / Chinese switchable
Test quantity: 4-channel charging and discharging measurement
Internal resistance measurement: support, using the DC two-wire method to test the internal resistance
Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)
Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: support, automatic mode ends when the battery is fully charged
Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)
Status alert: support
Heat dissipation mode: fan active heat dissipation
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 grades adjustable
Discharge current: maximum about 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, maximum of about 1A charging, full charge voltage 4.2V
Power failure save: only save the setting parameters, not save the measurement data
Product size: 150×103×36mm
Package size: 182×112×50mm
Data link: https://www.banber.com/gather/6374be9b2ee0e200077ec155
Shipping list:
18650 battery capacity internal resistance tester* 1
18650 battery capacity internal resistance tester* 1
- We accept PayPal only. But we only Accept your Ebay Address,Please Make sure it's 100% right.
- Payment must be received in 5 business days of auction closing.
- Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
- Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched.
- We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
- All package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can't take a refund.
- If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
- If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
4-CH 18650 Battery Capacity Tester Automatic Internal Resistance Tester Type-C
Product Introduction
Product Features
Supports four-channel capacity and internal resistance measurement
Supports separate charging and discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of the other and can be set up separately for independent operation without interference
The 18650 battery holder is a compact battery holder for flat battery measurements
Active fan cooling with overheat protection
DC two-wire method for internal resistance testing
Note: Does not support charging of lithium iron phosphate batteries
Supports four-channel capacity and internal resistance measurement
Supports separate charging and discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of the other and can be set up separately for independent operation without interference
The 18650 battery holder is a compact battery holder for flat battery measurements
Active fan cooling with overheat protection
DC two-wire method for internal resistance testing
Note: Does not support charging of lithium iron phosphate batteries
Basic parameters
Operating voltage: DC5V
Applicable battery: Meet the stop discharge voltage 2.5~3.5V, 2.8V start~4.2V full battery are applicable
Power supply interface: two Type-C power supply interfaces (power supply and power cable not included)
System language: English/Chinese switchable
Number of tests: 4-channel charge and discharge measurement
Internal resistance measurement: supported, using the DC two-wire method to test internal resistance
Charging function: supported, full automatic cut-off charging (LiFePO4 charging not supported)
Discharge function: support, automatic stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: supported, battery is fully charged at the end of automatic mode
Cycle charging and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)
Status indication: supported
Heat dissipation: fan active
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable
Discharge current: max. 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, max. 1A charge, full charge voltage 4.2V
Power failure save: only the setting parameters are saved, not the measurement data
Product size: 150 x 103 x 36mm
Package size: 182 x 112 x 50mm
Information link: https://www.banber.com/gather/6374be9b2ee0e200077ec155
Operating voltage: DC5V
Applicable battery: Meet the stop discharge voltage 2.5~3.5V, 2.8V start~4.2V full battery are applicable
Power supply interface: two Type-C power supply interfaces (power supply and power cable not included)
System language: English/Chinese switchable
Number of tests: 4-channel charge and discharge measurement
Internal resistance measurement: supported, using the DC two-wire method to test internal resistance
Charging function: supported, full automatic cut-off charging (LiFePO4 charging not supported)
Discharge function: support, automatic stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: supported, battery is fully charged at the end of automatic mode
Cycle charging and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)
Status indication: supported
Heat dissipation: fan active
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable
Discharge current: max. 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, max. 1A charge, full charge voltage 4.2V
Power failure save: only the setting parameters are saved, not the measurement data
Product size: 150 x 103 x 36mm
Package size: 182 x 112 x 50mm
Information link: https://www.banber.com/gather/6374be9b2ee0e200077ec155

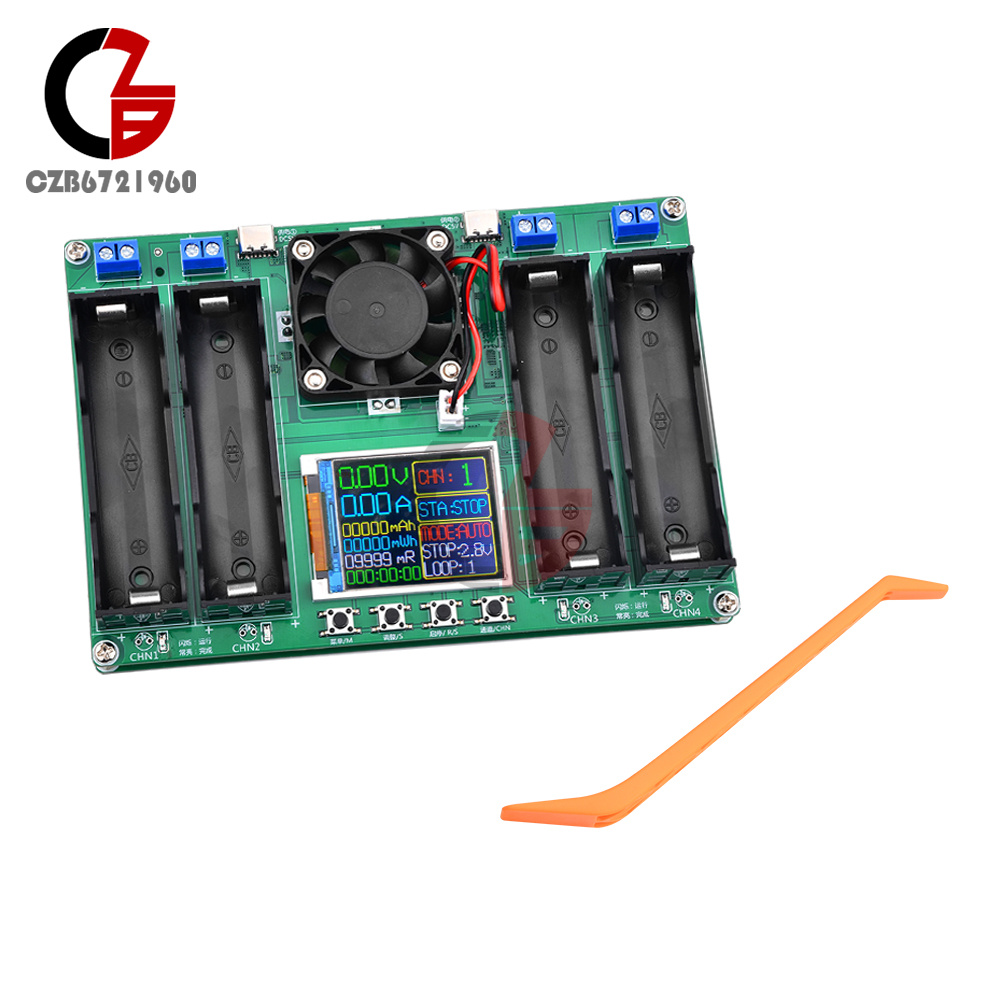

Shipping list:
18650 battery capacity internal resistance tester X1
Pry bar X1
18650 battery capacity internal resistance tester X1
Pry bar X1
