Product Description

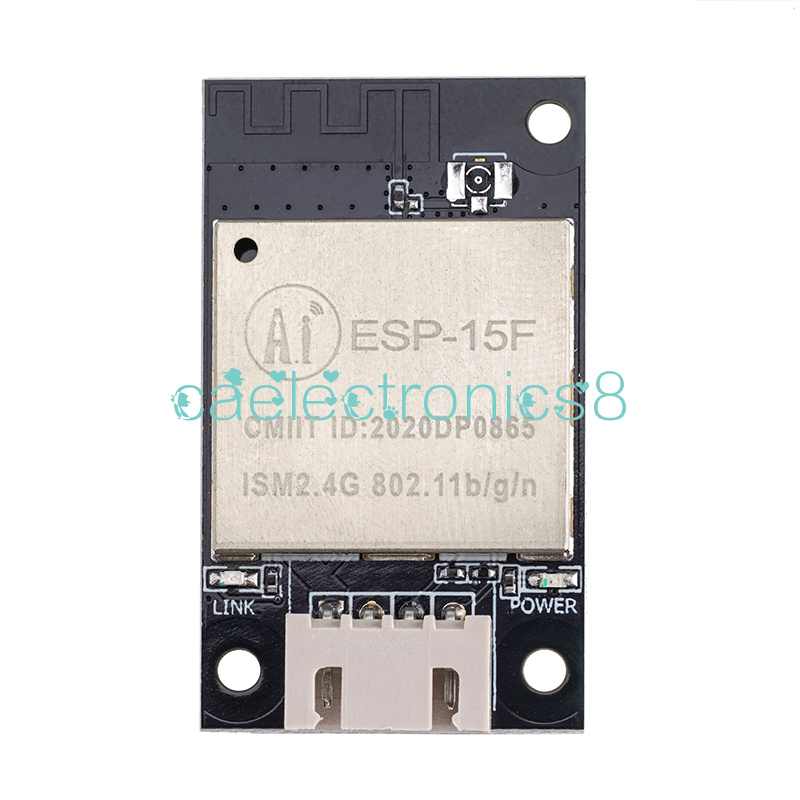

ESP-15F is a powerful WiFi module. The core processor of the module, ESP8266, integrates the industry-leading Tensilica L106 ultra-low power consumption 32-bit micro MCU in a small size package with a 16-bit streamlined mode and main frequency Support 80MHz and 160MHz, support RTOS, integrated WiFi MAC/BB/RF/PA/LNA.ESP-15F WiFi module supports standard IEEE802.11b/g/n protocol, complete TCP/IP protocol line. Users can use this module to add Internet functions to existing equipment, or build an independent network controller.

Product Parameters:
Interface: PH2.54 connector / DIP-8 package
Antenna form: onboard PCB antenna / IPEX external antenna
Spectrum range: 2400~2483.5MHz
Working temperature: -20°C~70°C
Storage environment: -40°C~125°C, <90%RH
Power supply range: power supply voltage 5V, power supply current> 800mA
Support interface: only support UART 10â–¡ quantity 3 (reserved)
Serial port rate: support 110~4608000 bps, the default is 115200 bps
Security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: default 32Mbit

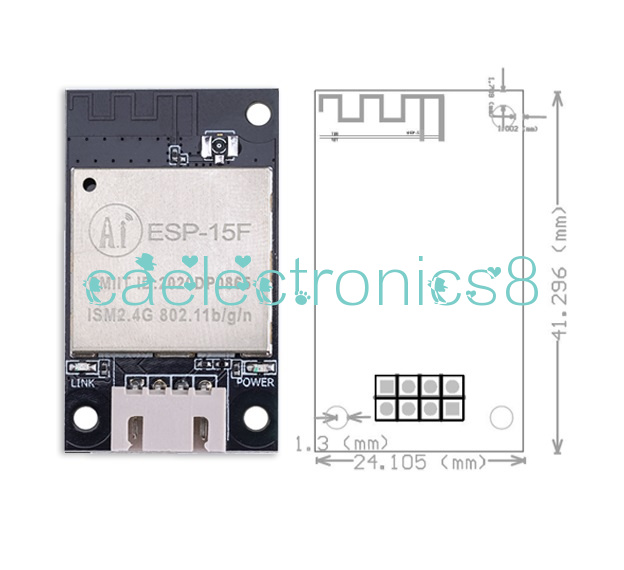

Product size: 41.3 * 24.1 * 6.6 (+0.2) MM (L * W * H, the height is subject to the needle seat).

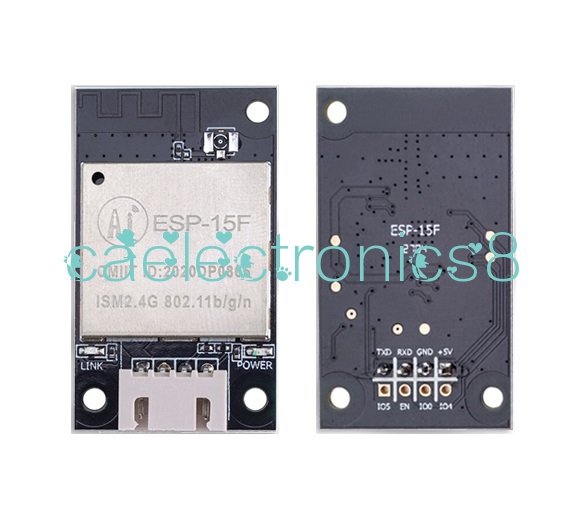

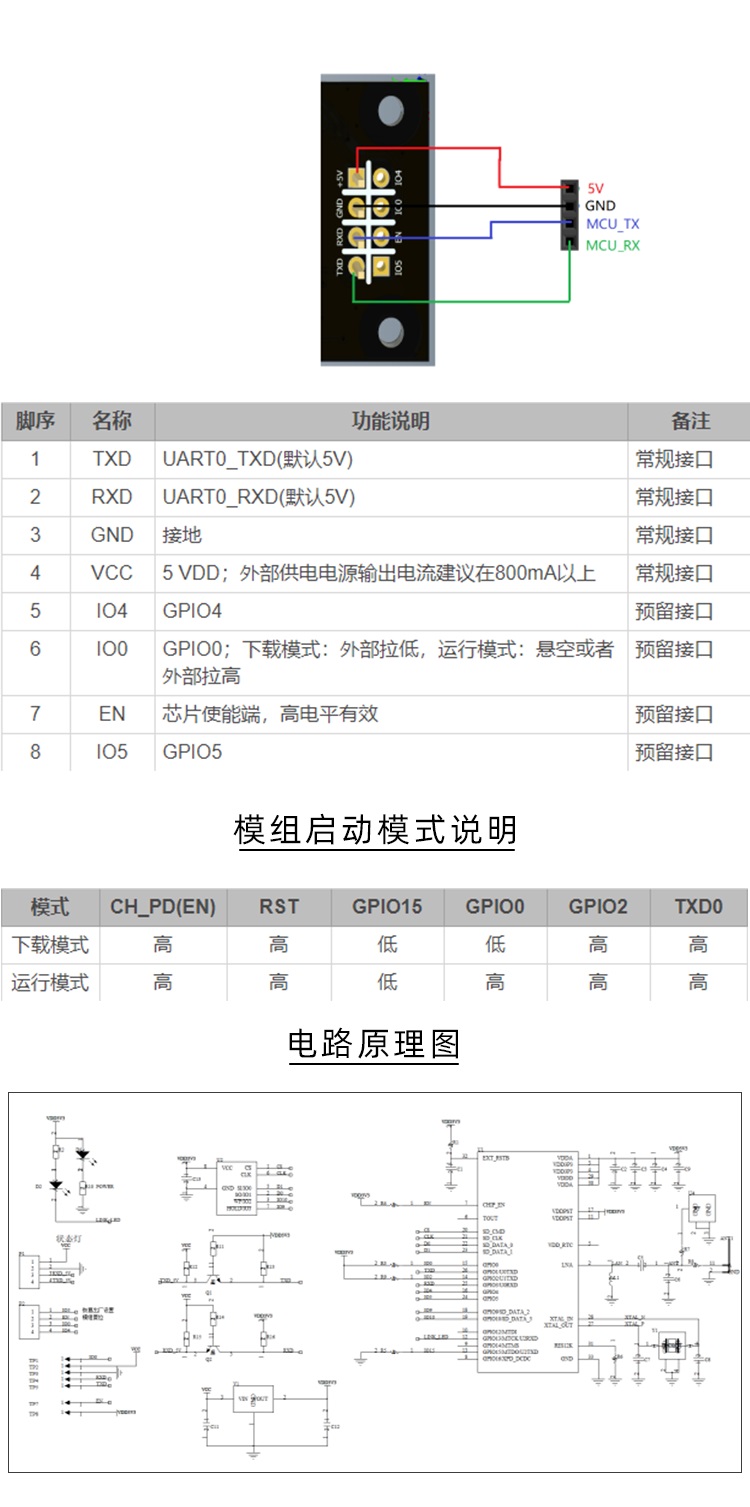

TXD: UARTO_ TXD (default 5V)
RXD: UARTO_ RXD (default 5V)
GND: Ground
VCC: The output current of the external power supply is recommended to be above 800mA
IO4: GPIO4 reserved interface
IO0: GPIO0; Download mode: pull down externally, operating mode: float or pull up externally Reserved interface
EN: chip enable terminal, active at high level, reserved interface
IO5: GPIO5 reserved interface



Package Included: 1pcs
