The default is standard AHD camera.

It also can works with standard DVR and Monitor, Just push the "left" button for 5 seconds and it switches to standard DVR mode.

Push the "right" button for 5 seconds and it switches to AHD DVR mode.


HD 2mp SONY IMX323+NVP2441 AHD TVI CVI CVBs low illumination CCTV Camera

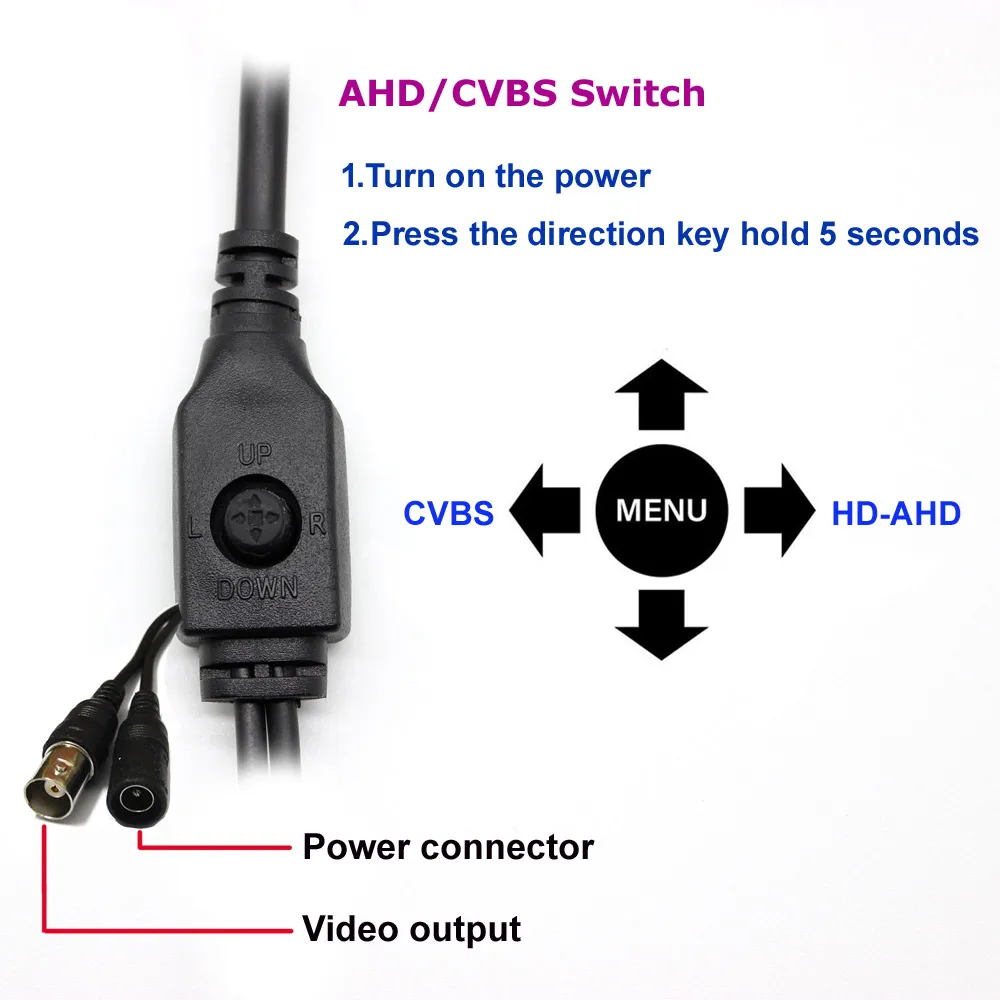

 How to shift AHD / CVBS Signal by OSD?
    Left: CVBs(960H)            Right: AHD
 (Press button in different direction for 5 seconds to be related signal)



  PAL/NTSC in one: Set on OSD menu
b20-25


Feature:

* 2MP SONY IMX323 Two speed scanning low illumination CMOS sensor

* Support coaxial HD output, Excellent performance, clear and bright image

* Illumination: 0.0001Lux/(F1.2,AGC ON), 0LUX with IR

* D/N Switch: support IR-CUT switch, CDS extra control

* Support OSD menu control

* Support WDR, Sense-up

* Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR

   Day and night Surveillance, 20M IR distance, 36 IR LEDs see in the dark up to 50ft

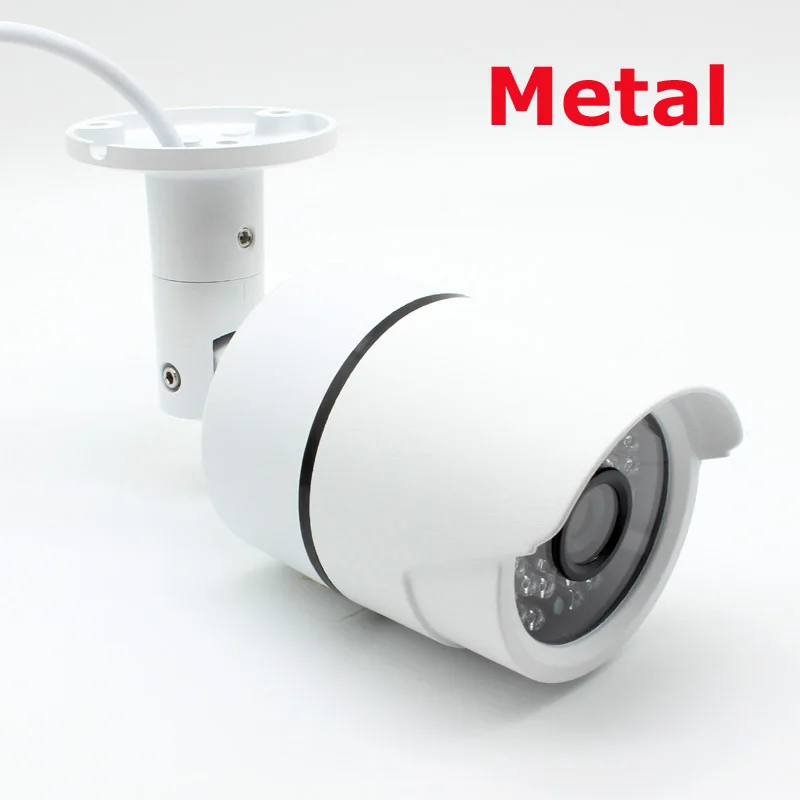

  Weatherproof: Yes,  Material: Metal


 Lens: 3.6mm Lens,

Optional: 3.6mm/6mm/8mm/12mm
(If you need to choose the lens, please leave message when you buy it)


Specifications:

Sensor1/2.8" NVP2441+IMX323
 Format

PAL/NTSC

 Effective Pixel1920(H)*1080(V)
FPS: 1080P/25fps, 1080P/30fps
Illumination0.0001Lux/(F1.2, AGC ON), 0LUX with IR
ShutterAUTO
D/N ModeEXT (Default) /AUTO/COLOR/B/W
SynchronouslyInternal
 Video OutputAHD/TVI/CVI/CVBS switch
 ExposureBrightness / Exposure Mode / GAIN
White BalanceATW/MWB
D/N ModeInfrared/Internal AUTO/Color/B&W
Video SettingContrast/Sharpness/Color/GAIN/DNR/Format/WDR
LanguageCHN1/ESPANOL/CHN2/ITALIANO/ENGLISH
Operation Temperature-20℃ to 60℃
Working HumidityRelative humidity less than 90 %
PowerDC12V/1A
Weight
0.5kg


 * The cameras have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS

 * Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE from OSD Main Menu according to your DVR.

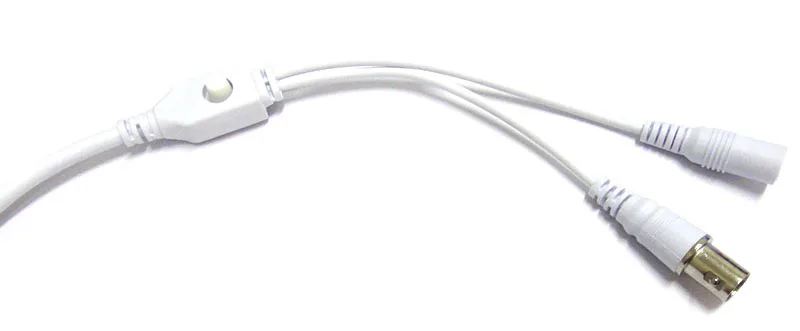

The camera can change to AHD, TVI, CVI and CVBs mode through the OSD cable button:
1. Enter the OSD "main menu", please see the picture.
b20-33

2. Stay "EXPOSURE", then press the "right" button three times, then enter "EXPOSURE", please see the picture, enter to "HIDDEN" menu.
b20-34

3. Press "right" or "left" button, find out the mode you want, please see the picture, then enter the mode.

b20-35

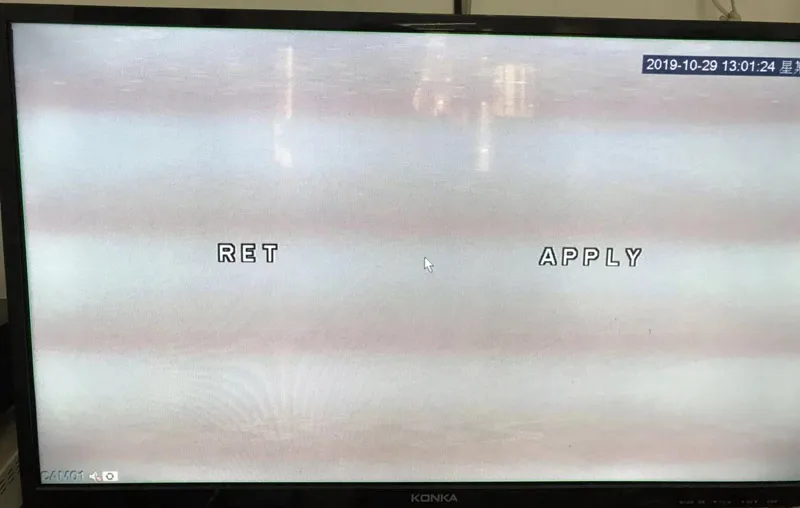

4. Enter "APPLY", the camera change to other mode.

b20-36


Packaging included:

1x HD 1080P AHD SONY IMX323+NVP2441 CCTV Camera


Warranty Term: One Year Warranty
