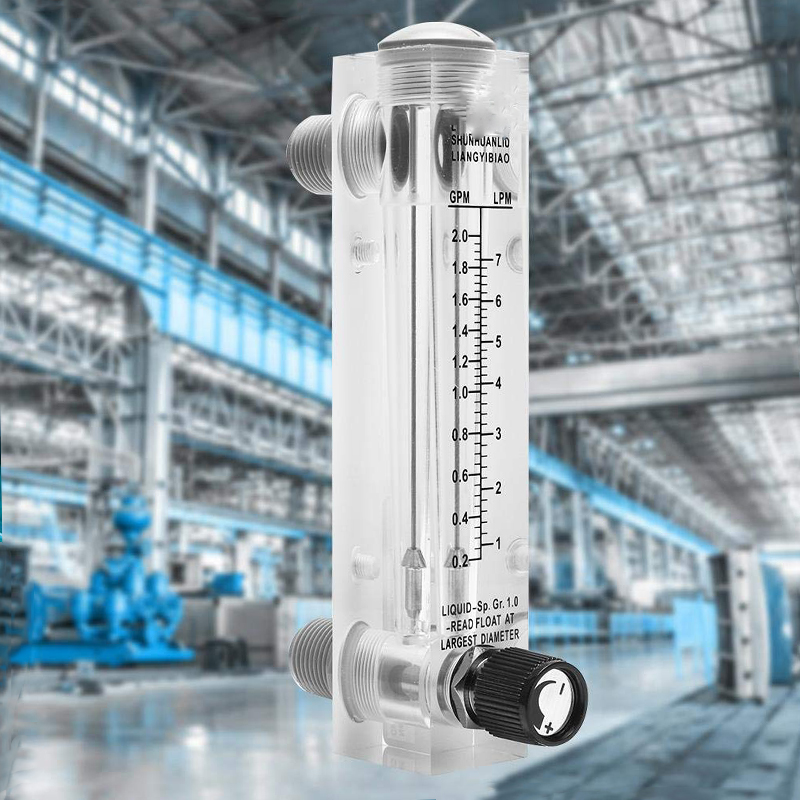

Product Description:

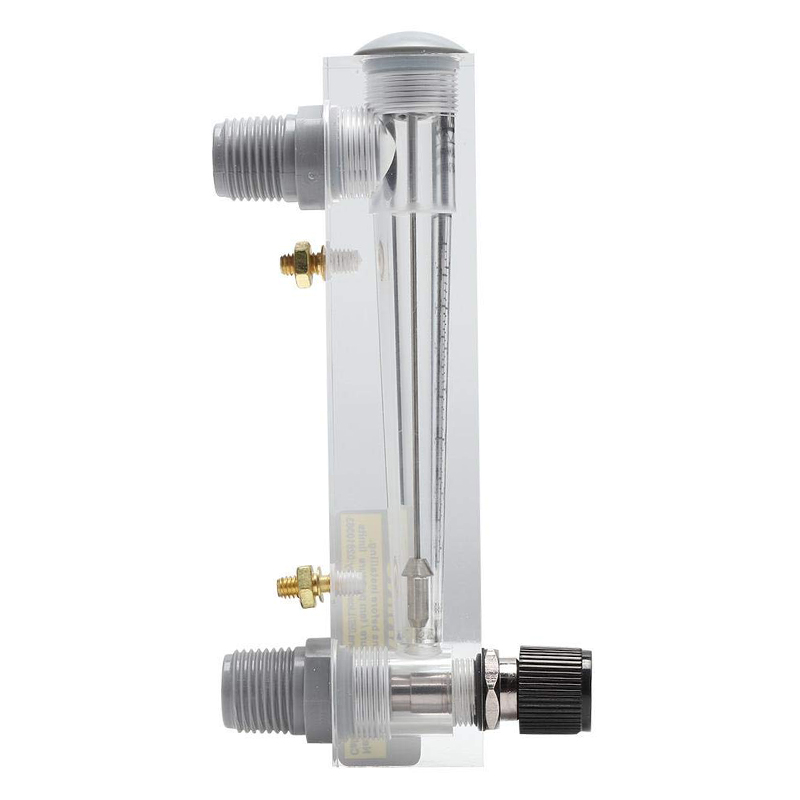

The panel flowmeter is mainly composed of floating ball, guide rod, body, external connection, etc.
It has good corrosion resistance.
The product also has the characteristics of reasonable structure, small size, light weight, and the conical tube is not easy to break.
Panel type plexiglass rotor flowmeter can be widely used in water purification equipment, chemical industry, environmental protection, petroleum, medicine, food and other industrial sectors.
It can also be used for scientific research such as laboratories.
The main measuring element of the panel flowmeter is a conical tube with the small end down and the big end up and a conical tube installed vertically and a float that can move up and down inside. When the fluid flows through the conical tube from bottom to top, a pressure difference is generated between the upper and lower sides of the float, and the float rises under the action of this differential pressure. When the force that makes the float rise is equal to the resultant force of gravity, buoyancy and viscous force on the float, the float is in an equilibrium position. Therefore, there is a certain proportional relationship between the fluid flow through the flowmeter and the rising height of the float, that is, with the flow area of the flowmeter, and the position and height of the float can be used as a flow measurement.

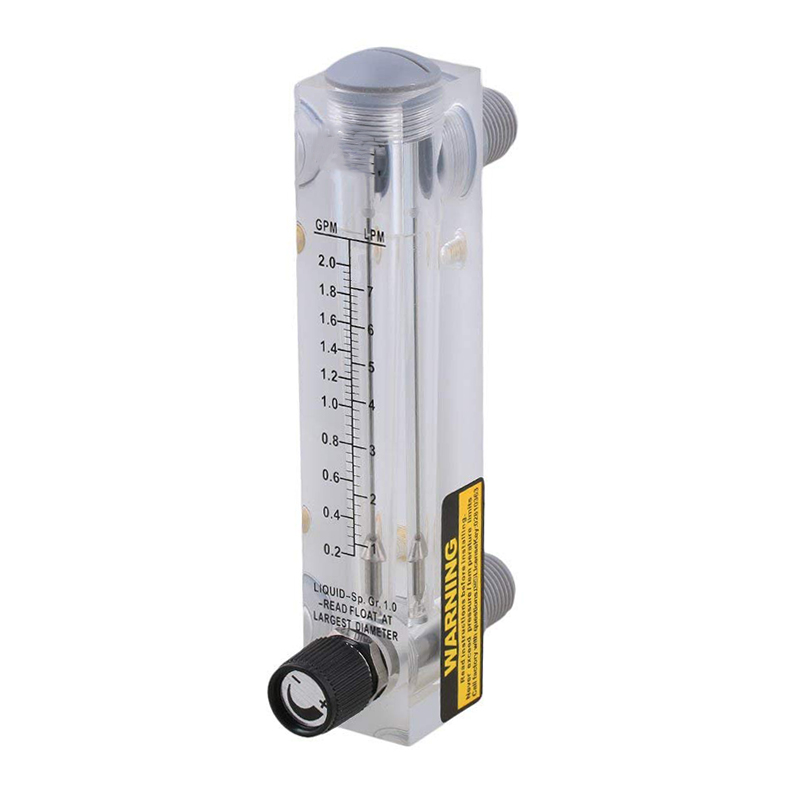

Feature:
Panel type reading is easy, convenient and clear for you to read the values.
Transparent acrylic material, light and durable, suitable for long time use.
The flow rate of the meter is large enough for some measuring of big flow rate.
The thread material is durable plastic, rust-resistant and has long service life.

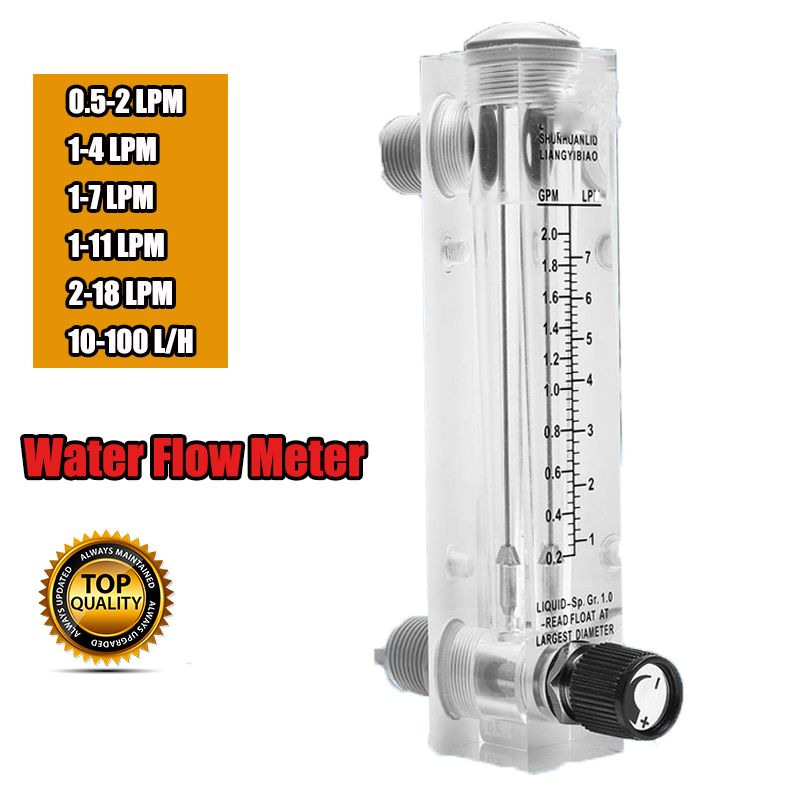

Specification:
Measuring Medium: Liquid
Measuring Range:
0.05-0.5 GPM & 0.2-2 LPM
0.1-1 GPM & 0.5-4 LPM
0.2-2 GPM & 1-7 LPM
0.3-3 GPM & 1-11 LPM
0.5-5 GPM & 2-18 LPM
10-100 LPH

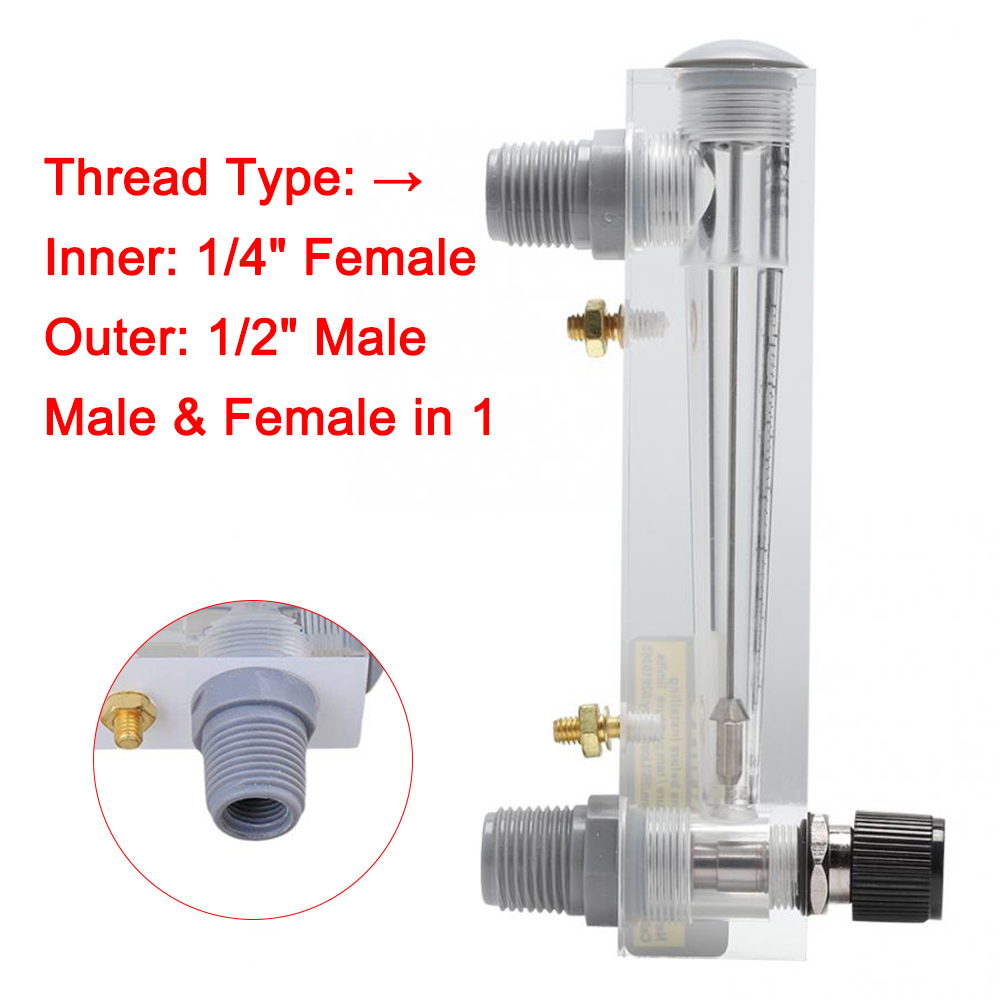

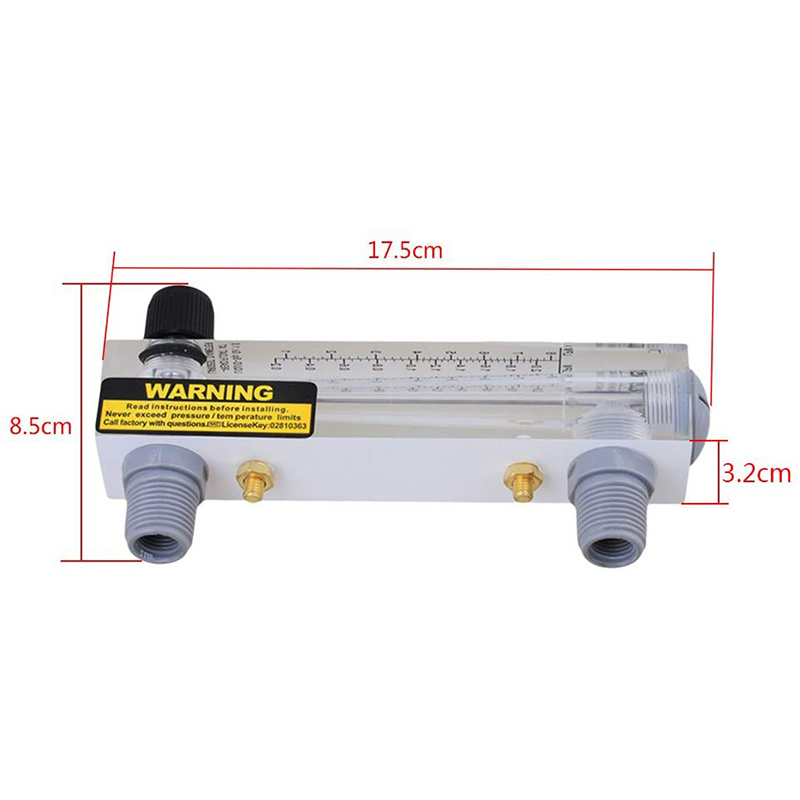

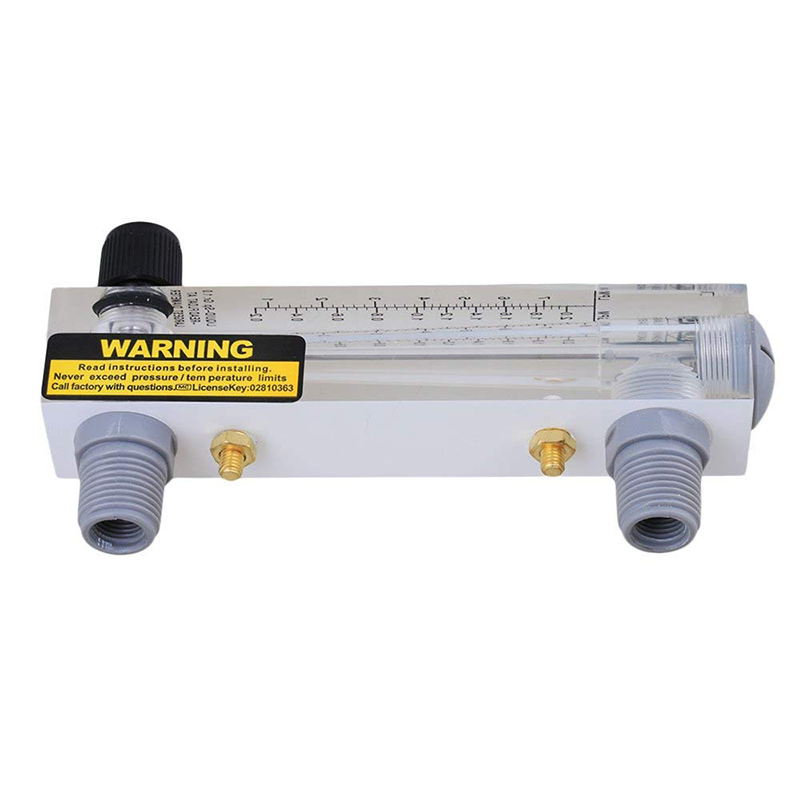

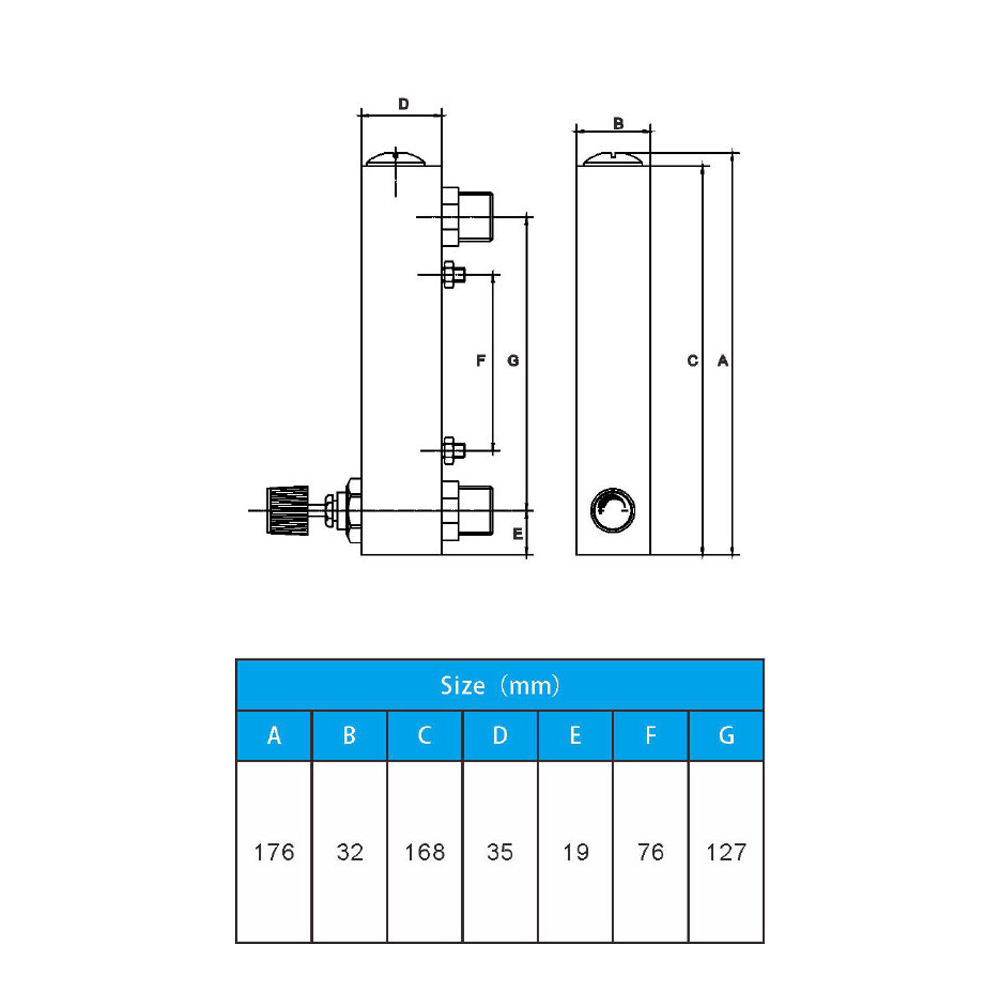

Thread Type:
Inner: 1/4" Female
Outer: 1/2" Male
Thread Material: Plastic
Body Material: Acrylic Plexiglass
Float Material: Stainless Steel
Fitting Material: ABS or Stainless Steel
Type: Panel Type
Working Pressure: ≤0.6MPa
Accuracy Level: ±4%
Operating Temperature: 0~60℃
Adjustable: Yes
How to use
[1] The flowmeter must be installed vertically, and there should be no obvious inclination. The installation height should be convenient for the reading of the float. When reading, the line of sight and the float should be level. (General standard: the optimal flow rate to be used is 50%-70% of the maximum flow rate of the flowmeter, try not to use the highest number. )
[2] In the upstream and downstream inlet and outlet of the instrument, there should be a straight pipe section with 5 times the diameter of the instrument.
[3] The pressure of the fluid on the side of the flowmeter must be stable. If the fluid is too unstable, the float will fluctuate and cannot be measured correctly. A buffer or a valuer should be installed upstream of the flowmeter.
[4] The flowmeter should be installed vertically, and the angle between the centerline of the flowmeter and the plumb line should not exceed 5 degrees.
[5] This product is made of plexiglass and is not suitable for organic solutions and corrosive gases and liquids.
Package Content:
1x Liquid Flowmeter
