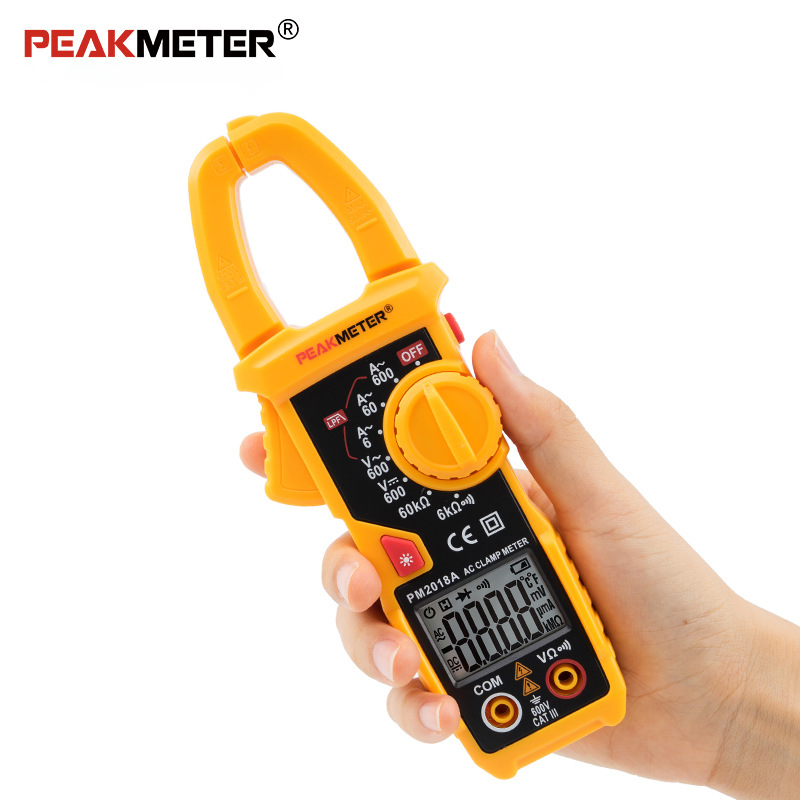

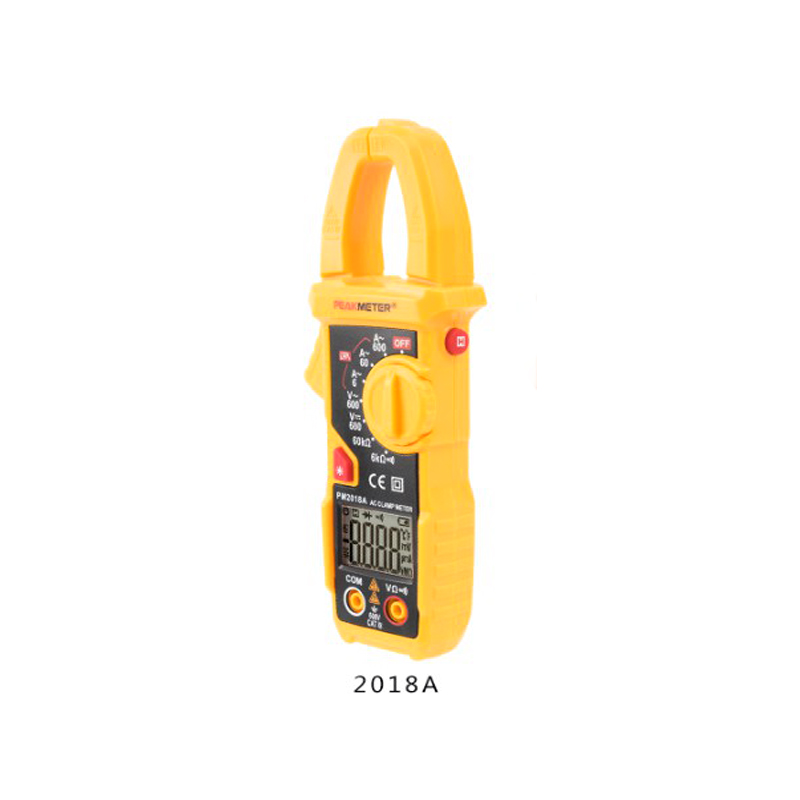

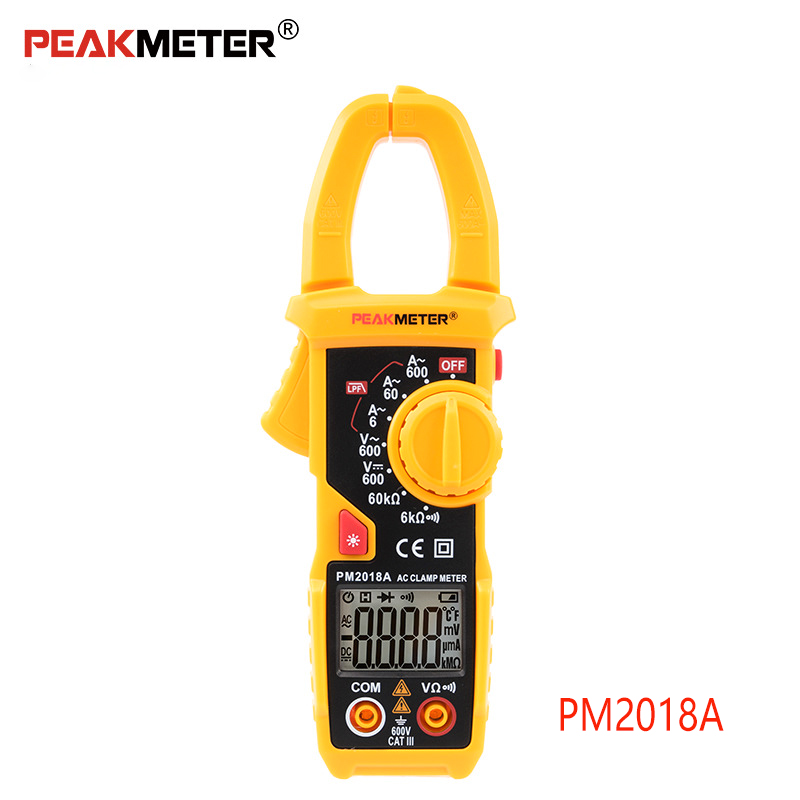

Multi-purpose clamp meter: accurate AC/DC voltage, AC current, resistance, capacitance, temperature and continuity test with backlight.
Manual select measurement function and range. Date hold function, low voltage indications.
Easy to use and read, mini pocket size and portable.
Maximum allowable voltage between the measuring terminal and the earth: 600V DC or 600V AC.
With a resolution of 1mA AC current, the maximum 600A AC current range allows the instrument to meet the needs of different applications.
Maximum display value: 6000 counts, widely used in your life. Suitable for electrical equipment testing and maintenance.
The Low Pass Filtering Function (LPF) filters out high frequency interference during the measurement of AC signals, increasing the accuracy of the measurement signal.
Continuity test & Overload Protection: Designed to safely and accurately confirm the circuit conducts electricity with overload protection & short-circuit protection. Shows "OL" on the LCD If overload.
Energy saving design, low energy-consuming and powered by 2*1.5V AAA battery (Not included).
Auto power off mode for saving power.
Specifications:
Material: ABS
Work height: maximum 2000m

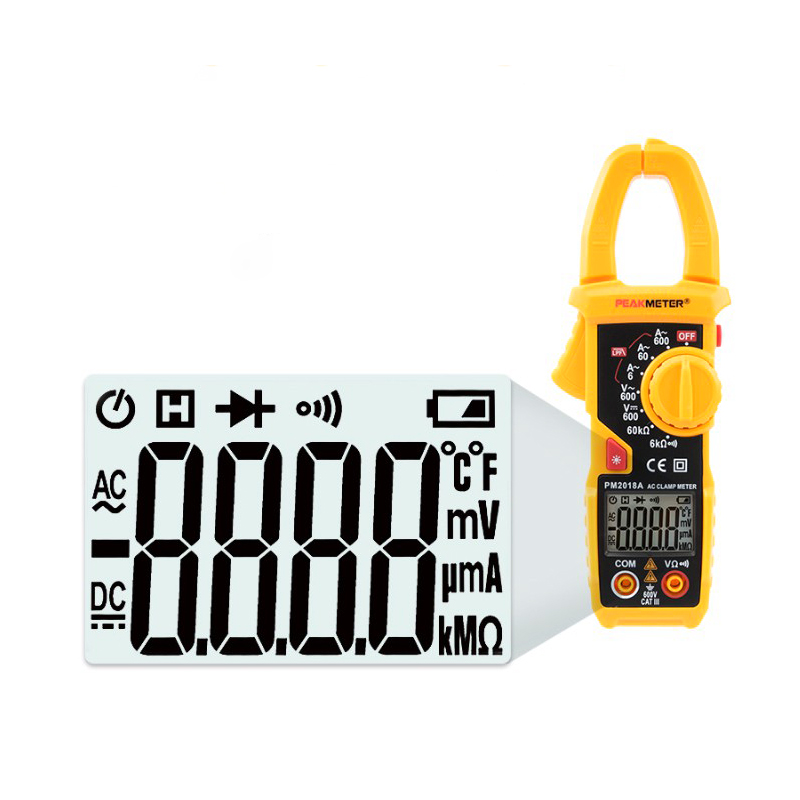

Display: LCD
Maximum display value: 6000 digits
Over range indication: “OL” or “-OL”
Sampling time: about 3 times/s
Automatic power off time: 10 minutes
Power supply: 1.5V AAA battery x 2 (Not included)
Temperature coefficient: ＜0.1x accuracy degree/°
Working temperature: 18°-28°
Storage temperature: -10°-50°
Maximum input current: 600A AC current
Frequency range: 50/60Hz
Maximum input voltage: 600V DC
Overload protection: 600V DC or AC
Resistance: 0-60K Ω
Continuity: <30Ω

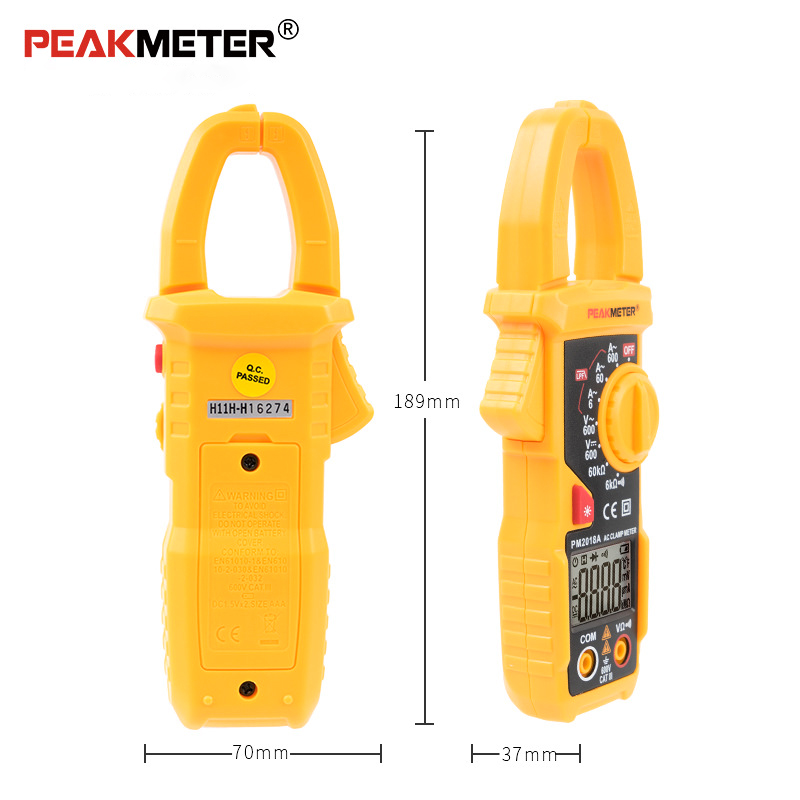

Clamp size: ∅35mm
Package Included:
1 * Clamp Meter
1* Instruction manual
