SKU 659

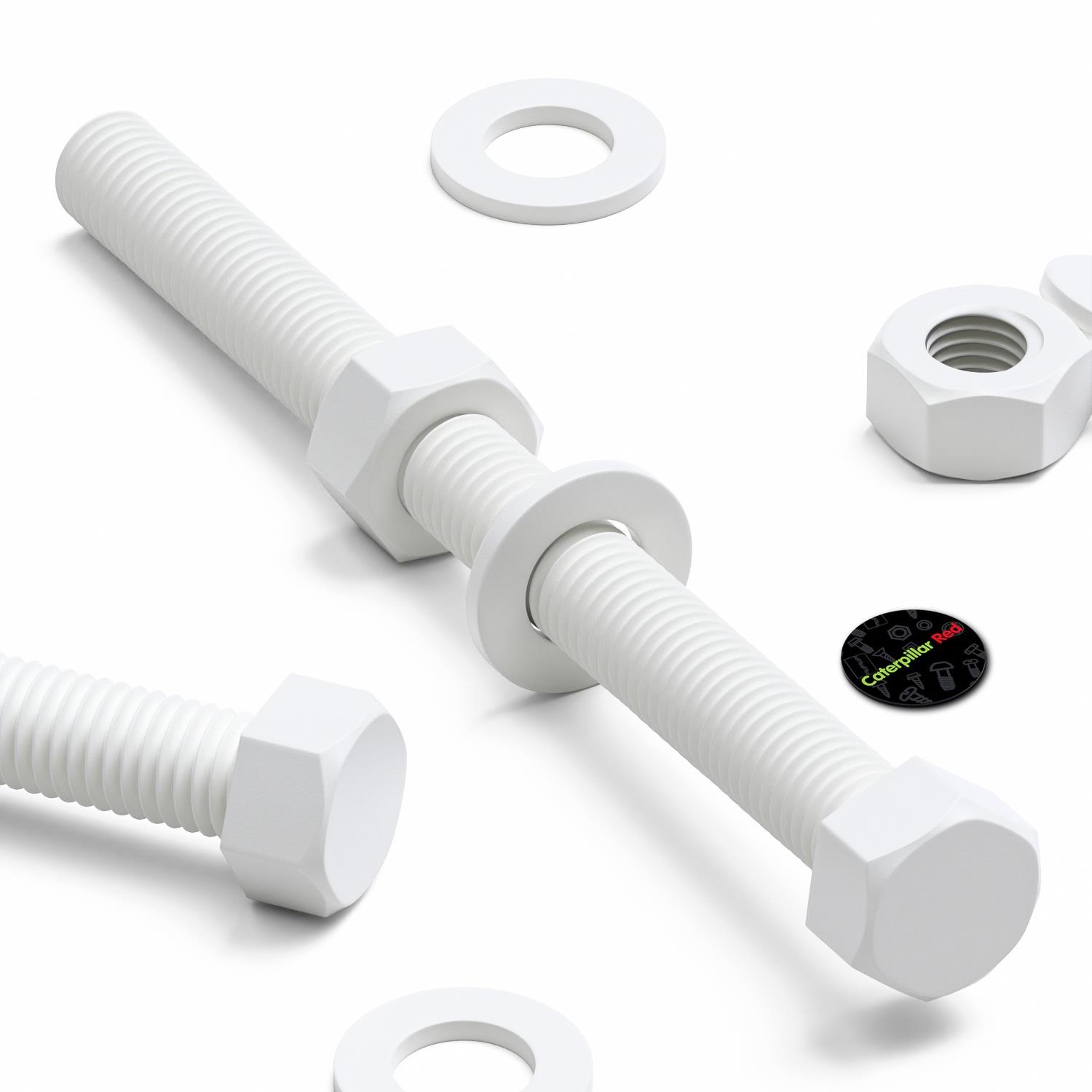

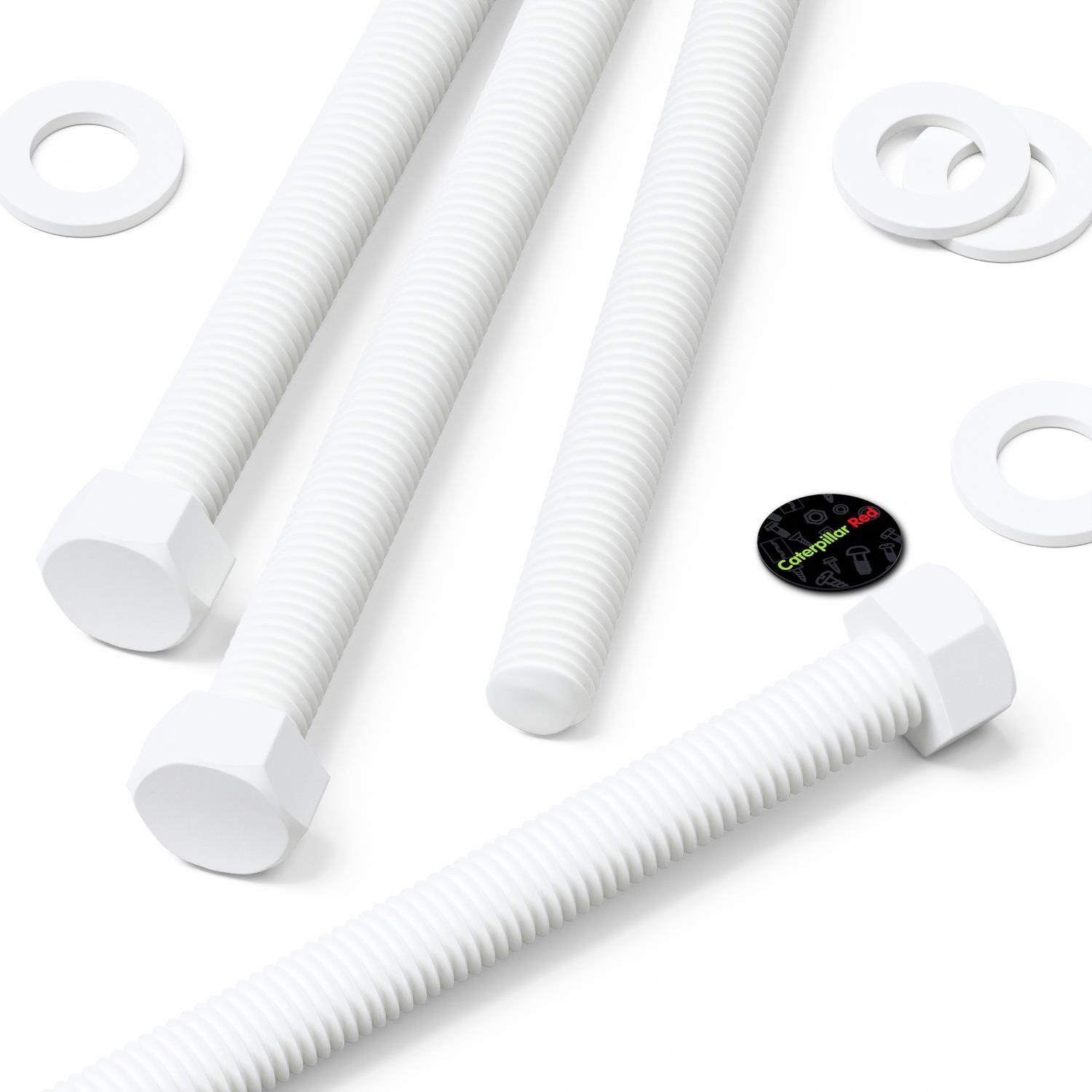

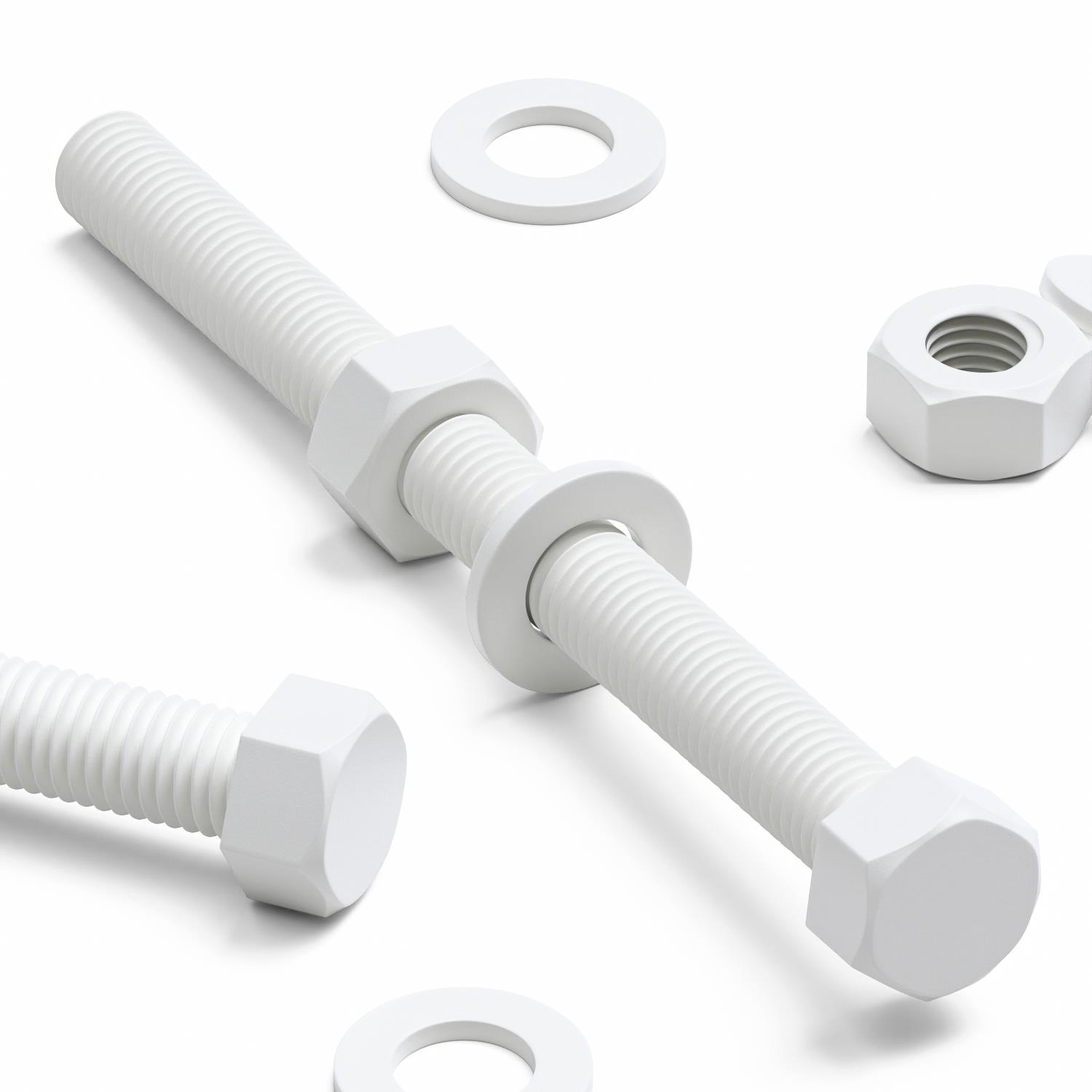

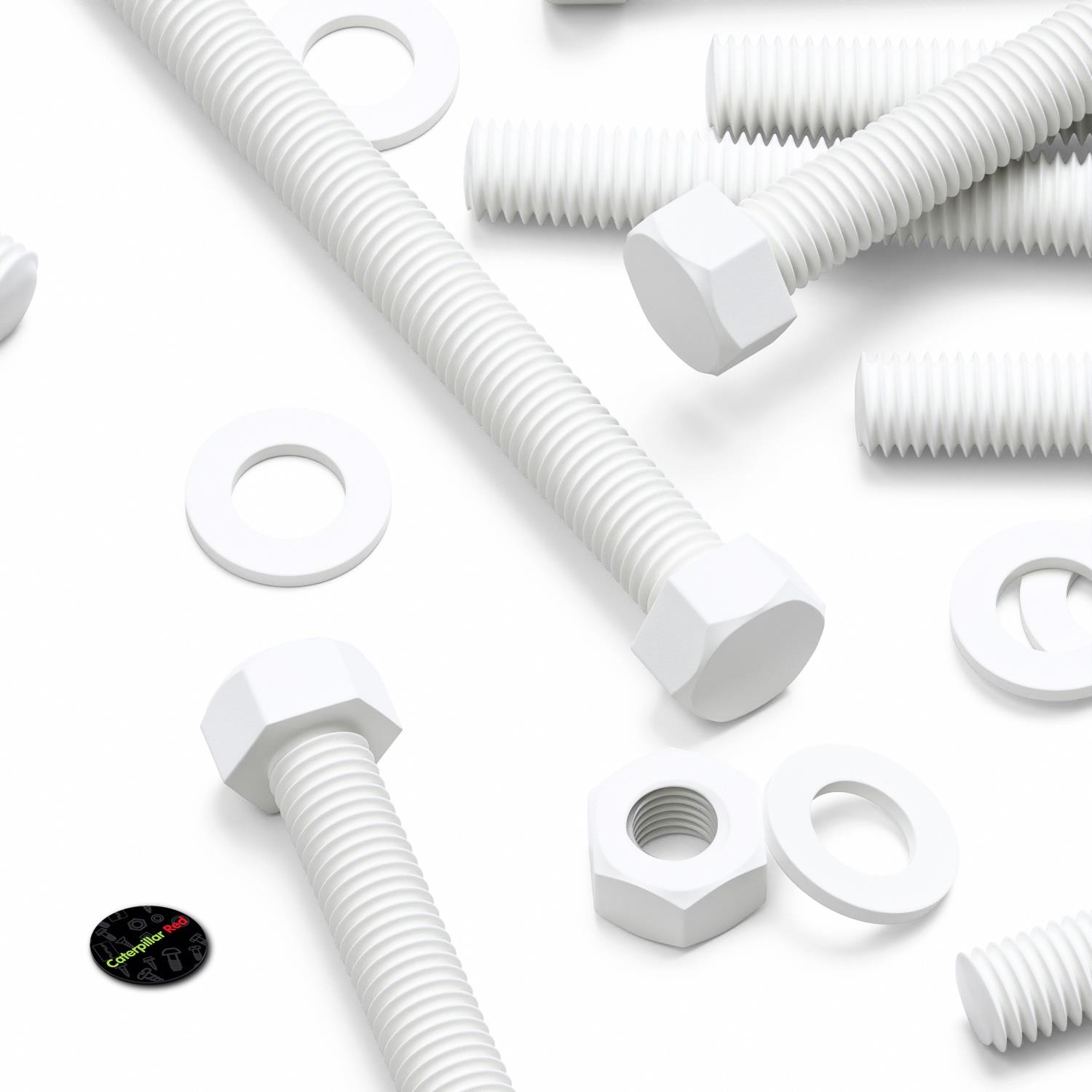

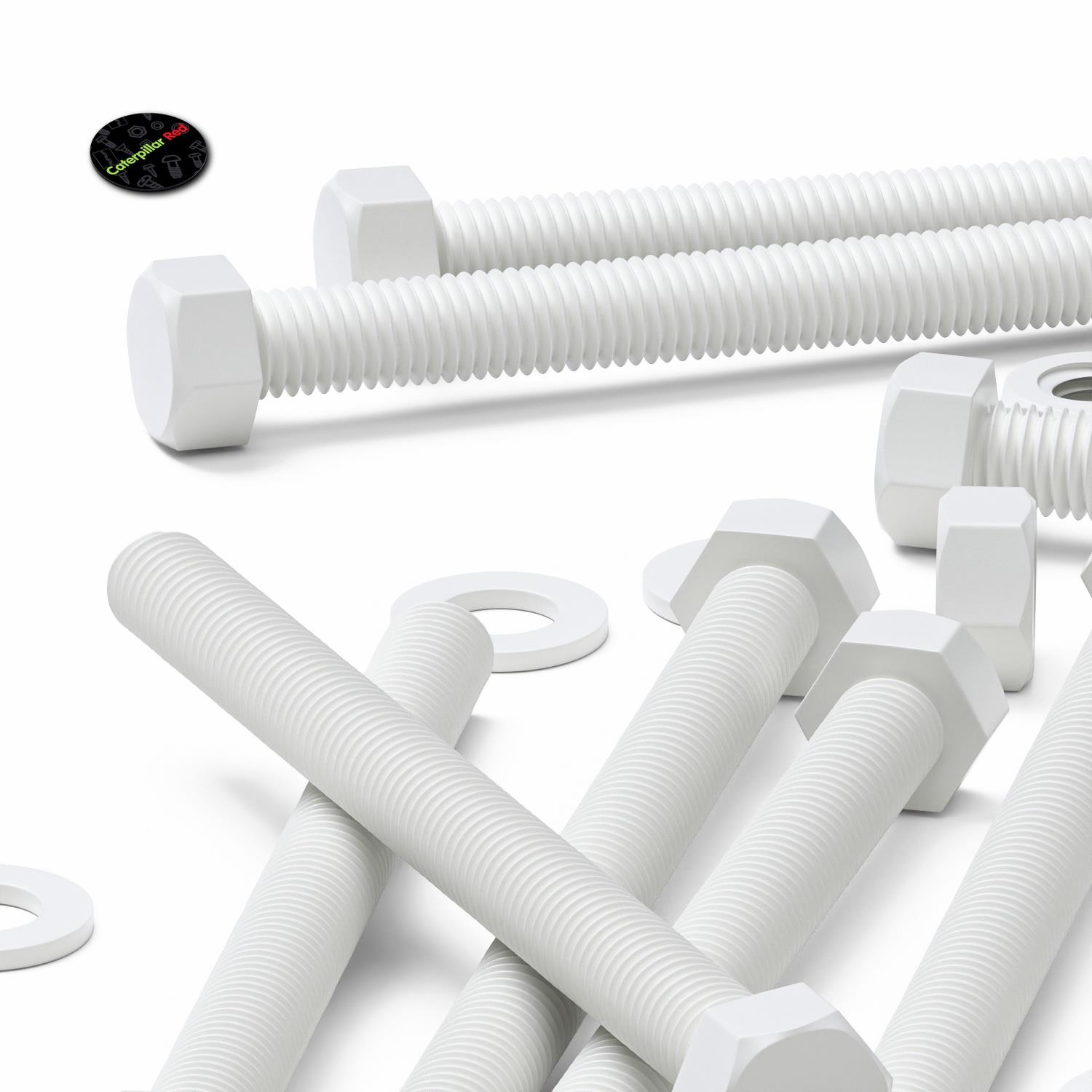

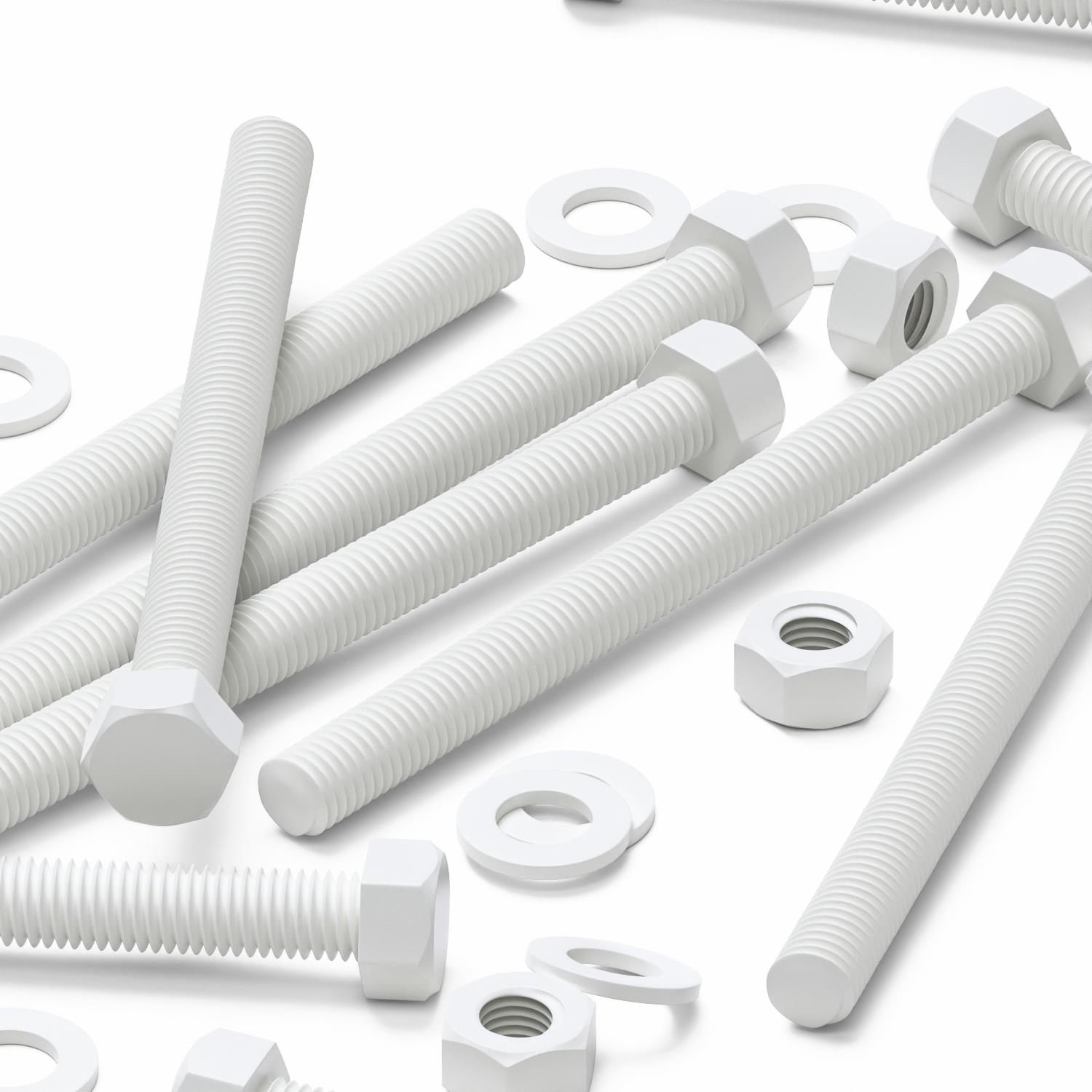

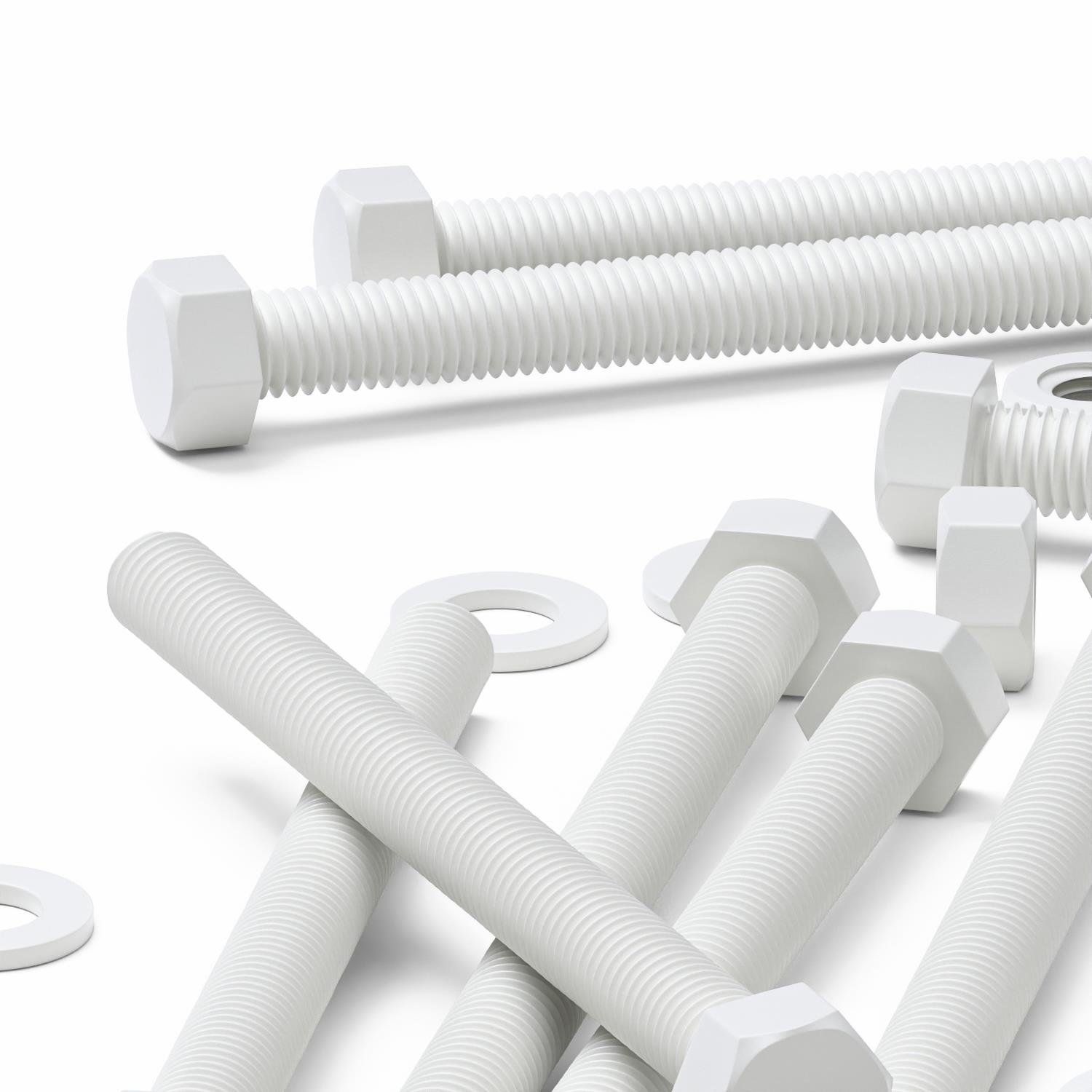

10x White PP Hex Head Plastic Screws & Bolts M8 x 100 mm, Nuts & Washers
SizeM8 x 100mmColourWhiteMain materialPP / PolypropyleneQuantity10 Pack
Product highlights
- 10x Bolts, 10x Nuts, 10x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Hex Head Bolts. Length: 100mm. Diameter: 8mm. Pitch: 1.25mm. Across flats: 13mm. Head height: 5.3mm. SKU: 659.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
- These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.

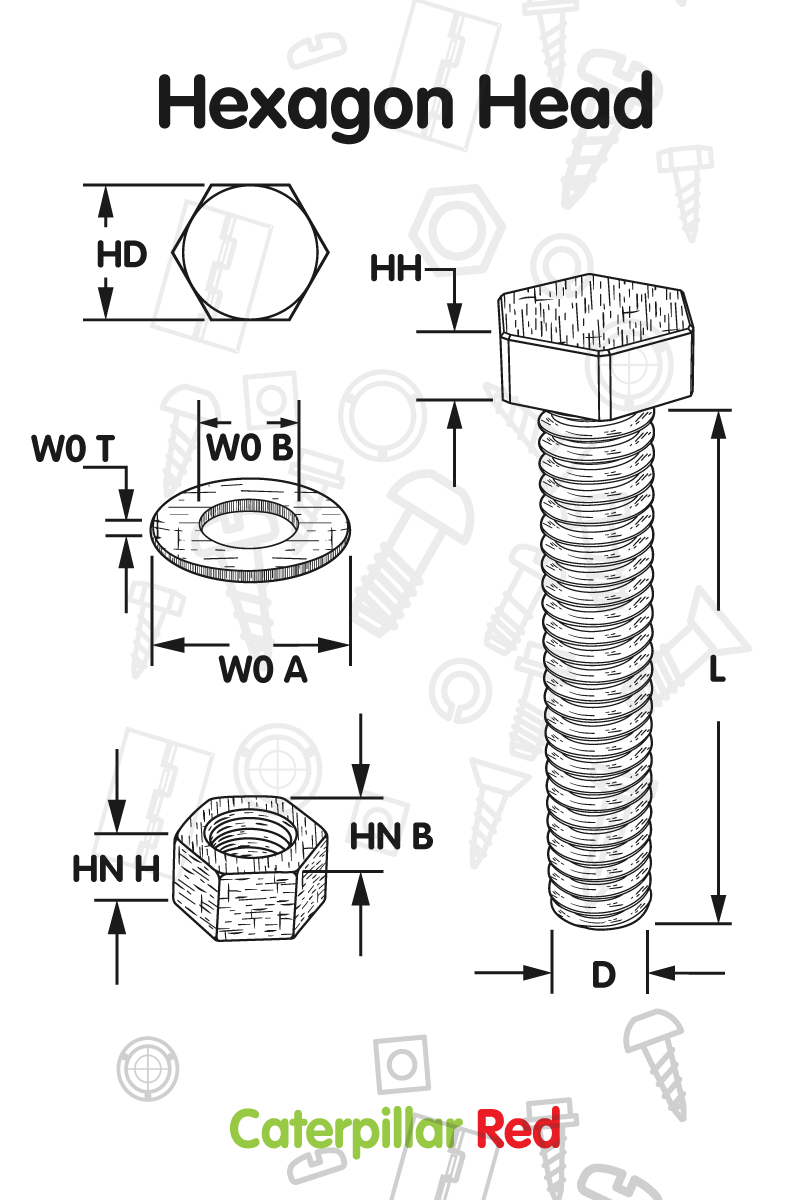

Please see the technical image illustration for size references. All measurements are in millimetres.
Product details
| SKU | 659 |
|---|---|
| Product type | Hex Head Bolts |
| Size | M8 x 100mm |
| Colour | White |
| Main material | PP / Polypropylene |
| Material 2 | |
| Quantity | 10 Pack |
| Dimensions (L x W x D) | 100 mm (L) x 8 mm (W) x 8 mm (D) |
Additional specifications
| Washer drawing references | Material: Polypropylene, Head/Drive Type: Flat washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm |
|---|---|
| Nut drawing references | Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm |
| Bolt drawing references | Head/Drive Type: Hexagon Head Bolt, size: M8 x 100, D: 8 mm, Pitch: 1.25 mm, L: 100 mm, HD: 12.79 mm, HH: 5.3 mm |
Product description
Pack of 10 white polypropylene hex head bolts, M8 x 100 mm, with 10 nuts and 10 washers. Thread pitch: 1.25 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.
