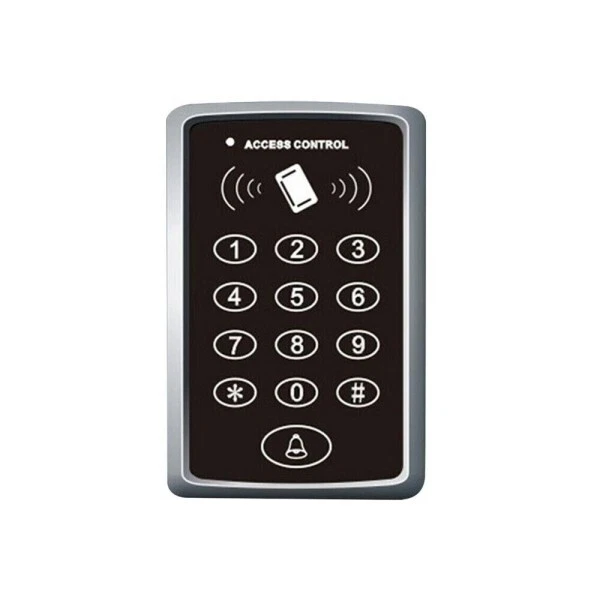

One-door Access Control:

· Support one-door

· Can be used as a stand alone keypad

· Dual units can be interconnected and interlocked

· 1000 users, supports Card, PIN, Card + PIN

· Card Type: RFID card

· Frequency: 13.56MHz

· Read Speed: <0.2s

· Reading range:1-5cm

· Wiring connections: Electric Lock, Exit Button, External Alarm

· Input Voltage:DC 12V

· Operating current: <100mA

· Weight: 110g

· Application: Car parking, security access control, person / item tracking

· Doesn't need to connect on the computer, can works alone

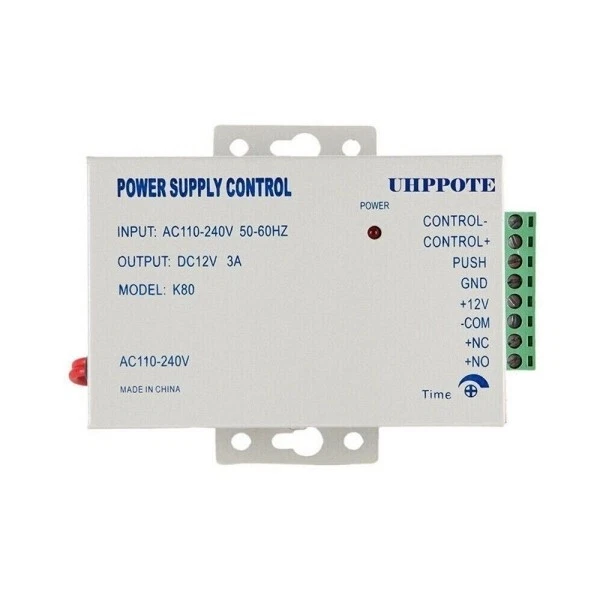

Special Power Supply:

• With both NC / NO outputs, can control various types of electric locks
•  Based delay control circuit, lock time can be in 0-15 seconds
• The circuit board has remote control port.
• Input Voltage: AC 110~240V 50~60Hz
• Output Voltage: DC 12V 3A
• Outer Dimensions: 120x 95x 38mm

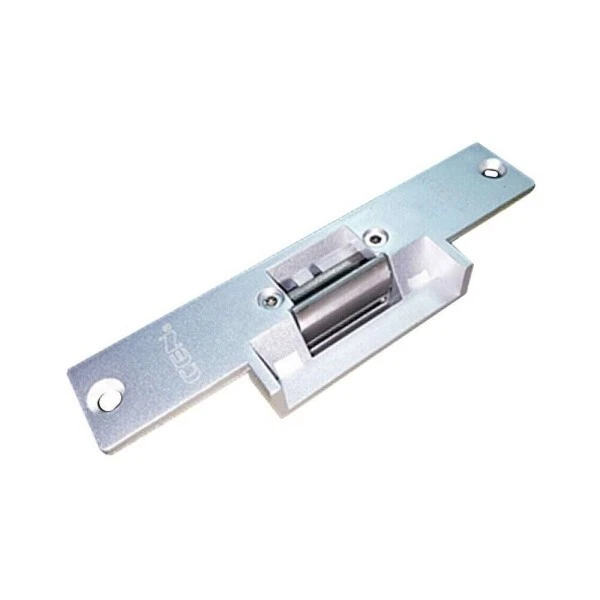

Electric Strike Door Lock:

Model：15AO

• Lock Size: 150Lmmx39.5Wmmx28Hmm
• Bolt structure: Stainless Steel
• Voltage: DC12V
• Current: 450mA(CEN-15AO)
• Feature: Fail Secure,
• NO mode (Locked when power is removed)

• Suitable Temperature: -10~+25℃(14-131F)
• Suitable Humidity: 0~95%(non-comdensing)
• Weight: 0.3kg

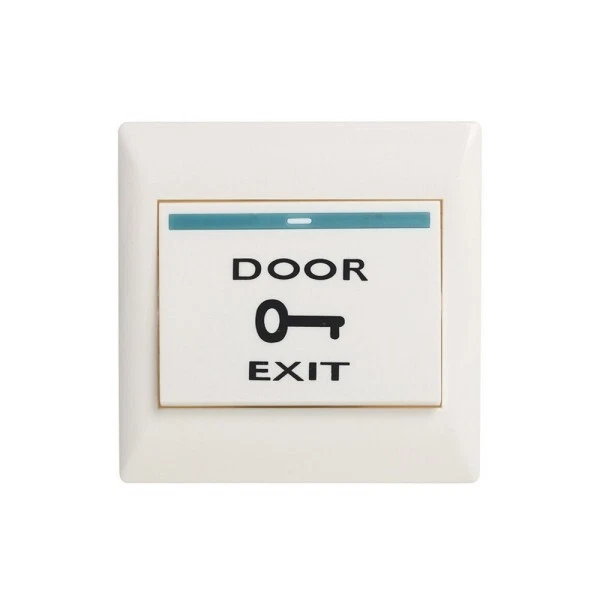

Exit button:

• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.
• Working voltage: DC12V
• Working current: 3A
• Face plate Size: 86mm x 86mm

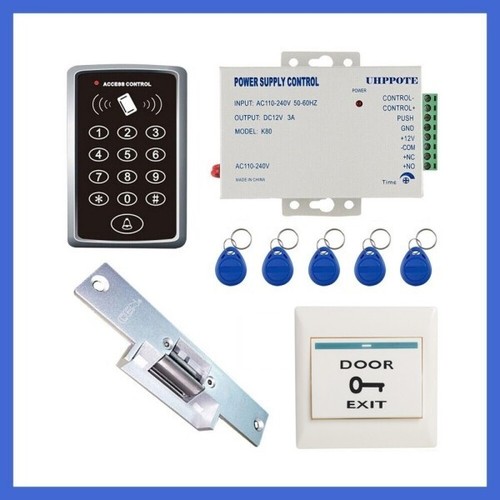

Package:

• 1 x Access control
• 1 x Electric Strike lock
• 1 x Power supply controller
• 1 x Exit button
• 5 x RFID Keyfobs (Color: Blue)
• 1 x User Manual
