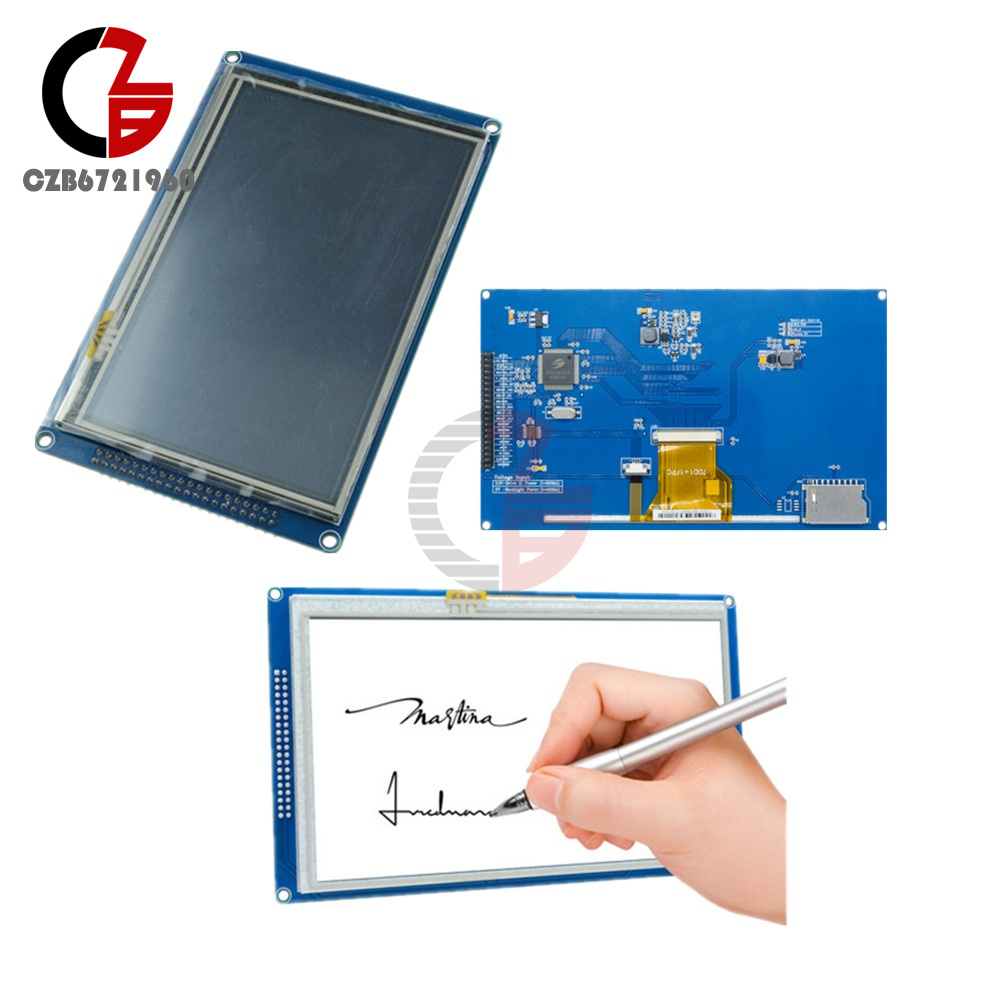

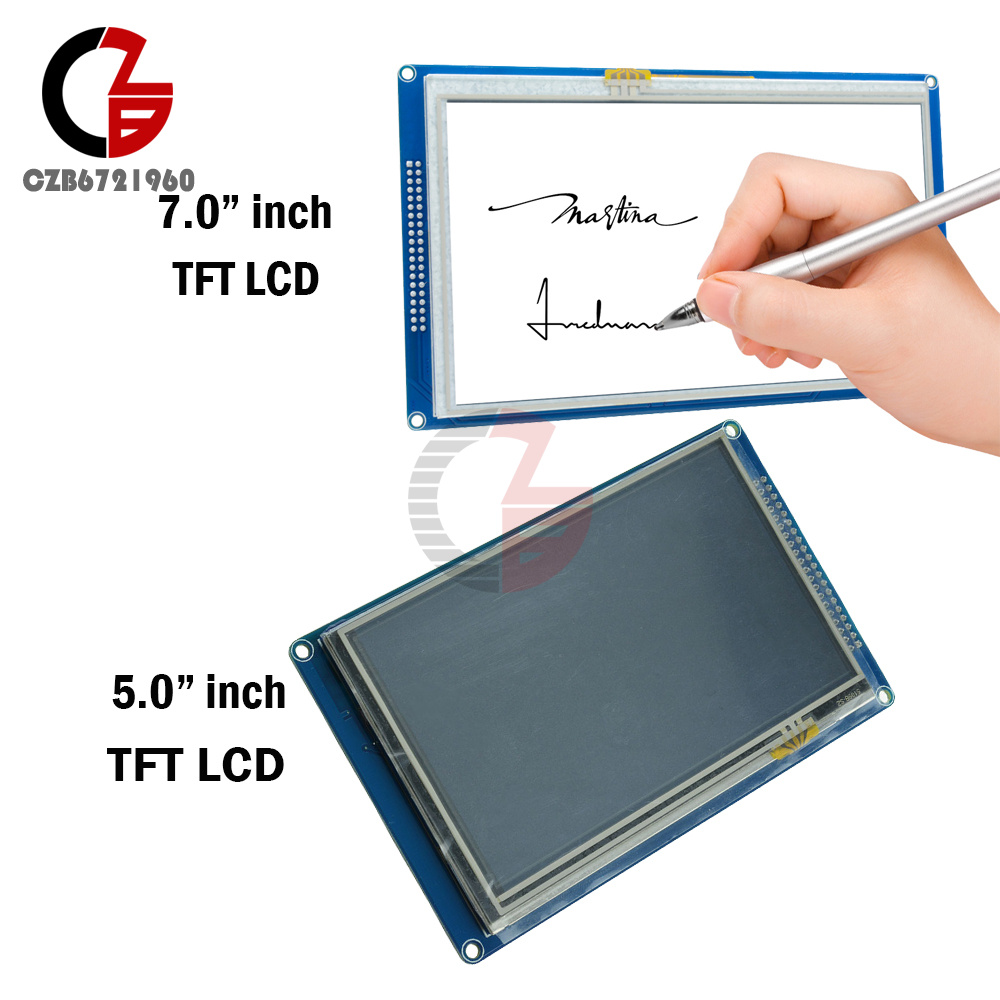

5.0 / 7.0 inch 800X480 16bit TFT LCD Display Touch Panel SD Card Module SSD1963

Popular

    Product Introduction

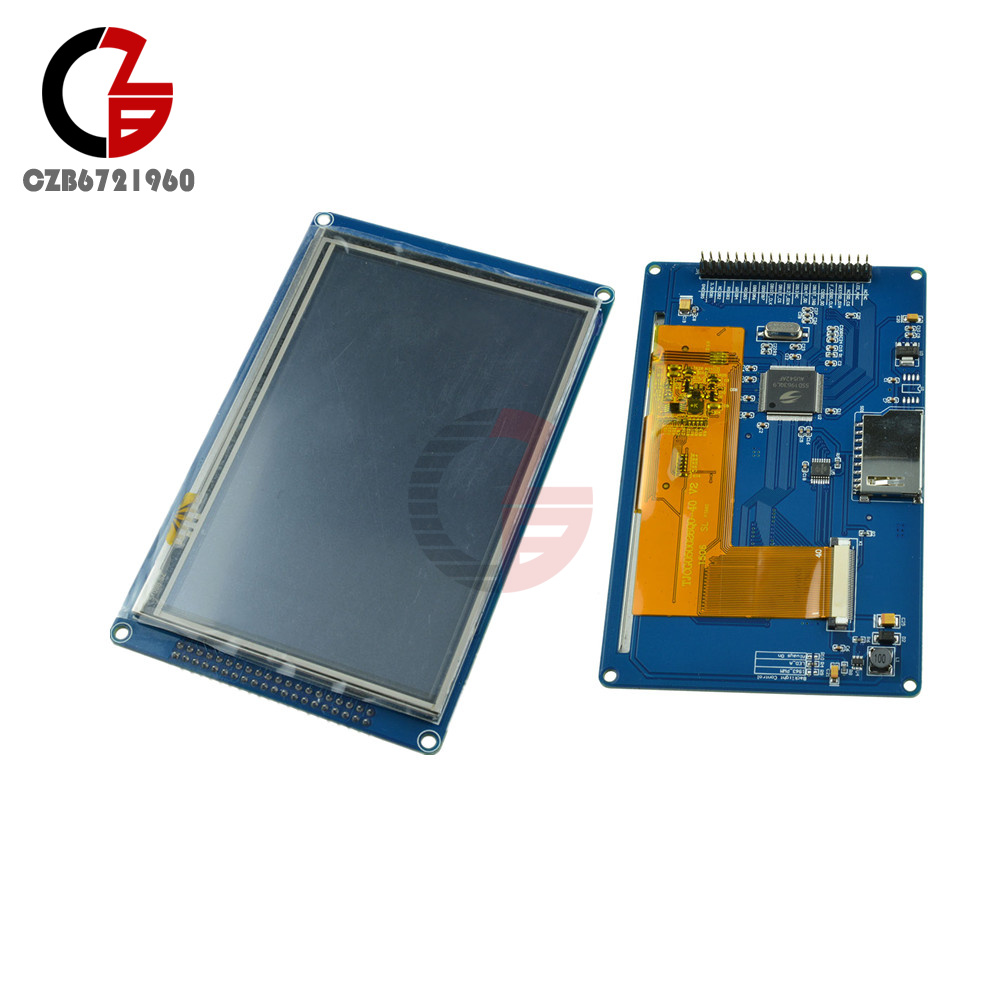

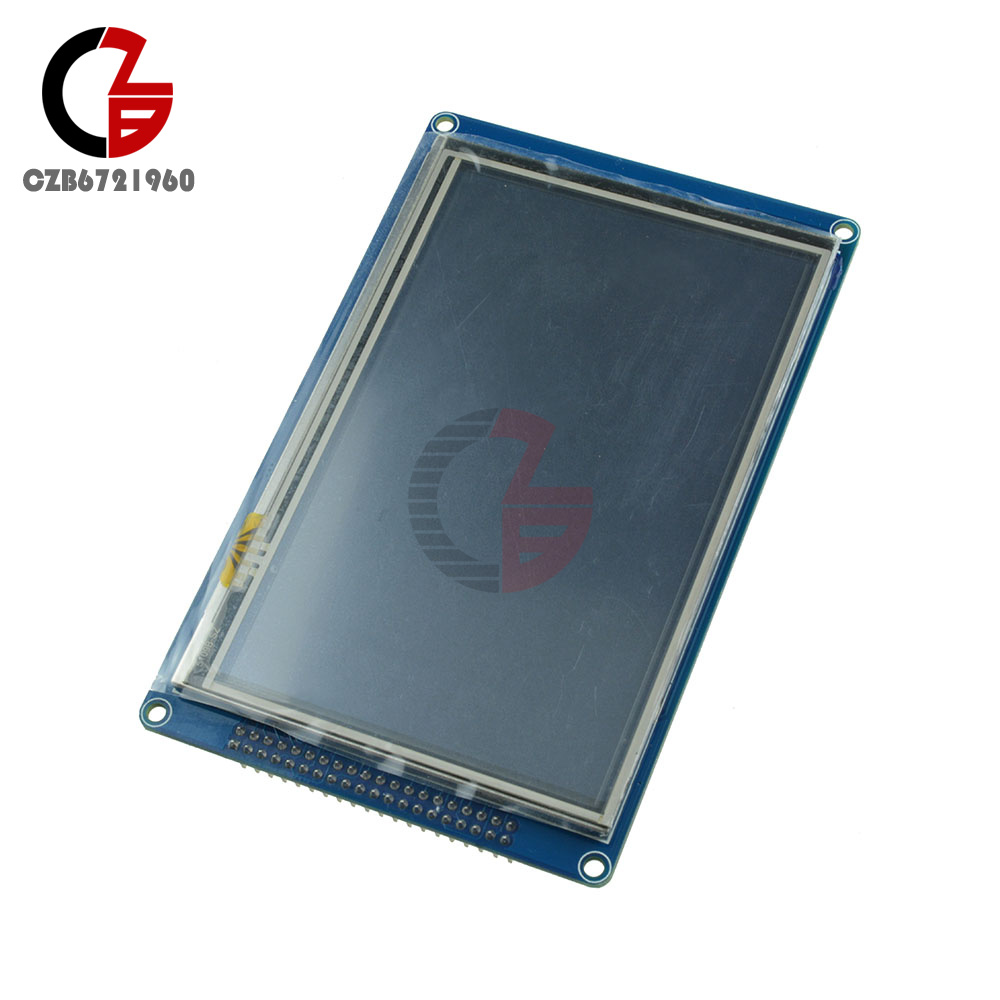

    5.0 inch：
    Description:
    100% band new and high quality
    quantity:1pc
    Screen Size : 5.0(Diagonal)
    Display Format : 800 GRB x 480
    Active Area :108°
    Pixel Pitch : 0.135(H)X0.135(V)
    Surface Treatment : Anti-glare
    Pixel Configuration :RGB-Stripe
    Outline Dimension : 118.5(H)X77.55(V)X3.4(T)
    Size:13.5cmX8.5cm/5.31''x3.34''(LxW) (Approx)

    Package Included:
    1 x 5.0 inch 5.0" TFT LCD module Display SSD1963 with touch panel SD card 800X480

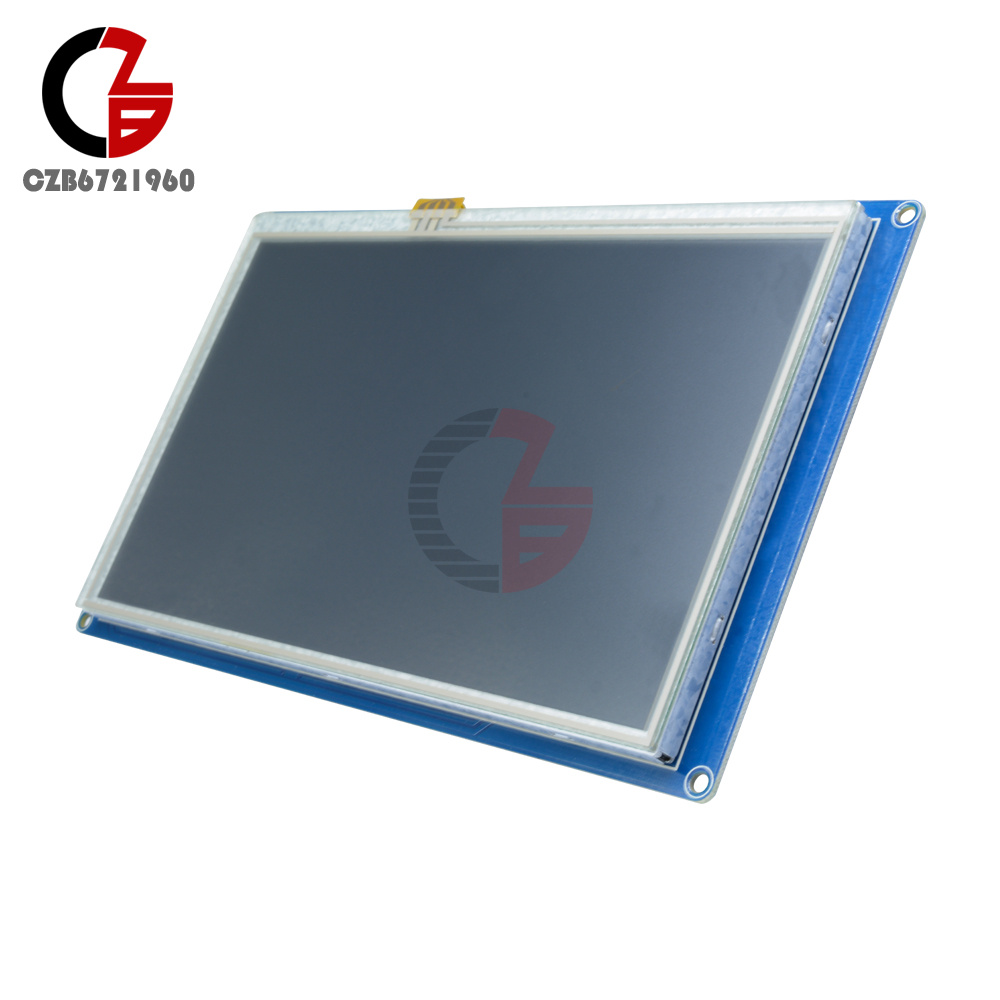

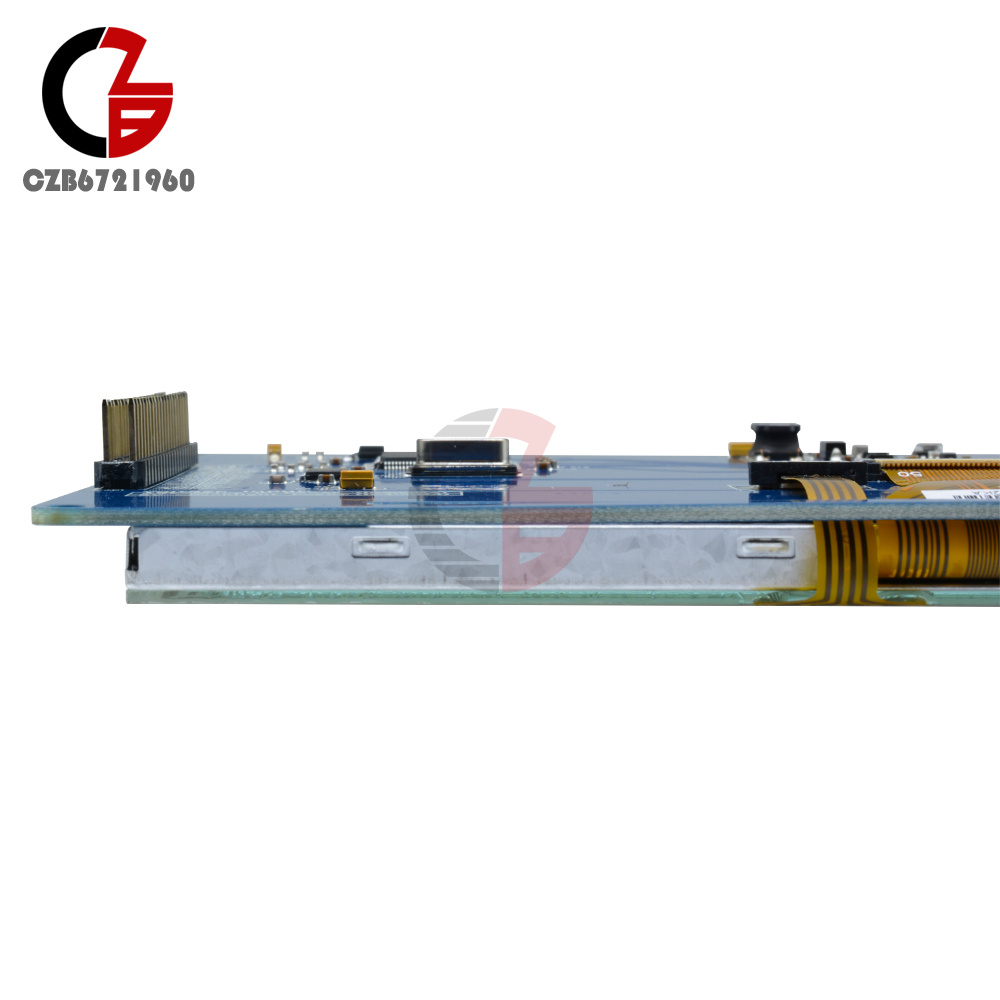

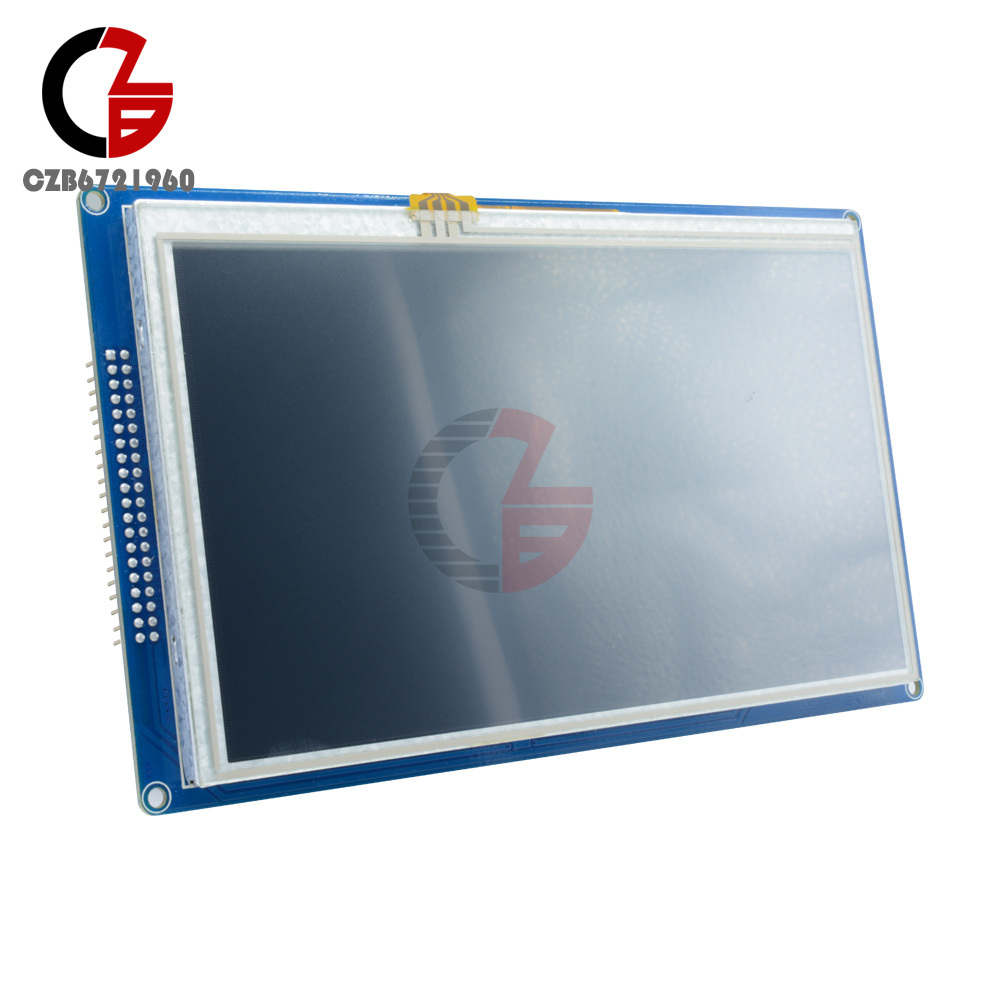

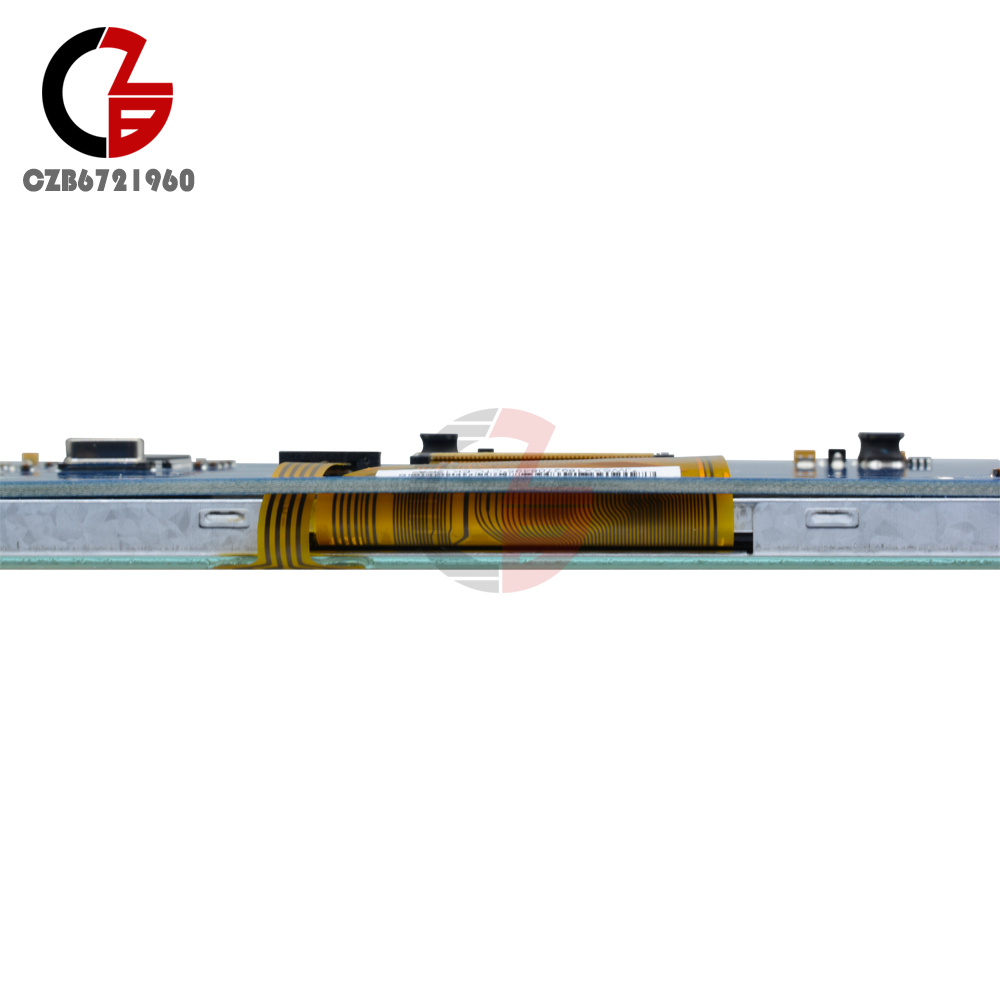

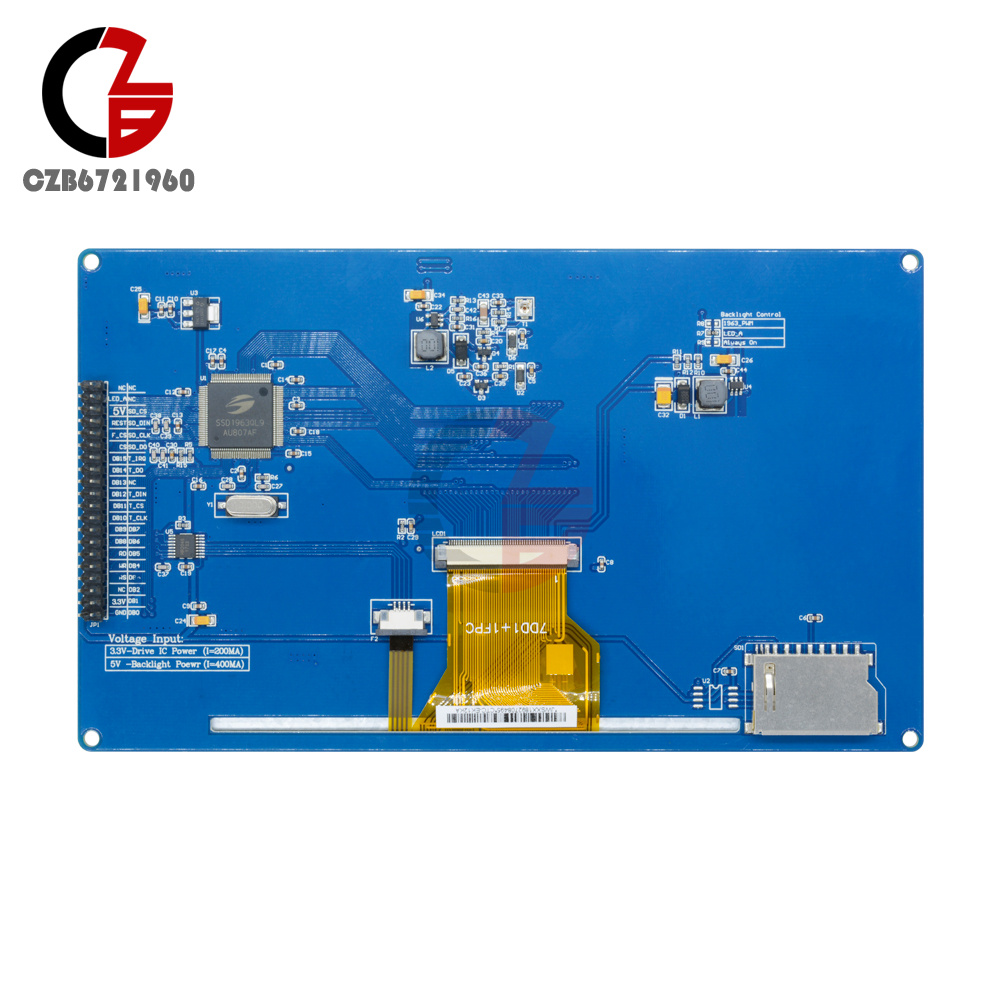

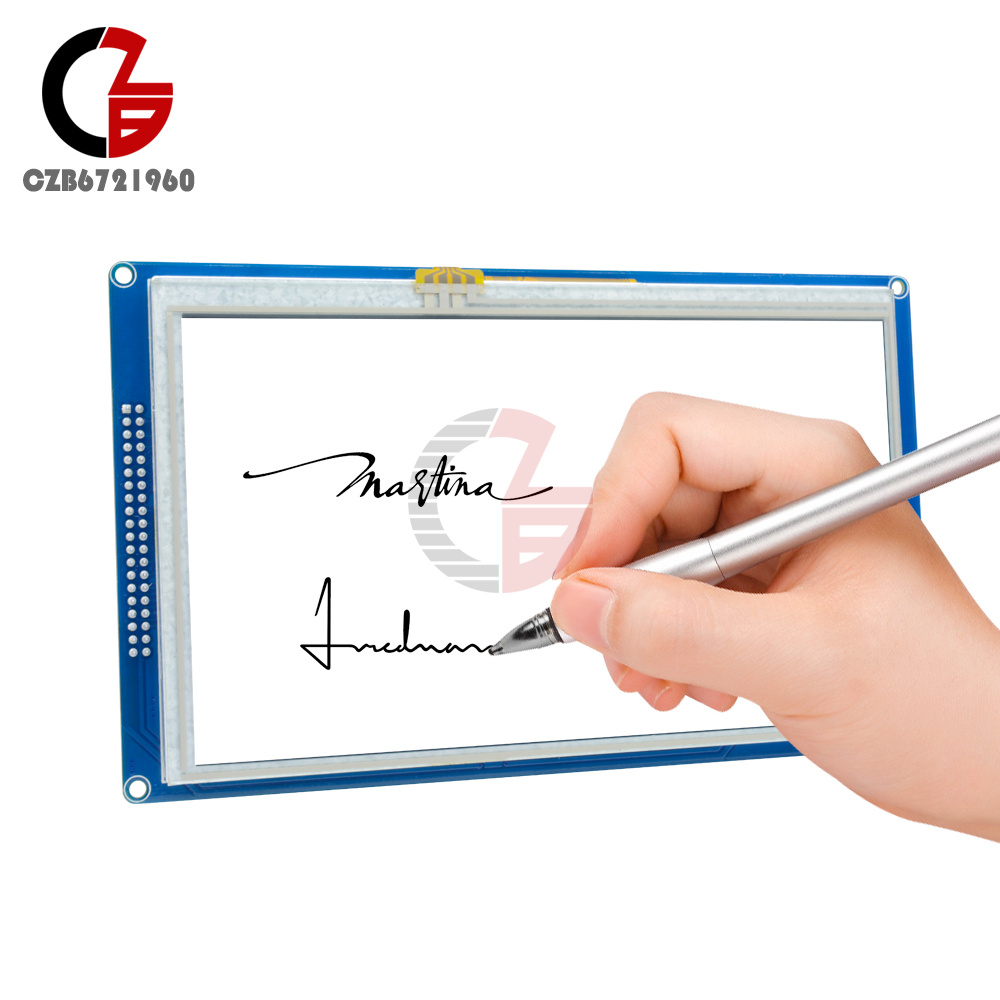

    7.0 inch:
    Description:
    This 7.0" TFT LCD Module can be can be easy controlled by MCU such as 51,AVR,STM32,PIC,MSP430,DSP,ARM, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used SSD1963 LCD controller with 7 inch LCD module with touchscreen. This LCD has a superior display quality and super wide viewing angle, please see the sample pictures, they are taken directly from the LCD display.

    Features:
    7.0" TFT LCD Module, Resolution 800x480, SSD1963 Controller ,RA8875
    LCD Type: TFT Transmissive Normal White
    Interface: 16bit parallel bus interface
    PCB Color: Blue

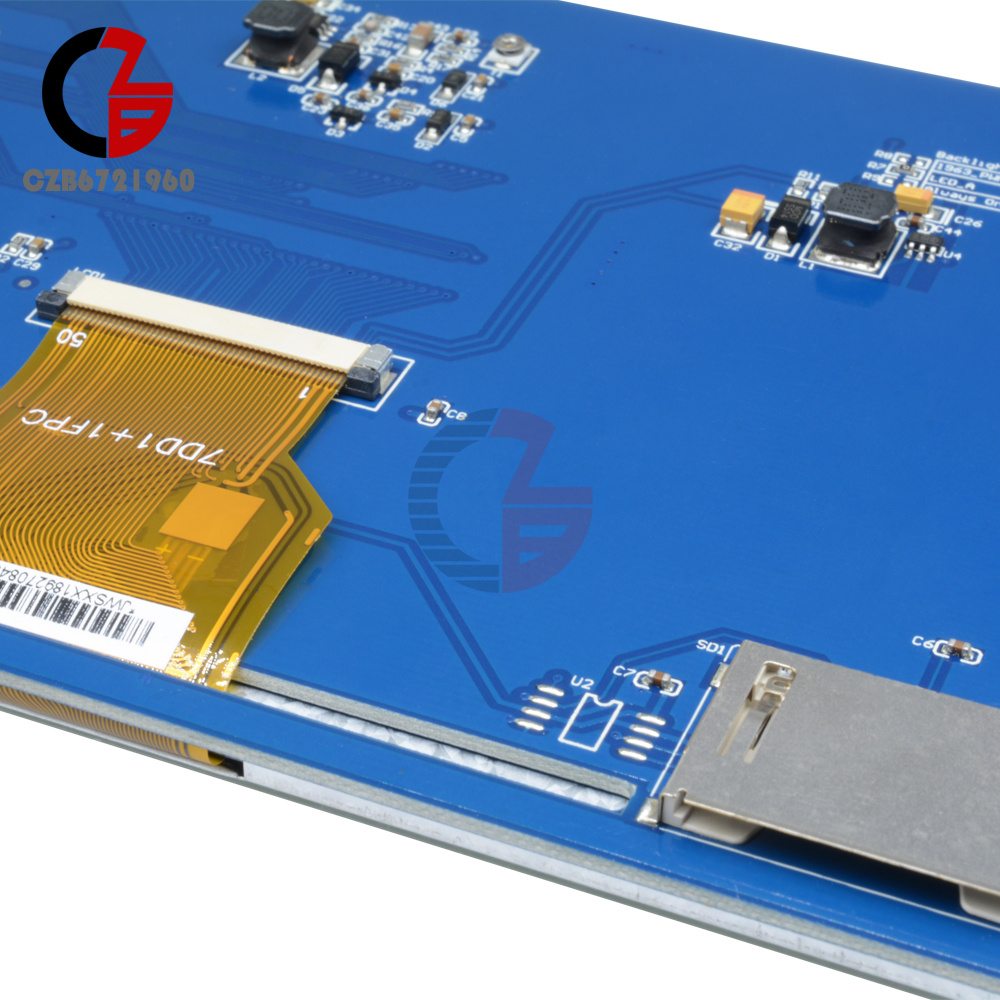

    On board 400mA DC-DC Boost regulator to provide power supply to LCD backlight
    LCD-specificed intialization code is provided, so that you can save time to optimize power control register and gamma curves for best display performance. We have test the provided code, it gives the best display performanace
    Module dimension: 186mmx106mmx23mm(including pin header extrusion)
    Active Area: 154mmx86mm
    Pixel pitch: 0.179mmx0.179mm

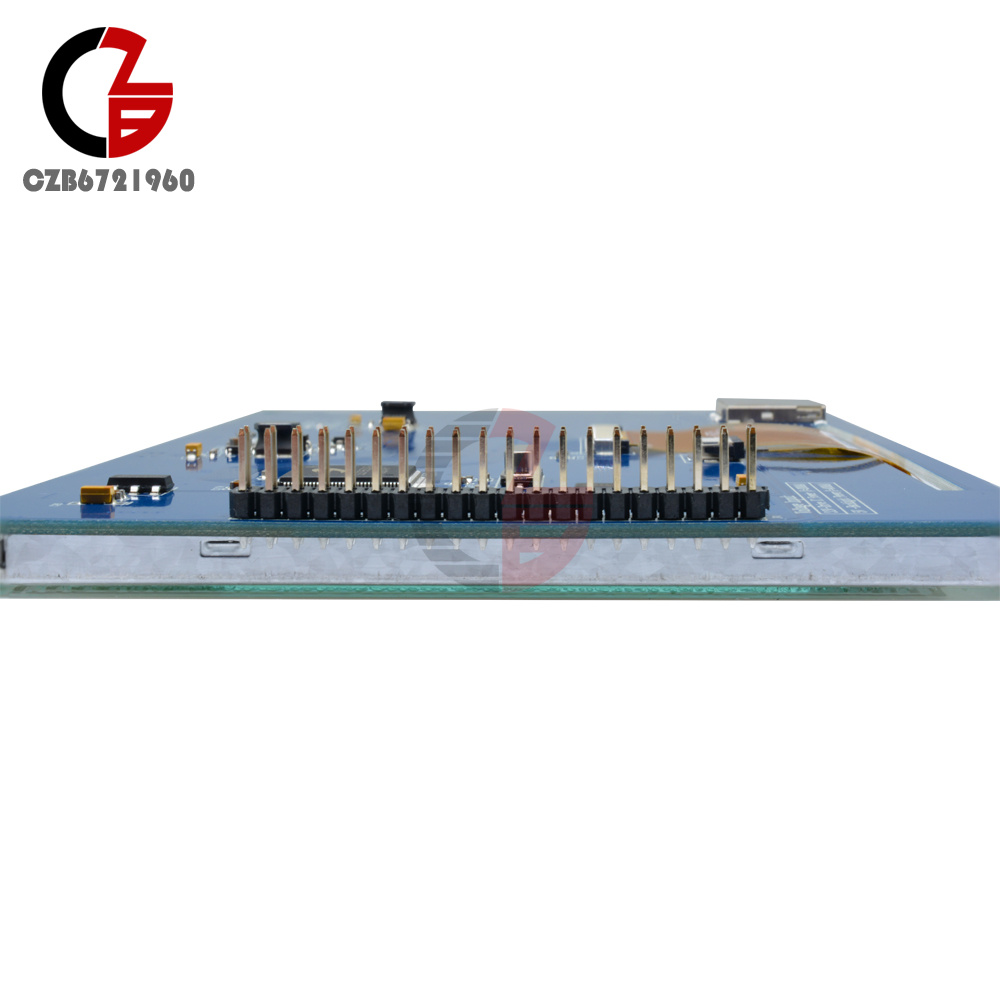

    Standard 2x20 2.54mm pin header for connection to MCU/development board
    Module weight: 410grams
    Warning: All data port voltage can not exceed 3.6V.

    Package Included:
      1 x 7" inch Touch PWM 800x480 TFT LCD Module SSD1963 for Arduino AVR STM32 ARM
