FEATURES:
l Contains a transmitter (TX) and a receiver (RX). The HDMI signal over wireless transmission from the transmitter to the receiver
l One TX can be paired with multiple (up to 3PCS) RX
l The TX support one HDMI loop output, for local screen monitor
l Support HDMI resolution: 480P~1080P@50/60Hz and SVGA~WUXGA
l Use the internationally accepted 5G ISM frequency band, high transmission rate and strong anti-interference capability
l Using an external dual - gain antennas. Full HD 1080p transmits up to 200 meters wireless in open space.( May be affected by the use environment)
l Extends wide-band infrared remote to control source device from display side
l Support OSD, for informed of device status
l Simple Plug and Play, no software installation required
l Supports both panel settings and Web Configuration Interface, Simple and easy to use
l Supports Foxtel IQ2 IQ3 IQ4

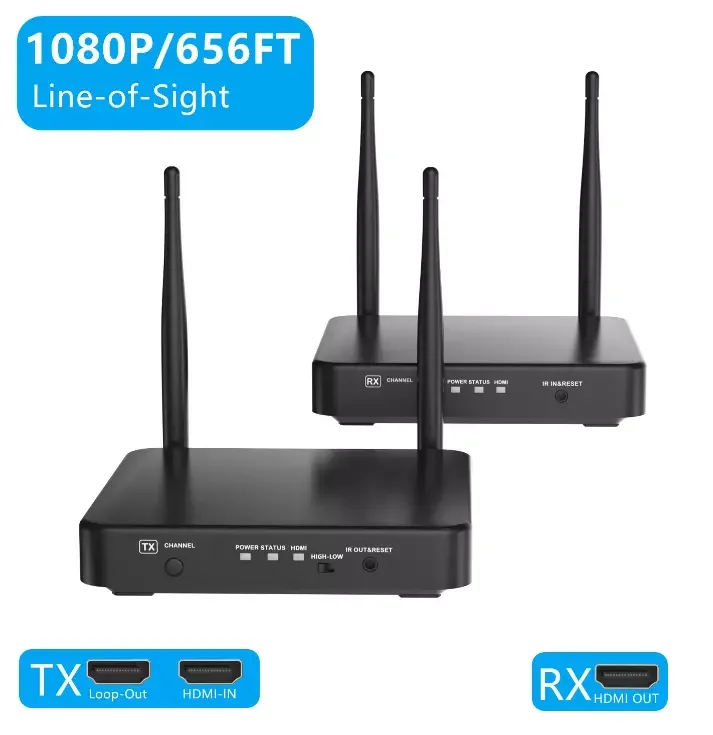

Long Range 200M HDMI Wireless Extender Splitter 1x2 Transmitter and Receiver Support 5G 1080P
PACKAGE CONTENTS:
Long Range 200M HDMI Wireless Extender Splitter 1x2 Transmitter and Receiver Support 5G 1080P
1. HDMI Wireless Transmitter 1pcs
2. HDMI Wireless Receiver 1pcs
3. IR Transmitter cable 1pcs
4. IR Receiver cable 1pcs
5. User manual 1pcs
6. DC power AU SAA adapter 2pcs
Long Range 200M HDMI Wireless Extender Splitter 1x2 Transmitter and Receiver Support 5G 1080P
SPECIFICATIONS:
| HDMI Audio Format | LPCM2.0 |
| HDMI Max bandwidth | 225MHz |
| HDMI Max baud rate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| HDMI output cable distance | ≤12m AWG26 HDMI standard cable |
| Antenna type | External dual 3dBi gain antenna Wireless |
| Wireless Band | 5GHz ISM Band |
| Max Data rates | 2T2R up to 300Mbps |
| Transmit Output Power(IPEX) | 16±2dBm |
| Transmission distance | up to 200m (in open space) |
| IR Carrier frequency | 20-60KHz |
| TX/RX Max working current | 1A |
| Power adapter format Input | AC 100V~240V 50HZ/60Hz, DC5V/2A |
| Operating Temperature range | -5 to +45℃ |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Case Dimension (L x W x H) | 127.5x127.5x25 (mm) |
| Weight | TX175g/RX170g |
Long Range 200M HDMI Wireless Extender Splitter 1x2 Transmitter and Receiver Support 5G 1080P
OPERATIONG AND CONNECTION:

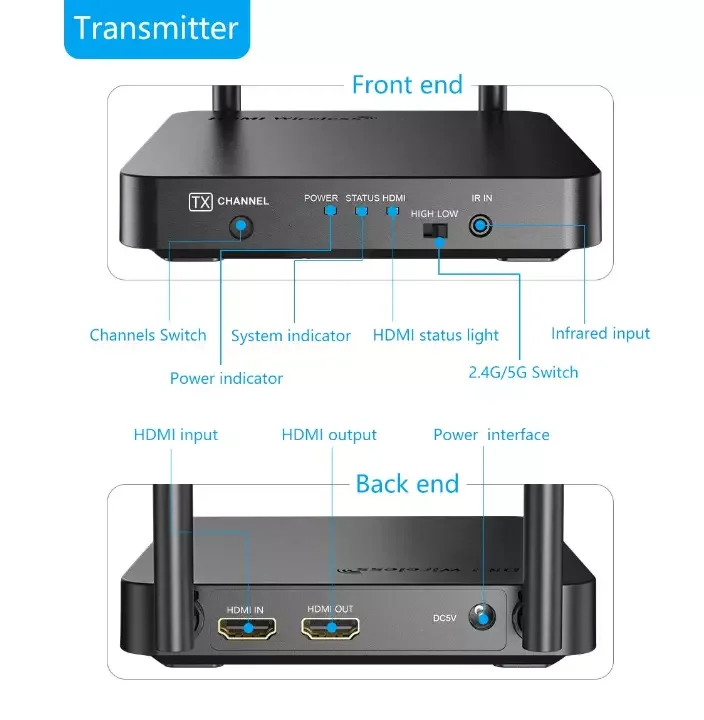

1. Connect one HDMI cable from the DVD/BD player into the HDMI input port of the HDMI wireless TX.

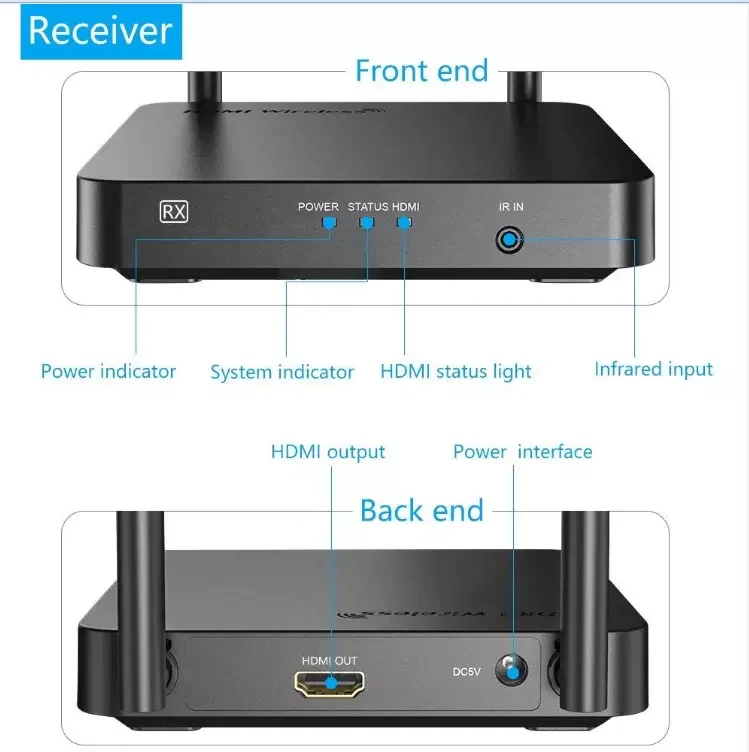

2. Connect one HDMI cable from TV/Monitor into the HDMI output port of the HDMI wireless RX.
3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device. 4. Connect IR Receiver cable to the HDMI wireless RX.
5. Connect 5V power supplies to the TX&RX, the POWER indicator will be lit at this moment.
6. The device will automatically connect after power on. The STATUS indicator of TX and RX will be lit when the connection is successful. If the HDMI input or output signal is normal, the HDMI indicator light will be lit also. The STATUS indicator flashes continuously during normal transmission.
12 month warranty
