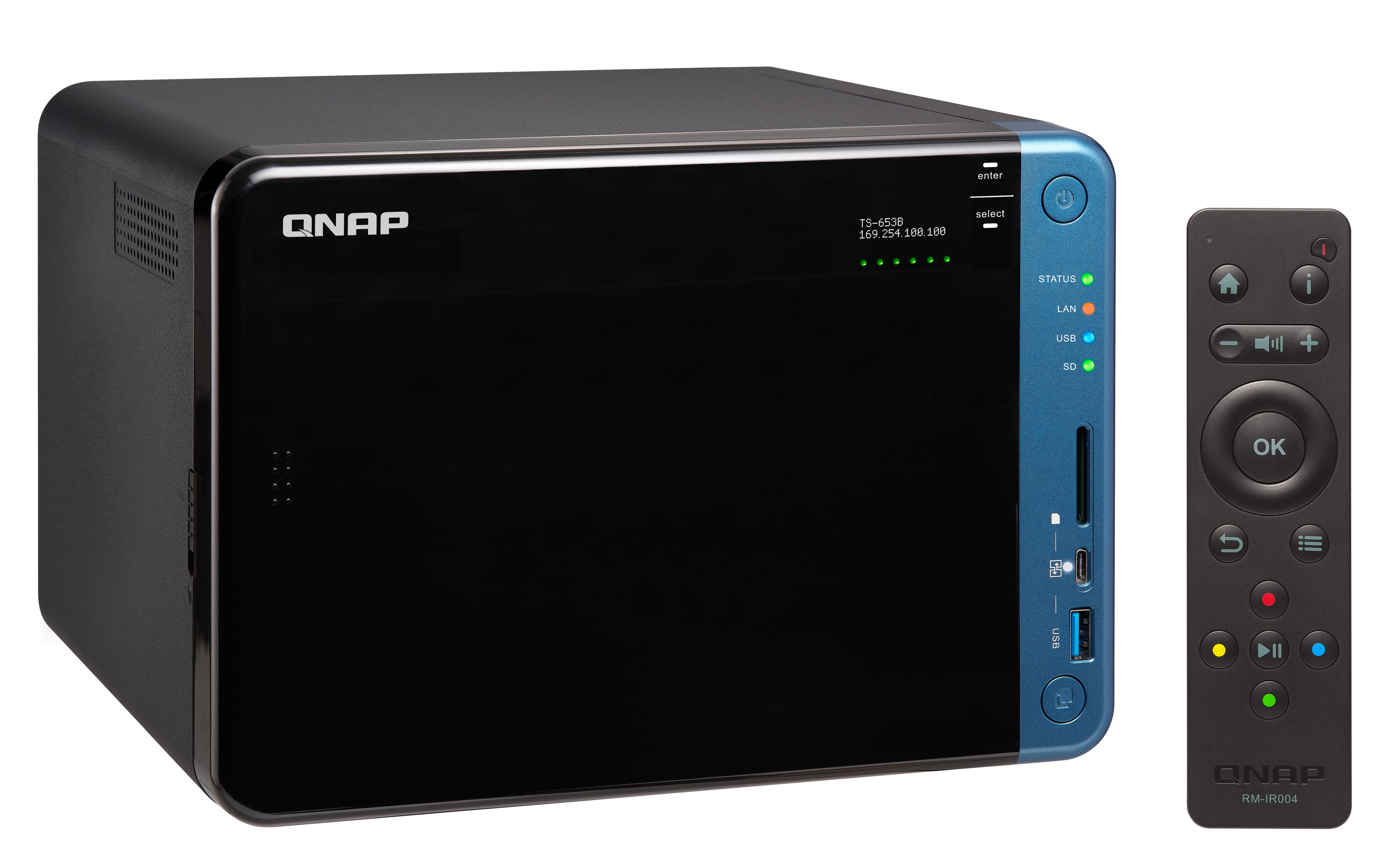

QNAP TS-653B-8G 24TB (6 X 4TB WD RED) 6 Bay NAS With 8GB RAM TS-653B-8G/24TB-RED
CONTENTS: TS-653B, Ethernet Cable x 2, Power Cord x 1, AC Adapter, 18 x screws (for 2.5" HDD), QIG, IR Remote Control

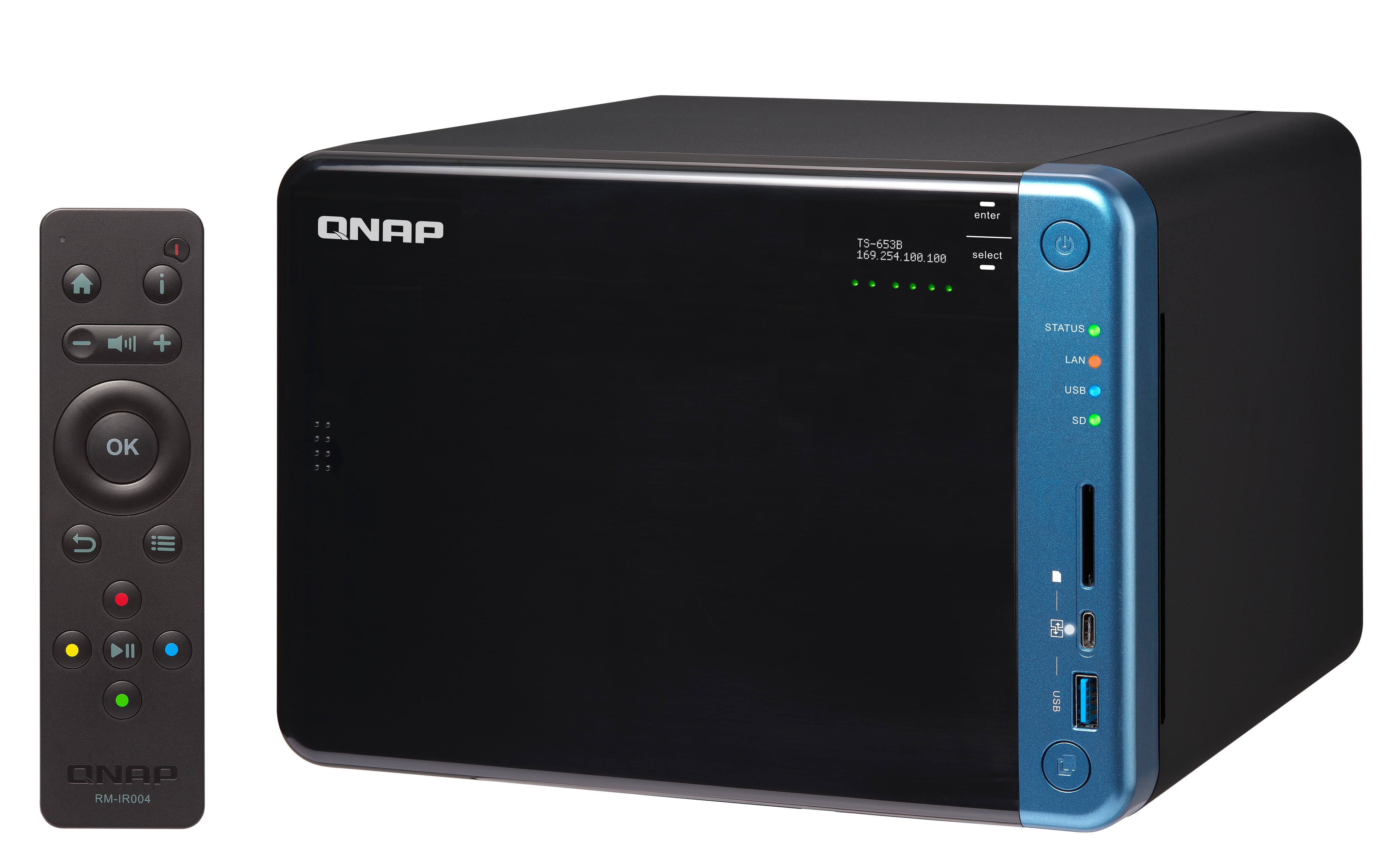

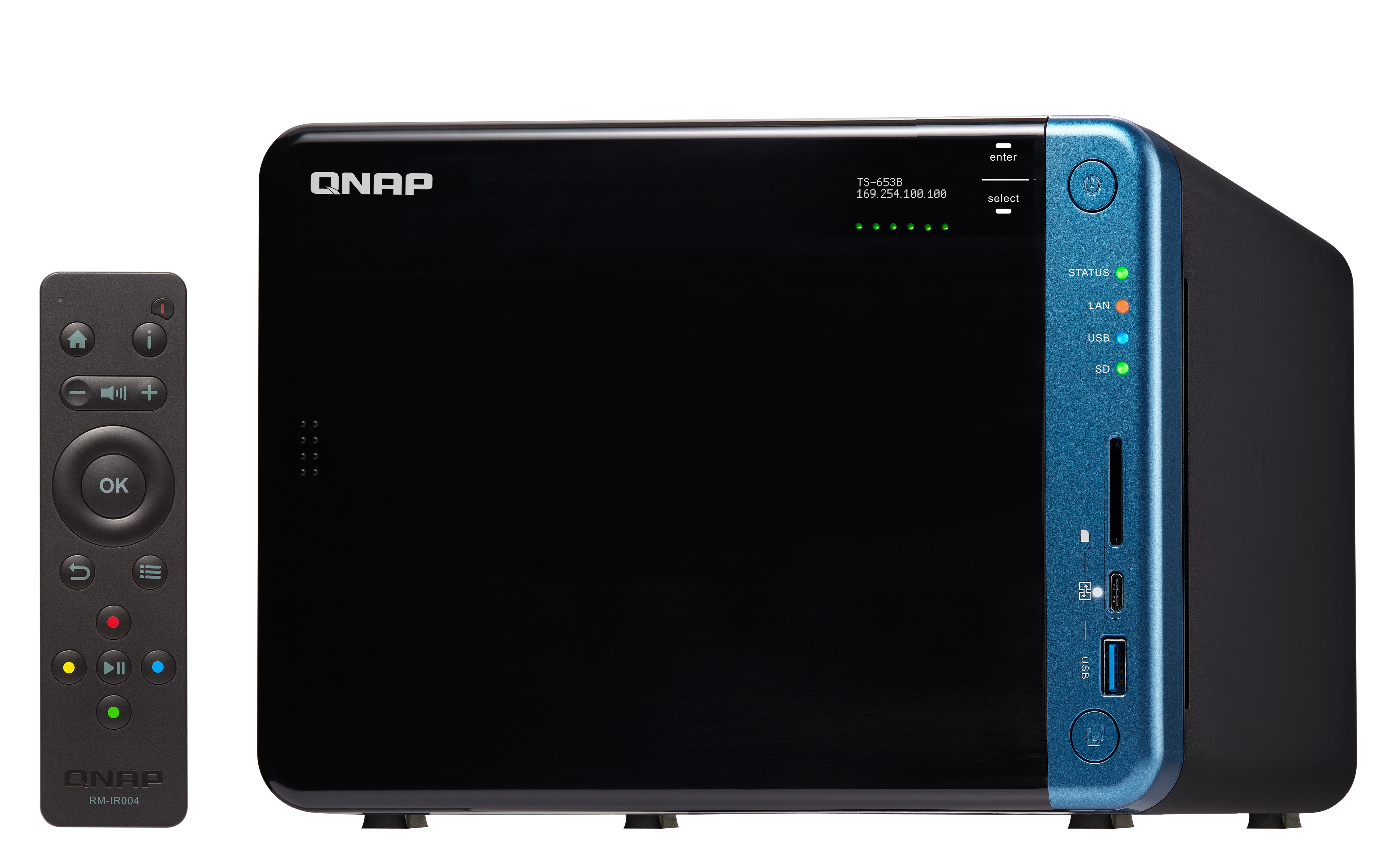

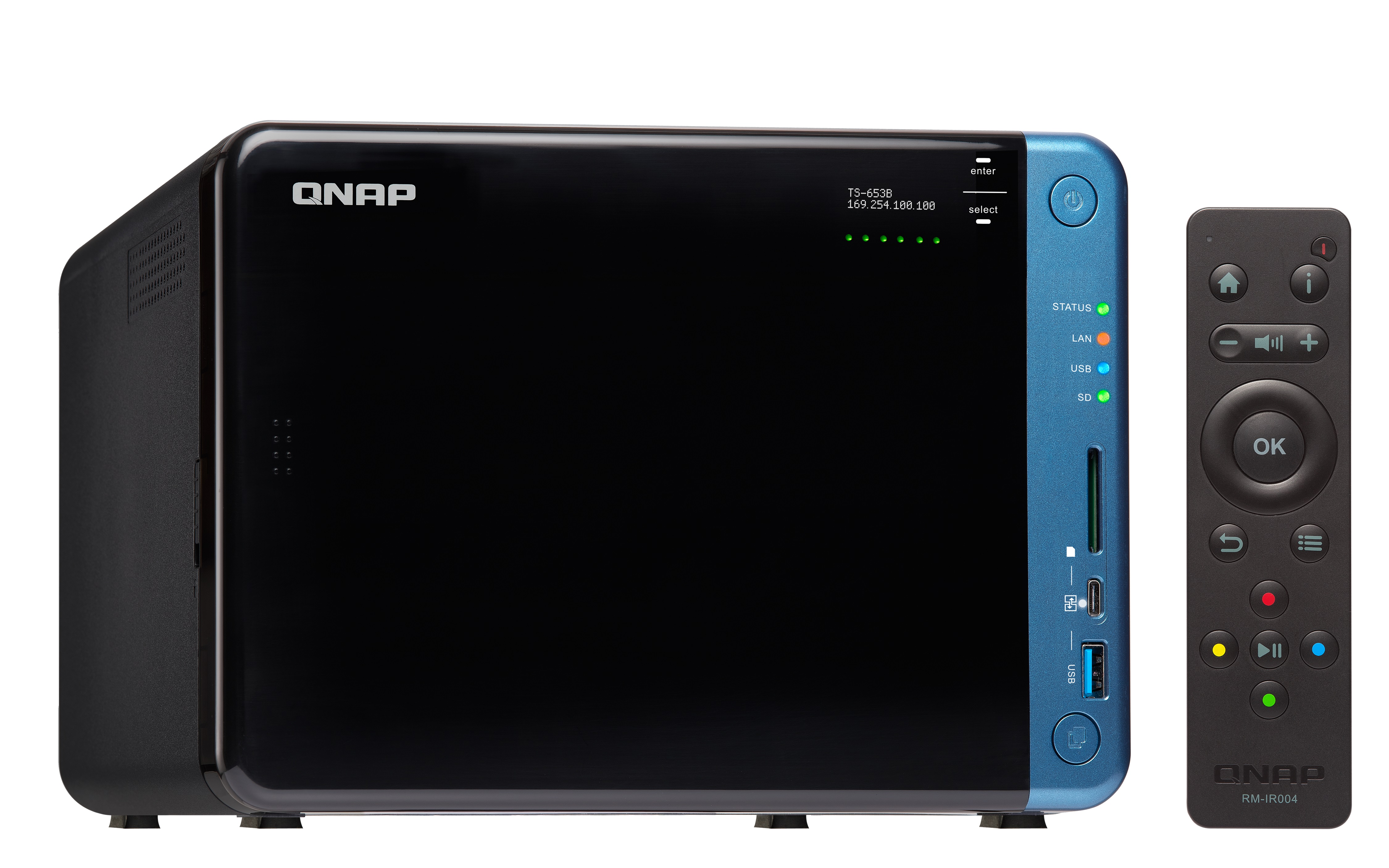

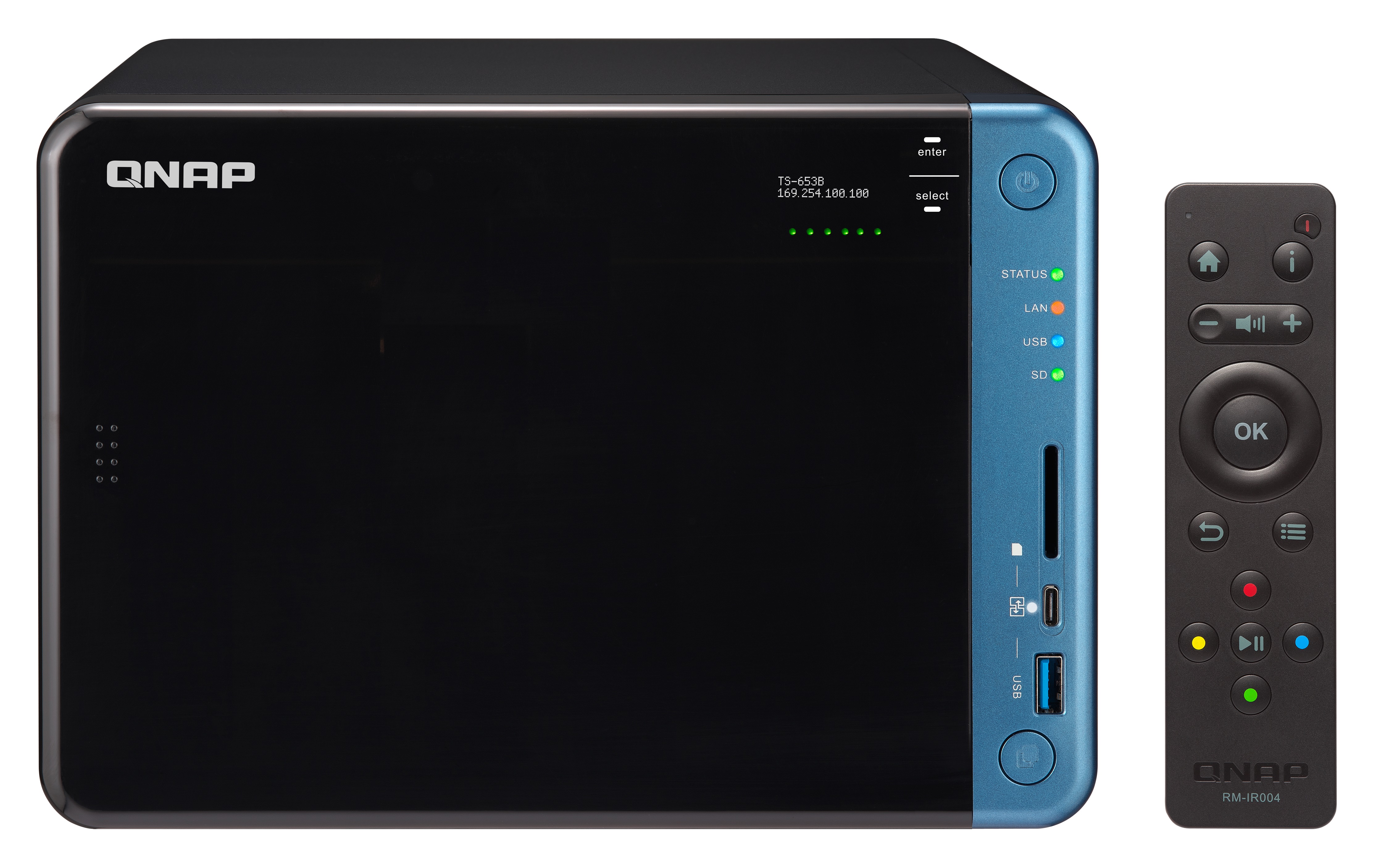

The TS-653B comes with a sleek new look, featuring an OLED panel and two capacitive touch buttons. The TS-653B also features a PCIe port for boosting the potential applications of your NAS: the QNAP QM2 expansion card can be installed for adding an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-653B as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage devices. With a USB Type-C QuickAccess port and a SD card slot, the TS-653B simplifies transferring and sharing files without needing a network connection. The TS-653B also provides feature-rich multimedia functionality, such as 4K video playback and real-time transcoding. The multi-zone multimedia management app Cinema28 and popular web automation app IFTTT Agent also enrich your multimedia experience and NAS automation.
| Ordering P/N | TS-653B-8G | TS-653B-4G |
| CPU | Intel® Celeron® J3455 quad-core 1.5 GHz, up to 2.3 GHz | |
| Encryption Accleration | œ” (AES-NI) | |
| Graphics | Intel® HD Graphics 500 | |
| System memory | 8GB DDR3L | 4GB DDR3L |
| (2 x 4GB) | (2 x 2GB) | |
| Maximum Memory | 8GB | |
| Total Memory Slots | 2 x DDR3L SODIMM slots | |
| (For dual-DIMM configuration, you must use a pair of identical DDR3L modules.) | ||

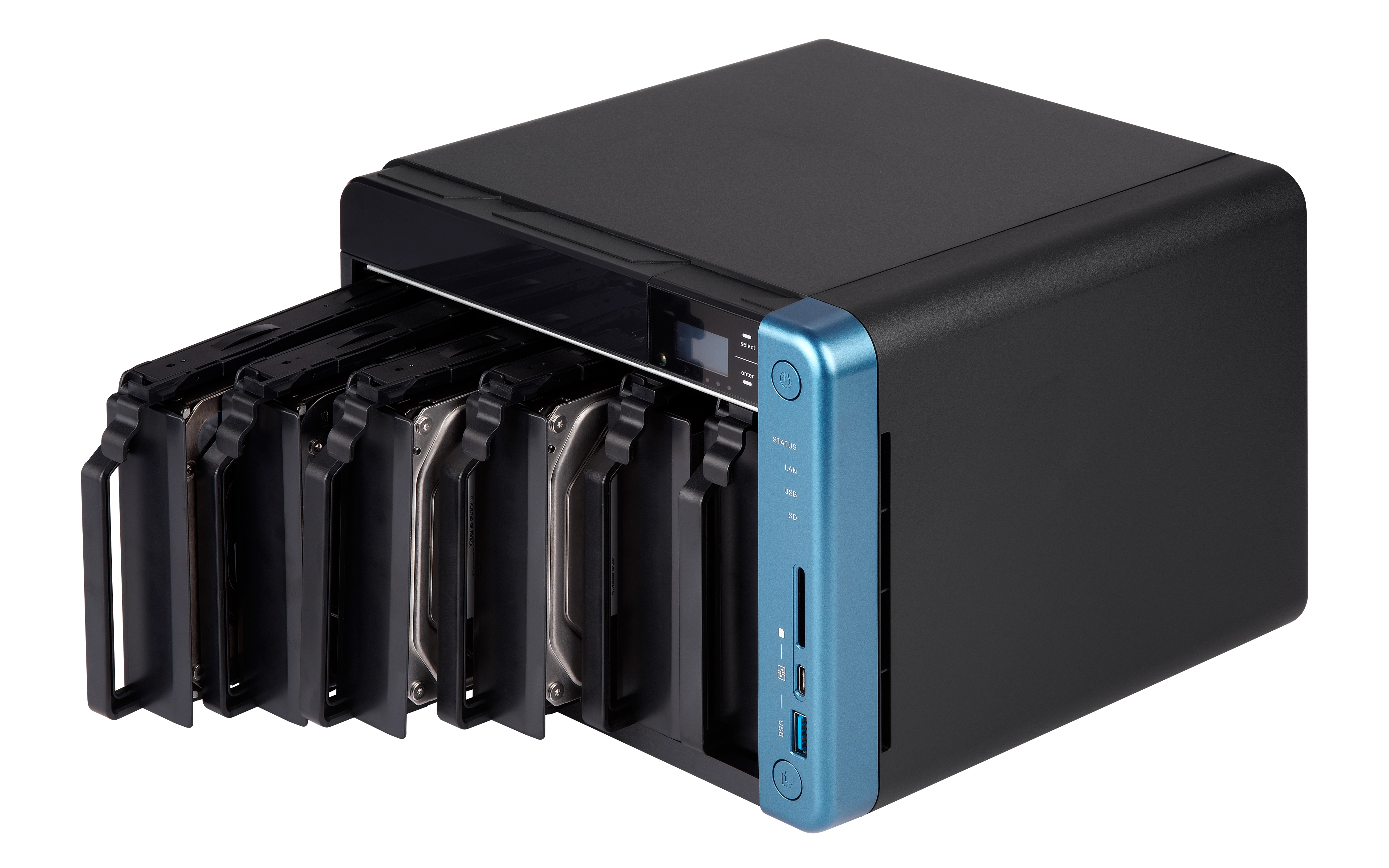

| Drive | Hot-swappable 6 x 3.5"/2.5" SATA 6Gb/s HDD/SSD | |
| GbE LAN Port | 2 x RJ45 Gigabit LAN port | |
| 10GbE LAN Port | Optional 10 Gigabit LAN port via a PCIe expansion card | |
| USB 3.0 Port | 5 x USB 3.0 Type-A ports | |
| USB QuickAccess | USB Type-C | |
| PCIe Slot | 1 PCIe 2.0 x2 slot | |
| HDMI Port | 2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz | |
| Audio Input | 2 x 3.5mm microphone input jacks | |
| Audio Output | speaker, 3.5mm line out jack | |
| Display | 0.96 monochrome OLED | |
| LED Indicators | Status/Power, LAN, USB, Drives, SD card, USB QuickAccess | |
| Buttons | Power, USB copy, Reset, Capacitive touch buttons (select, enter) | |
| Infrared Receiver | œ” supplied with a QNAP RM-IR004 remote control (compatible with RM-IR002 remote control) | |
| SDXC Card Reader | œ” | |
| Other Interfaces | Kensington security slot | |
| Dimension (HxWxD) | 168 x 235 x 226 mm | |
| 6.61 x 9.25 x 8.90 inch | ||
| Weight | 3.01 kg ( 6.64 lbs ) | |
| Operating Temperature | 0 ~ 40°C (32°F ~ 104°F) | |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27°C (80.6°F) | |
| Power Consumption | HDD sleep: 20.62W | |
| Typical Operation: 40.33W | ||
| Power Supply | 120W AC adapter, 100-240V | |
| Fan | 2 x 9 cm | |
| Package Contents | NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord, 2.5" drive screw kit, RM-IR004 remote control | |
