4 Wire Door Video Intercom with Touch Screen & Stylish User Interface

This all new way range kit features an easy to use 7" touch screen colour monitor and a robust entrance panel using 4 wire technology. It combines video and intercom capabilities in-one and enables you to see who's there and grant entrance to authorized individuals without having to open the door, which is now widely used in villa, office, private house, and other place needs intercom.

This system supports 2*outdoor units, 4 indoor monitors, 2*CCTVs, 1*TV output and various kinds of locks. Feel free to customize special set based on specified needs.

Convincing Advantages for Your Worthwhile

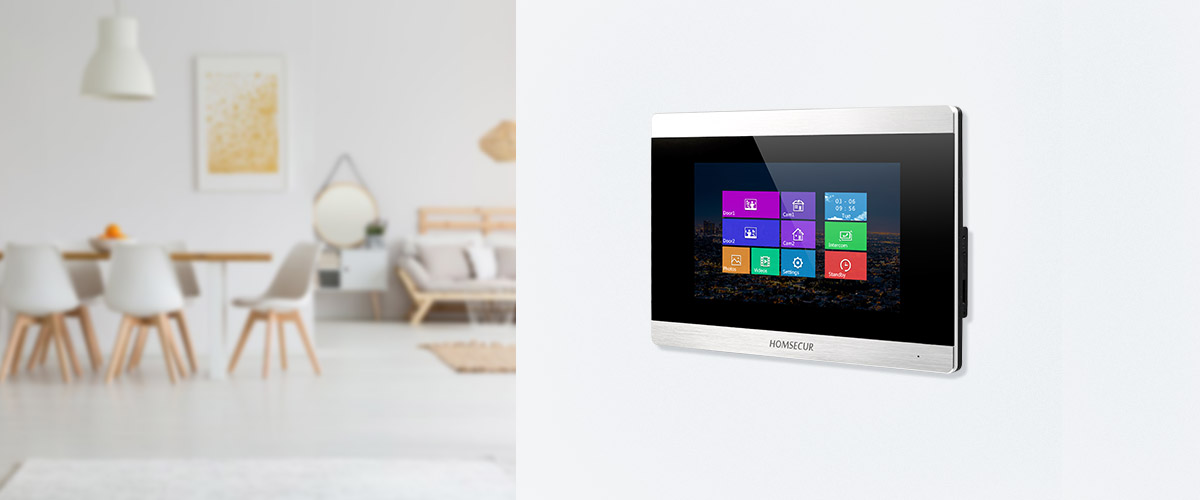

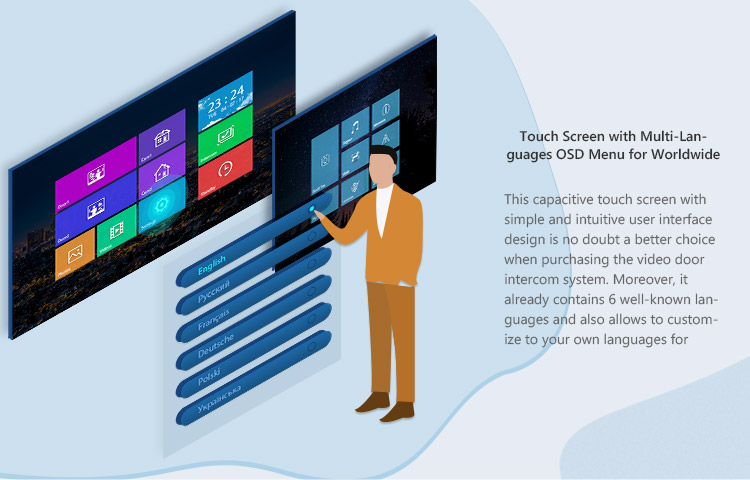

Touch Screen with Multi-Languages OSD Menu for Worldwide Usage

This capacitive touch screen with simple and intuitive user interface design is no doubt a better choice when purchasing the video door intercom system. Moreover, it already contains 6 well-known languages and also allows to customize to your own languages for better performance.

800TV Lines Resolution For High Quality Image

This kit features with CMOS?Camera with 800TVLine Resolution, which makes you enjoy good quality image from this elegant monitor.

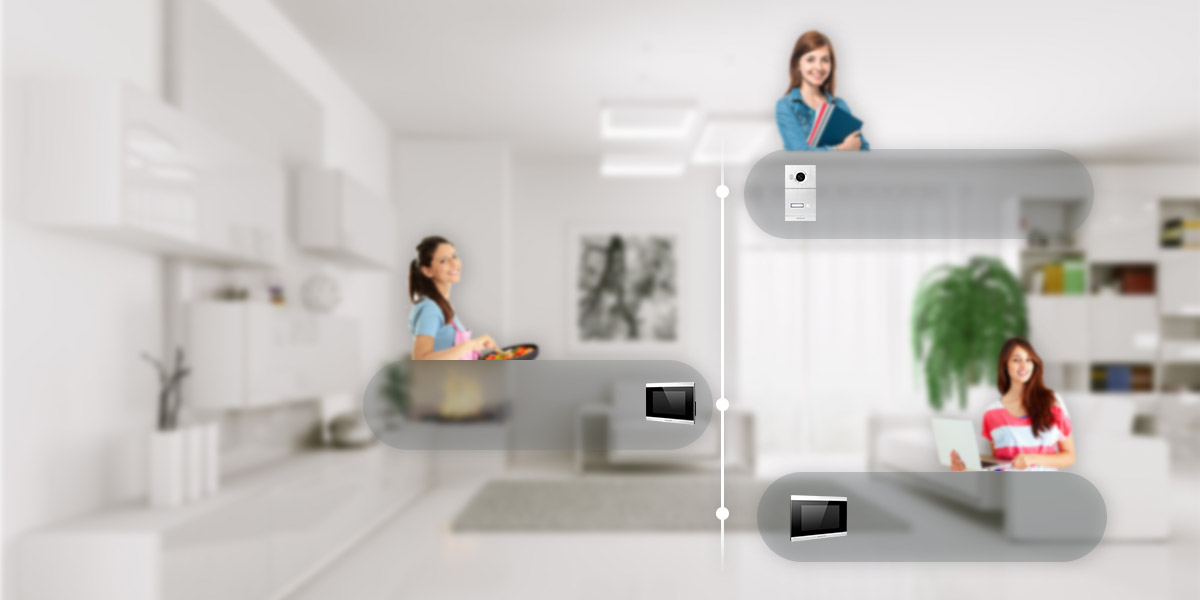

Intercom & Call Transfer, Complete
Intra-Communication Inside & Outside

It supports intercom between camera to monitor and also monitor to monitor (up to 2 monitors). In addition, this door phone supports Call Transfer (up to 2 monitors) after you answer the CALL from the outdoor unit.

Hi, is Lily at home?
Hi, yes, I will transfer to her.
Ah, come upstairs, please.

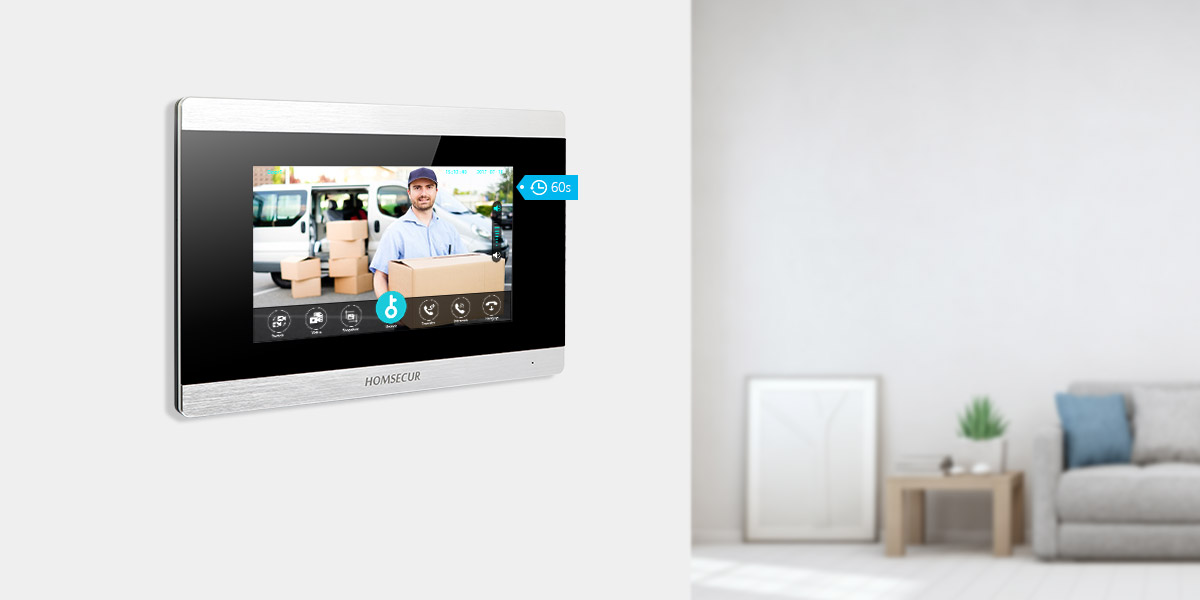

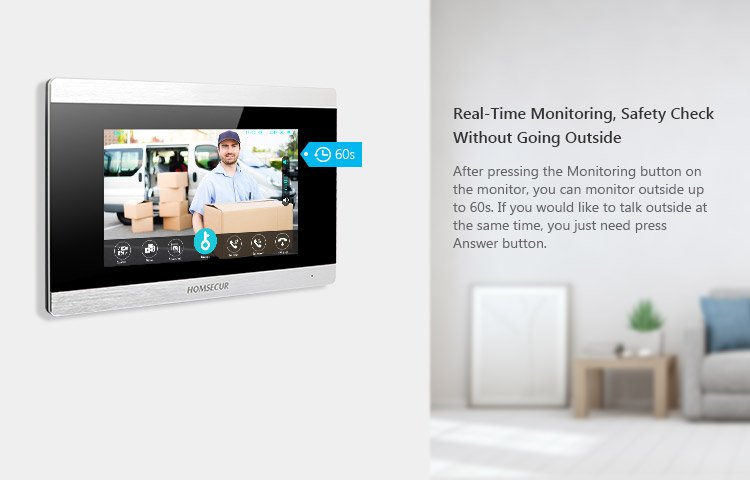

Real-Time Monitoring, Safety Check Without Going Outside

After pressing the Monitoring button on the monitor, you can monitor outside up to 60s. If you would like to talk outside at the same time, you just need press Answer button.

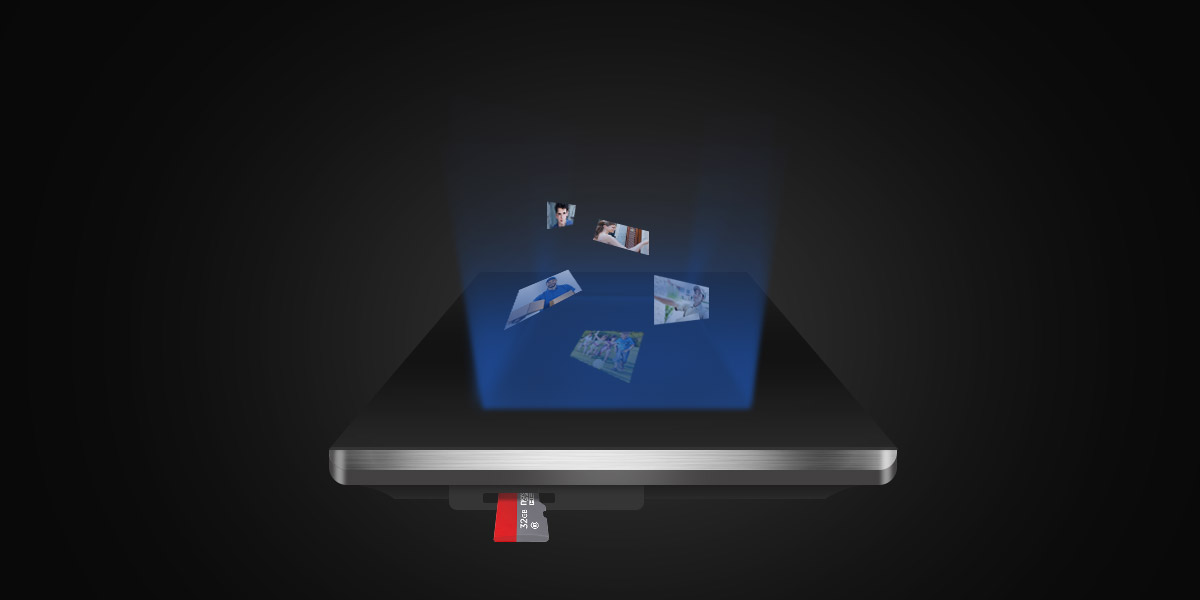

Built in Memory & External SD card Storage,
Always Knowing Who Are the Visitors

Once Call Button on the camera is pressed, the monitor will snapshot a picture or record a short video (External SD card is needed when video is required). You can check picture or video records after you are back, no more miss an unexpected visitor and eliminate the potential risks around the house.

Leaving a Message, Being Convenient for Certain Situation

If the visitor comes when no one is in, he can leave a message to the master after hearing the remind of leaving a message from the monitor. Specially for the courier to tell where he places the parcel with message rather than make a reservation and come back again to deliver the parcel.

Ringtones Setting Based on Time Period,
Flexible Operation for Peace of Mind

Ringtones can be divided into 3 time periods. During each period, 6 ringtones can be chosen and ringtone volume can also be adjusted. You can set the ringtone with high volume when you are at work so that the older at home can hear when the visitor comes. You can set comfort ringtone with low volume (even mute) when the family go to bed to avoid being disturbed. This friendly design makes you feel peace of mind whenever and wherever.

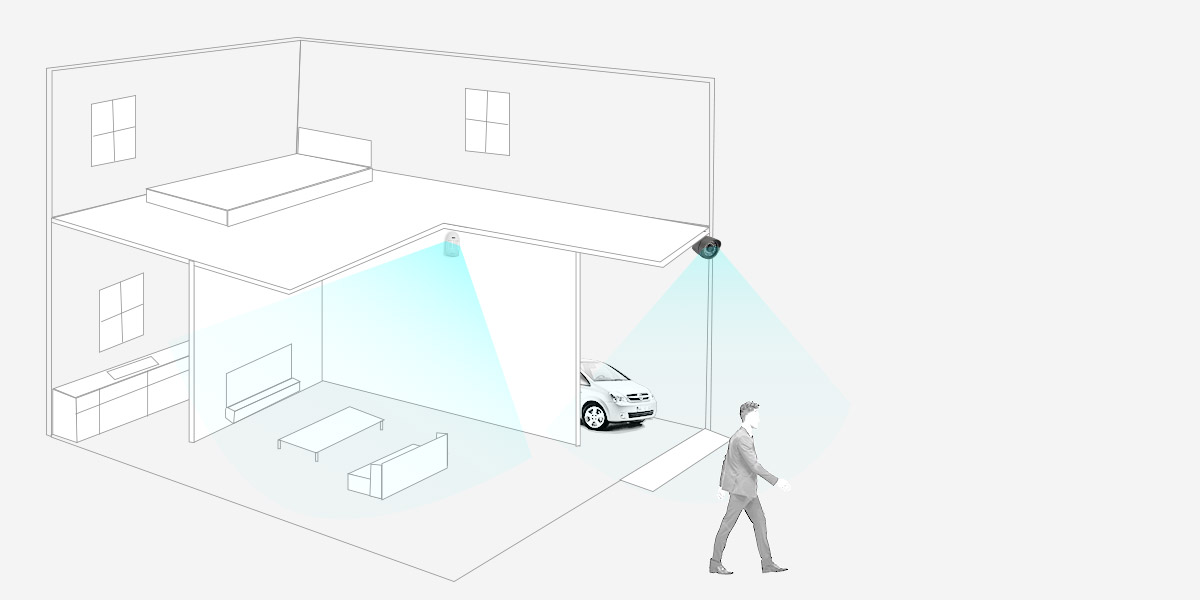

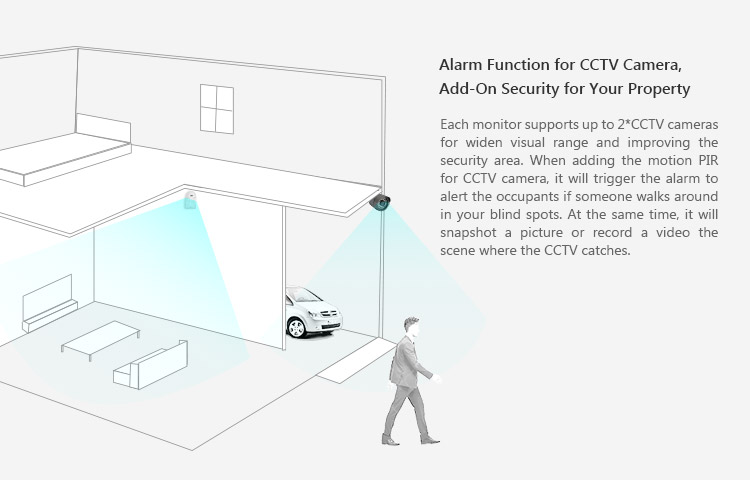

Alarm Function for CCTV Camera,
Add-On Security for Your Property

Each monitor supports up to 2*CCTV cameras for widen visual range and improving the security area. When adding the motion PIR for CCTV camera, it will trigger the alarm to alert the occupants if someone walks around in your blind spots. At the same time, it will snapshot a picture or record a video the scene where the CCTV catches.

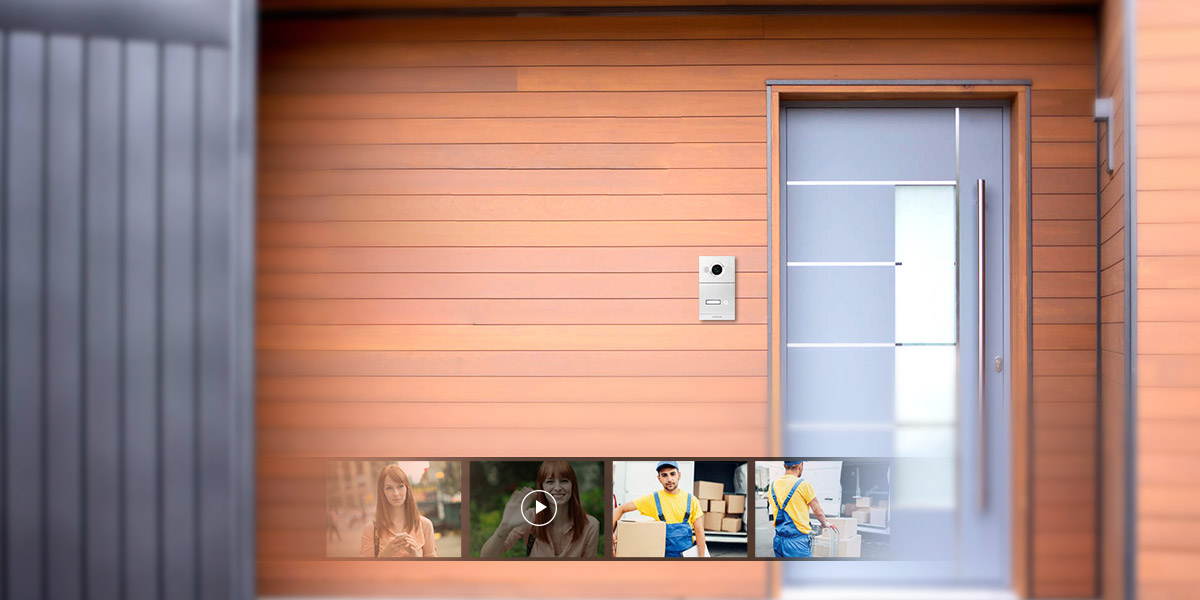

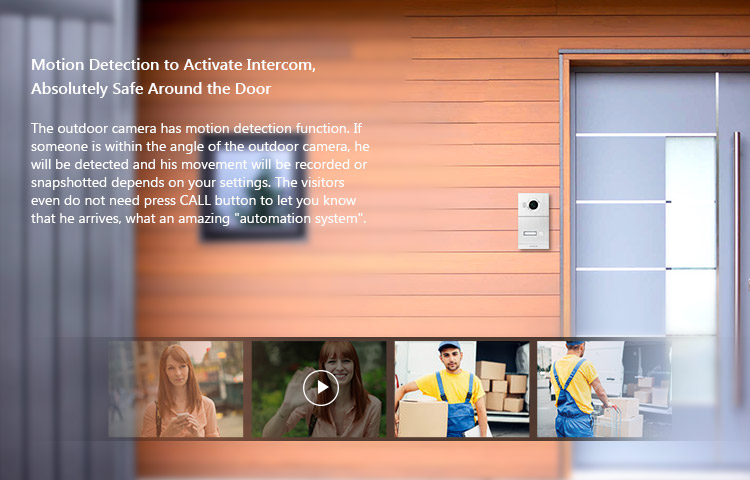

Motion Detection to Activate Intercom,
Absolutely Safe Around the Door

The outdoor camera has motion detection function. If someone is within the angle of the outdoor camera, he will be detected and his movement will be recorded or snapshotted depends on your settings. The visitors even do not need press CALL button to let you know that he arrives, what an amazing "automation system".

IR LEDs, Offset Lighting for Quality Night-vision at Night

This camera is equipped with IR LEDs, improving the caller's visibility in low light conditions.

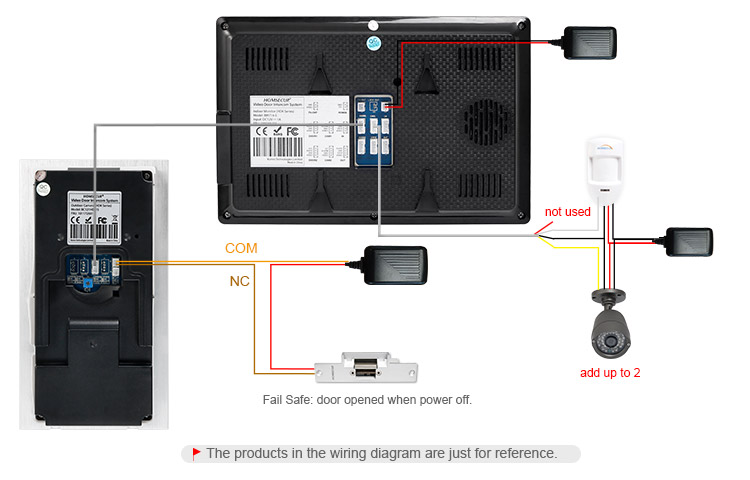

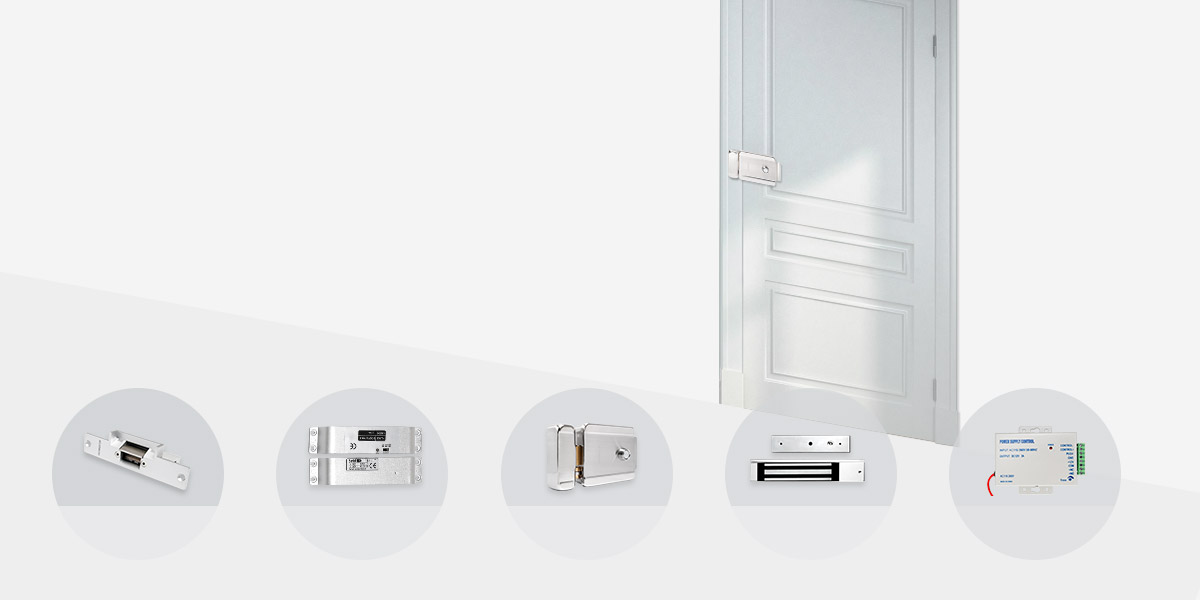

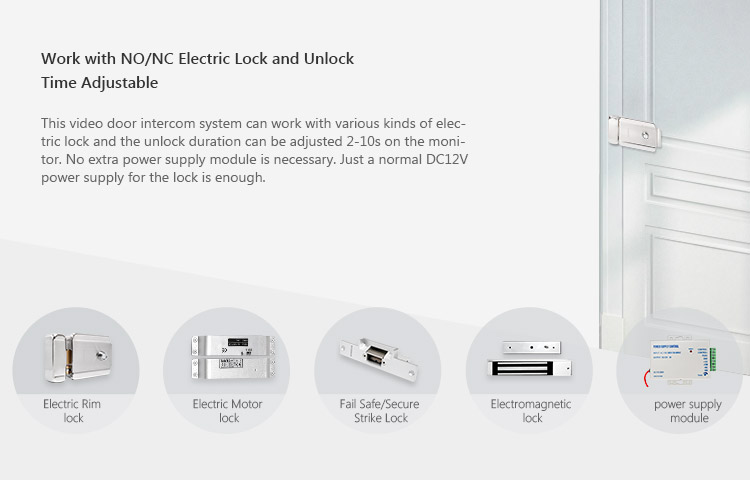

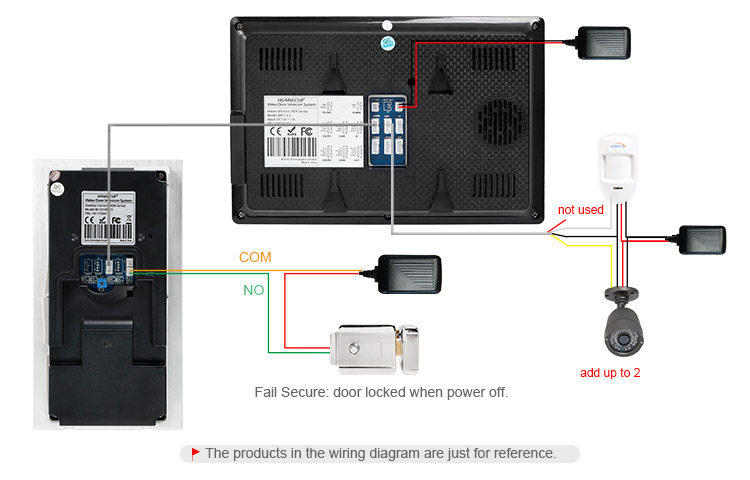

Work with NO/NC Electric Lock and Unlock Time Adjustable

This video door intercom system can work with various kinds of electric lock and the unlock duration can be adjusted 2-10s on the monitor. No extra power supply module is necessary. Just a normal DC12V power supply for the lock is enough.

Fail Safe/Secure
Strike Lock		 Electric Motor lock Electric Rim lock    Electromagnetic
  lock		     Power supply
   module

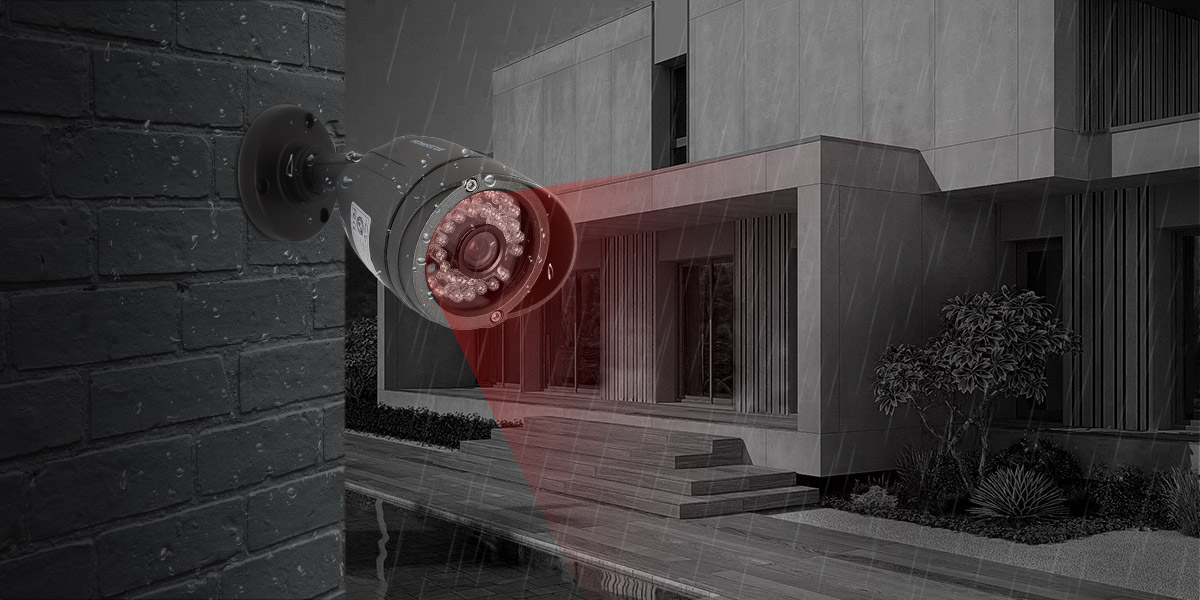

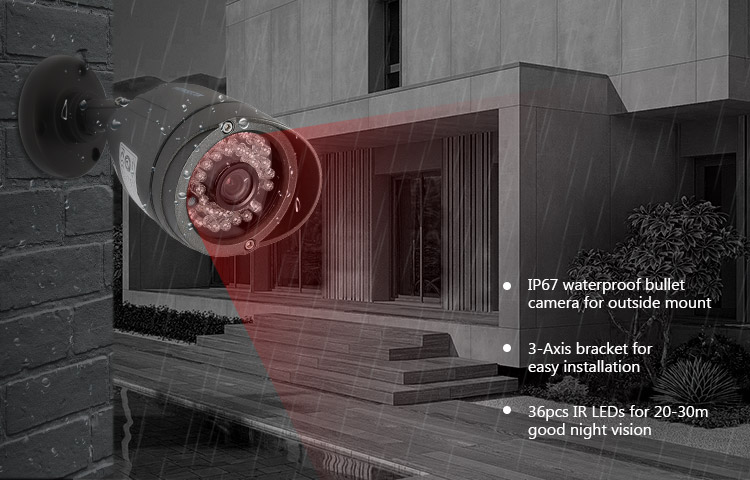

  • IP67 waterproof bullet camera for outside mount
  • 3-Axis bracket for easy installation
  • 36pcs IR LEDs for 20-30m good night vision

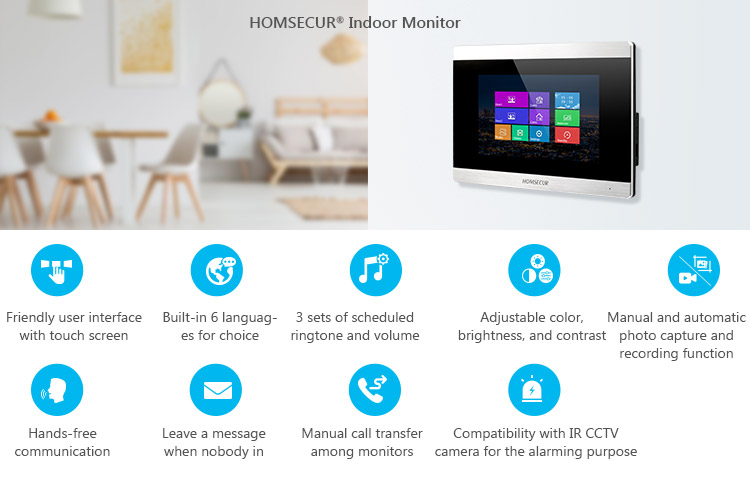

HOMSECUR® Indoor Monitor

Friendly user interface
with touch screen		 Built-in 6 languages
for choice		 3 sets of scheduled
ringtone and volume		 Adjustable color, brightness,
and contrast		 Manual and automatic photo
capture and recording function
Hands-free communication
 		 Leave a message
when nobody in		 Manual call transfer
among monitors		 Compatibility with IR CCTV
camera for the alarming purpose

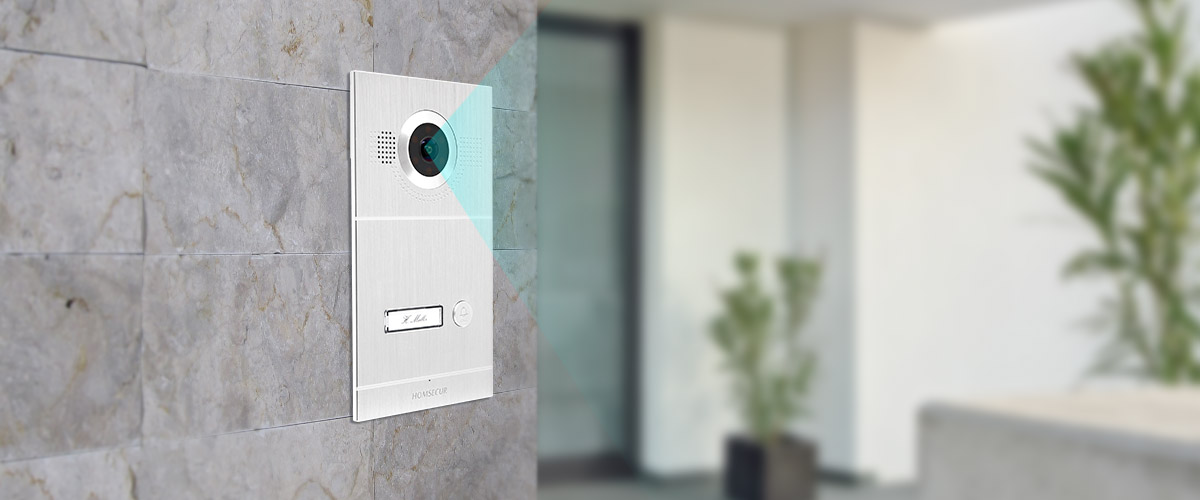

HOMSECUR® Outdoor Monitor

CMOS camera with 1.3MP
for the quality view		 110° wide-angle
for large view		 Ringtone and intercom
volume adjustable		 Door release with
NO/NC Dry Contact		 IR LEDs offset lighting
for clear night-vision
Illuminated call button for
easy operation at night		 Ingress Protection Rating of
IP65 for outside installation

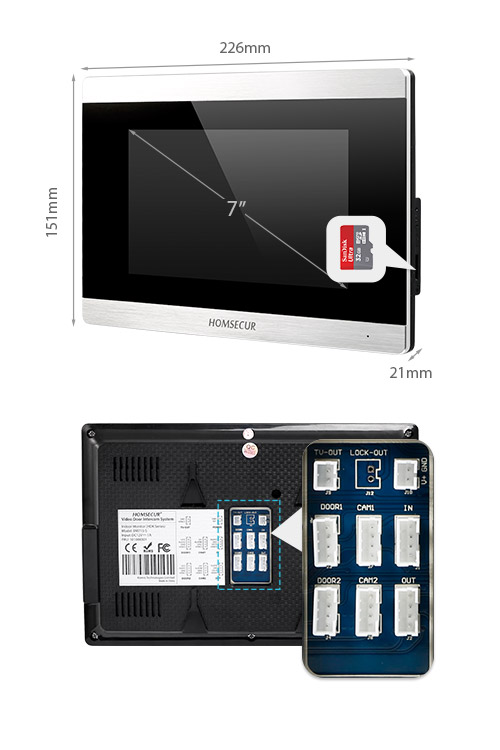

Indoor Monitor
Model NO. BM715-S
Screen 7″ TFT LCD
Effective Pixels 800×480
Call Holding Duration 60s
Monitoring Duration 60s
Power Consumption (working) < 7.2W
Power Consumption (standby) < 3W
Adapter Input AC100-240V, 50-60HZ
Adapter Output DC12V/1A
Net Weight 590g
Material Brushed Aluminum Case & Acrylic panel
Working Temperature 0°C~50°C
Installation Surface mount
Built-in Storage Maximum 86 pictures
Extension Memory 32G Micro SD Card(≥10 Class)
Picture Format JPEG
Video Format AVI
Ringtones 6
Menu Languages English, Pусский, שפה עברית, Español, Français, Deutsche
Cable for Intra-monitor 4 core
Cable for Monitor-to-Camera 4 core

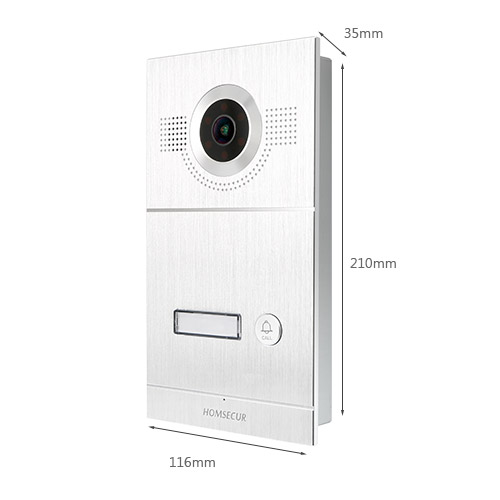

Outdoor Camera
Model NO. BC121-1S
Color Silver
Function Call Button
Sensor 1/3" CMOS
Horizontal Resolution 800TVLine
Lens 2.8mm
Min. lllumination 0.1Lux
View Angle 110°
Night Backlight IR LED, up to 1.5m
Night Vision Image Black and White
Ingress Protection Rating IP65
Net Weight 760g
Material Rust-proof aluminium alloy
Working Temperature -40°C~ 50°C
Installation Flush Mount
