Normal Function As Ordinary Video Door Intercom

After the visitor presses [call] button on the outdoor camera, you can press [Answer] button to communicate with the visitor and unlock the door with the [Door Open] button on the monitor. So it is convenient and safe for you to talk with the courier.
Pressing [Call/Transfer] button can activate a conversation with any other monitors. So your mom does not need to shout in the house for the meals.
Press [View] button to monitor outside. So you can know whether there are guys playing outside and when can join them together.

Distinguished Function for our AHD Video Door Intercom

1.3MP Resolution

Outdoor camera with 1.3MP
for quality image

Stylish UI Interface

Friendly menu for easy
operation

Flexible Ringtones

3 groups of scheduled ringtone
& adjustable volume

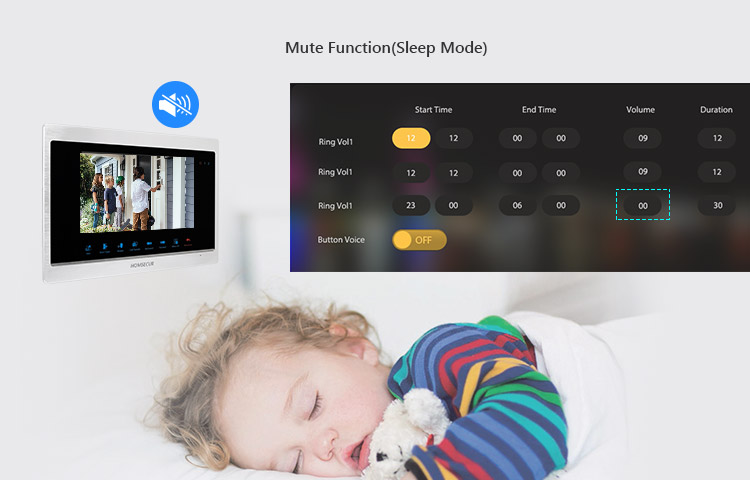

(Mute Function)

Multi Languages(customizable)

Built-in 6 languages menu and
also can be customized

HOMSECUR Brand

Brand product for
quality guarantee

LOGO in & on the product

Genuine item with
visible brand logo

Durable Package

Customized practical carton box
for reusing & long journey

Unexptected Function for our AHD Video Door Intercom

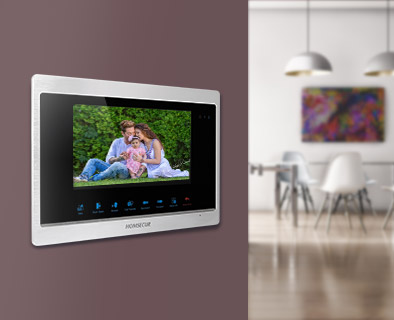

Wallpaper for Screen Protection

The family pictures can be uploaded as the wallpaper of the indoor monitor, which plays based on the chose interval time(02-10s) in the standby status.

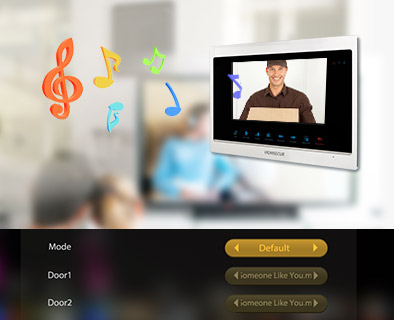

Customized Ringtones for Preference

The favorite ringtones can be uploaded without bearing the built-in ringtones in the monitor, which is also a way of showing your taste.

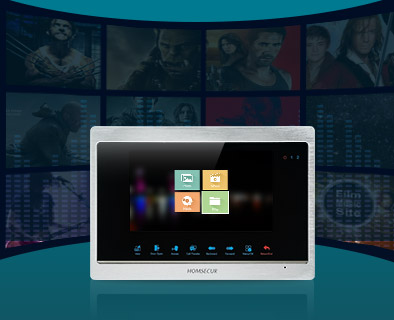

MP3 Music & MP4 Videos for Entertainment

Songs and videos can be uploaded into the indoor monitor. Especially for playing the video of family gathering, which is a real enjoyment during the holidays.

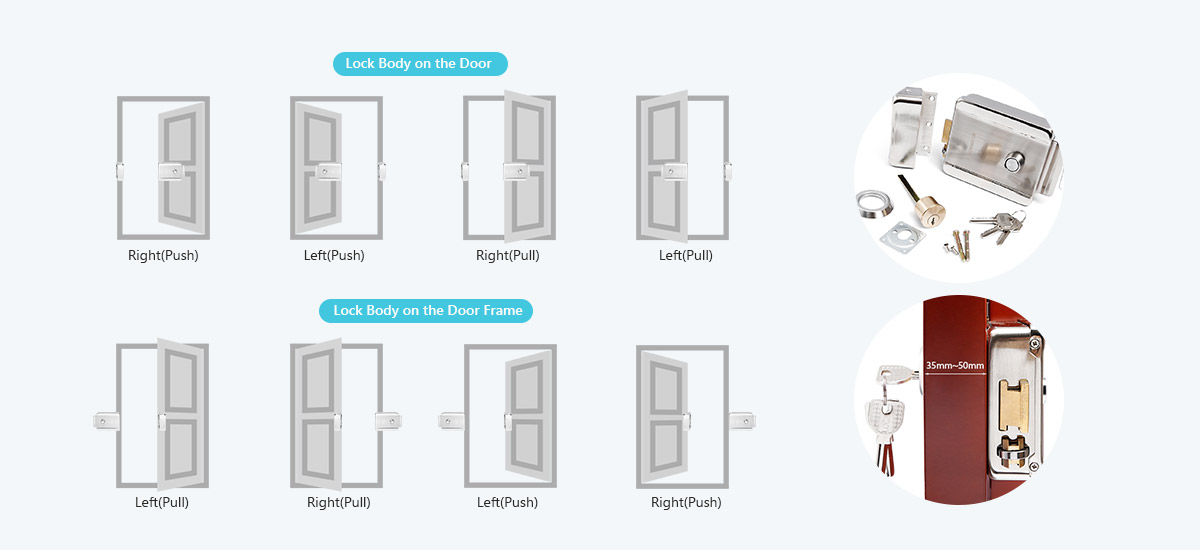

HOMSECUR® Electric Rim Lock (Fail Secure)

It is the universal lock (door locked when power off) for inward, outward, rightward, leftward door with thickness 35mm~50mm, ideal for Iron / Wooden gates or doors.

It can be pressed to unlock inside and unlocked with keys outside.

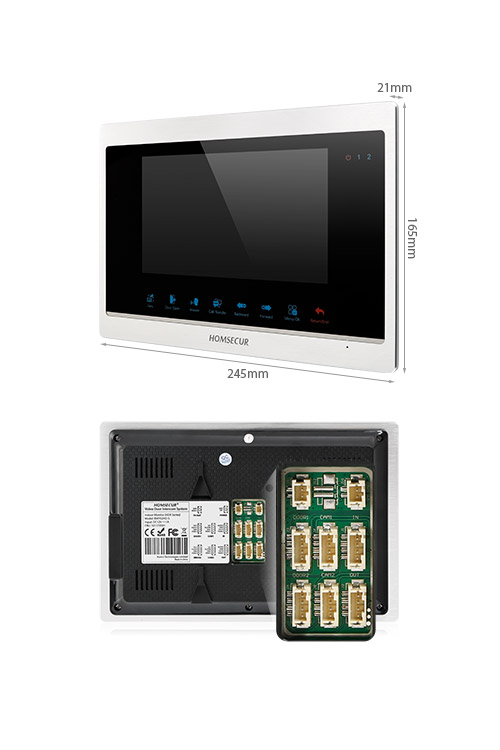

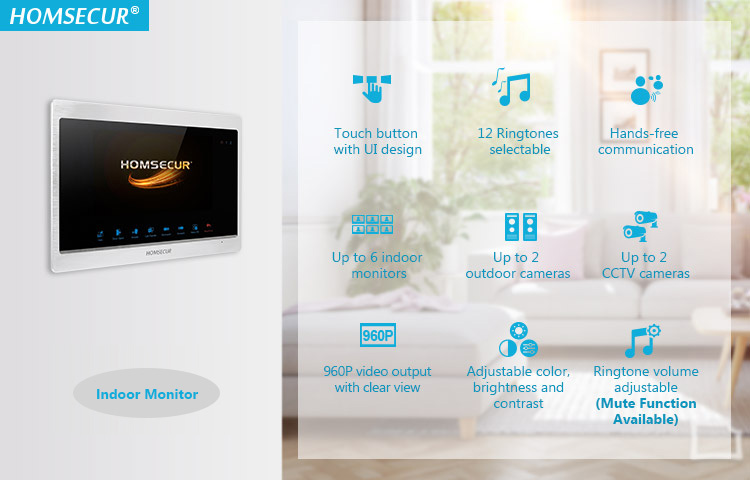

Indoor Monitor
Model NO. BM702HD-S
Color Silver Black
Screen 7″ TFT LCD
Effective Pixels 1024×600
Video Input AHD 960P/720P,CVBS
Call Holding Duration 10s~45s Adjustable
Monitoring Duration 60s
Power Consumption (working) < 7.2W
Power Consumption (standby) < 3W
Adapter Input AC100-240V, 50-60HZ
Adapter Output DC12V/1A
Net Weight 650g
Material Brushed Aluminum Case and Acrylic panel
Working Temperature 0°C~50°C
Installation Surface mount
Extension Memory 32G Micro SD Card(≥10 Class, written speed at least 10MB/s)
Music Format MP3
Picture Format JPEG
Video Format AVI, MOV, MP4
Ringtones 12
Menu Languages English, Russian, French, German, Polish, Ukrainian
Cable for Intra-monitor 4 core
Cable for Monitor-to-Camera 4 core

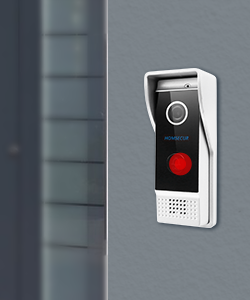

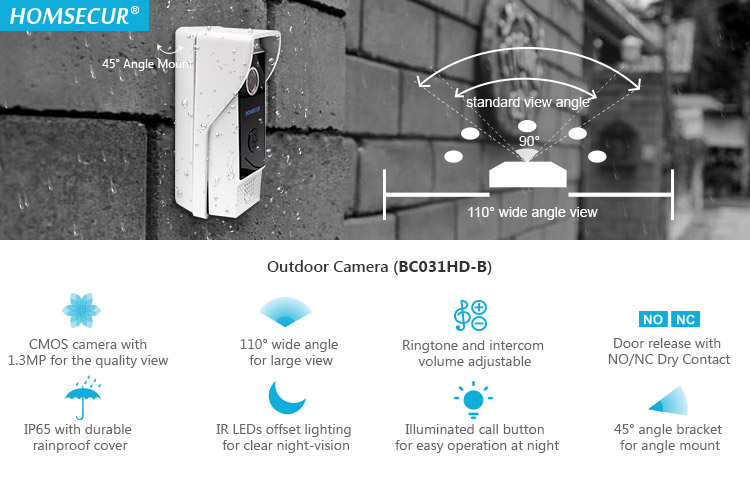

Outdoor Camera
Model NO. BC031HD-B
Color Black Silver
Function Call Button
Sensor 1/3" CMOS
Horizontal Resolution 1.3MP
Lens 2.8mm
Min. lllumination 0.1Lux
View Angle 110°
Night Backlight IR LED, up to 1.5m

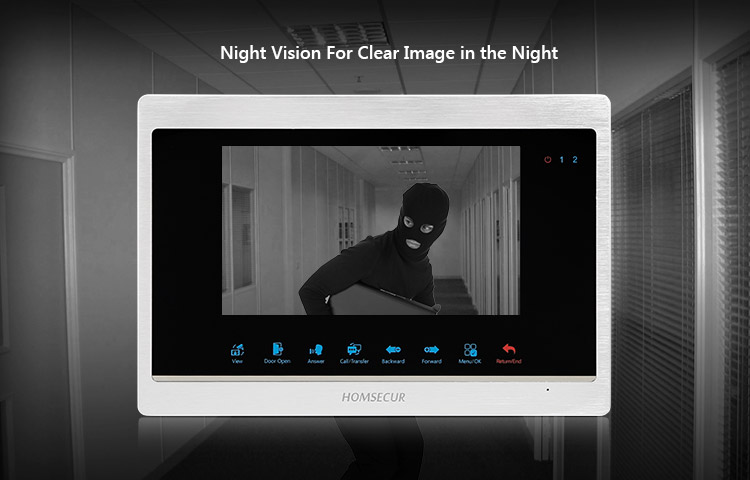

Night Vision Image Black and White
Ingress Protection Rating IP65
Net Weight 260g
Material Rust-proof aluminium alloy
Working Temperature -40°C~ 50°C
Mount 45°Angle mount
Installation Surface mount

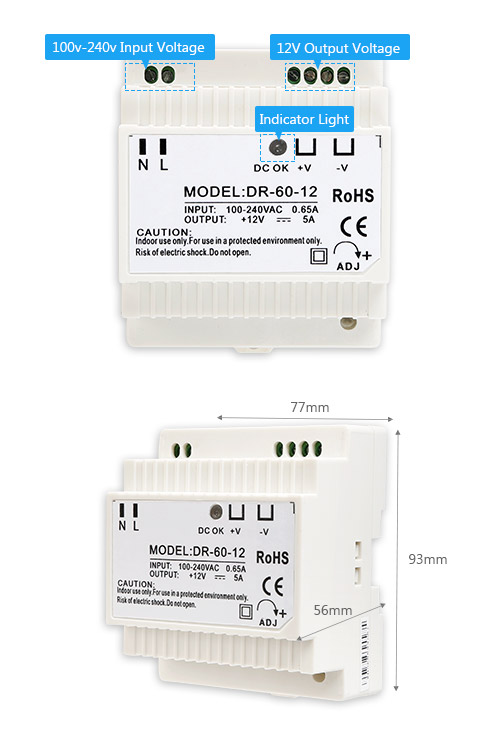

60W Series Din Rail Power Supply
-- Model NO. DR-60-12
Output DC Voltage 12V
Rated Output Current 5A
Output Current Range 0-5A
DC Power 60W
Ripple and Noise 200mVp-p
Voltage Adjustment Range 10.8~13.2V
Voltage Tolerance ±1%
Line Regulation ±1%
Load Regulation ±1%
Setup, Rise Time 800ms,60ms/230VAC; 1000ms,30ms/115VAC at full load
Hold-up Time 50ms/230VAC; 20ms/115VAC at full load
Input AC Voltage Range AC85~265V wide range
Frequency Range 47~63Hz
Efficiency 82%
AC Current 1.5A/115VAC; 0.75A/230VAC
Inrush Current Cold start, 30A/115VAC; 60A/230VAC
Leakage Current <1mA/240VAC
Protection Overload Above 105% rated output power
Constant current limiting, recover automatically after fault condition removed
Over-voltage 13.8-16.2V
Over-voltage Protection Shut down o/p voltage, re-power on torecover
Environment Working Temperature -10°C~+60°C
Working Humidity 20~90% RH non-condensing
Storage Temperature & Humidity -20°C~+85°C, 10%~95%RH
Temperature Coefficient ±0.03%/°C (0~50°C )
Certificate CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008

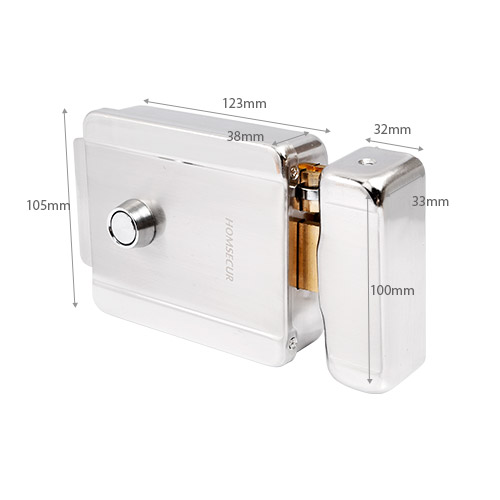

Electric Rim Lock
Lock Mode Fail Secure(By collision)
Voltage DC 12V
Current 1.5A
Suitable for Doors with Thickness 35mm (1.49inch) to 50mm (2inch)
Surface Temperature Within +20°C
Suitable Temperature -10~+55°C(14~131°F)
Operating Humidity  0-90%(non-condensing)
Structure Stainless Steel
Weight 1400g
