Introduction:
ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring , control of your access control system only from the software instead of APP/browser.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single

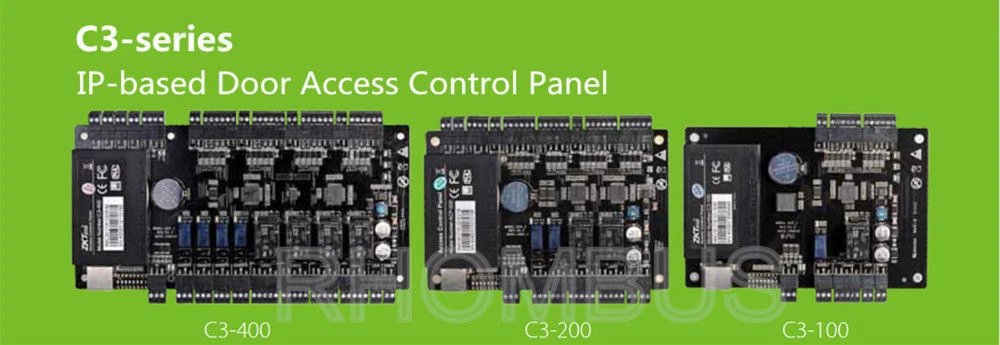

location. C3 series' versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the
market, with a multitude of built-in features.
The C3 series control panle can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software
Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Features:
| Choice of Readers |
| Communication |
Support full range of card readers. ZK KR-Series readers are stylish and waterproof. C3 supports any wiegand-output reader, including HID Prox, iClass, and XceedID Multi-Technology.
| C3 controllers can be installed easily on your network and support both TCP/IP and RS-485 communications. Auto-discovery tool allows setting and modification of network parameters directly and easily. | ||
| Lowest Total Cost of Ownership |
| Capacity |
Save cost. C3 controller firmwares can be upgraded without any advanced tools. New features can extend and expand the value of your investment. | Support up to 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted. | ||
| More than Door Control |
| Options |
Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed. | C3 controllers come in 3 sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture, devices or gate controllers. | ||
| Built-In Advanced Access Control |
| For Software Developers |
Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary Input/ Output linkages are built into controller firmware. | Free SDK is available for integrators and OEM’s to integrate the C3 controller with their or existing security or personnel management applications. Upon request, ZK can customize C3 firmware to meet any customer requirements. |
+
Package：
|
