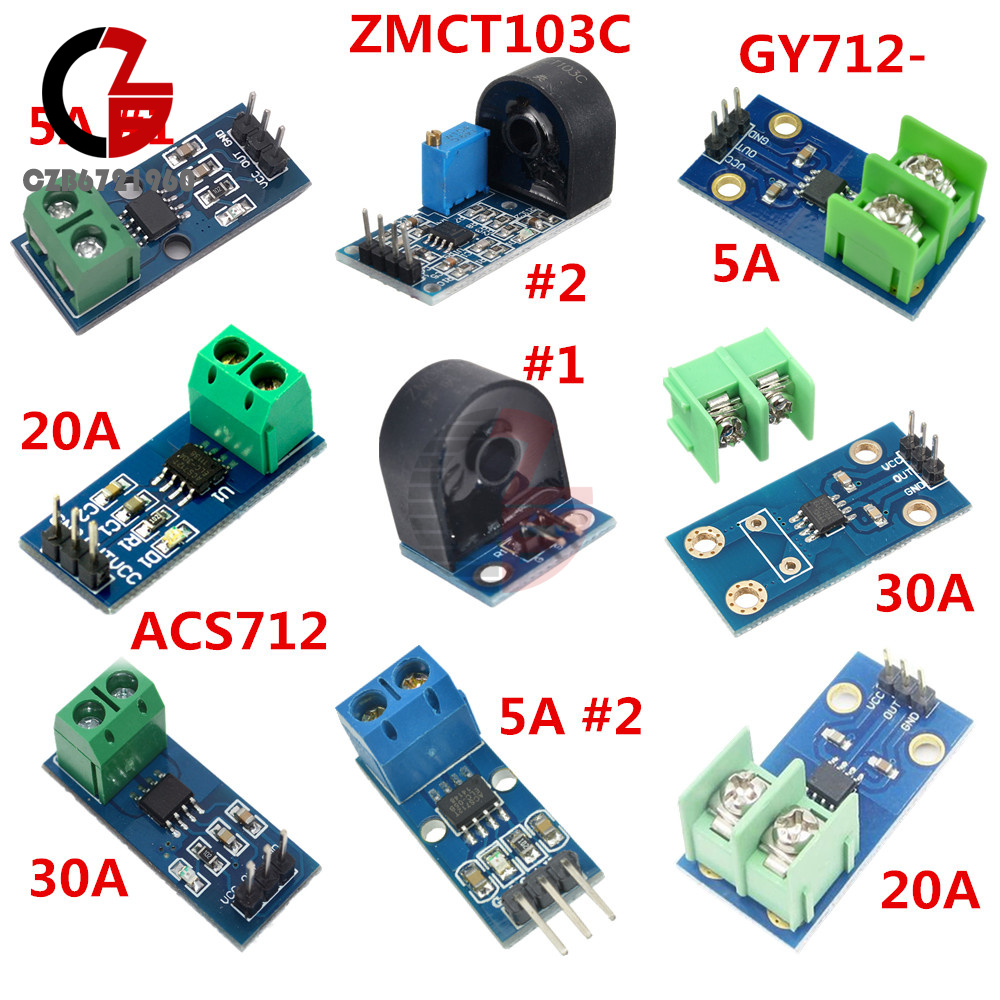

5A/20A/30A Range ACS712/GY712/ZMCT103C Current Sensor Module for Arduino
Popular
Product Introduction
Deascription:
ACS712 5A #1
5A range Current Sensor Module ACS712
1.The current sensor chips: ACS712ELC-05B
2.Pin 5V power supply, on-board power indicator
3.The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV/A
4.No test current through the output voltage is VCC/2
5.PCB board size: 31x13 (mm)
Quantity:1PC
ACS712 5A #1
5A range Current Sensor Module ACS712
1.The current sensor chips: ACS712ELC-05B
2.Pin 5V power supply, on-board power indicator
3.The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV/A
4.No test current through the output voltage is VCC/2
5.PCB board size: 31x13 (mm)
Quantity:1PC
ACS712 5A #2
5A Range Current Sensor Module ACS712 Module M61
1. current sensor chip: ACS712ELC-05B
2. pin 5V power supply, on-board power indicator
3. the module can measure the positive and negative 5 amps, the corresponding analog output 185mV/A
4. no current flows through the detection, the output voltage is VCC/2
5. PCB board size: 28x13 (mm)
Quantity:1PC
5A Range Current Sensor Module ACS712 Module M61
1. current sensor chip: ACS712ELC-05B
2. pin 5V power supply, on-board power indicator
3. the module can measure the positive and negative 5 amps, the corresponding analog output 185mV/A
4. no current flows through the detection, the output voltage is VCC/2
5. PCB board size: 28x13 (mm)
Quantity:1PC
ACS712 20A
1. Current sensor chip: ACS712ELC-20A
2. Pin 5V power supply, on-board power indicator
3. The module can measure the positive and negative 20 amps, corresponding to the analog output 100mV/A
4. There is no the detection current through, the output voltage is VCC/2
5. The PCB board size: 27.4x11.8 (mm)
Quantity:1PC
ACS712 30A
1. The current sensor chips: ACS712ELC-30A
2. Pin 5V power supply, on-board power indicator
3. The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV/A
4. No test current through the output voltage is VCC / 2
5. PCB board size: 31x13 (mm)
Quantity:1PC
GY712-5A
5A range Current Sensor Module ACS712 ACS712ELCTR-05B
ACS712ELCTR-05B
Corresponding analog output: 185 MV/A
Power supply: 5 V
PCB board size: 35x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
5A range Current Sensor Module ACS712 ACS712ELCTR-05B
ACS712ELCTR-05B
Corresponding analog output: 185 MV/A
Power supply: 5 V
PCB board size: 35x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
GY712-20A
Using imported ACS712ELCTR-20A chip.
Gold-plated circuit boards.
Power supply 5V.
Measurable plus or minus 20 amps.
Analog output: 100mV/A
PCB board size: 35 x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
Using imported ACS712ELCTR-20A chip.
Gold-plated circuit boards.
Power supply 5V.
Measurable plus or minus 20 amps.
Analog output: 100mV/A
PCB board size: 35 x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
GY712-30A
ACS712ELC-30A
Corresponding analog output: 185 MV/A
There is no the detection current through, the output voltage is VCC/2
The module can be measured plus or minus 30 amps, corresponding to the analog output 66mV/A
Power supply: 5V
PCB board size: 35x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
ACS712ELC-30A
Corresponding analog output: 185 MV/A
There is no the detection current through, the output voltage is VCC/2
The module can be measured plus or minus 30 amps, corresponding to the analog output 66mV/A
Power supply: 5V
PCB board size: 35x17(mm)/1.37''x0.66'' (approx)
Quantity:1PC
ZMCT103C 5A#1
On-board micro precision current transformer
Onboard sampling strength
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA
Rated Input Current: 5A
Rated output current: 5mA
PCB size: 18.3 x17 (mm)
Change: 1000: 1
Linear range: 0 ~ 10A (100 ohms)
Linearity: 0.2%
Precision: 0.2
Uses Insulation Voltage: 3000 V Measure
Sealing material: epoxy resin
Operating temperature: -40 ℃~ + 70 ℃
Quantity:1PC
On-board micro precision current transformer
Onboard sampling strength
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA
Rated Input Current: 5A
Rated output current: 5mA
PCB size: 18.3 x17 (mm)
Change: 1000: 1
Linear range: 0 ~ 10A (100 ohms)
Linearity: 0.2%
Precision: 0.2
Uses Insulation Voltage: 3000 V Measure
Sealing material: epoxy resin
Operating temperature: -40 ℃~ + 70 ℃
Quantity:1PC
ZMCT103C 5A#2
1.Onboard precision micro current transformer
2.High precision op-amp circuit board, do accurate sampling for the signal and appropriate compensation, and other functions
3.The module can measure within 5A current communication , corresponding to output analog quantity can be adjusted
4.PCB board size : 38x18.5 (mm)
Quantity:1PC
1.Onboard precision micro current transformer
2.High precision op-amp circuit board, do accurate sampling for the signal and appropriate compensation, and other functions
3.The module can measure within 5A current communication , corresponding to output analog quantity can be adjusted
4.PCB board size : 38x18.5 (mm)
Quantity:1PC
