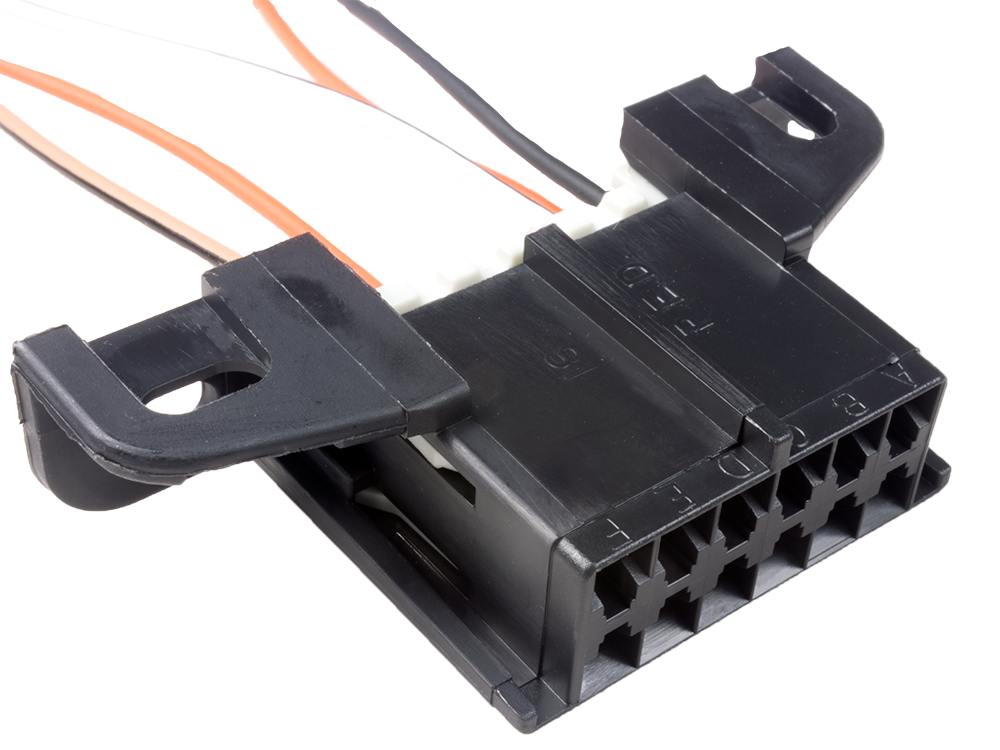

OBD-I Diagnostic Connector Pigtail GM 5.7L TPI L98 (85-92)
Genuine Aptiv / Delphi (GM Original Equipment) Components
| CONNECTOR PINOUT DETAILS | ||
|---|---|---|
| PIN | WIRE | FUNCTION |
| A | 18ga BLK/WHT | GROUND |
| B | 18ga WHT/BLK | DIAGNOSTIC TEST |
| E | 18ga ORN | SERIAL DATA |
| F | 18ga TAN/BLK | TCC CONTROL |
| M | 18ga ORN | SERIAL DATA |
| MATERIALS LIST ITEMS BELOW WERE USED TO MAKE THIS ASSEMBLY | ||
|---|---|---|
| DESCRIPTION / PART NUMBER | KIT QTY | |
 | Delphi 12 Way Black Metri-Pack 280 Unsealed Female Connector EFI P/N: 100-00075 | 1 piece |
 | Delphi 12 Way Light Gray TPA Metri-Pack 150|280 Secondary Lock Terminal Position Assurance for proper terminal retention EFI P/N: 100-00258 | 2 pieces |
 | Delphi Metri-Pack 280 Female Unsealed Tin (Sn) 20-18 AWG Terminal EFI P/N: 100-00144 | 5 pieces |
 | 18 AWG Automotive TXL Wire Black w/ White Stripe by the foot EFI P/N: 101-00078 | 1 foot |
 | 18 AWG Automotive TXL Wire White w/ Black Stripe by the foot EFI P/N: 101-00109 | 1 foot |
 | 18 AWG Automotive TXL Wire Orange by the foot EFI P/N: 101-00095 | 1 foot |
 | 18 AWG Automotive TXL Wire Tan w/ Black Stripe by the foot EFI P/N: 101-00106 | 1 foot |
| 18 AWG Automotive TXL Wire Orange by the foot EFI P/N: 101-00095 | 1 foot |
| OTHER PIGTAILS RELATED TO 5.7L TPI L98 (85-92) | |
|---|---|
| DESCRIPTION / PART NUMBER | |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01233 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01225 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01234 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01297 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01419 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01420 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01219 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01221 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01222 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01223 |
