Gecko G540 REV8 Stepper Motor Driver 48V 12.5A Power Supply + 3 Cables

Complete CNC Control Kit - Ready to Install

Why Buy From eDealers Direct Automation?

Industry-Leading Expertise • Trusted by Professionals

▶ Visit Our YouTube Channel

Product Images

Description

This listing is long do to the amount of detail required to explain this automation package. Please review the entire listing and all videos to understand the component package your purchasing.

This listing includes a Gecko Drive G540 Integrated Digital 4 Axis Micro Stepping Driver System (REV8 2020 Edition), 48v 12.5a (600w) power supply supporting 110v, and 220v input, three 10ft. 20awg 300v 80c (176f) rated double shielded pre-built motor cables with molded on DB9 male, and female connectors with gold plated pins, E-stop Switch,four snap home/limit switches, and DB25 male to male parallel port communication cable

This drive features the longest warranty on any CNC driver in the industry at 3 years with full US support.

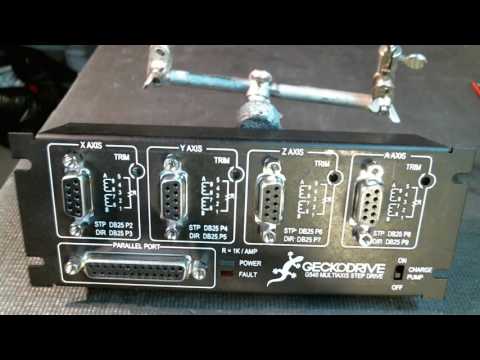

Here's an overview on the drive covered from Marcus application engineer at Gecko Drive.

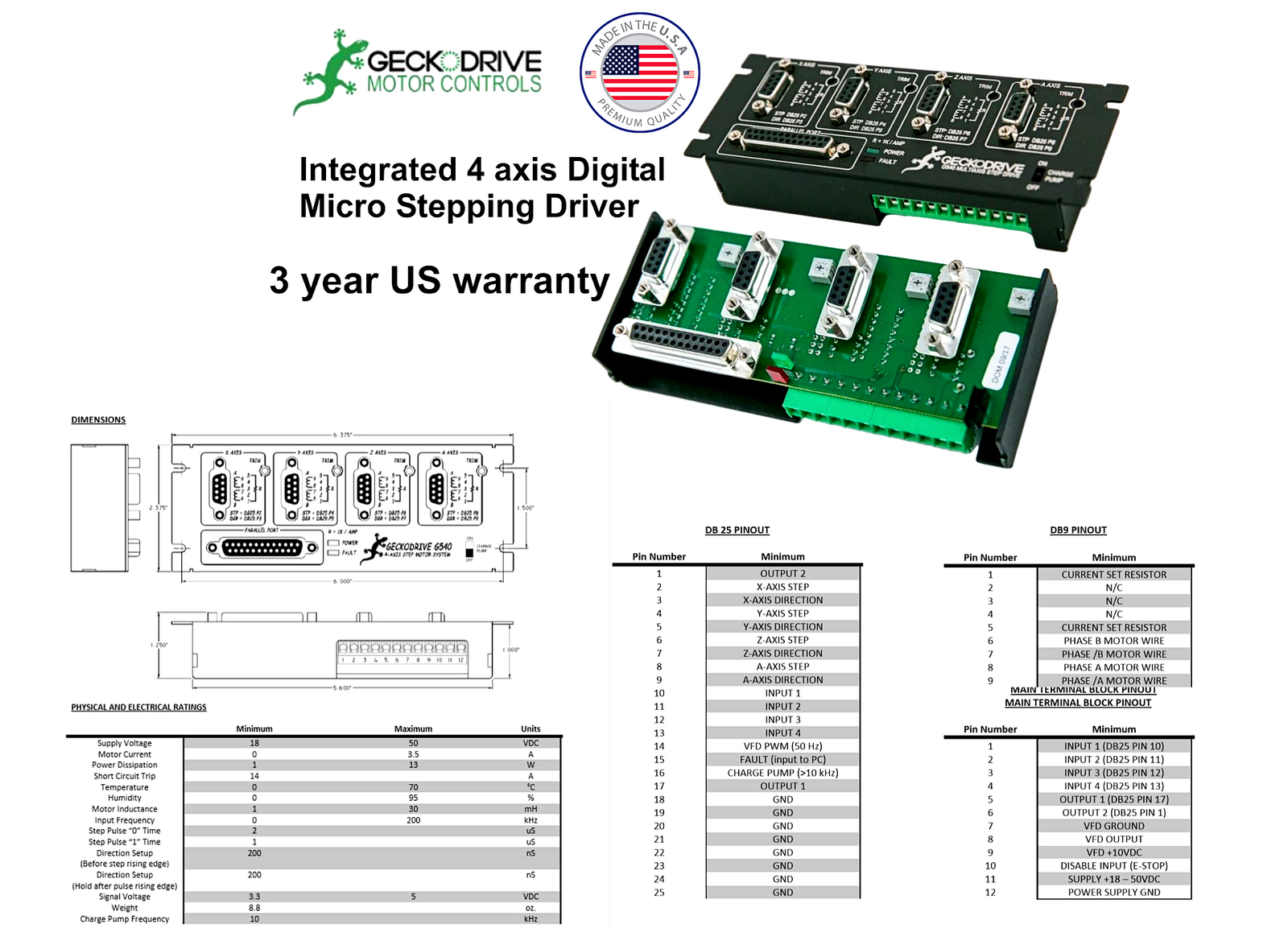

The drives specs are below.

If you need to zoom in on them hit CTRL on your keyboard, while scolling with your mouse's center button to zoom in, and out.

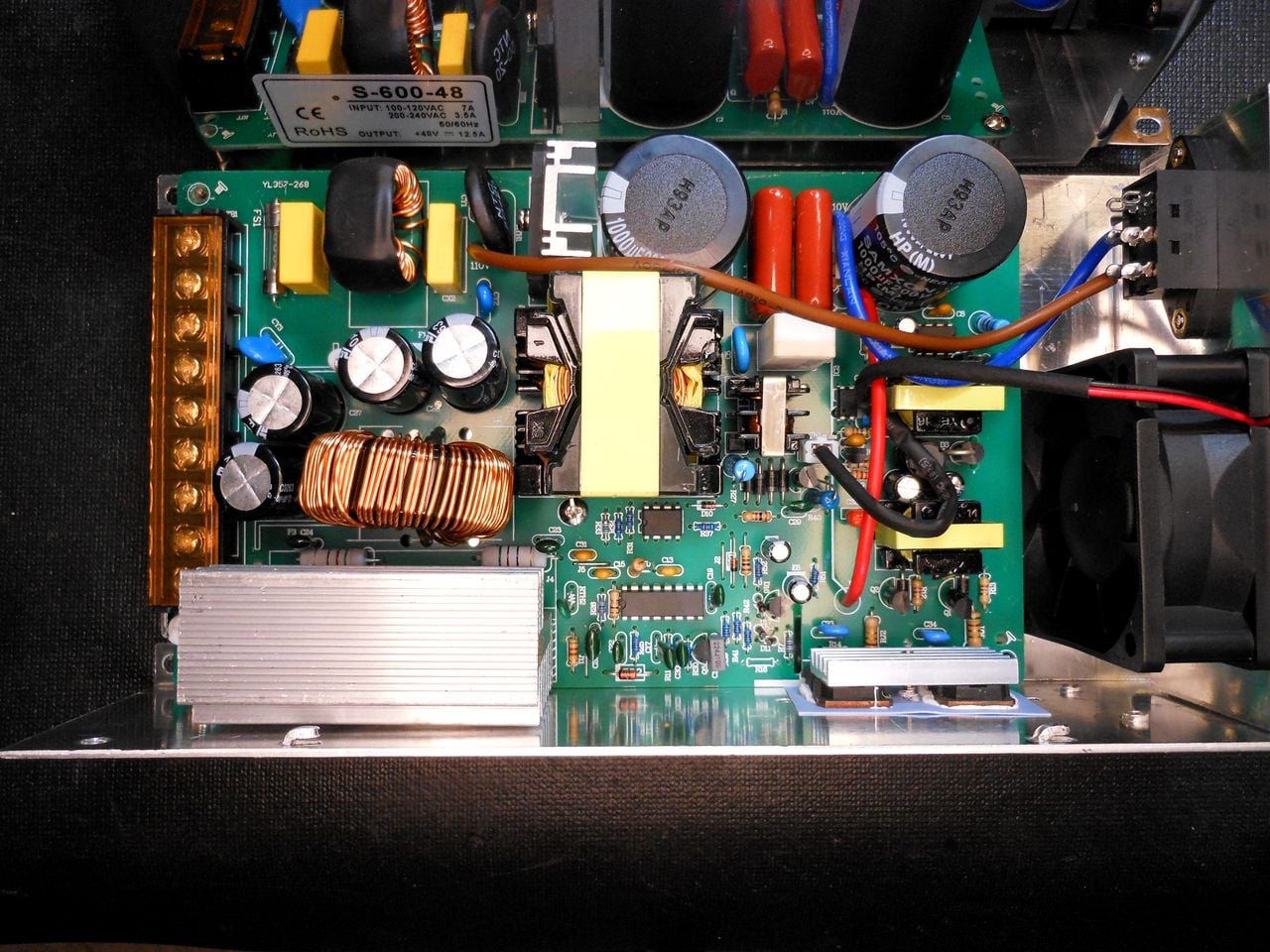

The power supply you select for the G540 is critical as it will provide the system's speed, and required amps to support all four of the G540's axis. My unit is designed in house to provide all the volts the drives require with a surplus of amps to assure your system's supported even if you decide to expand your system to five, or six axis with an ESS system here. https://www.ebay.com/itm/133064380079

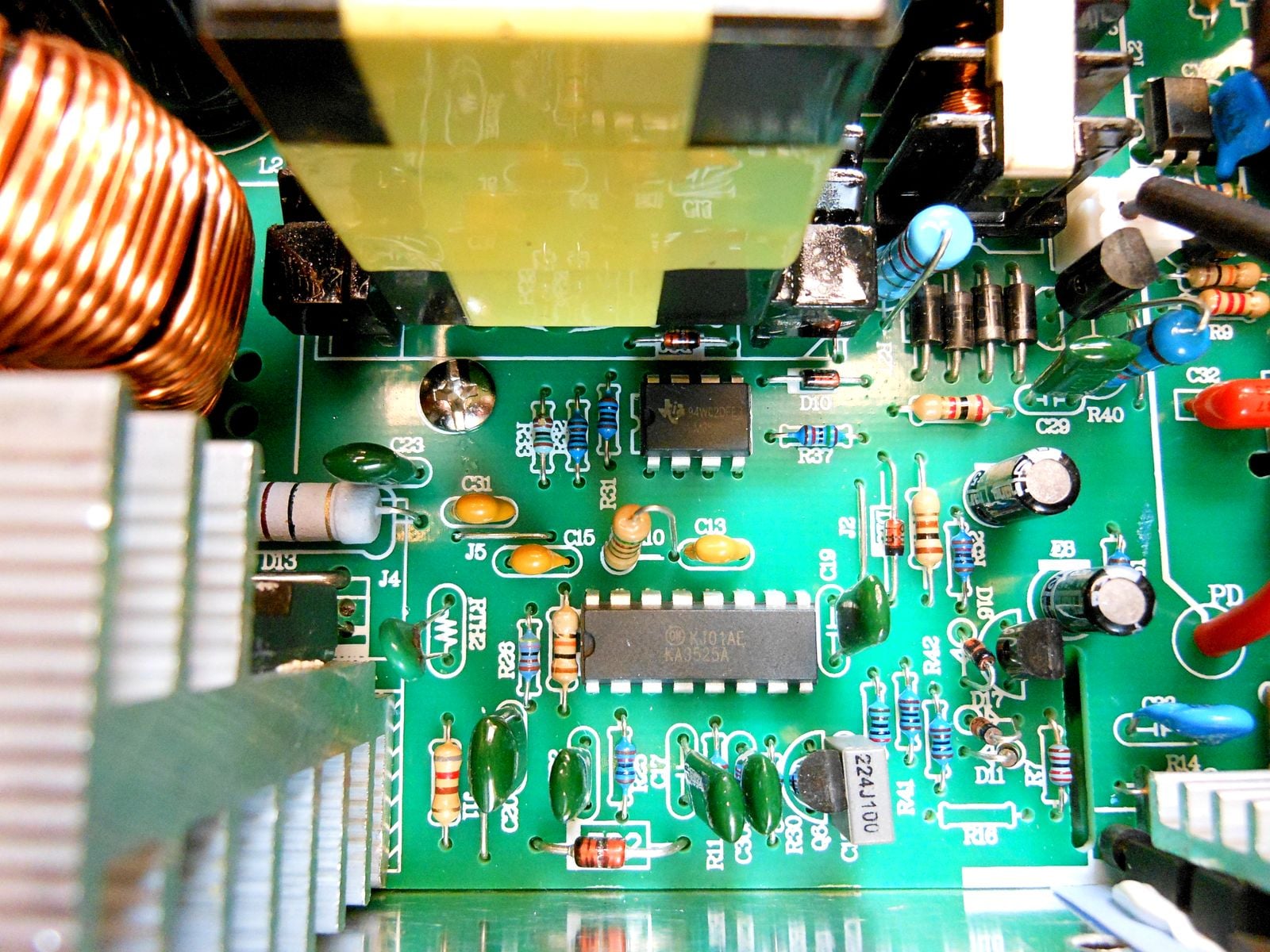

Your correct if you identified the Texas Instrument chip... :)

The fan is controlled automatically by the ambient temperature of your electronics enclosure

Built in overload protection, and automatic shutdown.

The complete specs are below.

The kit also includes three of my 10ft. 20awg 300v, 80c temp rated DOUBLE SHIELDED motor cables made using signal cable for maximum durability, and flexibility.

These are the only double shielded cables offered for this drive on the market, and their included with every system, and kit that leaves my shop as standard equipment.

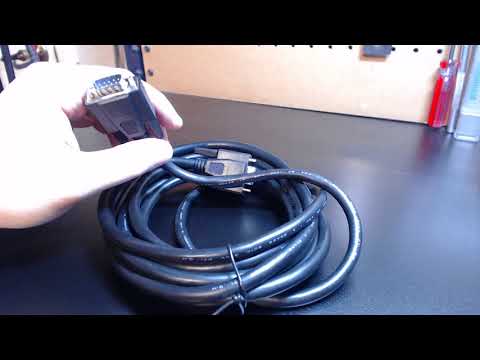

Here's my overview video discussing these cables.

This drive can achieve less than .001in accuracy with this component package, and features the repeatability to take your business to the next level.

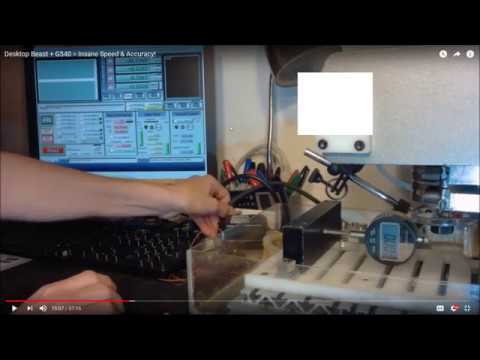

Please review the videos below of the drive in action.

I made a video series on the breakdown of the users manual as well as an overview of the drive itself explaining tips when assembling your controller. You're spending the money, and I'm providing you my years of engineering knowledge to assist you in making your controller assembly a painless process.

Other videos on my YouTube channel discuss complete CNC electronics overviews. I encourage you to educate yourself with the facts on what your getting into with micro manufacturing.

Please set time aside to watch these as they aren't short because I wanted to cover the drive completely.

Gecko G540 Overview Part 1 Users Manual Breakdown

Gecko G540 Overview Part 2 The Drive, And Tips When Building Your Controller

This kits components includes the following.

1 Gecko Drive G540 Integrated Digital 4 Axis Micro Stepping Driver System (REV8 2020 Edition) with 4 DB9 male solder type motor connectors with matching hoods, and hardware (3 year US warranty)

3 10ft. 20awg 300v 80c (176f) rated double shielded pre-built motor cables with molded on DB9 male, and female connectors with gold plated pins.

1 48v 12.5A (600w) power supply with 120/220v selectable power input to support the worlds power outputs. I test, and calibrate each unit with a FLUKE 179 TRUE RMS multimeter prior to shipping to assure you the most accurate power output. This power supply offers the required power to support all four axis, and offer expansion capability should you want to upgrade your system with my ESS turnkey controller package allowing your system to be converted up to the 6 axis Mach3 supports. Here's a link to understand the process of the conversion https://www.ebay.com/itm/133115955460

4 Omron V-156-1C25 Limit Switches with hinged roller trigger

Voltage & Load Rating: 15A 125/250VAC, 0.6A 125VDC, 0.3A 250VDC

1 E-stop Switch twist to release Switch

1 DB25 male to male parallel port communication cable

Most importantly all required wiring diagrams are emailed to you once I receive payment to allow you a streamlined assembly of this kit.

This kits price includes USPS 2-3 day priority mail for the fastest most economical delivery for US orders.
Shipping in the US is FREE All my international orders are handled through eBay's Global Shipping Program as they offer us both the best protection against loss, and damages. Please review their policy for a shipping quote based on your specific location as they don't disclose it to me.
