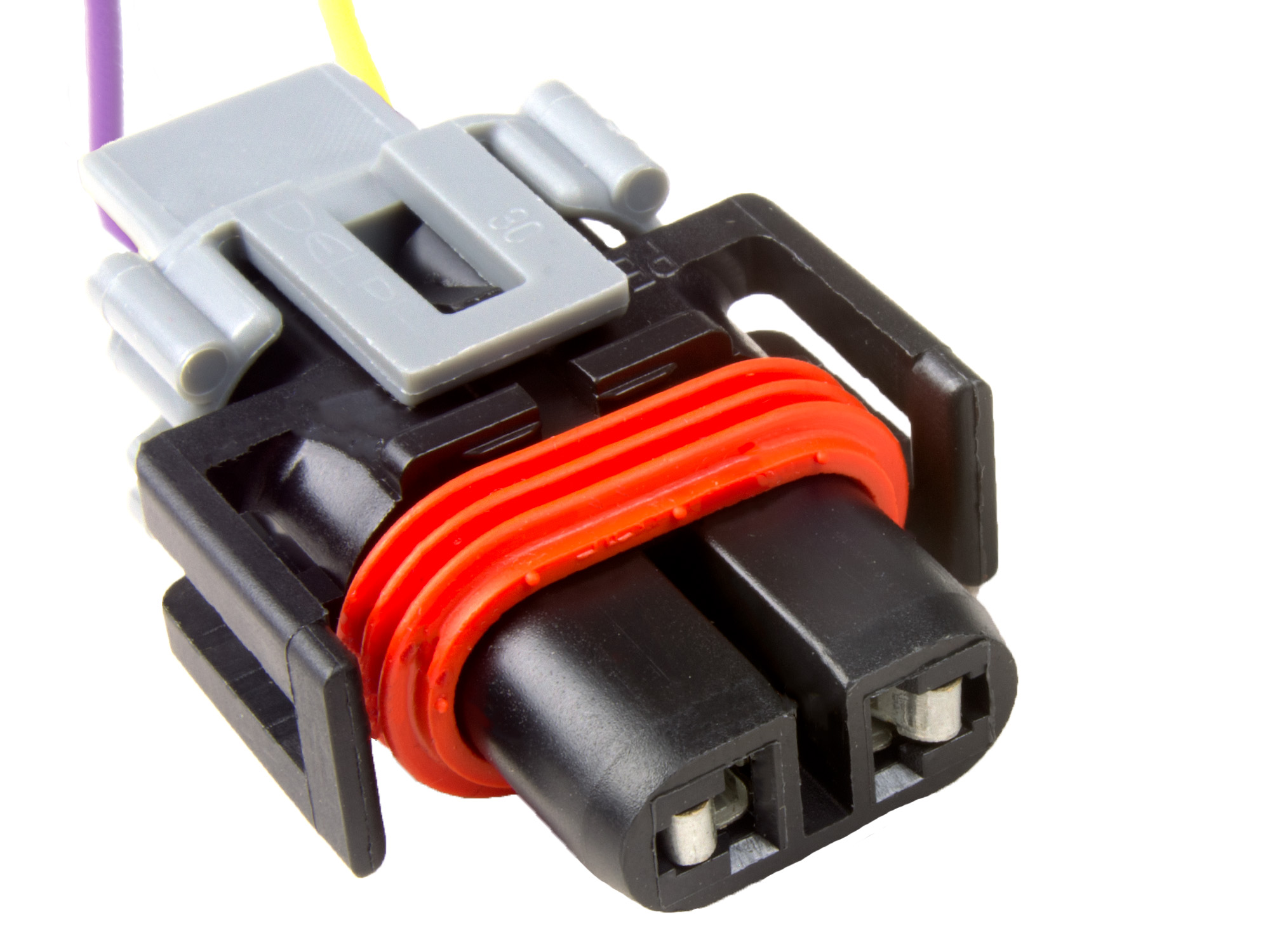

Engine Coolant Temperature ECT Sensor Pigtail GM 5.0L TPI LB9 (85-92)

Genuine Aptiv / Delphi (GM Original Equipment) Components

BRAND CROSS REFERENCES
BRAND	PART NUMBER
ACDelco	PT2386
GM	88862305
Standard Motor Products	TX3A
Standard Motor Products	HP3840
Airtex/Wells	1P006
Dorman	85100

CONNECTOR PINOUT DETAILS
PIN	WIRE	FUNCTION
A	18ga BLK	SENSOR GROUND
B	18ga YEL	ECT SIGNAL

MATERIALS LIST     ITEMS BELOW WERE USED TO MAKE THIS ASSEMBLY
	DESCRIPTION / PART NUMBER	KIT QTY
	Delphi 2 Way Black Metri-Pack 150.2 Sealed Female Connector EFI P/N: 100-00003	1 piece
	Delphi Metri-Pack 150.2 Female Unsealed Tin (Sn) 18-16 AWG Terminal BUY 25 TERMINALS | BUY 50 TERMINALS EFI P/N: 100-00143	2 pieces
	18 AWG Automotive TXL Wire Black by the foot BUY 25FT WIRE | BUY 50FT WIRE EFI P/N: 101-00074	1 foot
	18 AWG Automotive TXL Wire Yellow by the foot BUY 25FT WIRE | BUY 50FT WIRE EFI P/N: 101-00110	1 foot

OTHER PIGTAILS RELATED TO 5.0L TPI LB9 (85-92)
	DESCRIPTION / PART NUMBER
	Throttle Position Sensor TPS Pigtail GM 5.0L TPI LB9 (85-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00269
	Idle Air Control IAC Valve Pigtail GM 5.0L TPI LB9 (85-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00264
	Engine Coolant Temperature ECT Sensor Pigtail GM 5.0L TPI LB9 (85-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00271
	700R4 4-Speed Automatic Transmission Pigtail GM 5.0L TPI LB9 (85-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00284
	Distributor Ignition Control Module Pigtail GM 5.0L TPI LB9 (85-86) Large Cap Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00291
	Distributor Ignition Control Module ICM Pigtail 2 Wires GM 5.0L TPI LB9 (87-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00543
	Ignition Coil Pigtail Gray GM 5.0L TPI LB9 (87-92 Small Cap HEI) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00445
	Ignition Coil Pigtail Black GM 5.0L TPI LB9 (87-92 Small Cap HEI) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00446
	Vehicle Speed Sensor VSS Pigtail 700R4 T5 GM 5.0L TPI LB9 (90-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00332
	Vehicle Speed Sensor VSS Pigtail 700R4 T5 GM 5.0L TPI LB9 (85-89) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00331
SEE OUR 5.0L TPI LB9 (85-92) PIGTAIL STORE FOR 38 ADDITIONAL 5.0L TPI LB9 (85-92) PIGTAILS

CONNECTOR KITS
	DESCRIPTION / PART NUMBER
	Engine Coolant Temperature ECT Sensor Connector Kit GM 5.0L TPI LB9 (85-92) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01107

MATING DEVICES
	DESCRIPTION / PART NUMBER
	ACDelco Engine Coolant Temperature ECT Sensor 213-928 for many GM engines with 3/8-18 NPT threads EFI P/N: 110-00022
