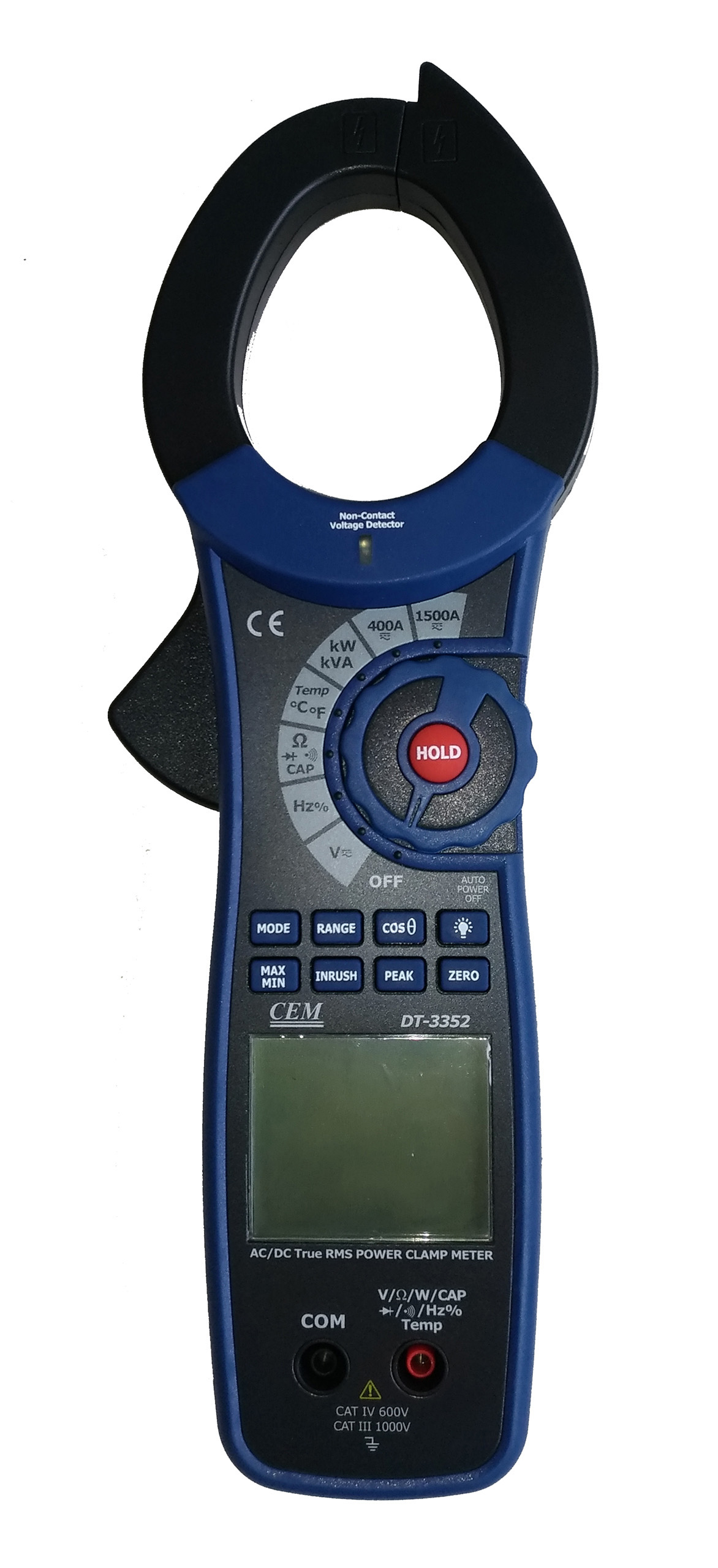

DT-3352 Digital 1500A AC DC Watt Resistance Capacitance Frequency True RMS Clamp Meter New!

Product Description

This is a brand new DT-3352 industrial clamp meter from Ruby Electronics. This top-of-the-line clamp meter is loaded with various functions. DT-3352 does not only measure DC AC current up to 1500Amp, but also measure DC/AC power up to 900KW. Other functions such as power factor, DC/AC voltage, Resistance, Temperature, Capacitance and Frequency measurement make this meter the best choice for serious electrical technicians.

This meter is CAT III 1000V and CAT IV 600V rated. This device is compact and portable. It comes with batteries pre-installed. A heavy duty carrying pouch is included to protect your device when working in the field.

*** NOTE: THIS DEVICE IS TO BE USED BY THE CERTIFIED TECHNICIAN ONLY. ALL SAFETY REGULATION SHOULD BE OBSERVED WHEN TESTING HIGH POWER CIRCUITS.

Features

Clamp jaw opening: about 2" (52mm)
Display: Dual 40,000 / 4,000 count backlit LCD
Continuity check: Threshold 50 Ohm, test current < 0.5mA
Measurement rate: twice per second
Thermocouple sensor: Type K thermocouple required
AC bandwidth: 50 Hz to 400 Hz
Input impedance: 10 Meg Ohm
Operating temperature: 5 to 40 deg C (41 to 104 deg F)
Storage temperature: -20 to 60 deg C (-4 to 140 deg F)
Low battery indication
Over range indication

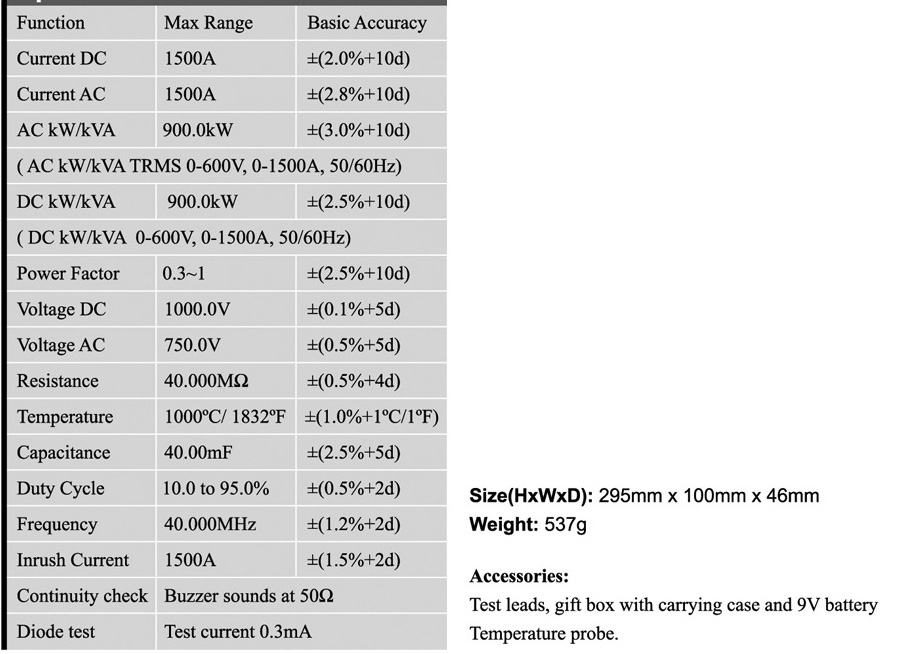

Specification

Photos

Click image to enlarge.

Policy Summary

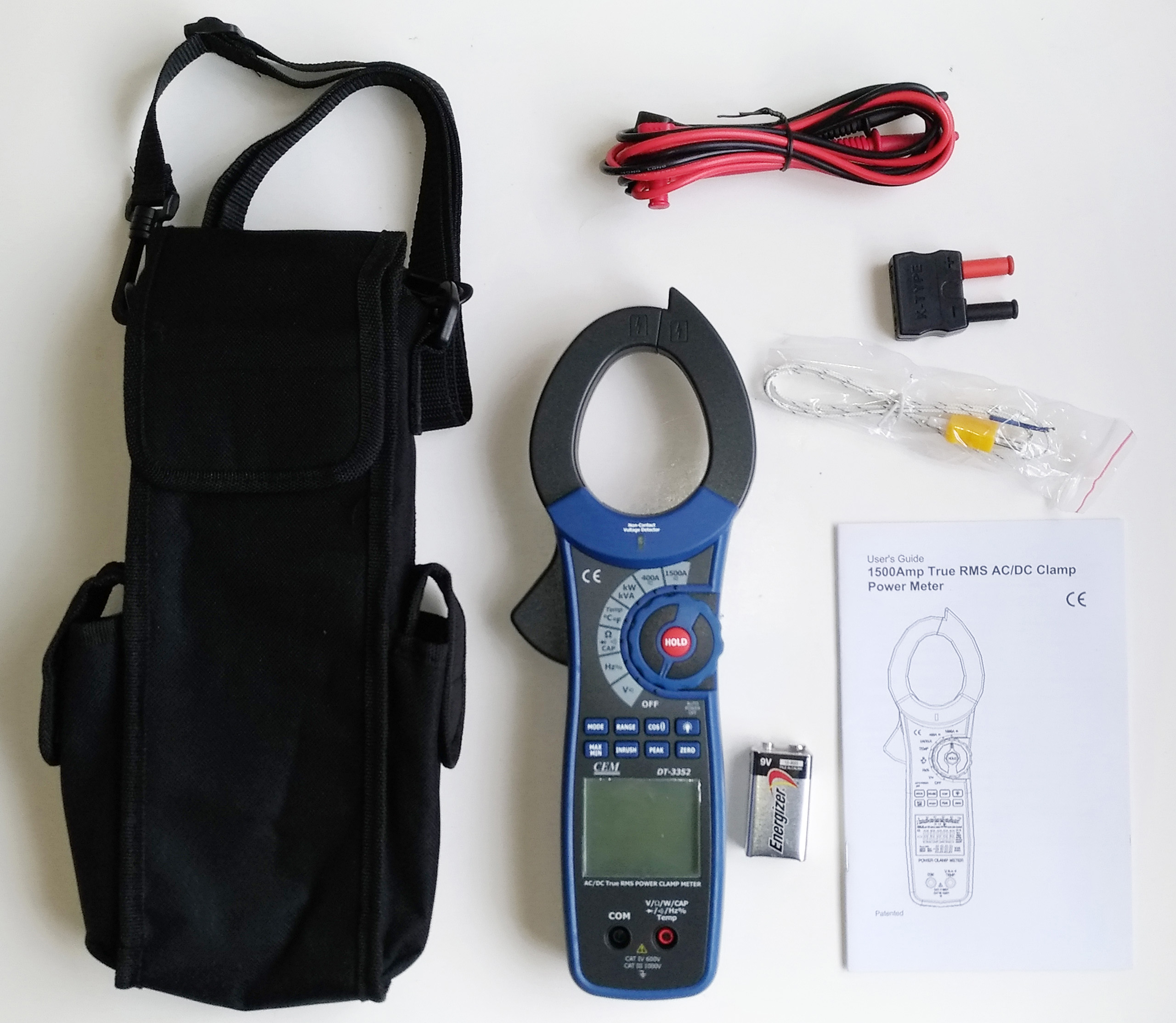

Product Condition	New	Only the accessories shown in the photo are included.
Packaging	Color retail package
Seller's Warranty	30 days	Under normal use; replace, repair or refund at seller's sole discretion
Manufacturer's Warranty	1 year	Under normal use; replace, repair or refund at manufacturer's sole discretion
US continental shipping and handling	Ship to USA location with expedited shipping	Non-refundable; No pickup please
Sales tax	Applies to California residents
Payment	Please contact seller if you are not able to pay via Paypal	Due 3 days after auction close

**** Please include item #, ebay buyer ID and ship to address when sending money orders.

ALL PURCHASES ARE SUBJECT TO ADDRESS VERIFICATION.

WE SHIP TO CONFIRMED ADDRESS ONLY.
