OBDSTAR P50 SRS Reset Scanner Equipment 16600+ E-C-U Part No & CAN FD Adapter

PRODUCT DESCRIPTION

International Buyers - Please Note:

a)  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

b)  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

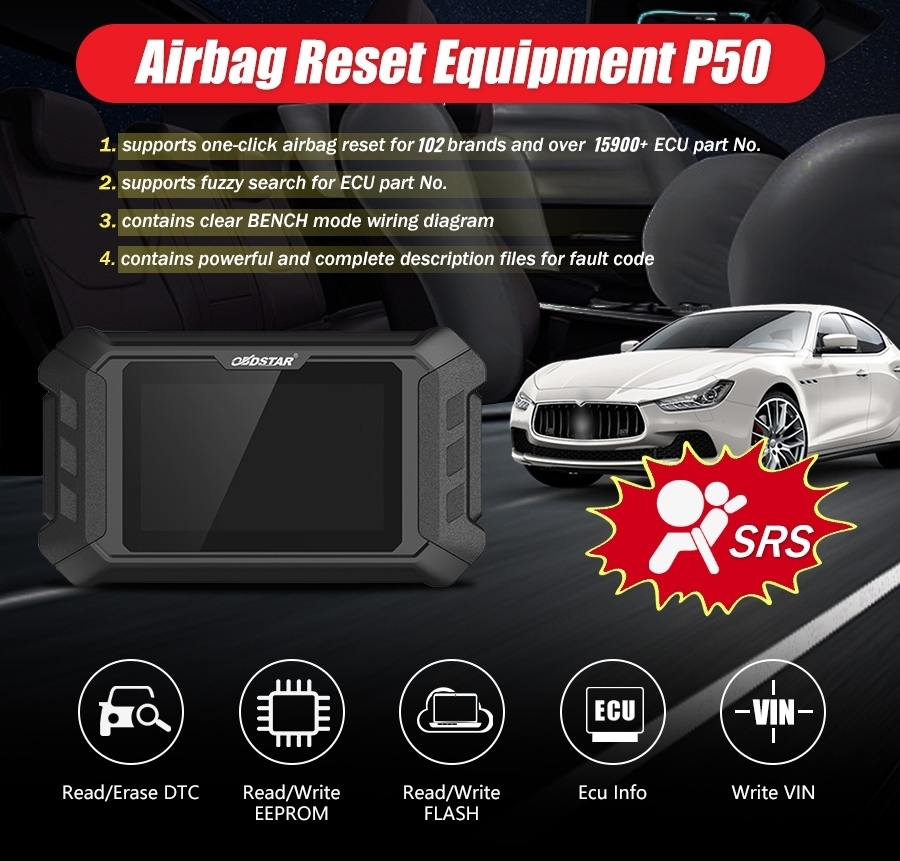

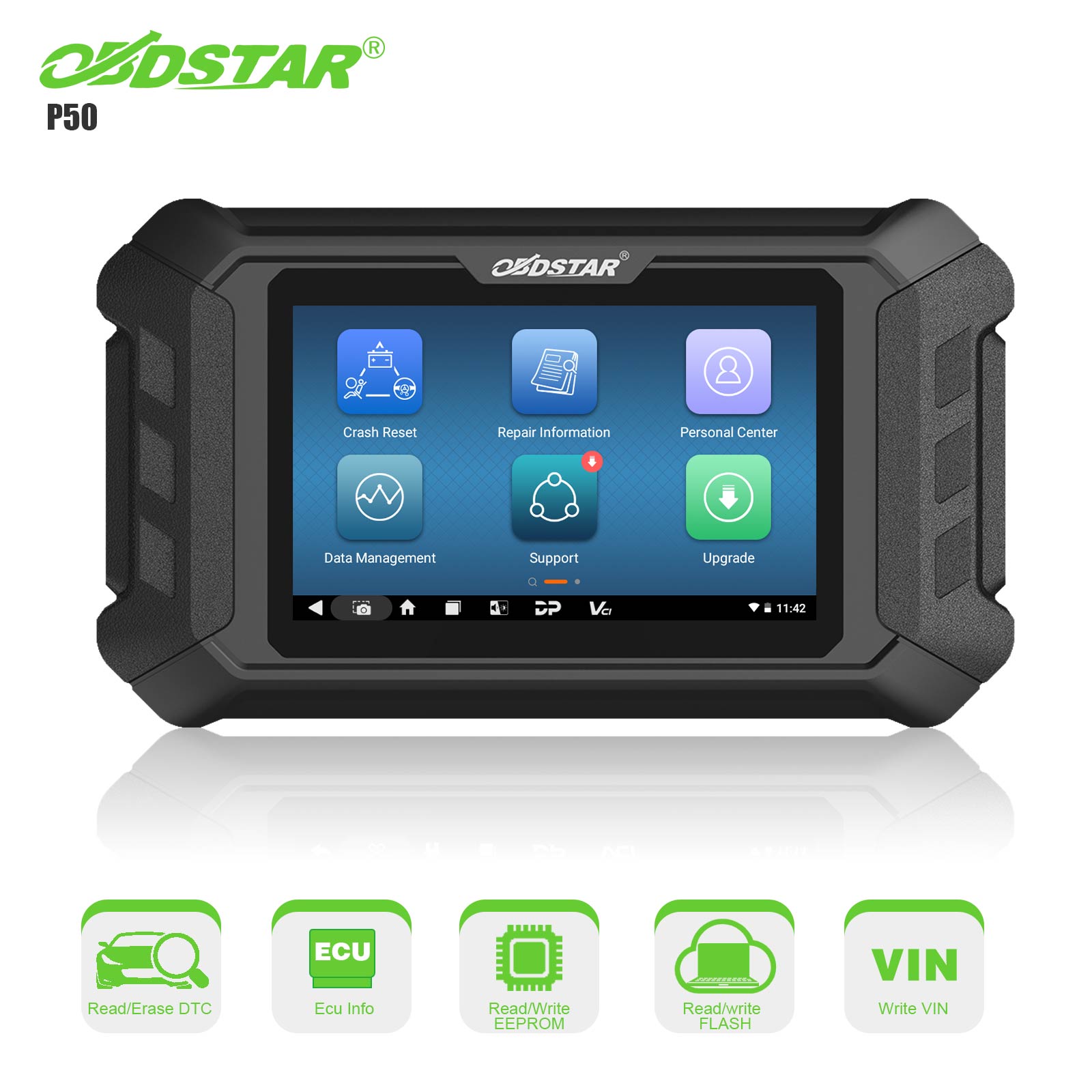

Item 1 : OBDSTAR P50 A.i.rb.ag Reset Equipment Covers 108 Brands and 17000+ E-C-U Part No.


OBDSTAR P50 is the new generation of a.i.rbag reset equipment. With powerful functions and wide coverage, it covers 108 brands and 16600+ E-C-U part No., some MC-U.

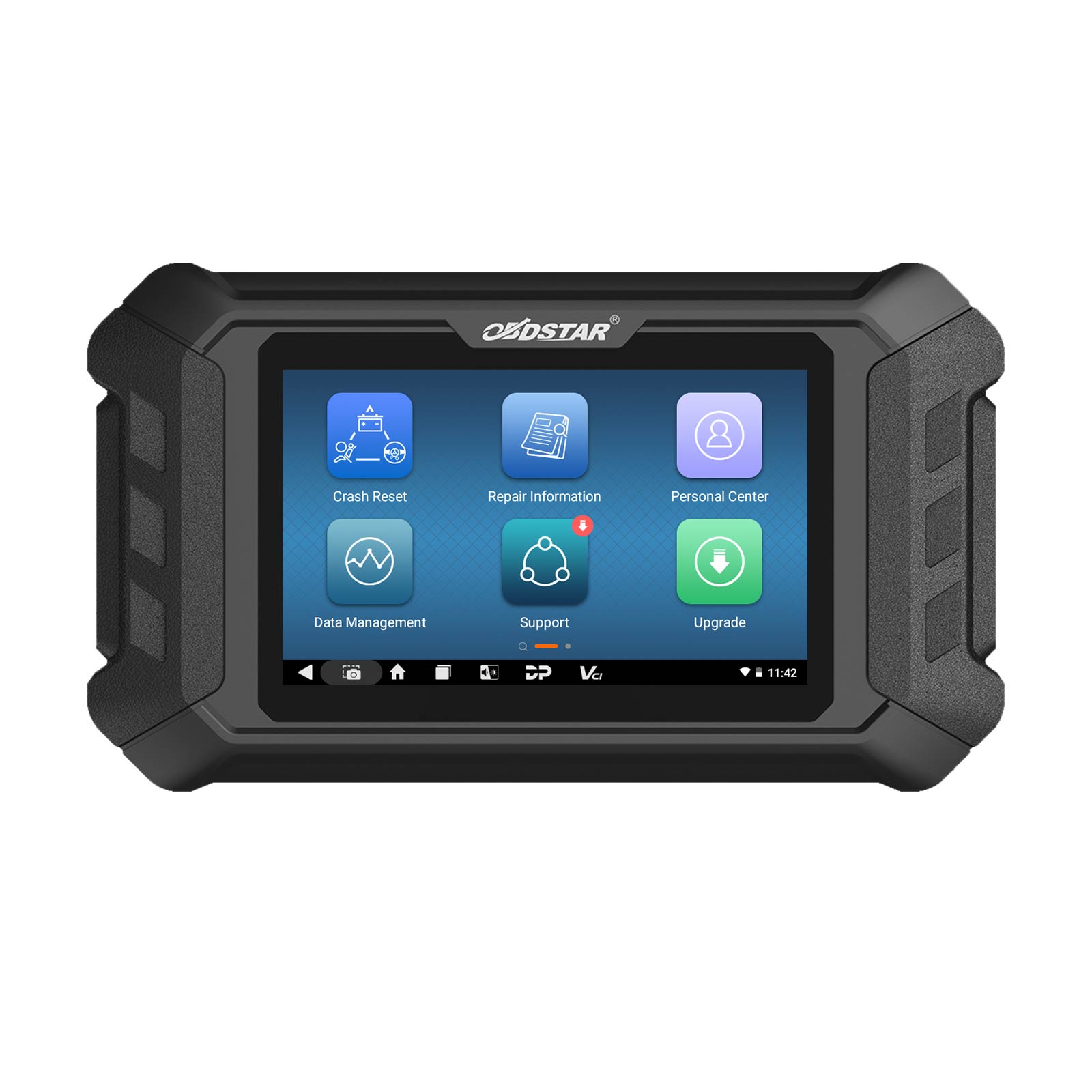

OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.


OBDSTAR P50 Basic Functions:

1. Supports one-click a.ir.bag reset for 108 brands and over 16600+ E-C-U part No.

2. Supports fuzzy search for E-C-U part No.

3. Contains clear BENCH mode wiring diagram

4. Contains powerful and complete description files for fault code

5. Supports for Hyundai/Kia TC2xxx types bench a.ir.b.ag reset with CAN FD adapter

6. Supports battery reset(MVBM) function

7. Supports SAS reset function

8.One year update for free. 150 USD for update per year from second year. ( 120 USD for another year of update if you renew it before expires)

More functions in developing...


Notice:

1. Language: English Only.

2.There is no software on the device. After registering account, enter the one-click upgrade to download the software.

3. If you also need Clu-ster Calibration & Oil Light/ Service Reset Function , you can buy the OBDSTAR P50 Authorization to get the same function as the Odo Master


OBDSTAR P50 Advanced Functions:

Read E-CU Information: Read E-CU part number, historical frame number, current frame number, collision record.

Read DTC

Erase DTC

Read EEPROM: Read EEPROM data from E-CU for backup

Write EEPROM: Write EEPROM data into E-CU

Read FLASH

Write FLASH

Write VIN: Write back the correct VIN after exE-C-Uting [Crash Data Clear]

Clear/Erase Crash: Clear E-C-U crash data

Unlo-ck E-C-U


CgAG0mNprw6AbxJJAB6p0qfaYWo720 (1).jpeg


Battery Reset for Audi and Volvo by BENCH


P004 Highlights:

P004 adapter is designed for EC-U progarmming, reading or writing data in bench mode. It has merits below:

1. Progarmming devices keep in normal communication no matter turn on or off 12V power button;

2. Turn on or off 120Ω resistance at any time for CANBUS E-C-U;

3. Support 6&14 and 3&11 CANBUS Protocol at the same time;

4. Optional CANFD adaptor (Mainly used for models after 2020, such as for HYUNDAI/KIA, etc.);

5. Support for GM Single CAN(GM SCAN);

6. Support Kline Protocol;

7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;

8. DB15 connector can communicate with any OBDII-16 I/O interface.


How to use OBDSTAR P50?

Please register the device before using.

Distributor code: 0086A002.


The general operation steps are as follows:

1. Read the part number---To see whether it reads the correct part number

2. Read fault codes---Check if there is an a-irbag crash fault

3. Clear the fault code---A few car models' a-irbag fault codes can be cleared by cleaning the fault codes directly

4. If reading EEPROM is supported, please read EEPROM

5. Clear the collision record

6. If there is a w-rite VIN function, please w-rite VIN ( Very few For Ford and For R-enault models' VIN information will be erased when cleaning the fault codes)

7. Clear the fault code

8. Read the fault code---To confirm that the fault has been successfully cleared


Attention:

Any part number listed as DIAG ONLY, can read the fault codes only, but can't clear the crash data.
Any part number listed as PARTIALLY or BETA, if the P50 failed to work with it, there is no solution, but it's not a quality issue.

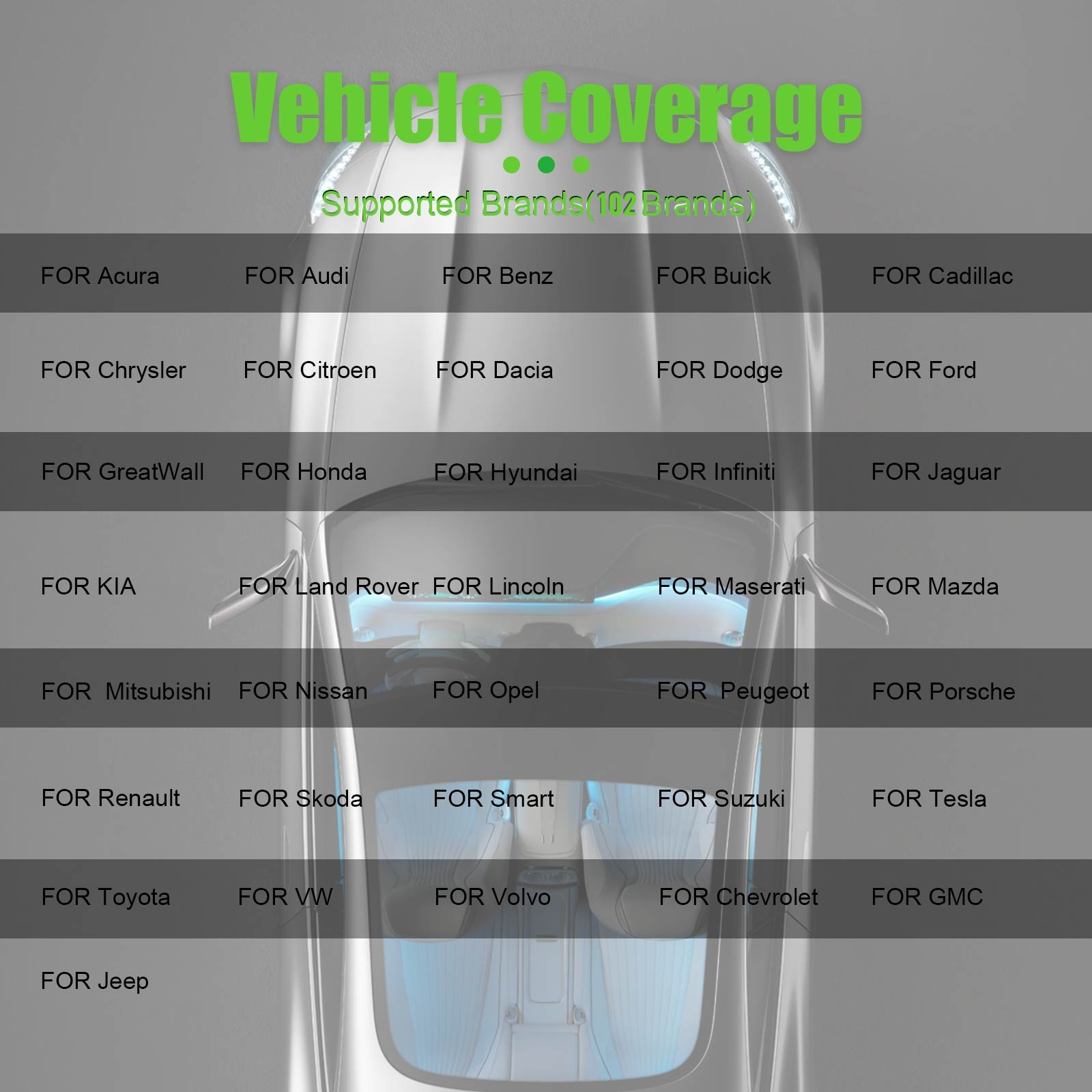

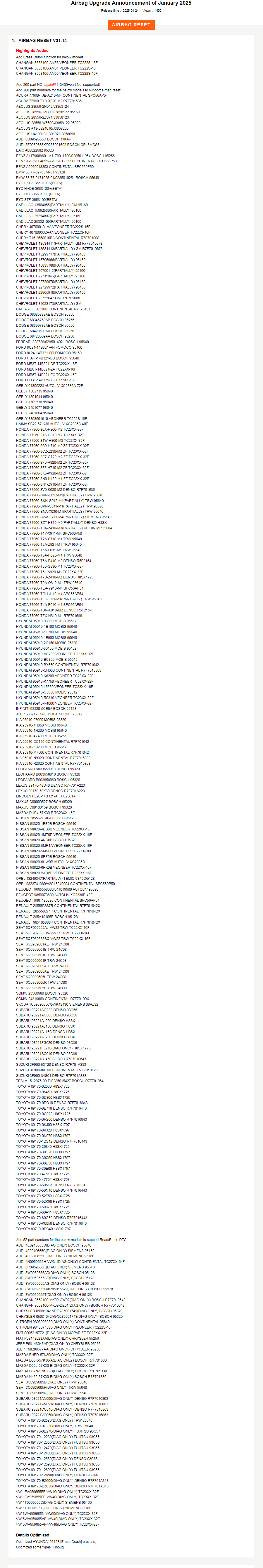

OBDSTAR P50 Vehicle Coverage:



1. Supported 102 brands:

For ACURA, For ALFAROMEO, For ASTONMARTIN, for AUDI, For BAOJUN, for BENZ, for BMW, For BUICK, For CADILLAC, For CHERY, For CHEVROLET, for CHRYSLER, For CITROEN, For DACIA, For DODGE, For FERRARI, For FIAT, for FORD, For GMC, For GREATWALL, for HONDA, For HYUNDAI, For INFINITI, For JAGUAR, For JEEP, For KIA, For LADA, For LAMBORGINI, For LANCIA, For LANDROVER, For LEXUS, For LINCOLN, For MASERATI, For MAZDA, For MINI, For MITSUBISHI, For NISSAN, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For SEAT, For SKODA, For SMART, For SUBARU, For SUZUKI, For TESLA, For TOYOTA, For UAZ, for V-OLVO, for V.W,for ZOTYE

2. Cover over 15900+ E-C-U part No. (supporting fuzzy search)

3. Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

4. Support bench a.i.r.b.ag reset for Tesla
5. Support SAS reset for TOYOTA
6. Support battery reset for Audi and for V-olvo




Function Display

1) Main Page/Brand Supported

P50

P50

P50

P50

P50

P50

P50

P50

P50


2) Demo(VOLVO TMS570)

P50

P50

P50

P50

P50

P50

P50

P50

P50

P50

P50

P50

P50


Some Updates:





Add for TOYOTA R7F7016443, R7F7016843  ,Work with CAN FD adapter.


OBDSTAR P50 TOYOTA UPDATE

P50 update

Add for Hyundai/ Kia a.i.rb.a.g reset, working with CAN FD Adapter


OBDSTAR P50 Upgrade

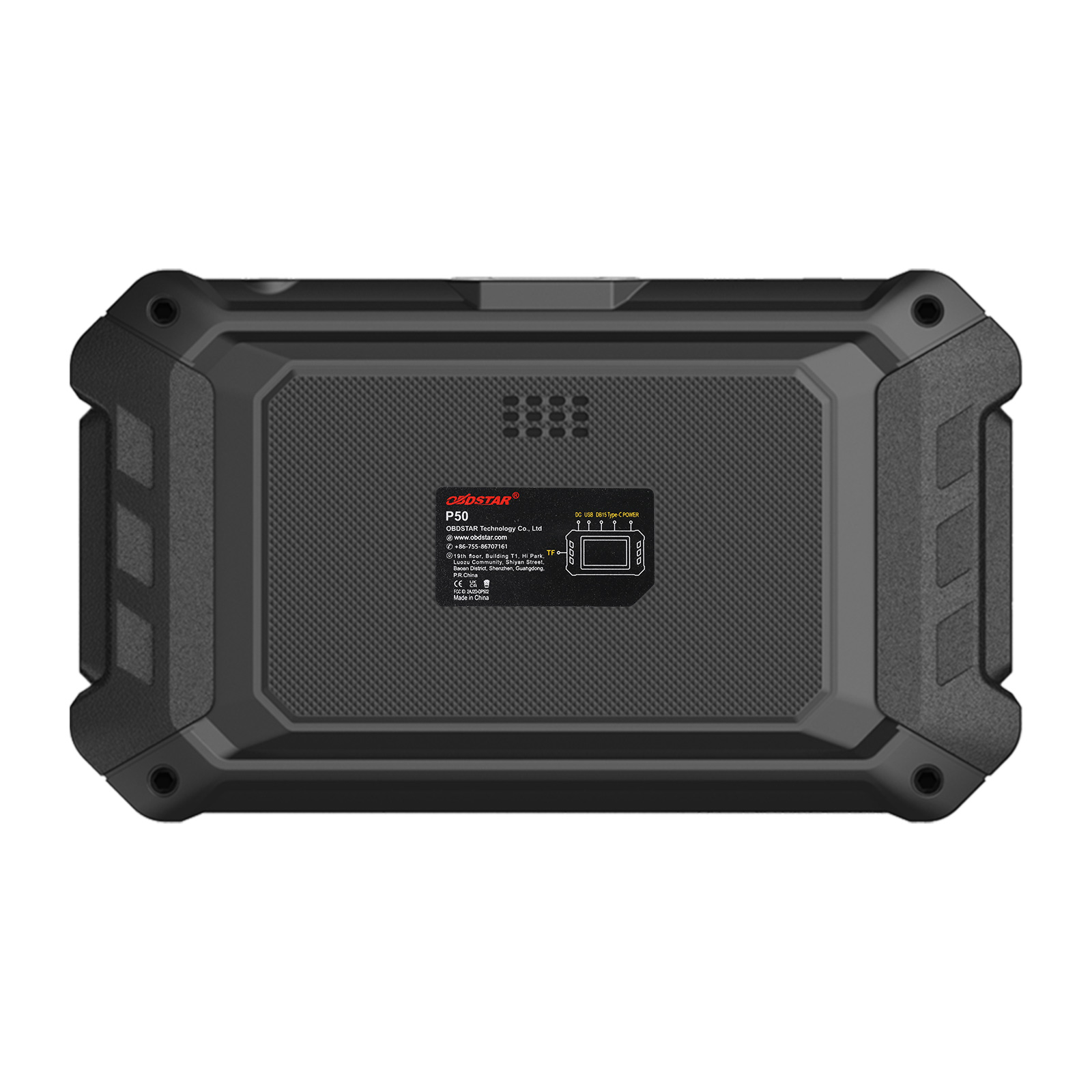

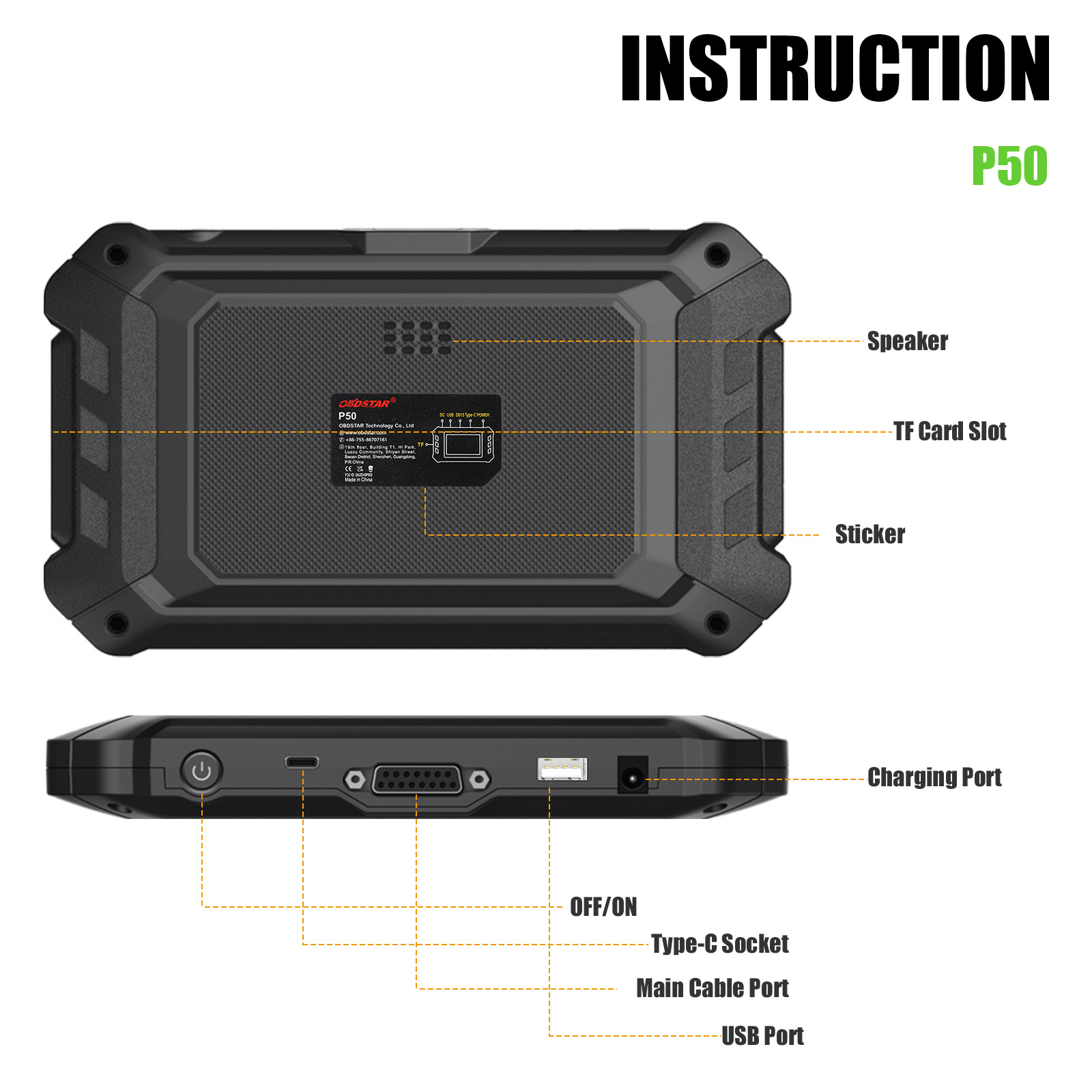

OBDSTAR P50 Specifications:

Operation systemAndroid 5.1.1
CPURK3128 quad-core cortex A7
Battery2600mA, rechargeable polymer lithium battery
Extension memory card32G micro SD (TF) card supported
Storage capacity16GB
LCD5.0 inch
LCD resolution800*480
Touch screenCapacitive touch screen
WifiSupported
Working temperature-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature-20℃  ~  70℃(-4℉  ~ 158℉)
WeightAbout 700g
Dimension198mm*115*mm*31mm

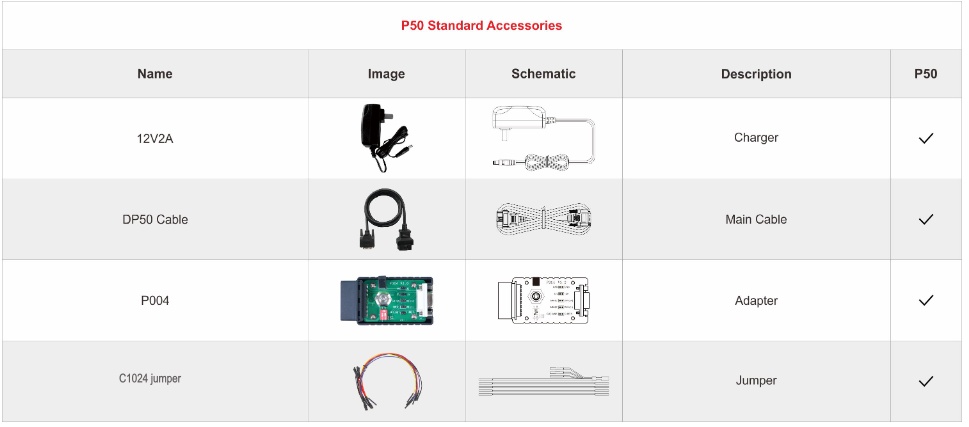

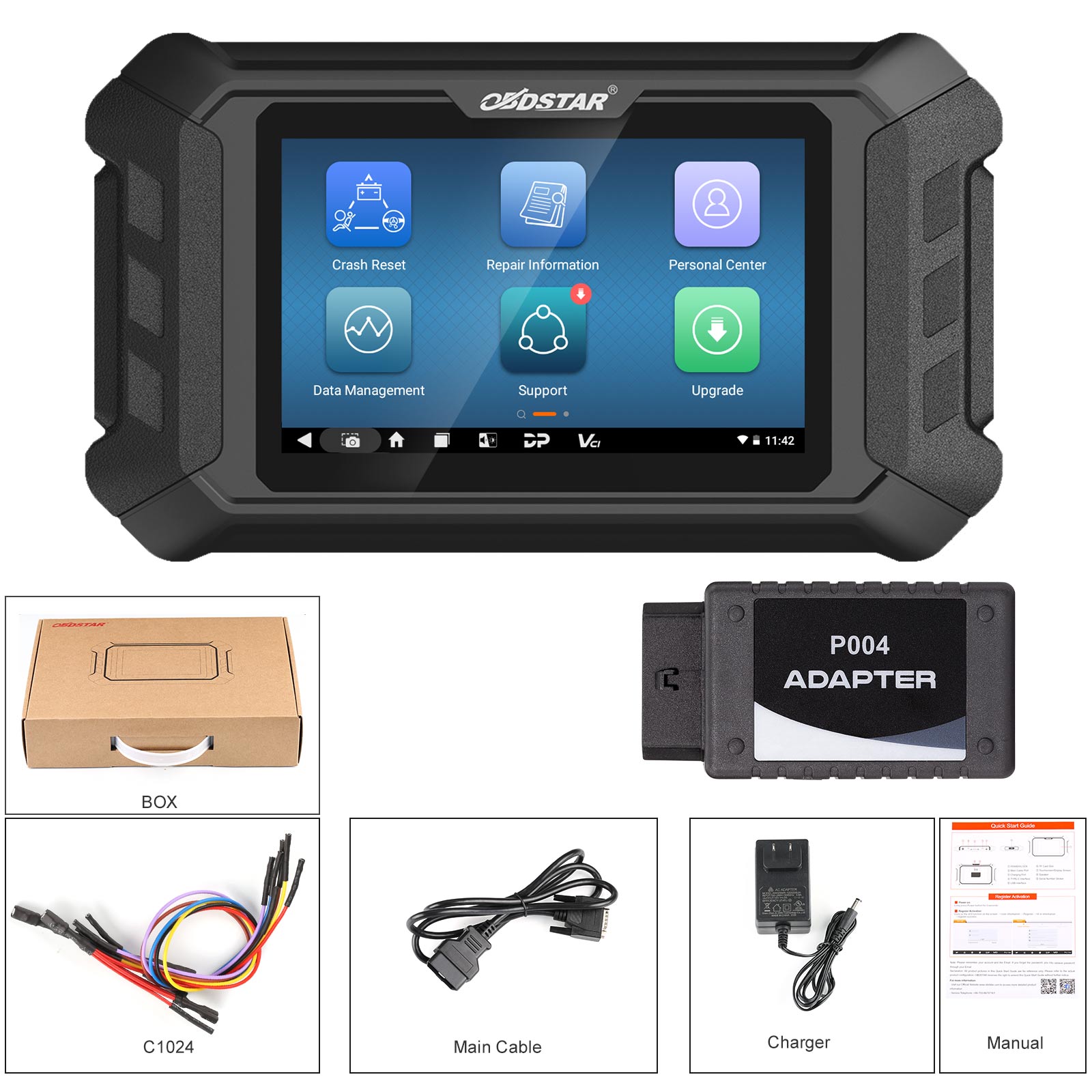

Package Includes:

1pc x P50 Main Unit

1pc x Main Cable

1pc x P004 Adapter

1pc x C1024 Jumper

1pc x 12V2A Charger

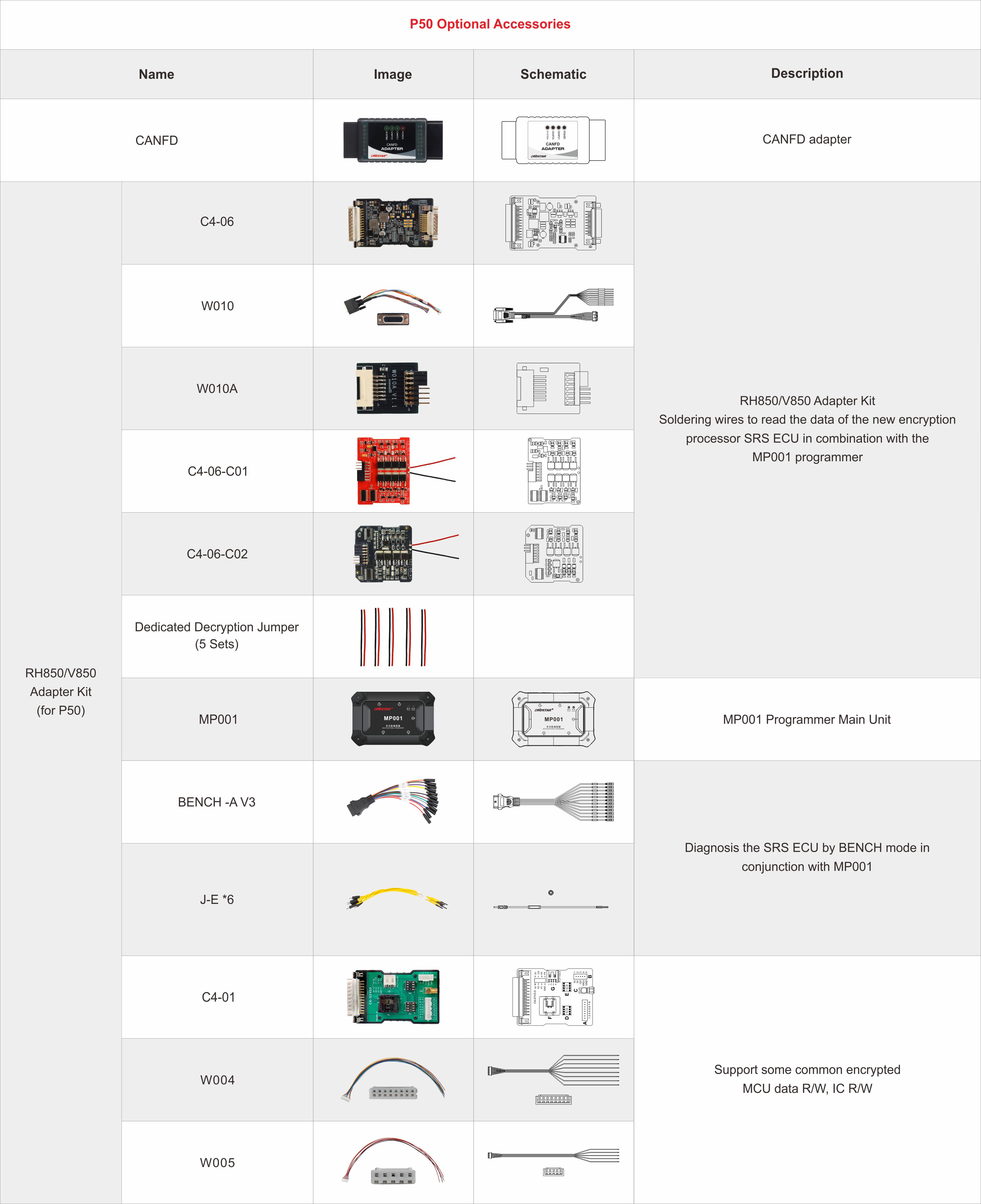

Note: Optional accessory not included!

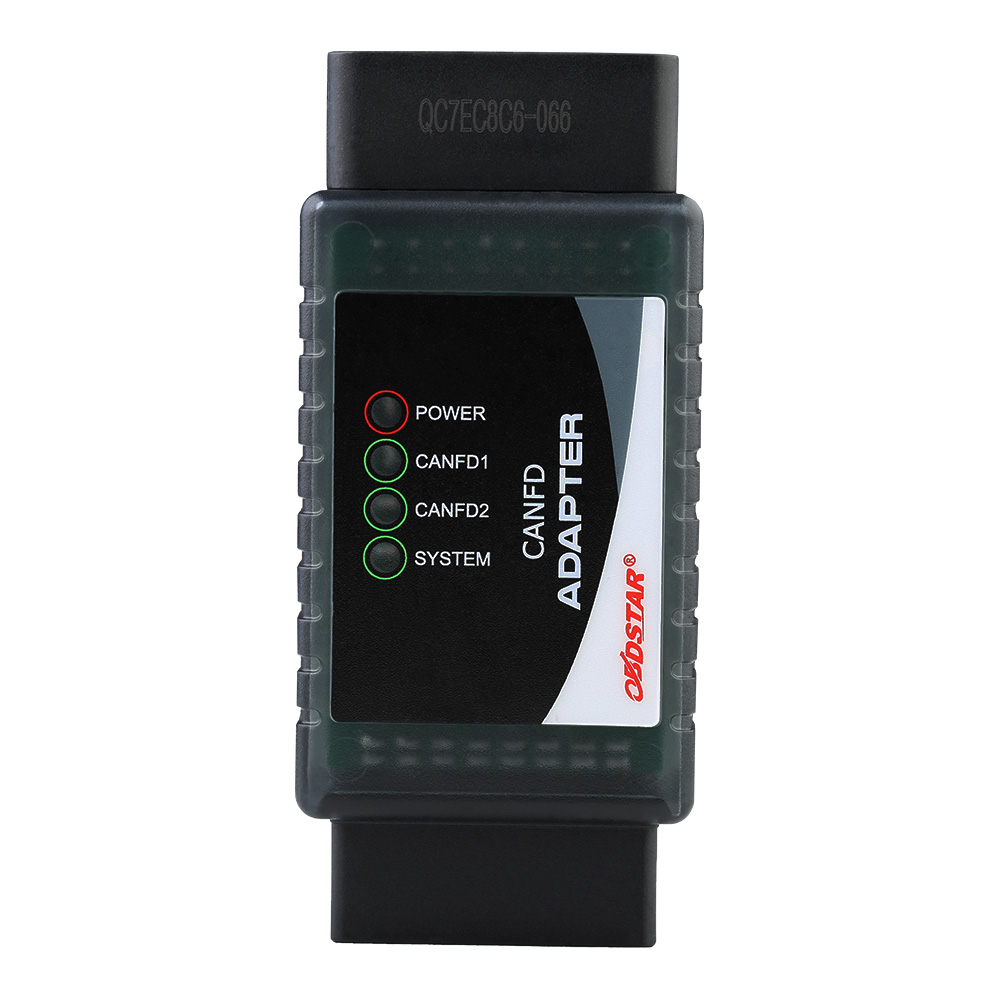

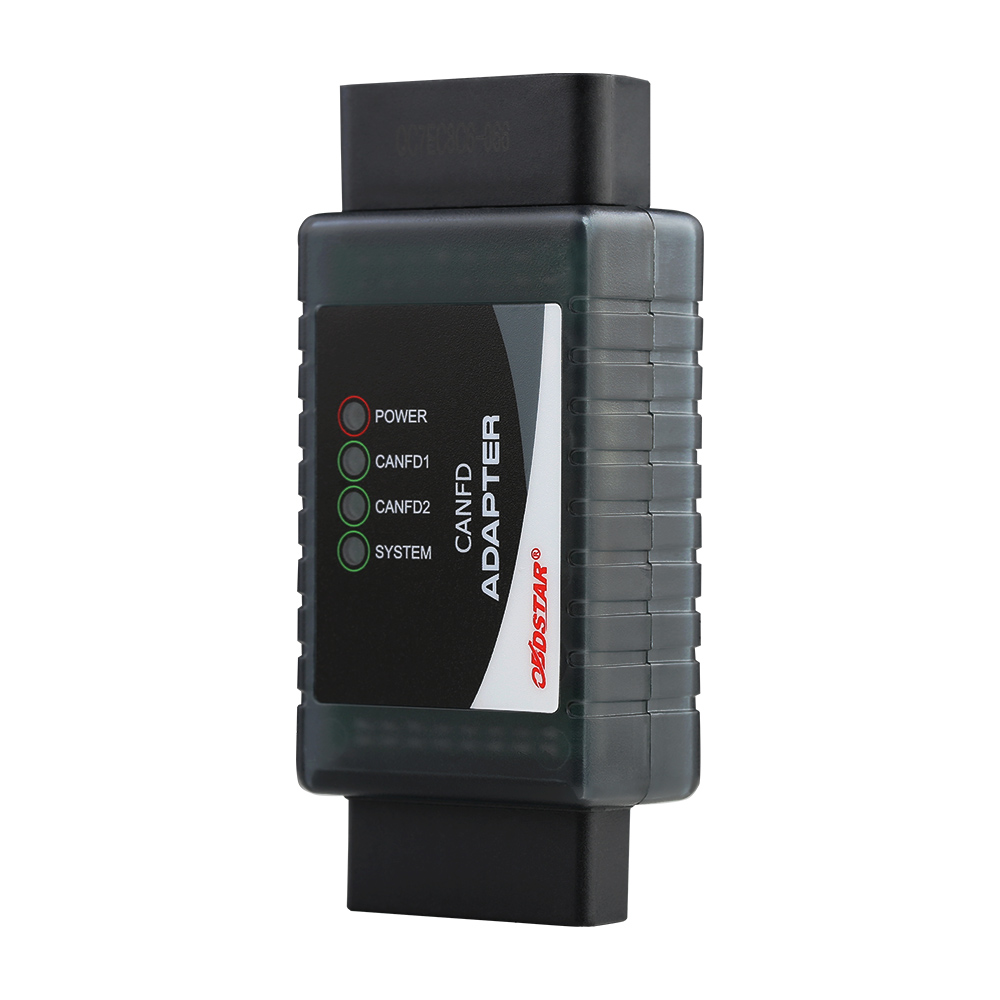

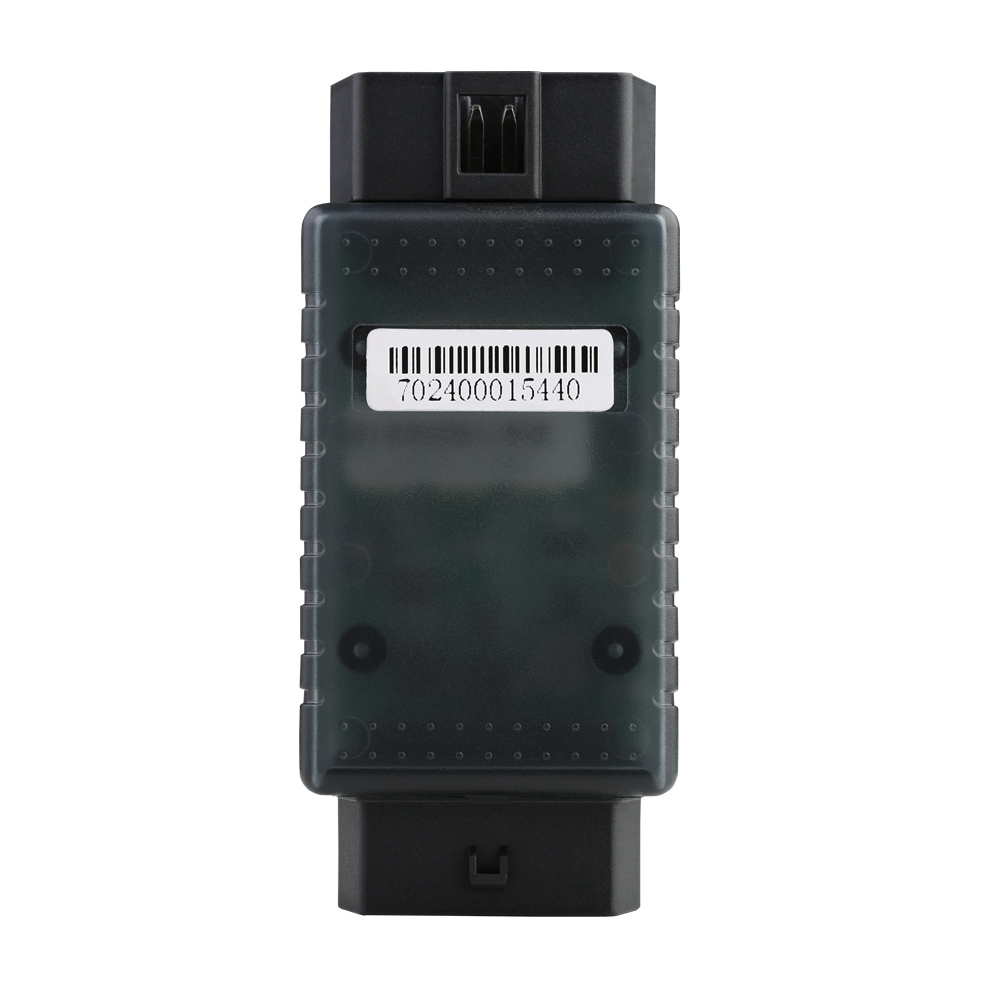

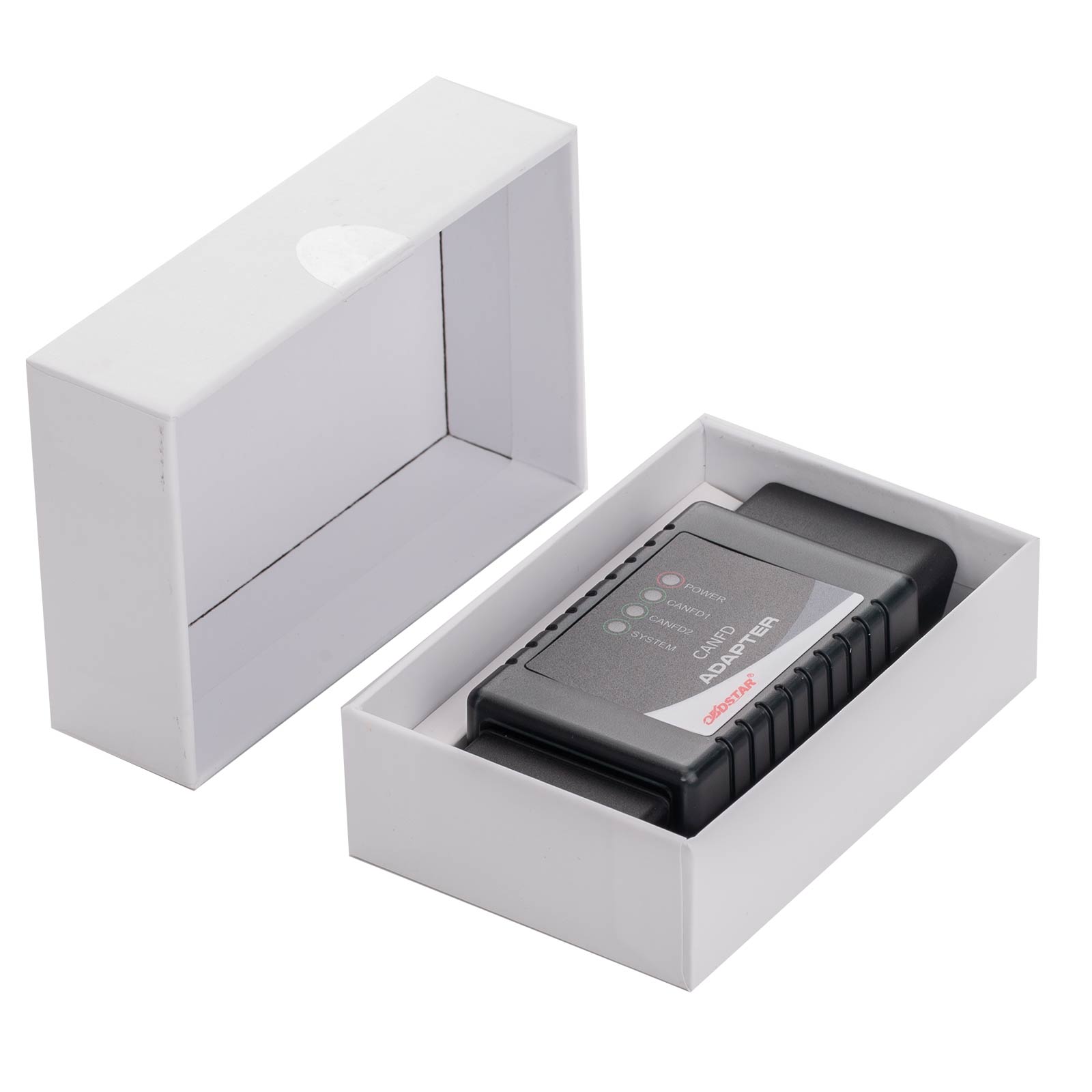

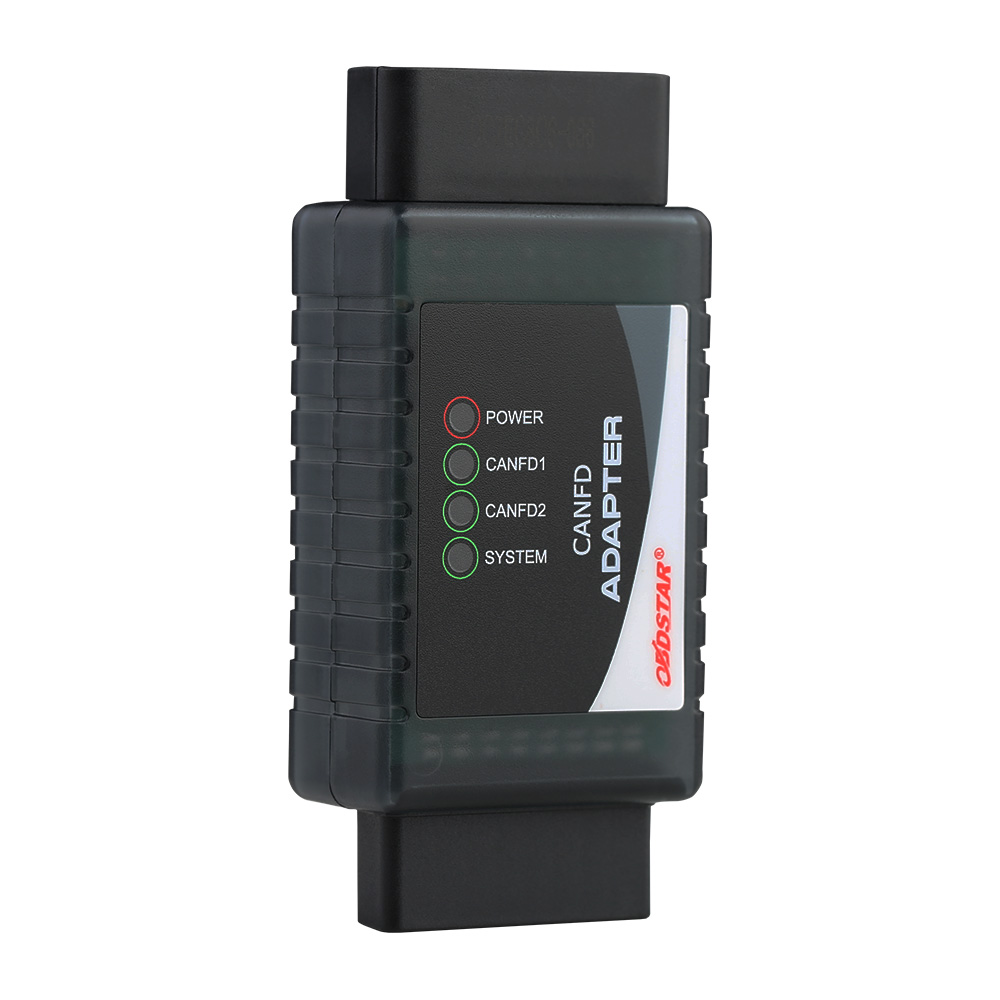

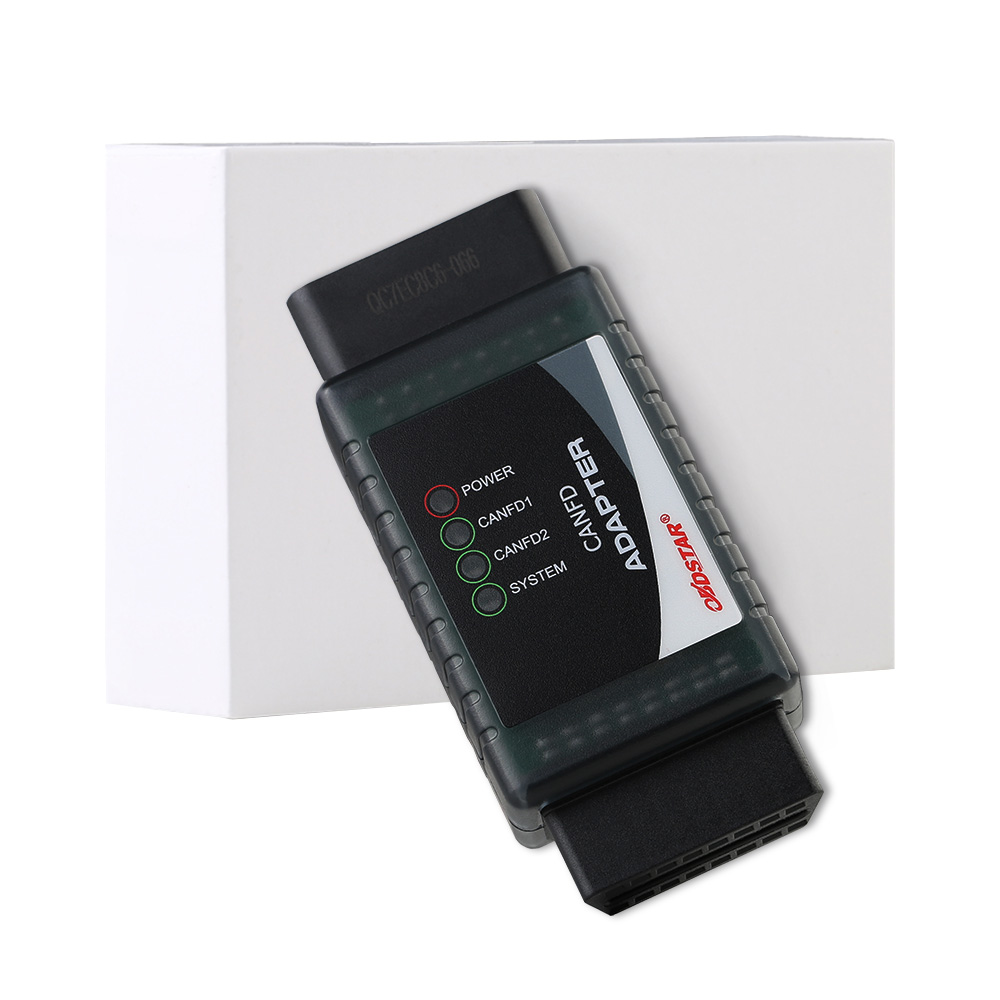

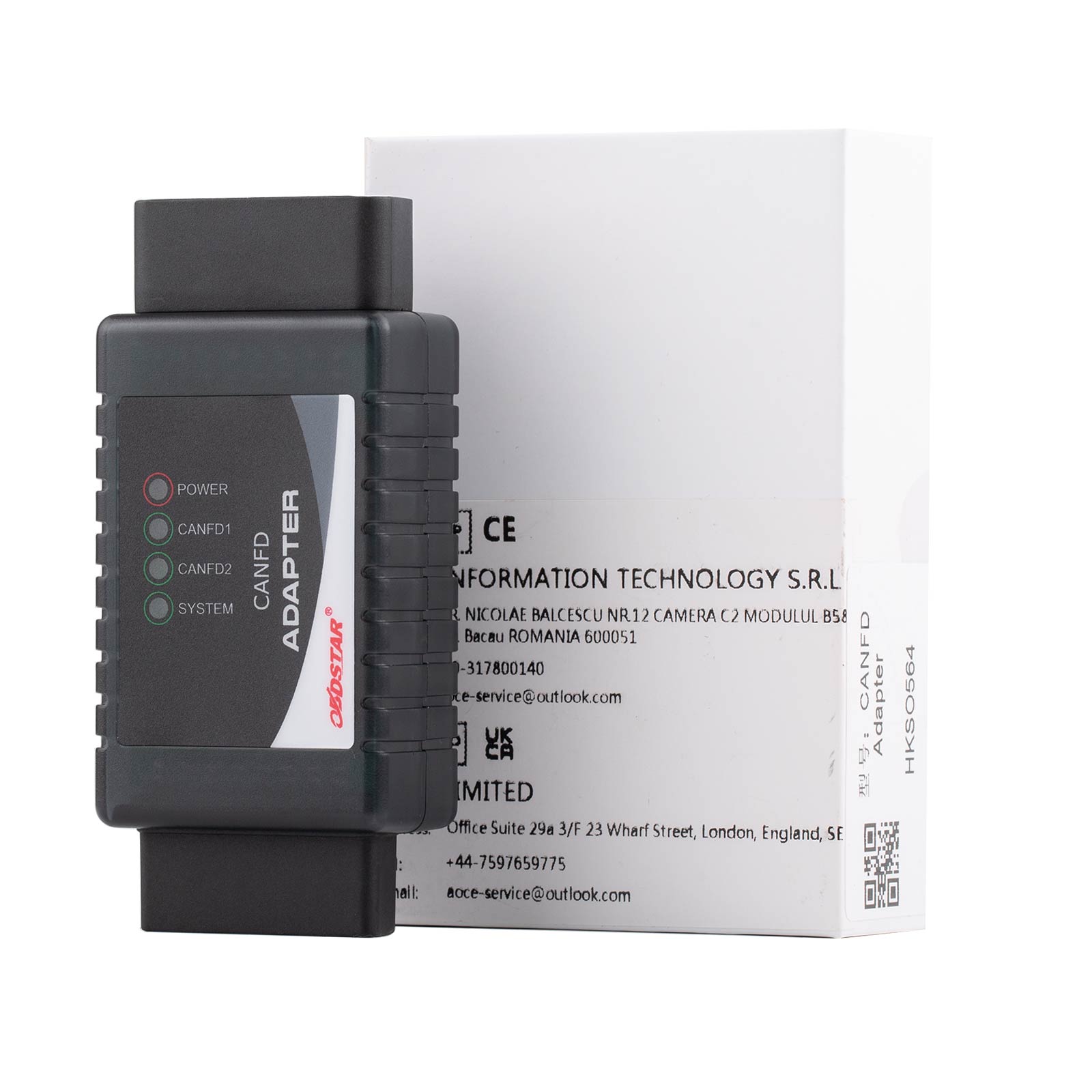

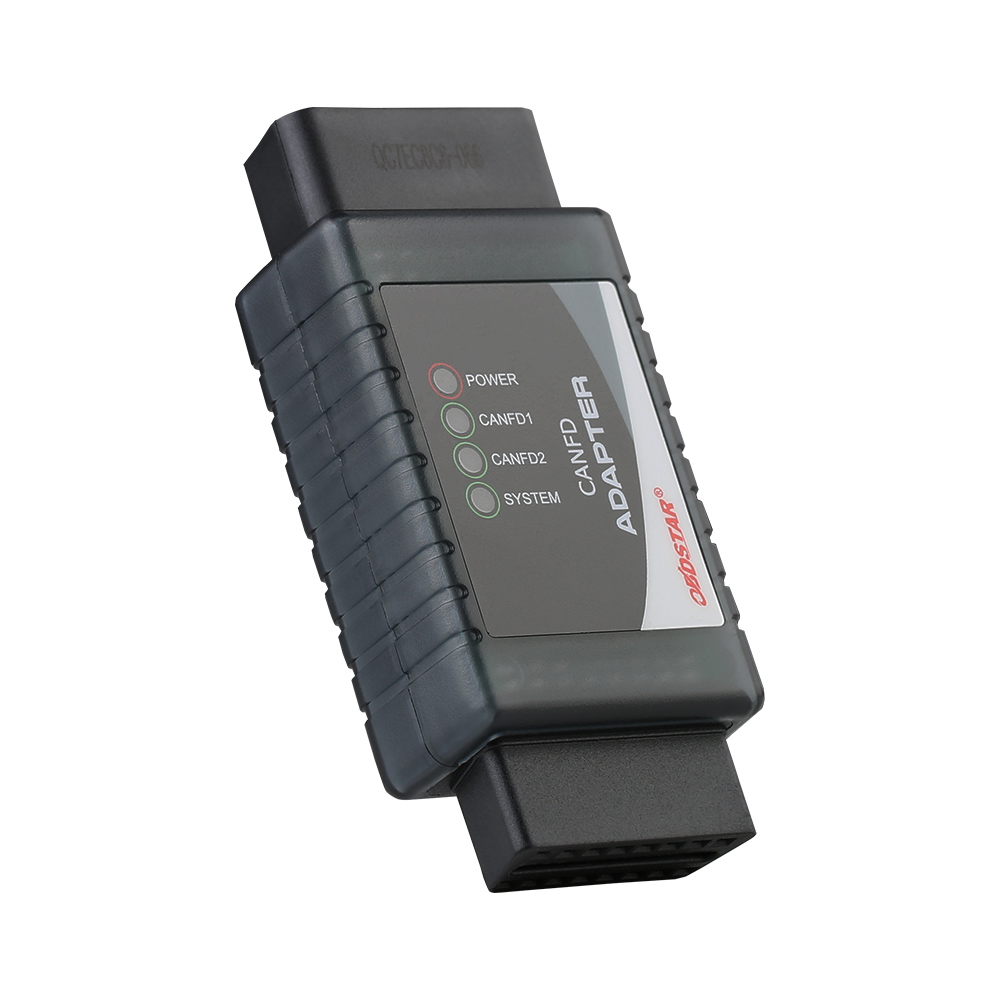

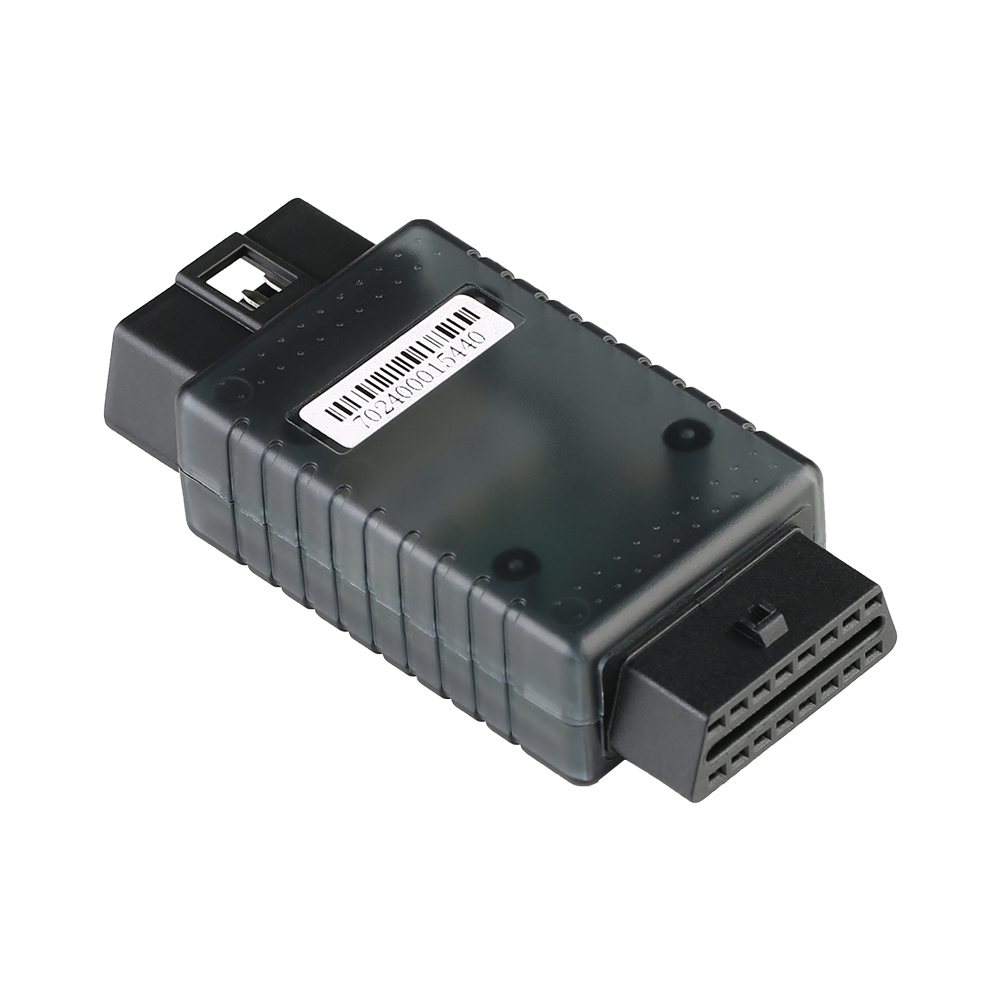

Item 2 : OBDSTAR CAN FD Adapter For P50 , X300 DP Plus, X300 PRO4


OBDSTAR CAN FD adapter is designed for diagnosing E-CU systems of cars meeting with CAN FD protocols.
It can be used with
X300 DP Plus, X300 PRO4, and X300 DP key master for progarmming and P50 for a.i.rb.ag reset as well.
It's high performance and easy operation.

Advantages:
1.Portable Design
2.Easy Operation
3.High Performance

Supporting car models as below:


 CANFD for airbag reset



Usage:

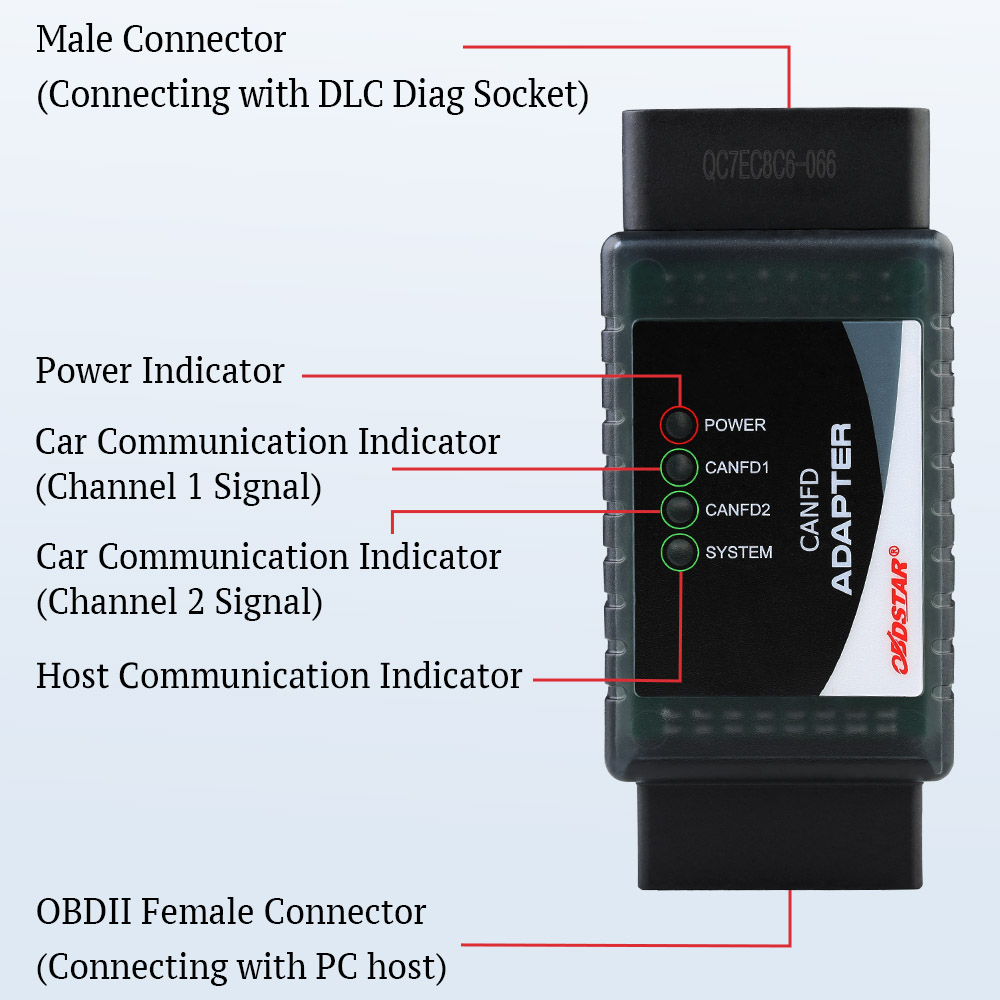

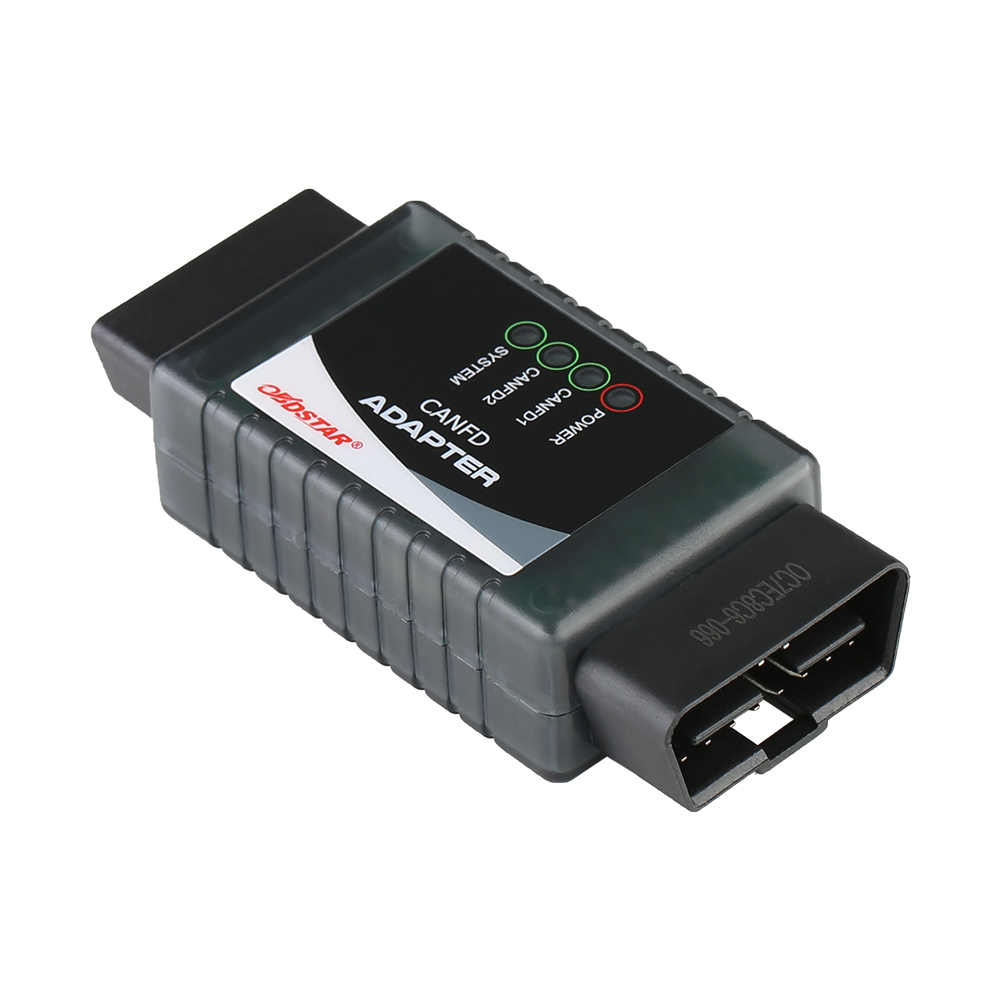

Use female connector connecting with OBDII-16 and male Connector connecting with DLC Diag Socket.

Package includes:
1pc x OBDSTAR CAN FD Adapter
