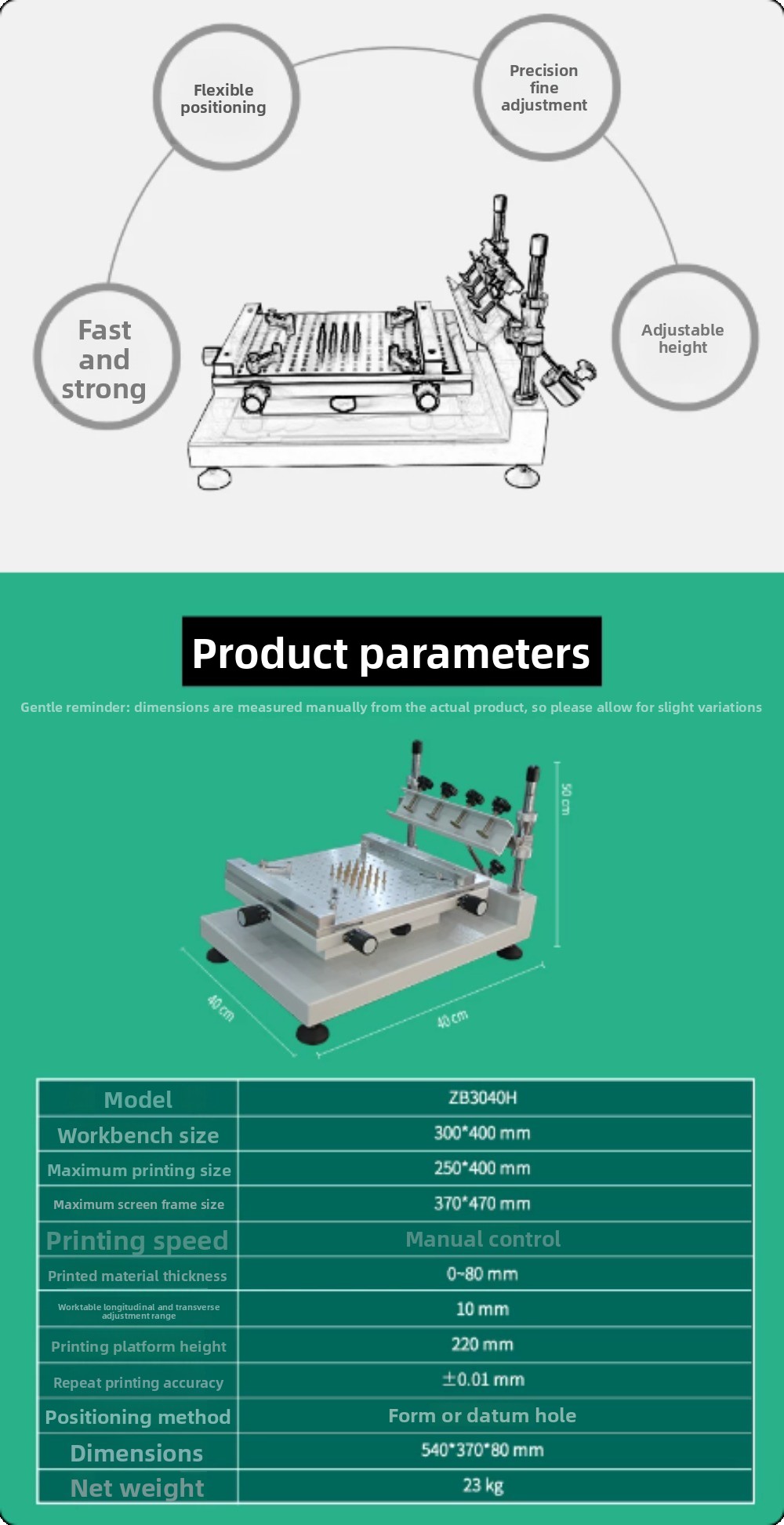

Model: ZB3040H
Worktable Size: 300*400 mm
Max Printing Size: 250*400 mm
Max Screen Frame Size: 370*470 mm
Printing Speed: Manual control
Substrate Thickness: 0‑80 mm
Worktable X‑Y Adjustment Range: 10 mm
Printing Platform Height: 220 mm

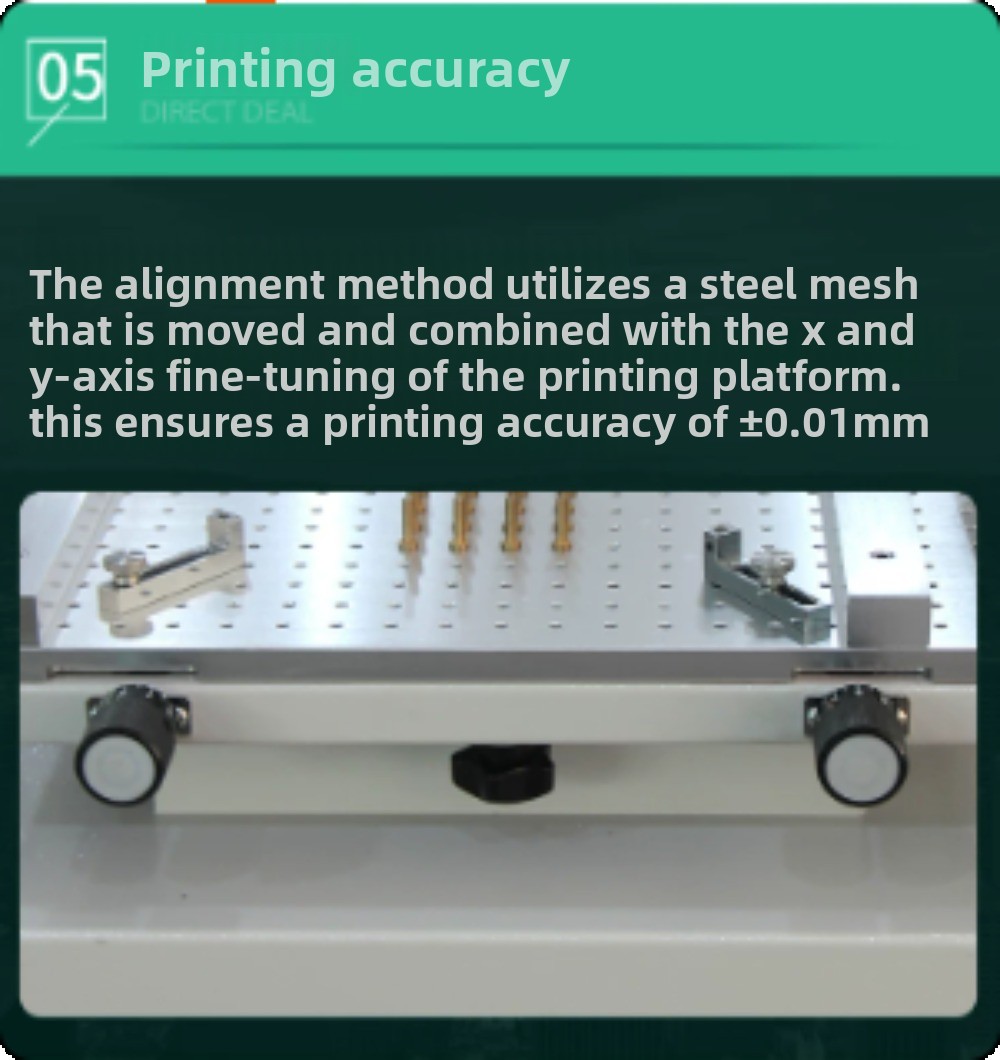

Repeat Printing Accuracy: ±0.01 mm

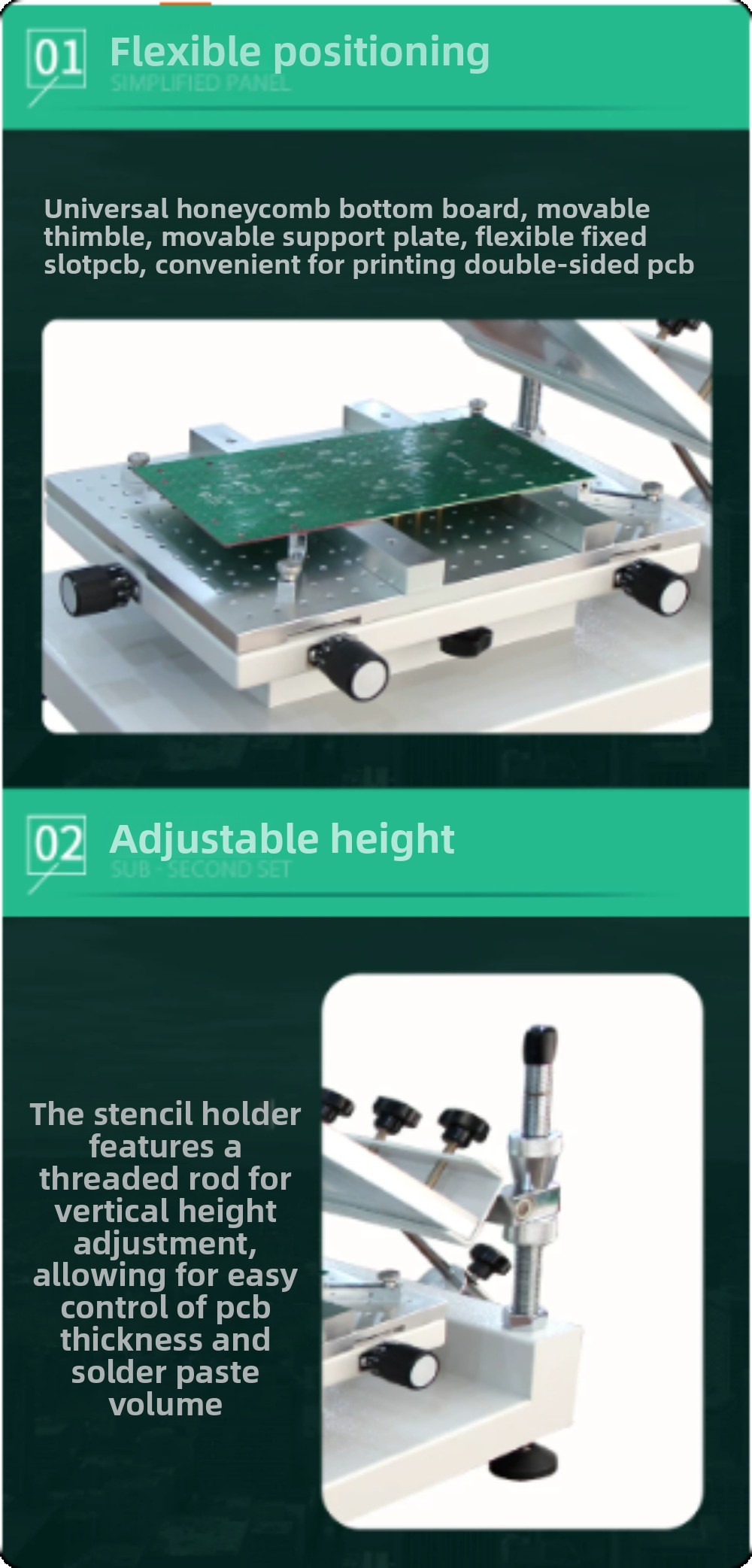

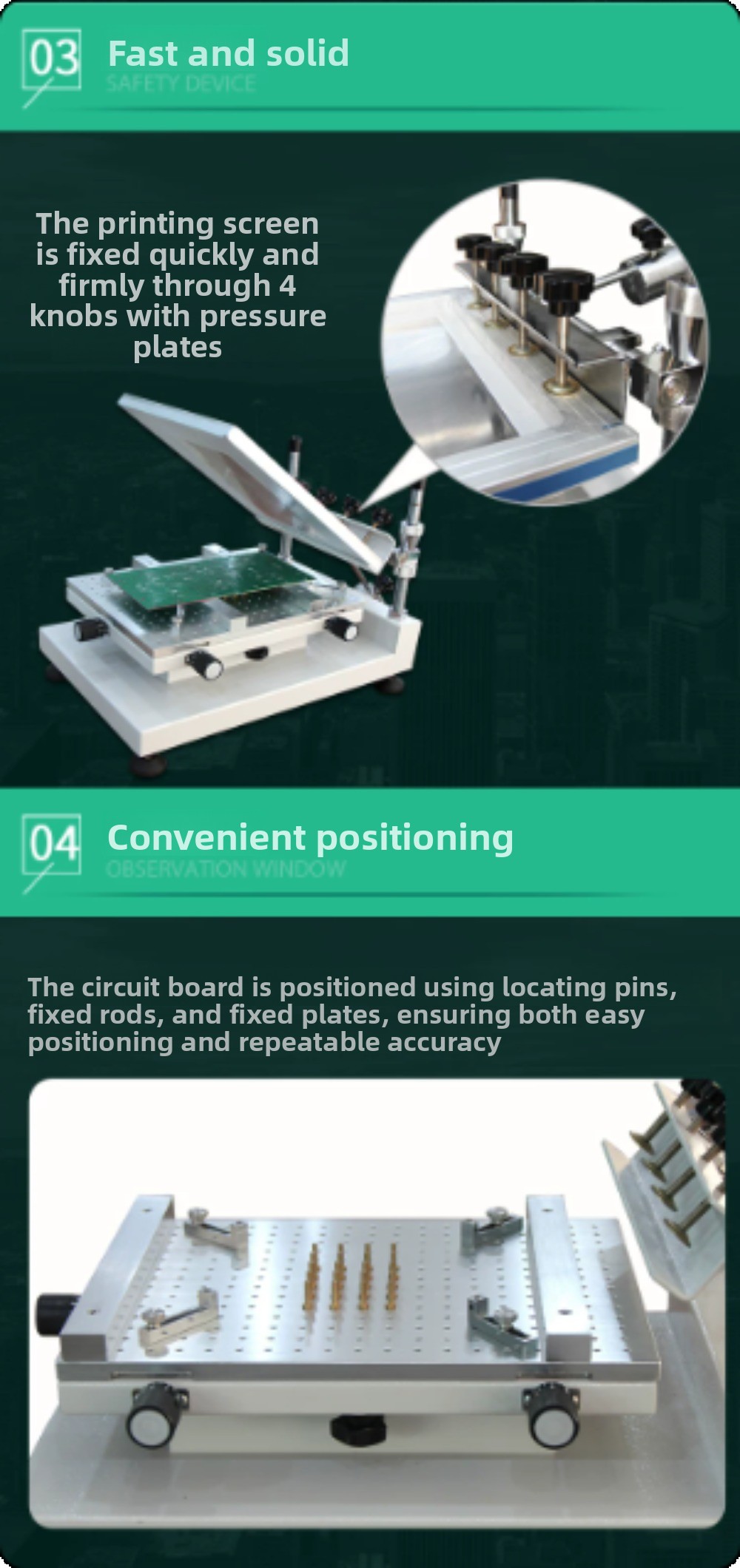

Positioning Method: Outline or reference hole
Overall Dimension: 540*370*80 mm
Net Weight: 23 kg
