TBO G35-900 Reverse Ball Bearing Turbo Free Float 1.01 A/R Fits 880701-5003S
产品详情图第1张
产品详情图第2张
产品详情图第3张
产品详情图第4张
产品详情图第5张
产品详情图第6张
产品详情图第7张
产品详情图第8张
产品详情图第9张
产品详情图第10张
产品详情图第11张
产品详情图第12张
Items Description


Store Categories

Useful Links

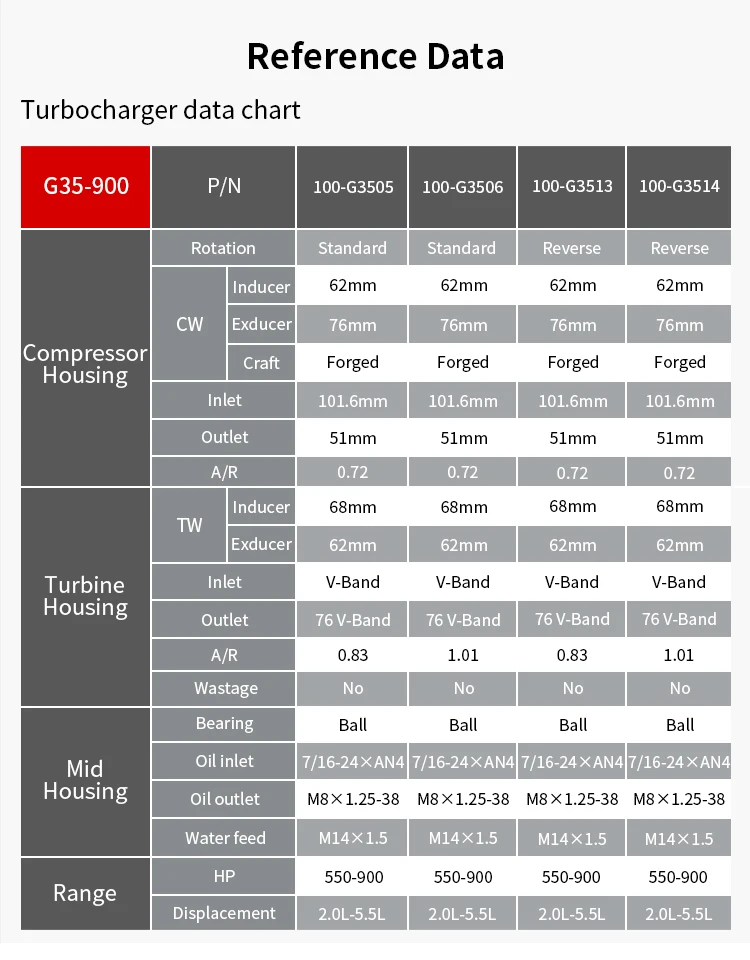

Information:
Brand TBO
Model G35-900
P/N 100-G3514
Warranty 6 Months
Note Please DOUBLE check your sizing prior to purchase!
Professional install is highly recommended! Please ask all questions prior to purchase!
Product Description

TBO G35-900 Extreme Output Turbo (Reverse Rotation / 1.01 A/R)

  • The Symmetrical Twin-Turbo Weapon: Precision-engineered with reverse rotation aerodynamics. This is the ultimate missing piece for builders constructing massive, visually perfect symmetrical Twin-Turbo setups (LS, Coyote, Viper V10). Supports up to 900 HP per unit.

  • 1.01 A/R Maximum Flow Turbine: Features the largest 1.01 A/R dual V-band turbine housing. Designed specifically to minimize exhaust backpressure at extreme high RPMs, making it the absolute best choice for zero-compromise drag racing and high-speed roll racing.

  • Massive Billet Compressor: Equipped with a 62mm Inducer / 76mm Exducer point-milled forged billet compressor wheel to deliver devastating top-end airflow for 2.0L - 5.5L engine displacements.

  • Severe-Duty Ceramic Ball Bearing: The ultra-low friction dual ball bearing cartridge effortlessly survives the extreme thrust loads and high-boost abuse that would instantly destroy conventional journal bearing turbos.

  • [COMPLETE YOUR 1800HP BUILD]: You are looking at the Reverse Rotation unit. To complete your twin-turbo setup, search our eBay store for the matching Standard Rotation G35-900 (SKU: 100-G3506).

  • [EXTERNAL WASTEGATE REQUIRED]: This turbine housing is Free Float (Non-Wastegated). You MUST plumb a high-capacity external wastegate to control massive exhaust energy. Protect your engine and pair this turbo with our TBO GVW-45 or GVW-50 External Wastegates


WHAT'S IN THE BOX (Complete Hardware Kit):

  • 1x TBO G35-900 Turbocharger (Reverse Rotation / 1.01 A/R Free Float)

  • 1x Turbine Inlet V-Band Kit: 304 Stainless Steel Clamp & Weld Flange

  • 1x Turbine Outlet V-Band Kit: 304 Stainless Steel Clamp & Weld Flange

  • 1x Oil Restrictor Fitting (-4AN): [CRITICAL] You MUST install this precision restrictor on the oil feed line to prevent excessive engine oil pressure from blowing the ball bearing seals.

  • 1x Water Cooling Hardware Set: High-flow banjo bolts and copper crush washers.

  • 1x Oil Drain Hardware Set: High-temp return gasket and mounting bolts.



CRITICAL INSTALLATION NOTICE:
Custom exhaust manifold fabrication and professional ECU tuning are strictly required. Operating this Free Float turbocharger without a properly integrated external wastegate will result in immediate and catastrophic engine failure.
