Product Description

FC-6S Fiber Optic Cleaver Fiber optic cutting tool 36,000 times Fiber Cleaves

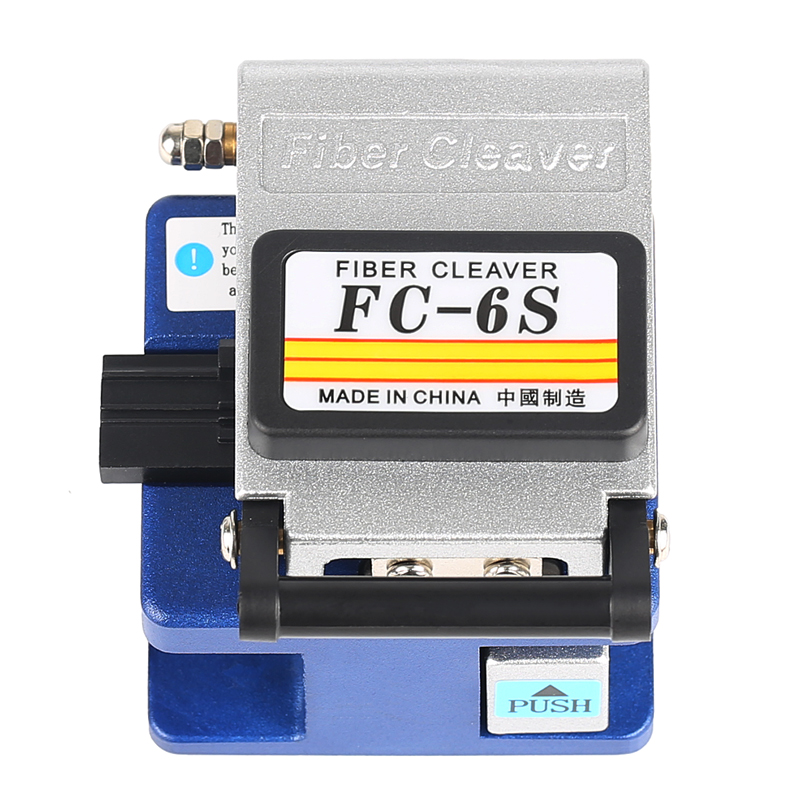

FC-6S Fiber Cleaver

fiber cutter

Same as Sumitomo FC-6S optical fiber cleaver

fiber cleaver for sumitomo fusion splicer

blade life of 36,000 cleaves

The Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest Sumitomo cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

Model		FC-6M	FC-6M-C	FC-6S	FC-6S-C

Applicable Fiber	Fiber diameter	125um
	Fiber count / size	Single fiber (0.25 & 0.9mm) and up to 12-fiber ribbon		Single fiber (0.25 & 0.9mm)
Cleave length		10mm		9 ~16mm (0.25) 10~16mm (0.9 )
Typical cleave angle		0.5°
Dimensions / Weight		63(W) x 76(D) x 63(H)mm / 430g (FC-6M/FC-6S) 100(W) x 81(D) x 63(H)mm / 480g (FC-6M-C/FC-6S-C)
Blade life		36,000fibers (1,000fibers x 12 edge positions x 3-step edge height)
Option		Adapter for single fiber : AP-FC6M (Standard installation with the FC-6S/FC-6S-C) Offcut collector : CU-FC6 (Standard installation with the FC-6M-C/FC-6S-C)
