Feature:

1. Made from carbon fiber, can withstand crashes and impacts while enhancing its performance due to the reduced weight.

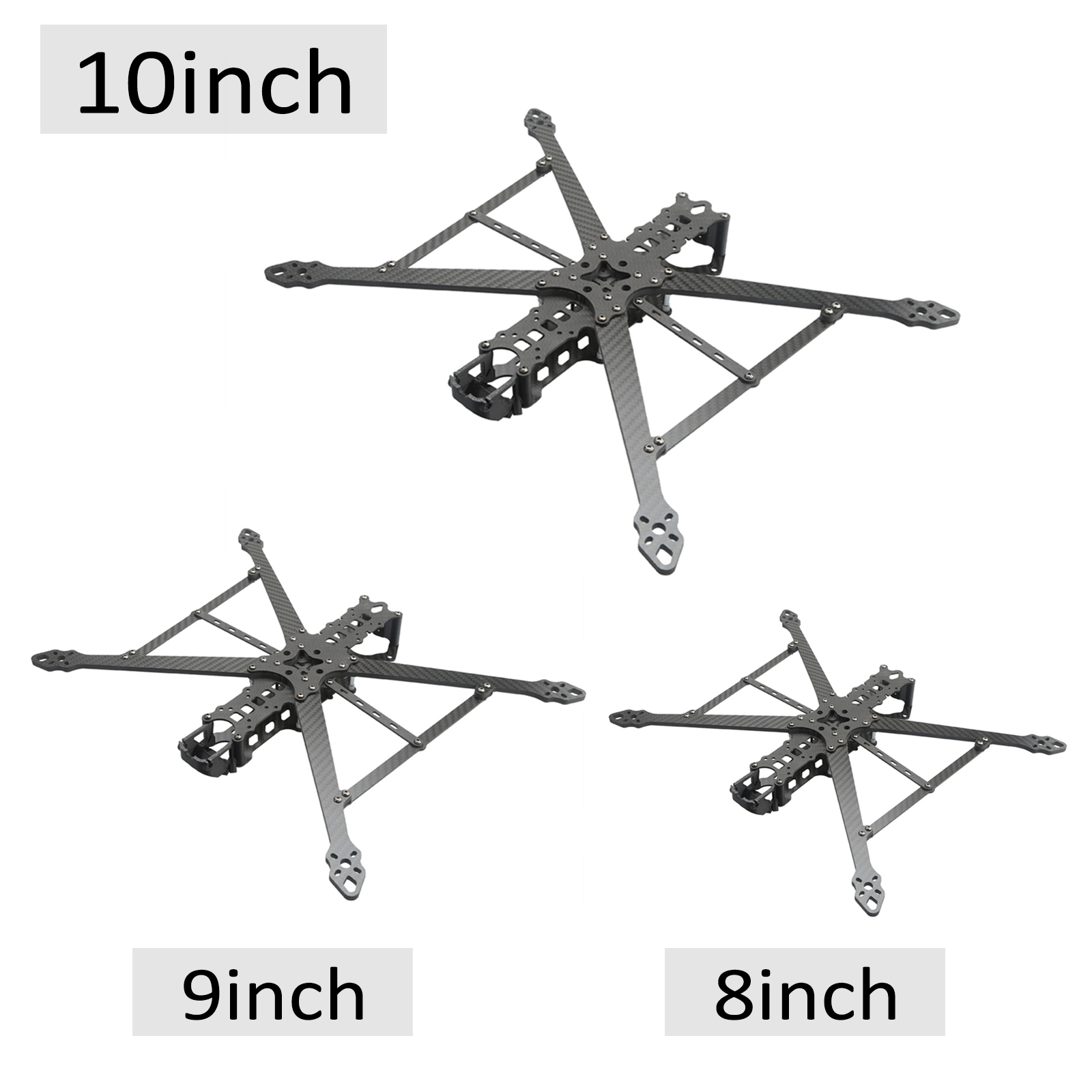

2. The 8-inch and 9-inch have been upgraded to 6MM arms, and the 10 inch have been upgraded to 7MM arms.
3. The rack has been upgraded to increase the installation position of the thrower, which can be expanded to accommodate one or two throwers.
4. Comes with all the necessary parts, making it easy to assemble, saving you time and effort.
5. Attention: This model has been upgraded to the latest thickened model for greater durability and stability.

Specification:

Model: DF- V2 8inch
Wheelbase: 367mm
Weight: 282g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing: 20*20mm & 30.5*30.5mm
Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
Motor: 2810/2812/3110/3112
ESC: 45A-60A
Propeller: 8 inches
Camera: 19 * 19mm
control: F4/F7/F405/F722/KK
VTX: 5.8G/1.2G/4.9G-1.2W-3W
Battery: 6S-3000MAH-8000MAH

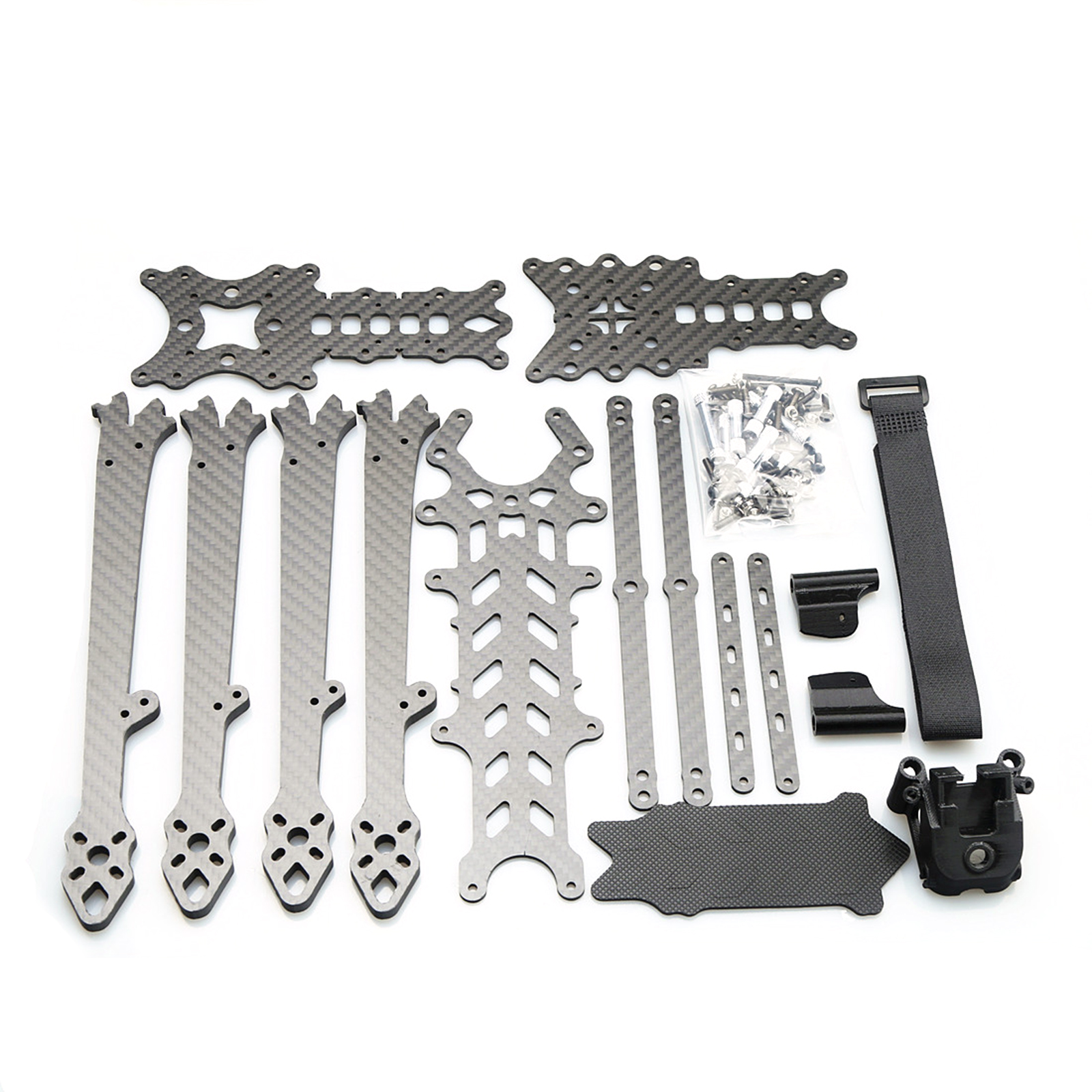

Package List:

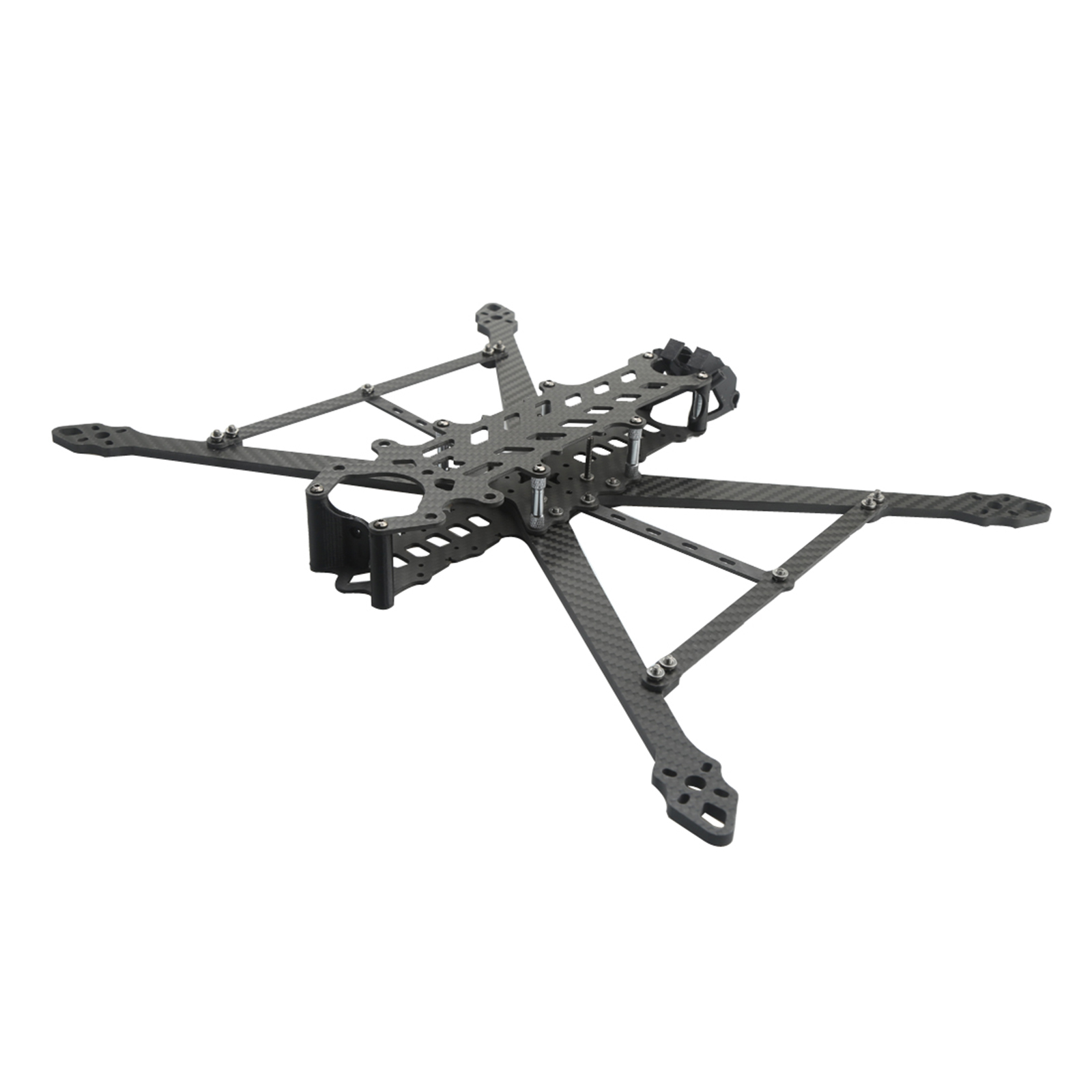

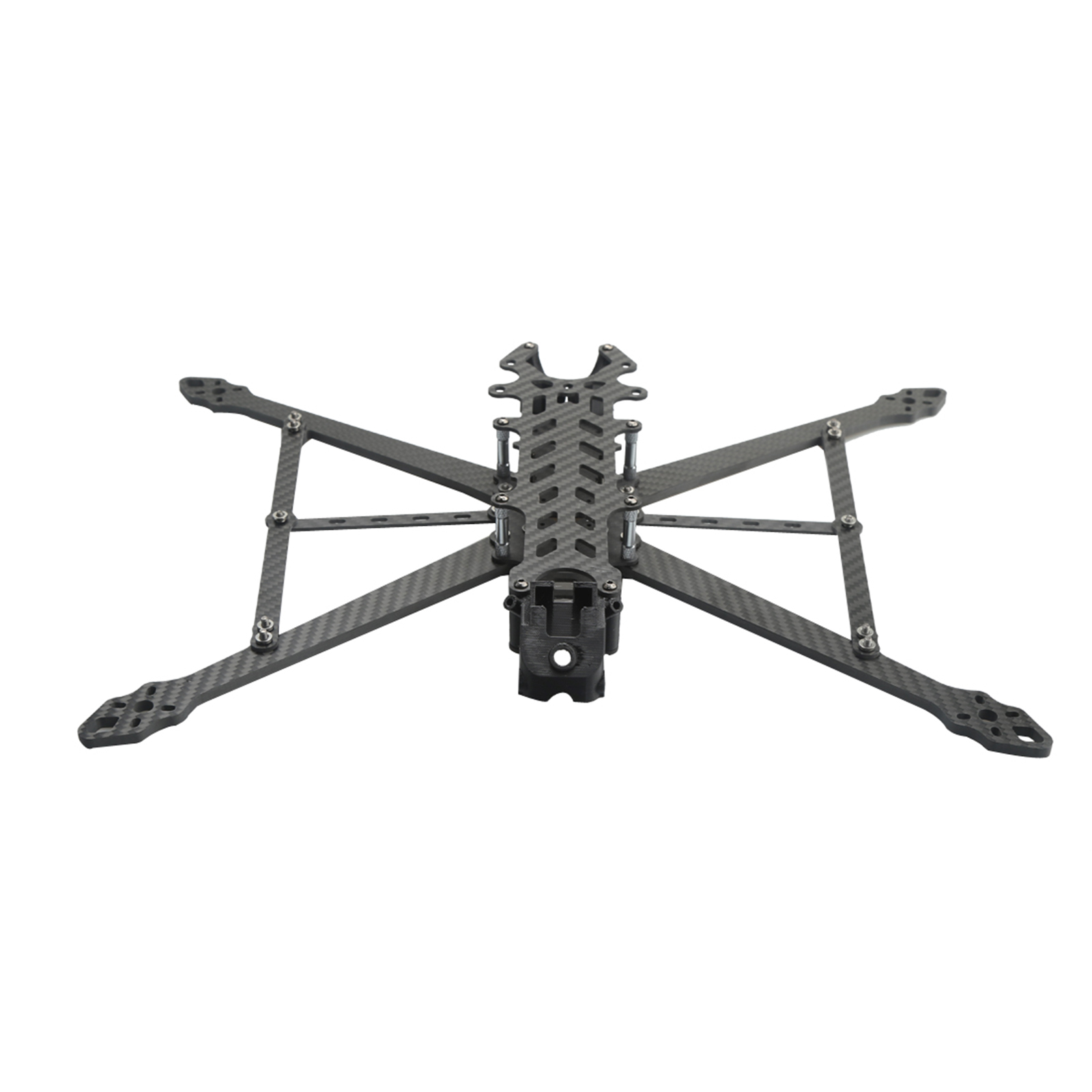

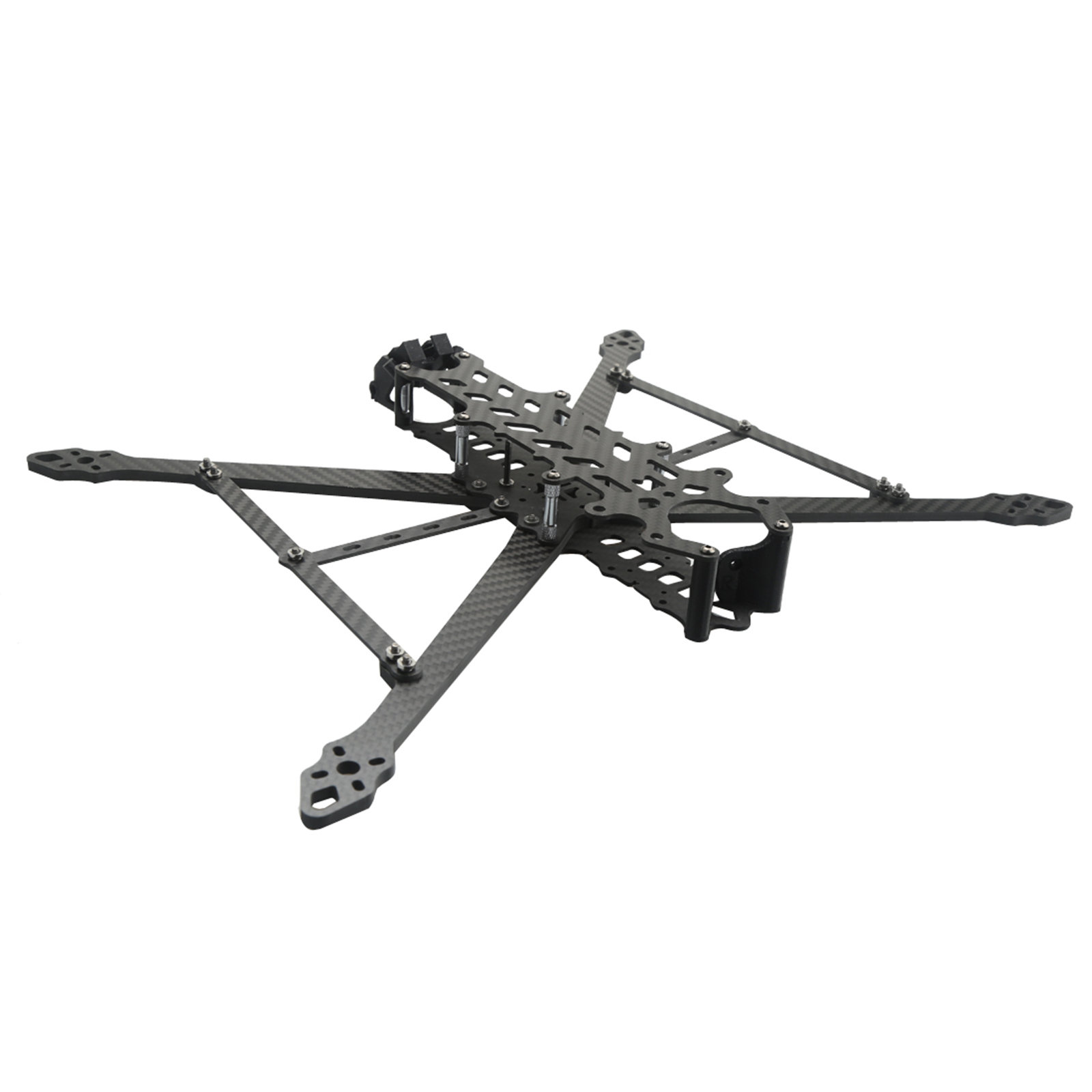

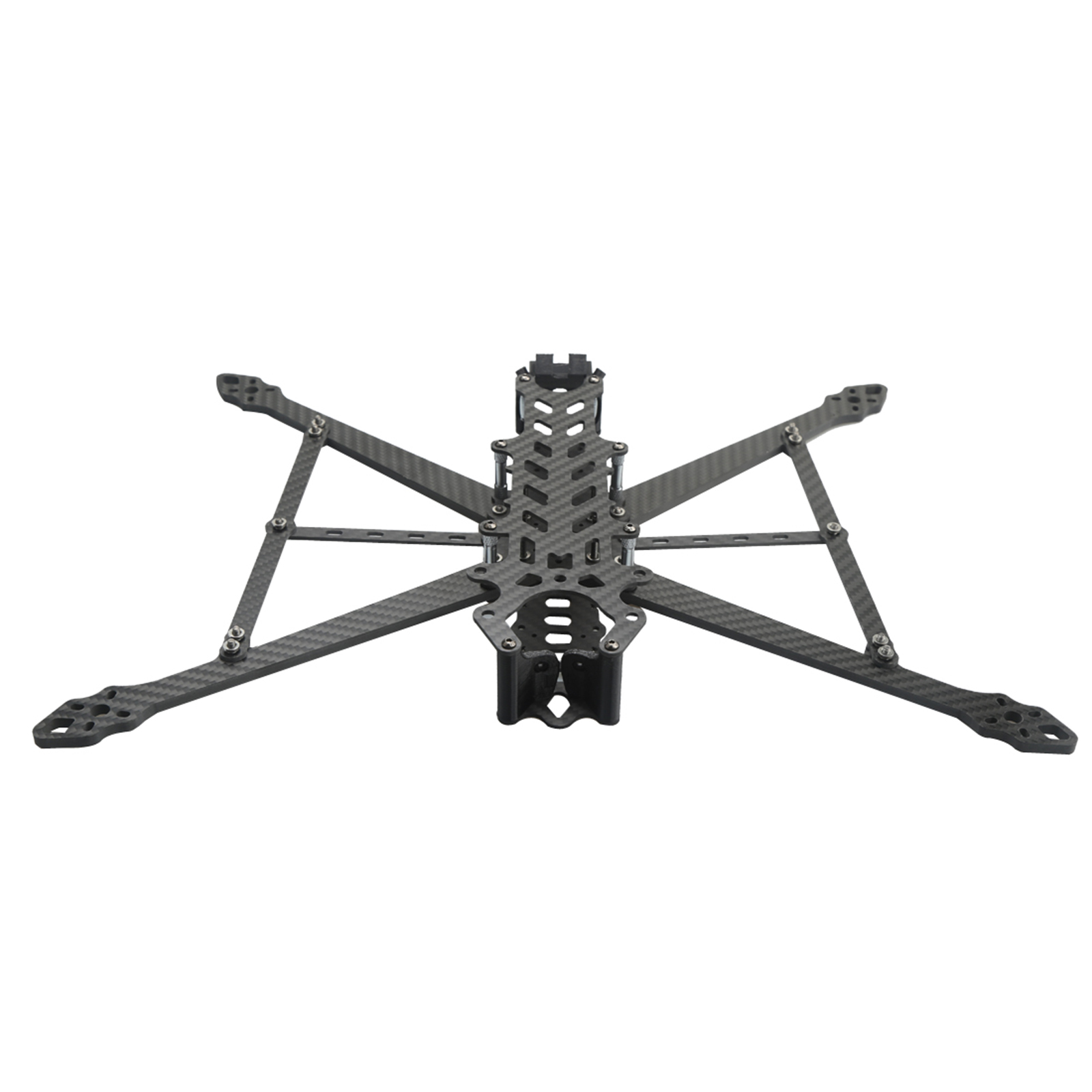

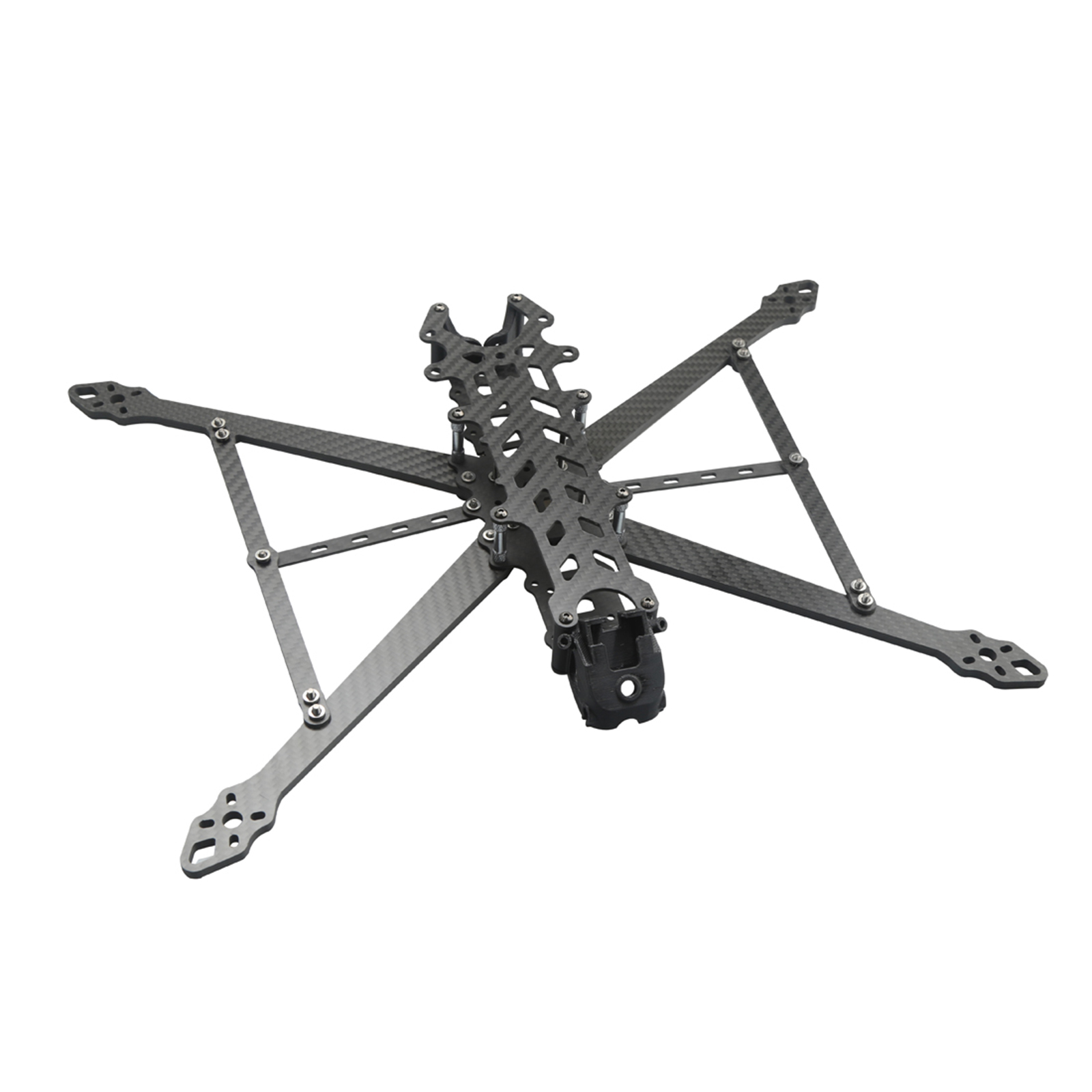

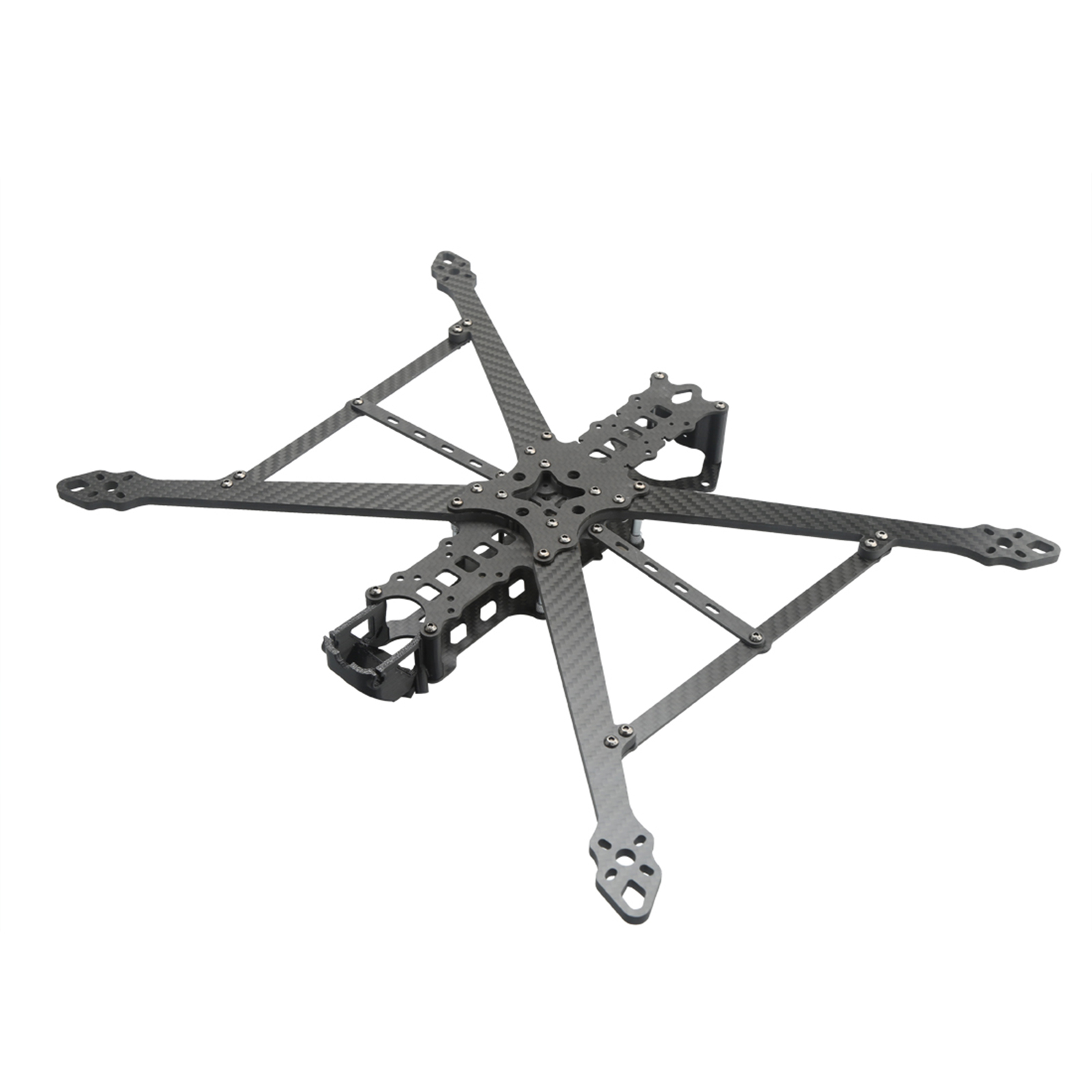

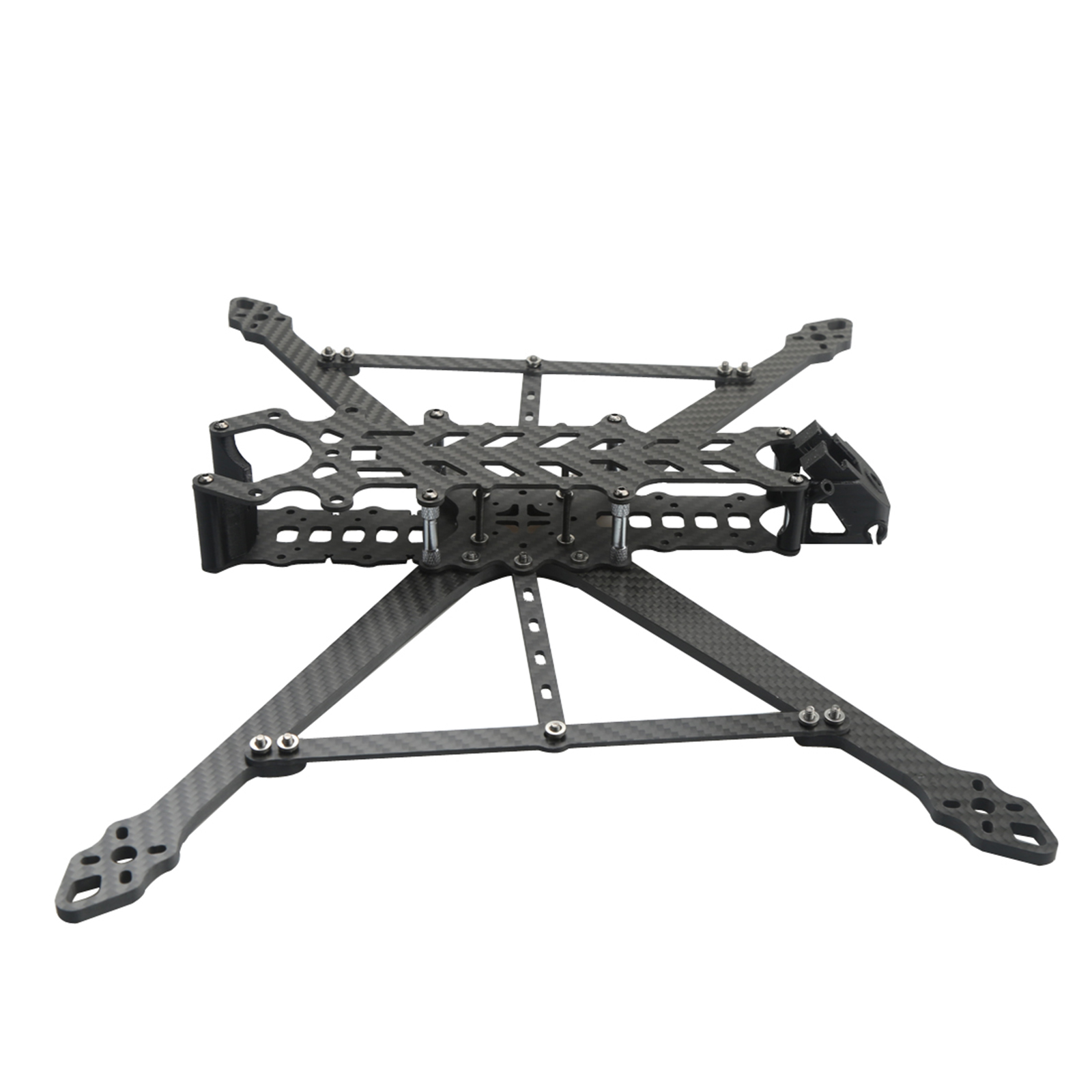

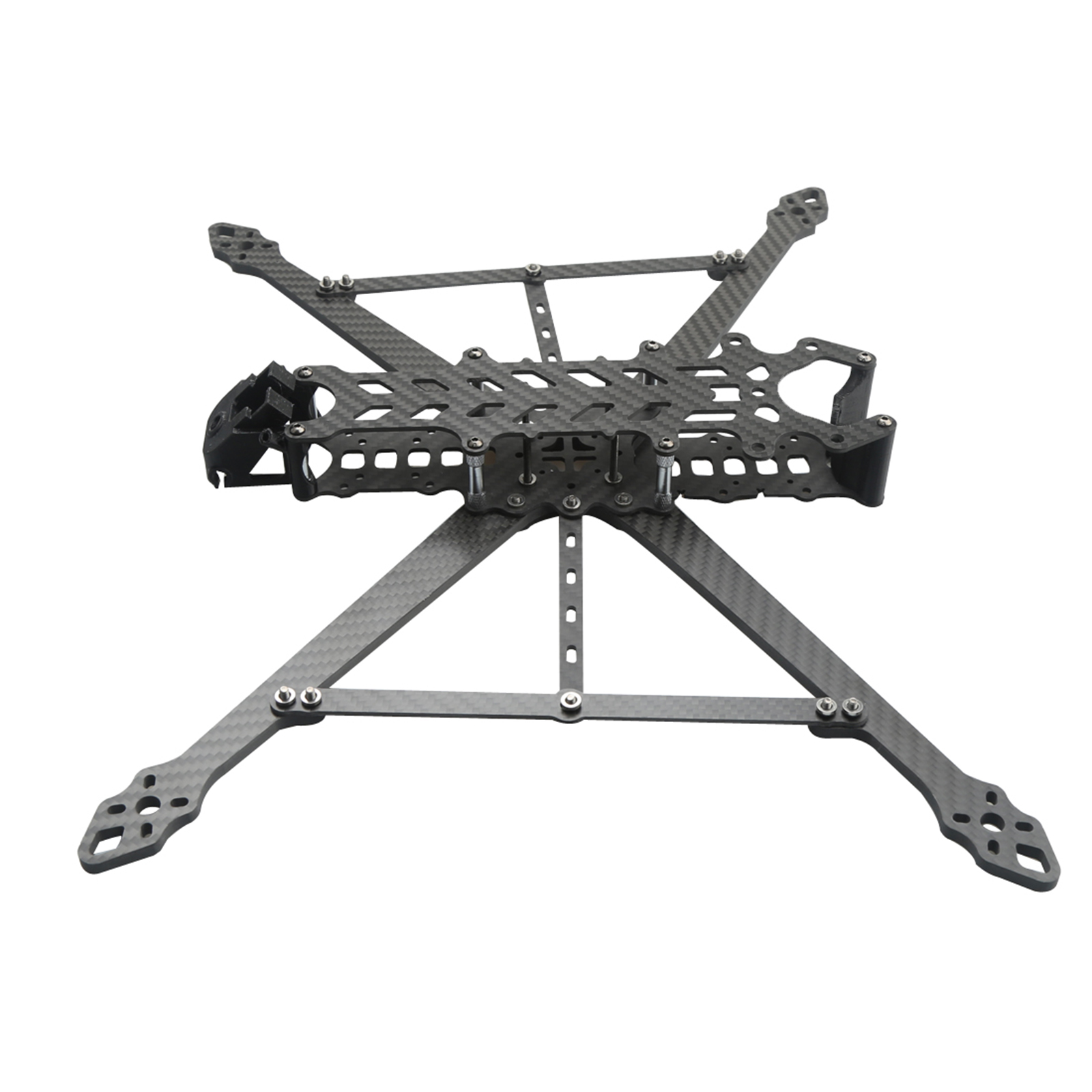

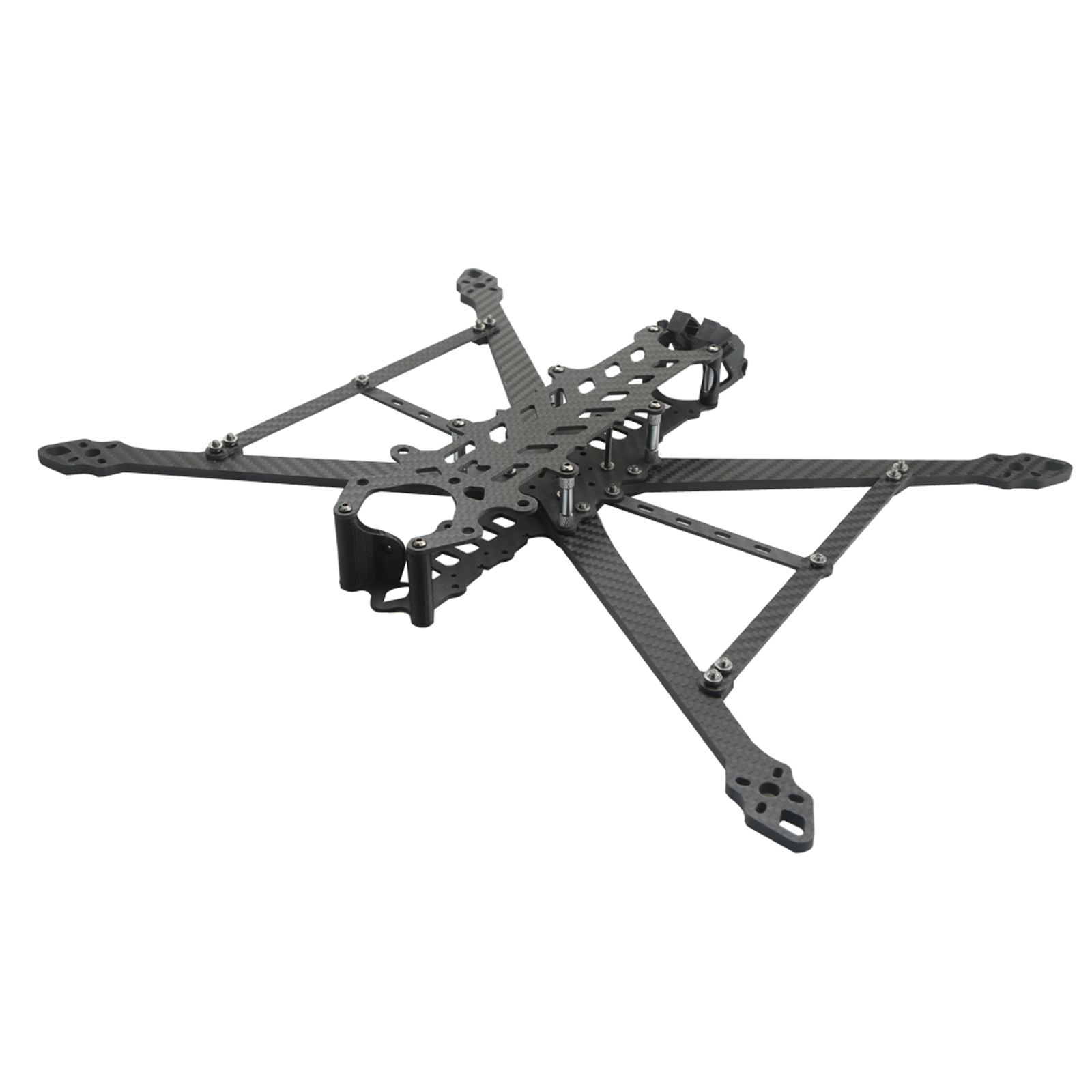

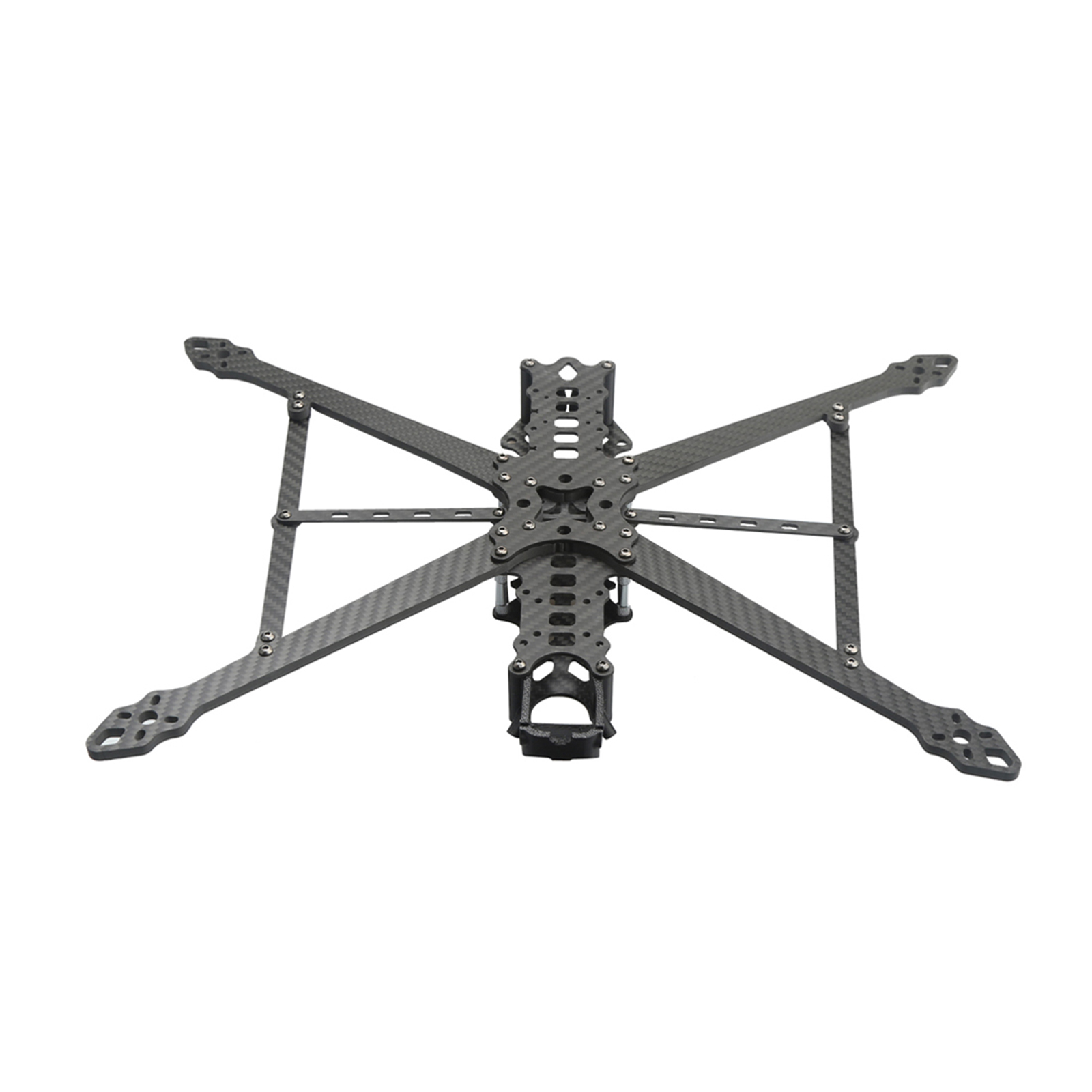

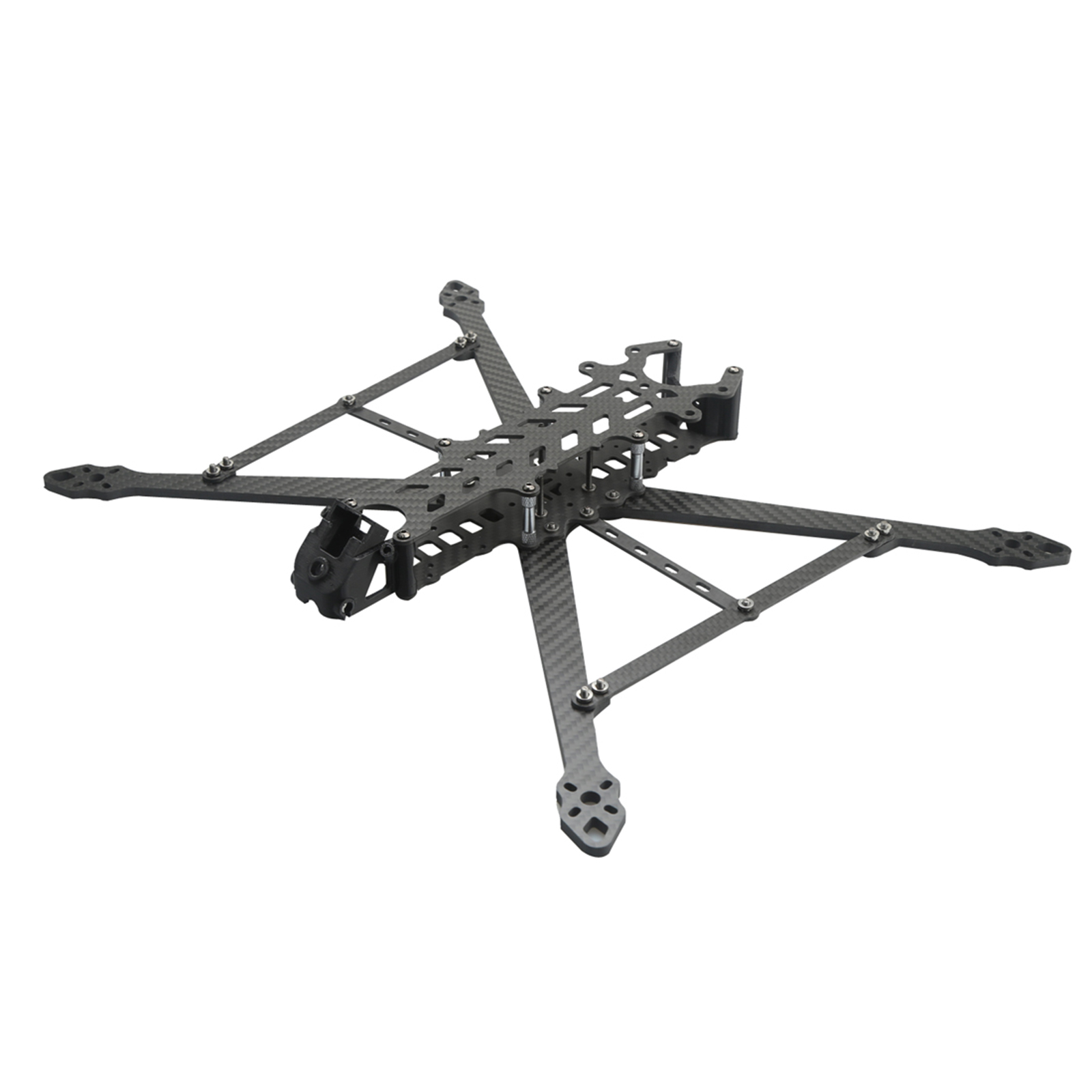

1 * DF-V2 FPV Drone Frame KIT 8inch 367mm Carbon Fiber
