Product Features:

✅ Made from high-quality materials, it is durable and comfortable to the touch.

✅ Compatible with side mirrors that feature electric adjustment and electric folding functions.

✅ An ideal replacement for older-model side mirror adjustment actuators.

✅ Meets OEM specifications and fits your vehicle perfectly.

✅ Compatibility information is for reference only. Please verify with your vehicle’s original equipment manufacturer before purchasing!

📦 Package Contents:

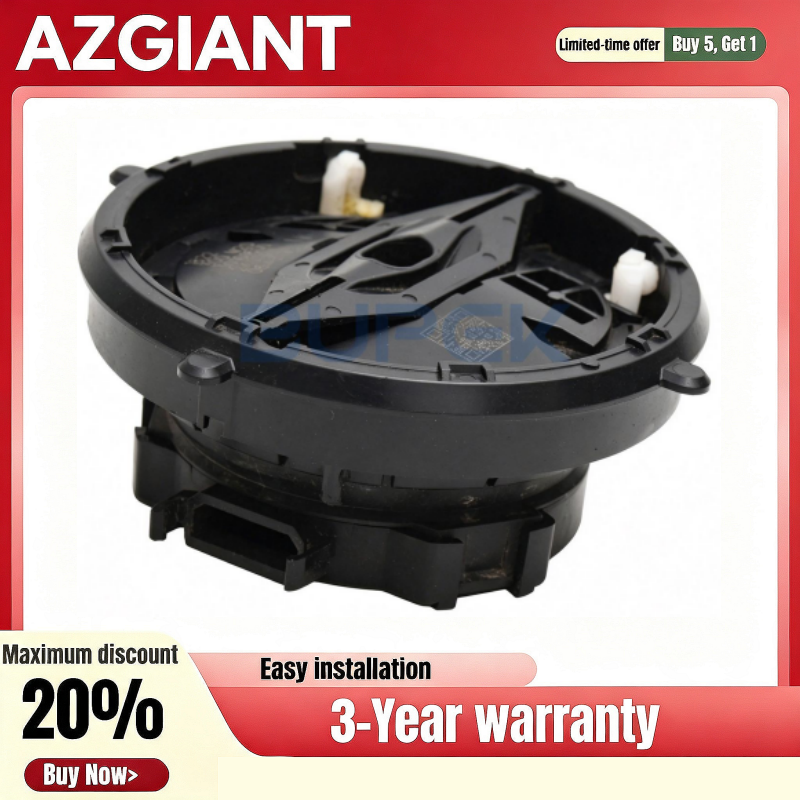

1 x Side Rearview Mirror Adjustment Motor Actuator

⚠️ Common Issues with Rearview Mirror Adjustment Modules

❶ Complete loss of adjustment function: The mirror panel does not respond no matter how you press the adjustment switch inside the vehicle. This may also be caused by a blown fuse or a faulty switch and requires further troubleshooting.

❷ Adjustment in Only One Direction: The mirror panel can only be adjusted in one direction (e.g., up/down) and remains completely stationary in the other direction (e.g., left/right). This usually indicates that the motor responsible for that direction is damaged.

❸ Unusual Noises During Adjustment: You hear clicking, hissing, or gear-grinding noises during adjustment, but the mirror panel does not move or shakes. This is most likely caused by internal gear wear, jamming, or slippage.

❹ Abnormal adjustment behavior: The rearview mirror may move on its own to the end position and cannot be controlled via the switch, or it may work intermittently or respond sluggishly during adjustment. These symptoms indicate an intermittent fault in the motor or related circuitry.

❺ Automatic folding function failure: A side mirror with an automatic folding feature fails to fold or unfold properly. If both the fuse and switch are functioning normally, the folding motor is likely damaged.

❻ Smell of burning or motor overheating: If you smell a burning odor after using the side mirror’s adjustment function, or if the mirror housing feels abnormally hot to the touch, this is a clear sign that the motor has burned out due to an internal short circuit or overload.

🔧 Tools Required

Before you begin, please gather the following tools:

✅ Pry bar set: Used to remove the mirror lens and housing; plastic pry bars are recommended to protect the paint finish.

✅ Screwdriver set: You’ll typically need a flathead screwdriver, as well as Torx wrenches in sizes T10, T15, T20, etc.

✅ Multimeter: Used to check for voltage in the circuit before disassembly to determine whether the fault is indeed caused by the motor.

✅ Marker Pen/Smartphone: Use to mark or take photos of screw locations and wiring harness connections for easy reassembly.

🛠️ Installation Instructions

❶ Remove the Rearview Mirror Lens: Carefully remove the rearview mirror lens, taking care not to damage the lens or the heating wiring harness.

❷ Remove the Old Motor Module: Disconnect the motor wiring harness connector, remove the mounting screws, and take out the old motor module.

❸ Install the new motor module: Align the new motor module with the mounting position, tighten the mounting screws, and connect the wiring harness connector.

❹ Function test: Before reinstalling the mirror lens, power on the system to test whether the up/down and left/right adjustment functions are working properly.

❺ Reinstall the mirror lens: After confirming that all functions are working properly, reinstall the mirror lens in its original position.

‼️ Precautions

⚠️Disconnect the vehicle’s power supply before installation to avoid the risk of a short circuit.

⚠️Please verify that the connector type and pinout of the motor module match those of the original vehicle.

⚠️If the original vehicle is equipped with heated, memory, or folding functions for the side mirrors, please confirm that the new module supports these features.

⚠️Installation of this part requires a certain level of technical skill; it is recommended that a professional automotive technician perform the installation to ensure quality and safety.
