The Beha Amprobe ACD-10 PLUS Clamp Meter is a digital multimeter designed for measuring current, voltage, and frequency with a display count of 4000. It is handheld and rated for CAT III 600 V, suitable for measuring inrush and start-up currents. This versatile tool is ideal for electricians and technicians needing a reliable clamp-on ammeter for various electrical diagnostics.
Please note: This item has a longer lead time for dispatch then normal as it's a non-stocked item that is ordered in, please see the estimated delivery date by eBay. We will of course ship the item sooner if possible.

Responsive image

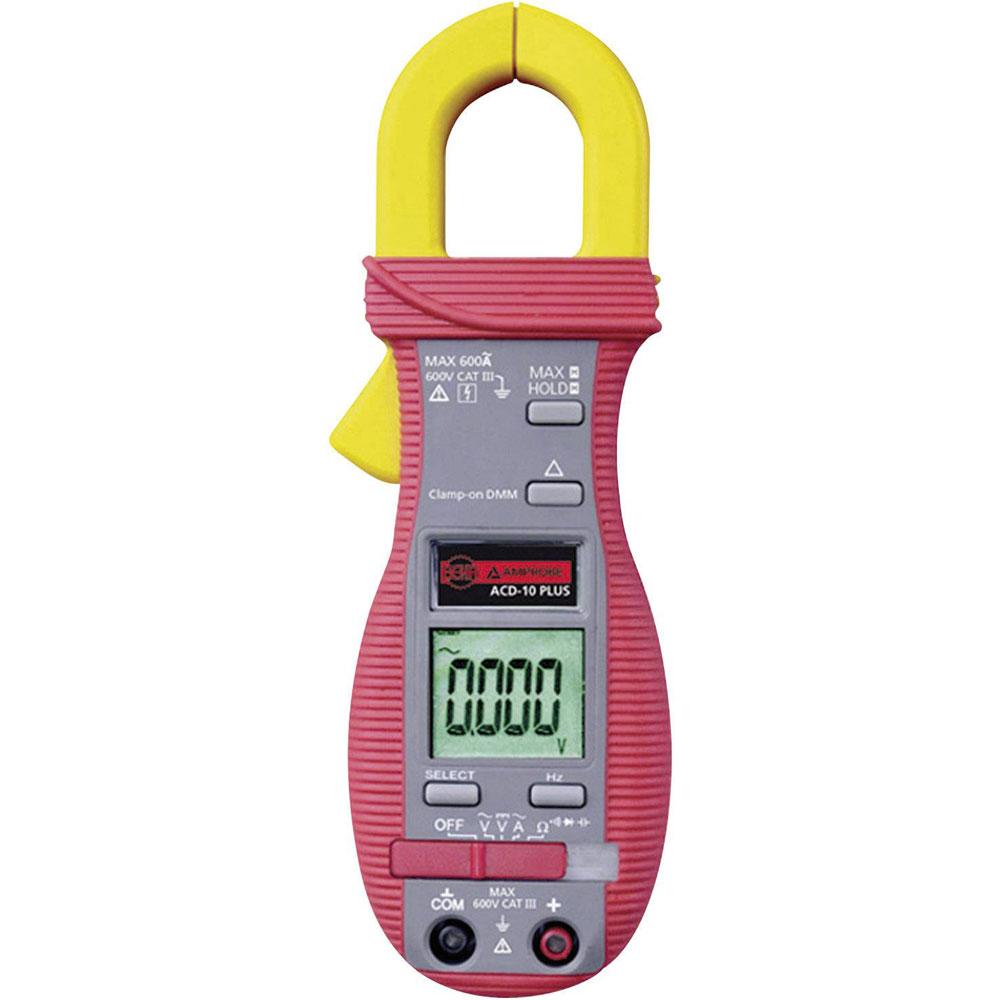

Beha Amprobe 3037808 ACD-10 PLUS Clamp Meter Handheld Digital CAT III 600 V

Product Details

The Beha Amprobe ACD-10 PLUS Clamp Meter is a digital multimeter designed for measuring current, voltage, and frequency with a display count of 4000. It is handheld and rated for CAT III 600 V, suitable for measuring inrush and start-up currents. This versatile tool is ideal for electricians and technicians needing a reliable clamp-on ammeter for various electrical diagnostics.
NameValue
A AC reading range (min.)0.01A
AC resistance10MΩ
Maximum AC Current Measurement600A
Basic Accuracy1.9%
Calibrated toManufacturer's standards (no certificate)
Current readingAC
Dc Resistance10MΩ
Dimensions(L x W x H) 32 x 63 x 190 mm
DisplayDigital
Display Count4000
Frequency Range50/60Hz
Frequency reading range0,001 Hz - 100kHz
Height190mm
Length32mm
Measurement type (details)Average
Misc AttributeACD-10 PLUS
Opening range of current clamps26mm
Power supply (details)1 button cell (CR2032)
CategoryCAT III 600 V
Reading range - capacity0.1 nF - 3000µF
Reading range - resistance0.1 Ω - 40 MΩMΩ
TypeClamp meter
V AC reading range (min.)0.001V
Maximum DC Current Measurement600V
Voltage meteringAC/DC
Voltage reading range DC (min.)0.1mV
Weight204g
Width63mm
