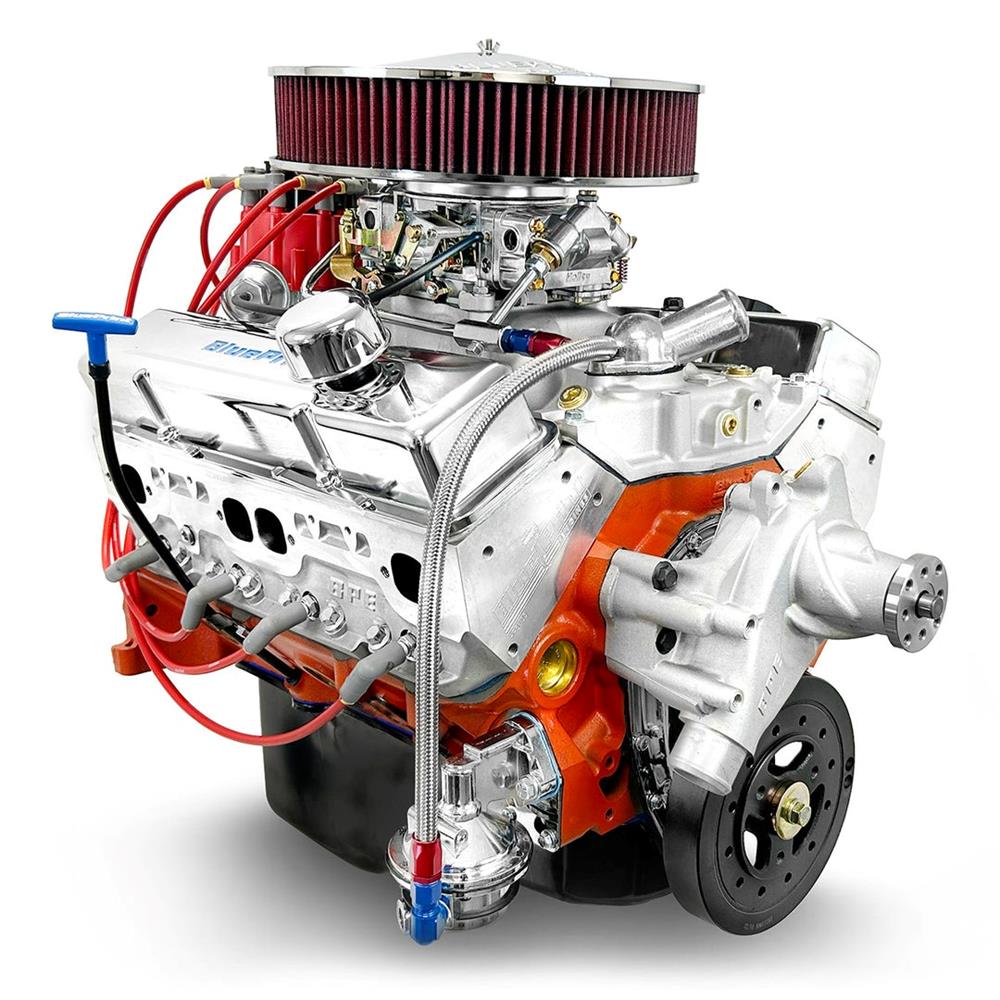

GM Small Block Compatible 400 c.i. Engine, 500 Horsepower, Deluxe Dressed, Carbureted
BluePrint BP4002CTC1D SBC 400 Deluxe Carb Engine 500HP BluePrint Engines
BluePrint BP4002CTC1D SBC 400 Deluxe Carb Engine 500HP
Sku # 227BP4002CTC1D
Mfr. Part # BP4002CTC1D
Condition
New
Brand
BluePrint Engines
Sold
Each
Details

Horsepower / Torque:

  • 500 Horsepower / 510 ft. lbs. Torque
  • Compression Ratio: 10.3:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • High Strength Cast Iron Block
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.125" Bore

Rotating Assembly:

  • Forged Steel Crankshaft
  • 3.750" Stroke
  • 5.700" Connecting Rods (150,000 PSI bolts)
  • Forged Pistons
  • Internally Balanced Front; Externally Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP8103
  • 64cc Chamber
  • 2.08" Intake / 1.60" Exhaust Valves
  • 220cc Intake / 67cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .553 Intake / .576 Exhaust Lift
  • 236 Intake / 242 Exhaust Duration
  • @.050-110 Degree Lobe Separation

Ignition Timing:

  • 10-16° Initial and 32-34° Total at 3500 RPM

Also Includes:

  • Holley 850cfm Double Pumper Carburetor - BPP04781S
  • Satin Aluminum Intake Manifold - BPP350VINT
  • HEI Ready Run Distributor - BPP350RBK
  • Thermostat and Thermostat Housing
  • Long Style Water Pump - BPP67265
  • Mechanical Fuel Pump - BPP61073
  • Valve Covers - BPP9518
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Timing Cover
  • Oil Pan

Notes:

  • Not for EGR.
  • Raised-port heads may affect OEM accessory bracket compatibility.
This item is being shipped to you directly from the manufacturer and is subject to an increased handling time. Delivery estimates that include the handling time are displayed on the "Shipping and Payments" tab.
Specs
Engine Displacement
400 cu. in.
Compression Ratio
10.3:1
Camshaft Type
Hydraulic Roller
Cylinder Head Material
Aluminum
Combustion Chamber Volume
64cc
Camshaft Duration (.050 in)
236° intake / 242° exhaust
Camshaft Lift (in)
.555 intake / .576 exhaust
Bore x Stroke (in)
4.125" bore x 3.750"
Carburetor Included
No
Intake Manifold Included
Yes
Distributor Included
Yes
Warranty
37 month / 50,000 mile
Valve Covers Included
Yes
Engine Balance
External
Cylinder Heads Included
Yes
Rear Main Seal Style
1-piece
Throttle Body Included
Yes
Oil Pan Included
Yes
Timing Cover Included
Yes
Water Pump Included
No
Harmonic Balancer Included
No
Flexplate Included
No
Flywheel Included
No
Air Cleaner Included
No
Spark Plugs Included
No
Spark Plug Wires Included
No
Computer Included
Yes
Wiring Harness Included
Yes
MFG. Part #
BP4002CTC1D
Sold in Quantity
Each
Tech Support
We're here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through eBay Messaging and a knowledgeable Speedway Motors team member will be happy to help.
