All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Fit for

for Lexus IS IS-F XE20 5.0 L 2UR-GSE V8 2005–2015
for Lexus RC RC-F 5.0 L 2UR-GSE V8  2014–Present
for Lexus GS-F L10 5.0 L 2UR-GSE V8 2011–Present
for Lexus LC 500 5.0 L 2UR-GSE V8 (petrol) 2017–Present

Dimensions
Center to center length: 144.3mm
Big end diameter: 56mm
Small end diameter: 22mm
Big end width: 20.8mm
Small end width: 20.8mm

Specification

- TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
- Type: Forged 4340 aircraft chrome moly quality steel for racing

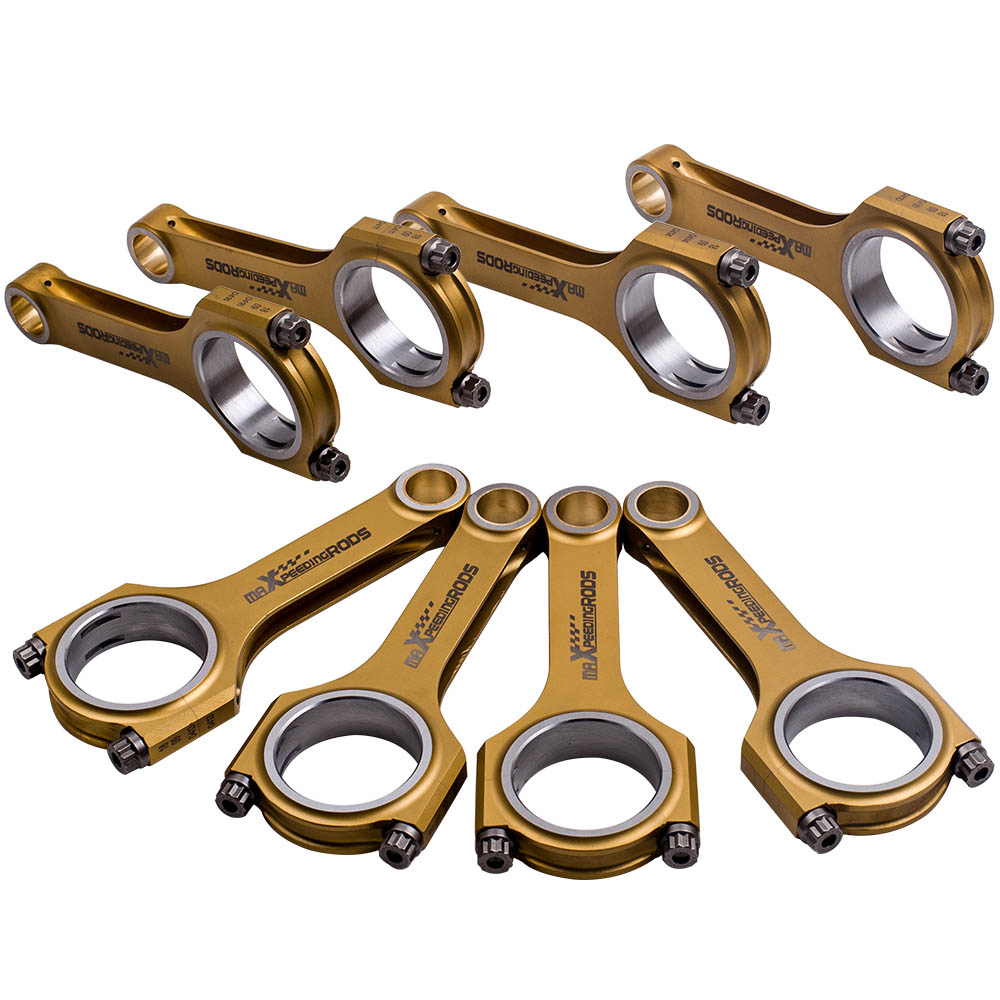

- H-beam Conrods Quantity: 8 Pieces a set
- Bolts: Including 3/8" ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: 3/8"
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm
- Warranty: 2 years warranty for any manufacture defect

Features
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note
- Professional installation is highly recommended (No Instruction Included)
