Product Description:

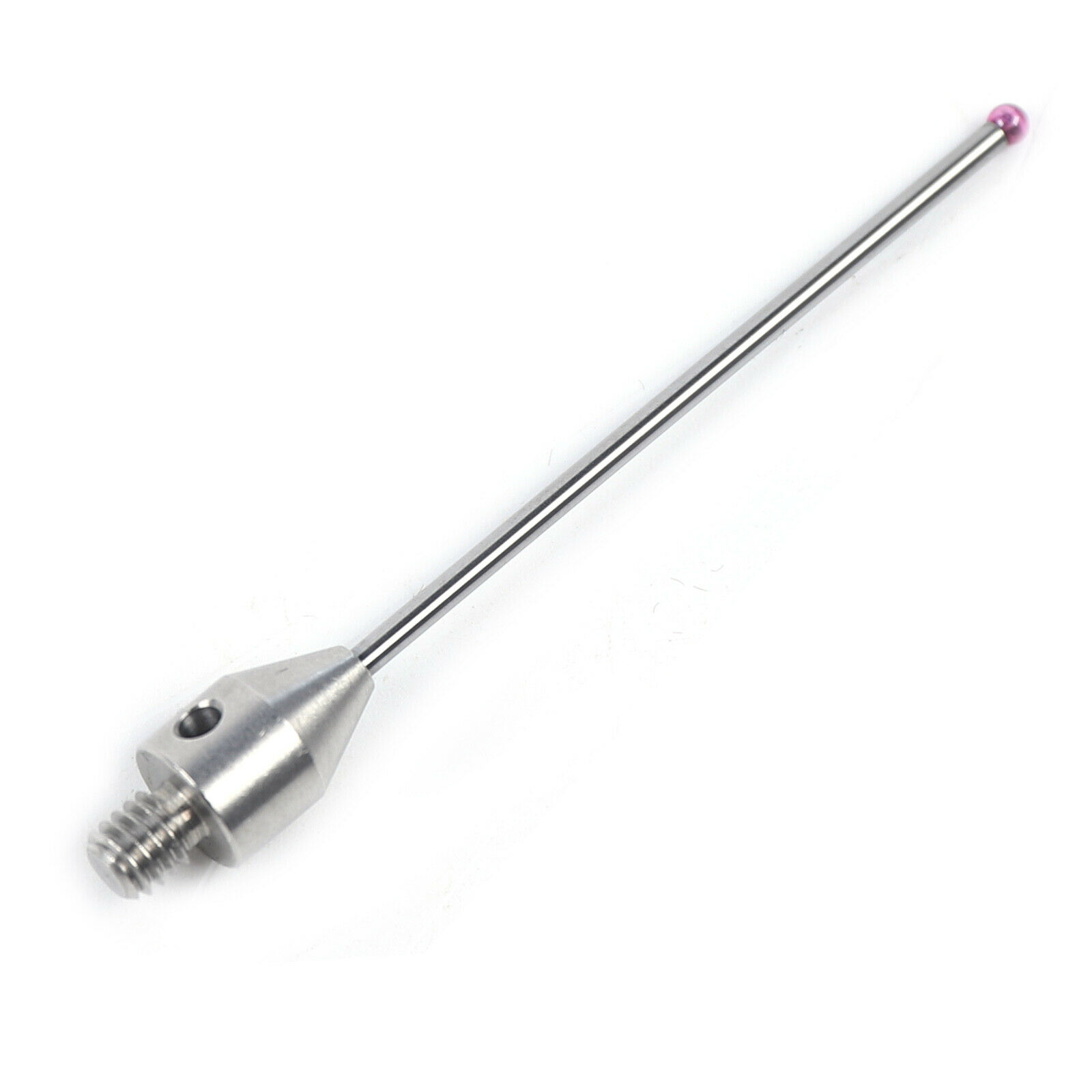

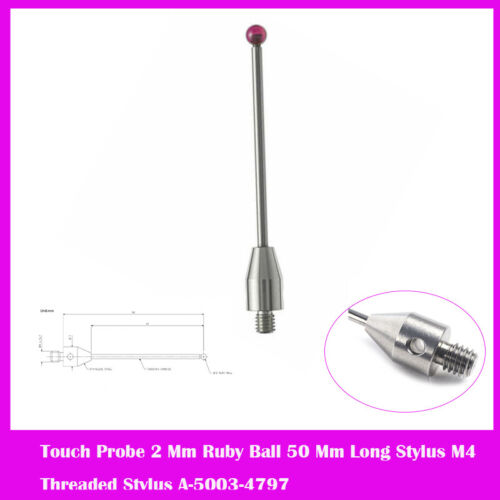

This Crane Scale Is A High-Quality Touch Probe 2 Mm Ruby Ball 50 Mm Long Stylus M4 Threaded Stylus A-5003-4797
Straight Stylus Is Designed To Check Simple Features, Which Can Directly And Without Obstacles Contact The Surface To Be Measured.
Light Weight But Very Hard, And Provide Built-In Collision Protection.
As The Industry Standard For Stylus Nibs. It Is One Of The Hardest Materials Available And Is Suitable For Most Applications.
Features:
Thread Specification: M4
Ruby Ball Diameter: 2mm (0.0787")
Length: 50mm (1.9685")
Effective Working Length: 38.5mm
Material: 1.5mm Diameter Tungsten Carbide Stem
Packing Size: 8*2*2cm
Gross Weight: 0.04kg
Net Weight: 0.02kg
The Package Includes:
1x Contact Probe
