Tridonic 89800559 EM converterLED BASIC NiCd/NiMH 50 V

Tridonic 89800559 EM converterLED BASIC NiCd/NiMH 50 V

 Tridonic 89800559 EM converterLED BASIC NiCd/NiMH 50 V

Replaces 89800178

Product description

• Emergency lighting LED Driver for manual testing
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC

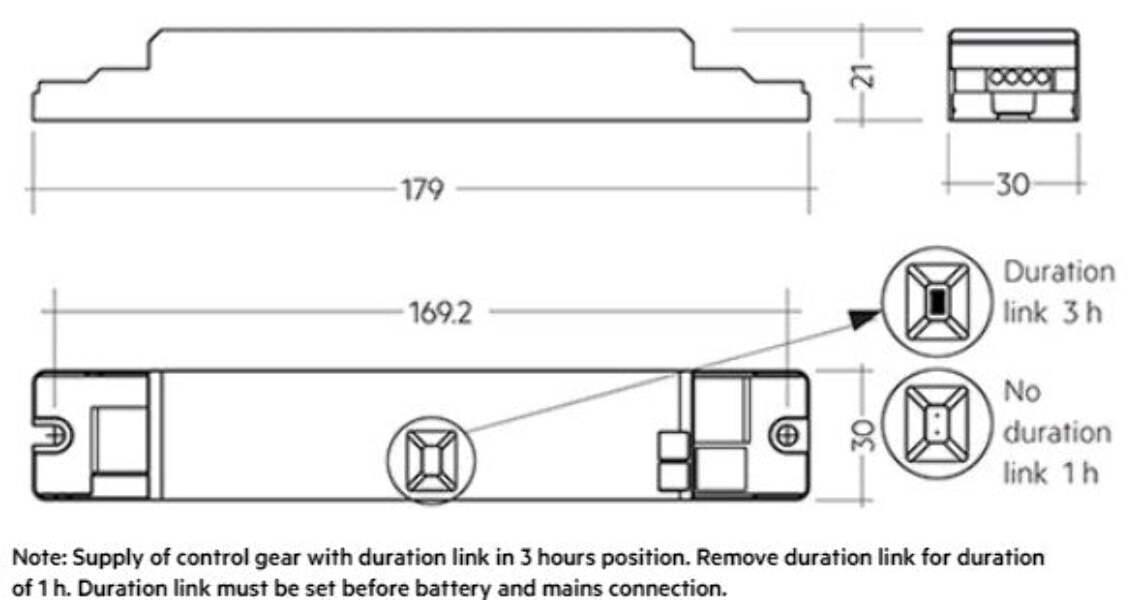

• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery

Batteries

• High-temperature cells
• 3 cell 3.6V 4Ah NiCd or NiMH batteries
• D, Cs or LA cells
• 4 year design life
• 1 year guarantee
• For battery compatibility refer to data sheet
