2x White PP M12 x 500 mm Threaded Rods — Polypropylene Plastic Studding

Product Highlights

  • 2x fully threaded plastic rods. Material: PP / Polypropylene. White colour. Size: M12 x 500 mm. Diameter: 12 mm. Pitch: 1.75 mm. SKU: 994.
  • Polypropylene is lightweight and absorbs very little moisture, useful for larger PP spacer and positioning work.
  • Material caution — PP is less stiff than nylon or reinforced nylon, so check thread fit and tightening method.
  • The fully threaded 500 mm length accepts compatible M12 nuts along the rod and can be cut carefully to shorter sections.
  • Use for light-duty spacing, alignment and positioning where a lightweight PP M12 threaded rod is preferred.

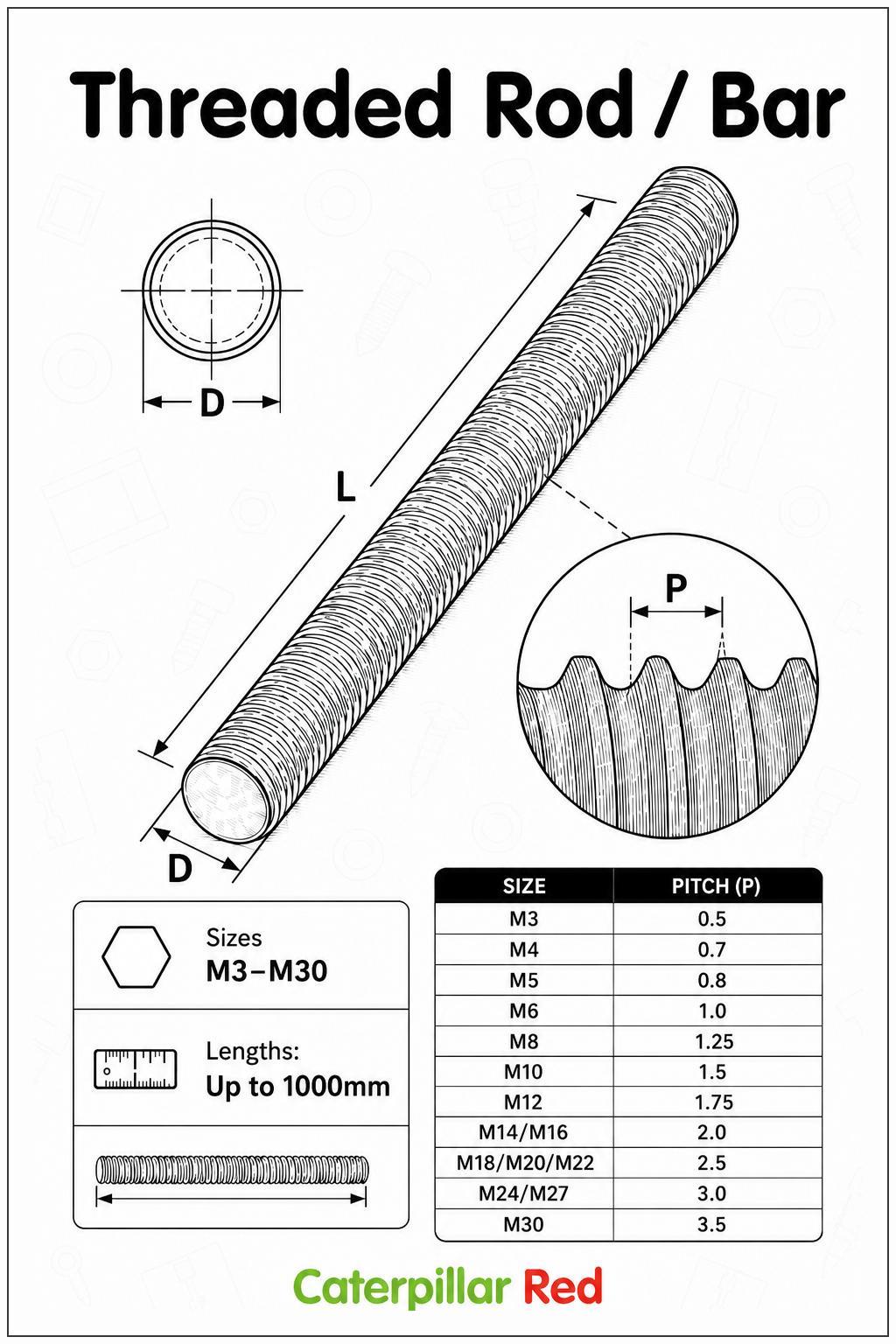

Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.

Product Details

  • SKU: 994
  • Product Type: Threaded Rods
  • Size: M12 x 500mm
  • Colour: White
  • Main Material: PP / Polypropylene
  • Material 2: PP
  • Quantity: 2 Pack
  • Length - mm: 500 mm (L)
  • Width - mm: 12 mm (W)
  • Depth/Thickness - mm: 12 mm (D)

Dimensions (L x W x D mm)

500 mm (L) x 12 mm (W) x 12 mm (D)

Additional Specifications

  • Washer Product Image Drawing References:
  • Nut Product Image Drawing References:
  • Bolt Product Image Drawing References: Stock Code: CR-Rod-07043-PP
    Material: Polypropylene
    Material Reference: PP
    Head/Drive Type: Fully Threaded Rod
    size: M12 x 500
    D: 12 mm
    Pitch: 1.75 mm
    L: 500 mm

Product Description

These white PP M12 x 500 mm threaded rods are supplied as 2 fully threaded polypropylene plastic rods. Polypropylene is a lightweight plastic with very low moisture absorption and useful electrical insulation, with resistance to many acids and alkalis when the grade suits the environment. This 500 mm format is suited to larger lightweight spacers, panel separation and custom cut threaded sections, especially where a simple non-metallic threaded bar is preferred over a metal fixing. The continuous thread accepts compatible M12 nuts along the rod and can be cut carefully into shorter sections. PP is less stiff than nylon or reinforced nylon, so check thread fit, tightening force and application suitability before use.
