- Condition: 100% new
- Color: Black&Silver
- Material: Plastic&Copper

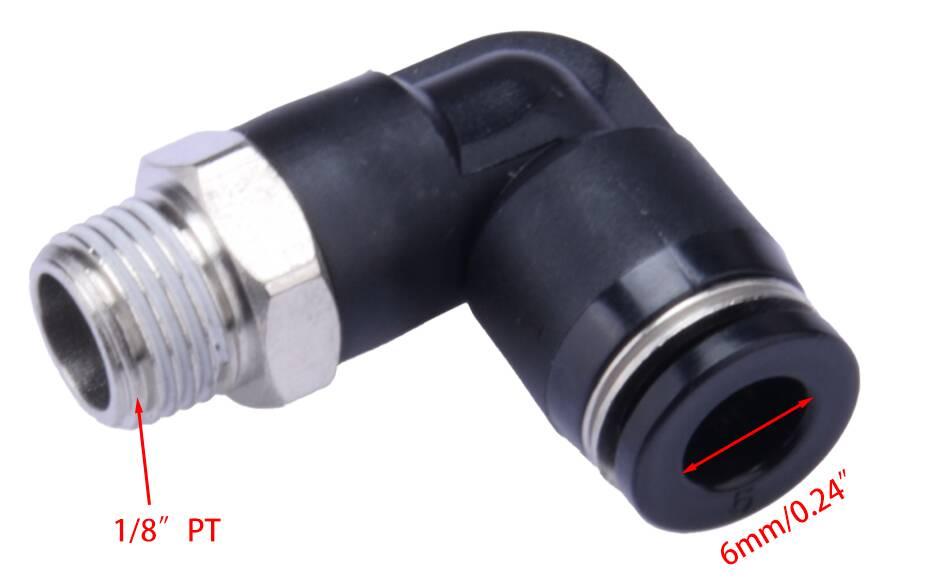

- Pipe Interface Size: 6mm/0.24 Inch
- Thread Size: 1/8"PT
- Working Temperature: -5-60 C / 23~140 F
- Working Pressure: 0-10kgf/cm / 0~142psi
- Type: Tube Connector Adapter

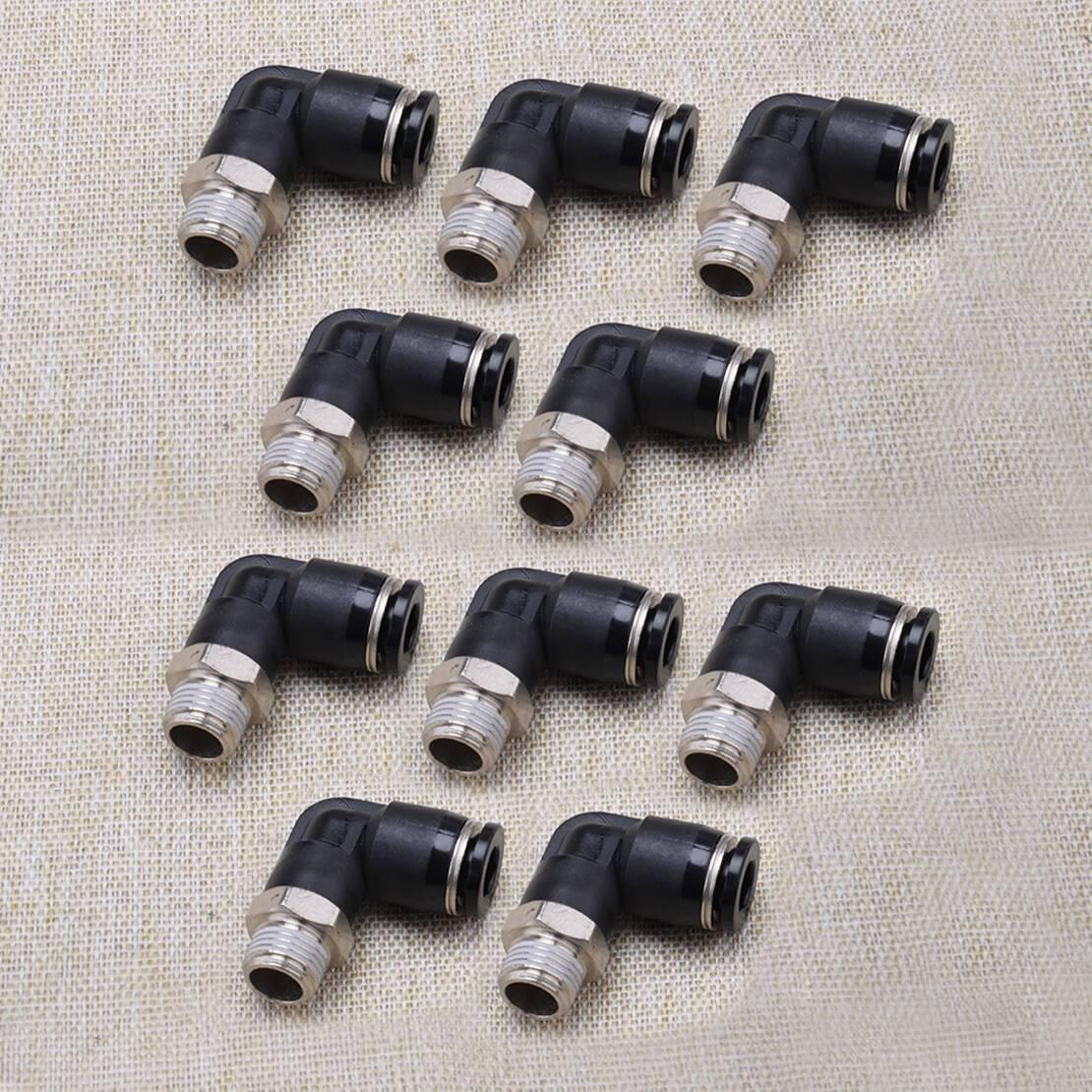

- Item included: 10 x Tube Connector
- Suitable for: Air, Water, Fuel, Pipes, Tubes, Filters, Automobiles, Air Conditioning Systems, Pneumatic, and Air Brake Systems, etc.
This Is Aftermarket Replacement Item But Not Genuine
- Note:
1) All dimensions are measured by hand, there may be small deviations.
2) Color may vary slightly due to the color setting of each individual monitor.
Product Dimension:
Feature:
1) 100% new and high quality.
2) Male elbow tubing push to connect fittings is a plastic and copper quick connector with a wide range of uses. It can be used in many different industries and simplify the pipe connection process and improve work efficiency.
3) Easy and quick installation, provides a stable connection, prevents air or water leakage, and ensures the normal operation of the system.
4) Stable characteristics, high reliability.
5) Made of premium copper and plastic, it has good sealing, corrosion resistance, high-pressure resistance, and is not easy to rust after long-term use. Easy to maintain, keeping the equipment and piping system clean and hygienic.
6) The connection part can be rotated 360 degrees, and you can adjust the direction by simply rotating the joint body even after installation.
Installation:
1) Choose the appropriate connector.
2) Insert the end of the pipe into the socket of the push to connect fittings.
3) Turn the fittings to the correct angle.
4) Push the pipe until it makes a "click" sound.
5) It is firmly fixed.
