- Condition: 100% new
- Color: As picture shows
- Material: Plastic and Metal
- Size: As picture shows
- OBD Interface: OBDII
- Item included: 1 x Adapter Harness
- Compatible With: fit for Tesla Model 3, Model Y 2019-2022
-
This Is Aftermarket Replacement Item But Not Genuine
- Note:
1) All dimensions are measured by hand, there may be small deviations.
2) Color may vary slightly due to the color setting of each individual monitor.

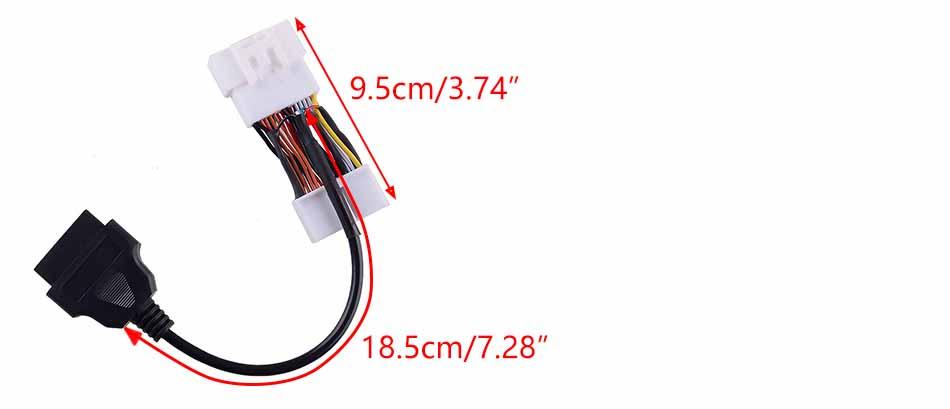

Product Dimension:
Feature:
1) According to the original factory specifications.
2) Perfect match for the original one.
3) Easy to operate and use.
4) OBD2 adapter cable for reading the battery of your car. To be able to read out the data you need an OBD2 dongle.
5) 100% new with high quality. Durable and long service life.
6) Stable characteristics, high reliability.
Usage Tip:
To install the adapter cable, the vehicle must be switched off or the HV loop and 12V must be disconnected. Switching off the vehicle via the display. In order for the vehicle to switch off completely, no sensors must be operated (doors, seats, pedals). It takes a moment and then you can clearly hear the HV contactor clicking. Only then may the CANBUS be disconnected and the adapter cable inserted. If there is no clicking audible, the HV loop (right under the rear seat bench) and 12V must be disconnected.
To install the cable, the cover of the center console below the ventilation nozzles in the rear footwell must be removed (it is only clipped on).
