Technical Parameters:
• AC voltage 220V/50Hz;
• The power consumption is 2000W, with an average of 1500W;
• Heating temperature: high 750 degrees
• Adjustable working temperature 50-600 degrees;
• Heating output temperature: 50-480
• Air volume: Actual: 40-100. Fan voltage display value: 12-28
• Automatic sleep timer: no operation within 15 minutes
• Adjustable self-propelled stitching speed 0.8-15m/min;
• Total weight 11 kg;
• Packing size: 47X31X32
• 1. Scope of application:
Plane splicing of coated membrane structures (polyethylene, polypropylene, polyvinyl chloride and other hot-melt materials) such as inkjet cloth, light box cloth, PVC tarpaulin, yoke canvas, sunshade, etc.
• Two. Operation method:
• Lay the edges of the two splices of the spray painting surface to be spliced up and down according to the overlap width of 30-40CM, and fix them with tape or clamps at the distance between the two ends 40CM from the pressure seam;

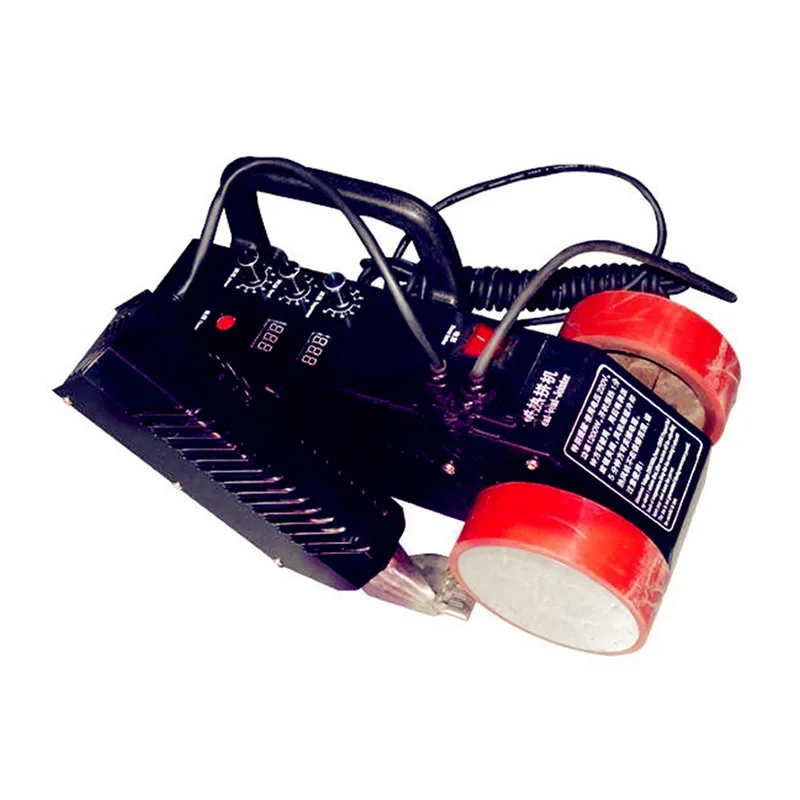

• Turn on the power button of the hot stitching machine, turn on the temperature and speed knobs respectively, and set the speed and temperature according to the thickness of the cloth, the material and the ground conditions, and start to preheat for about 2 minutes;

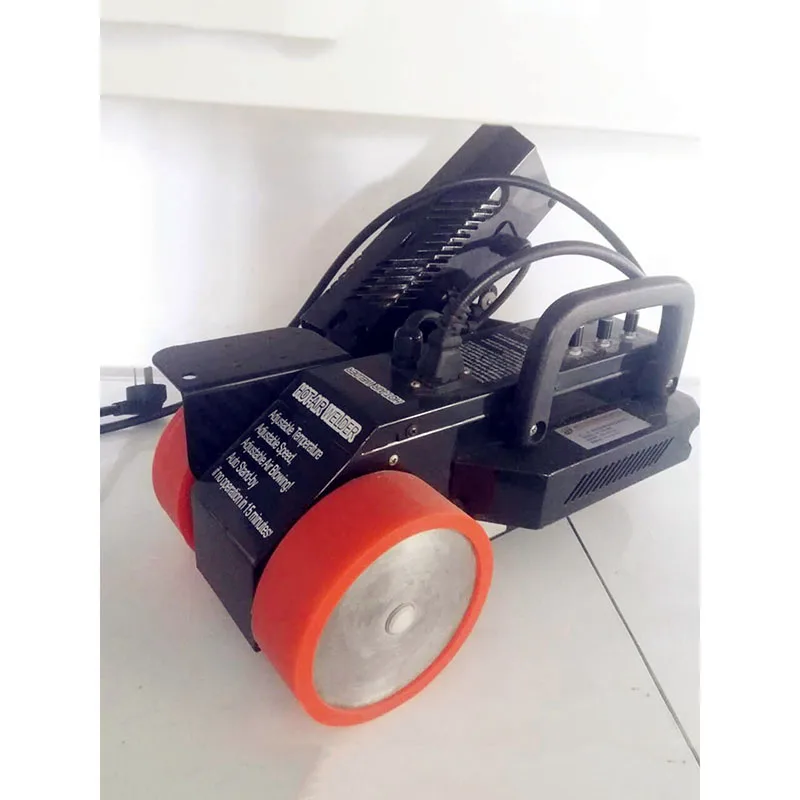

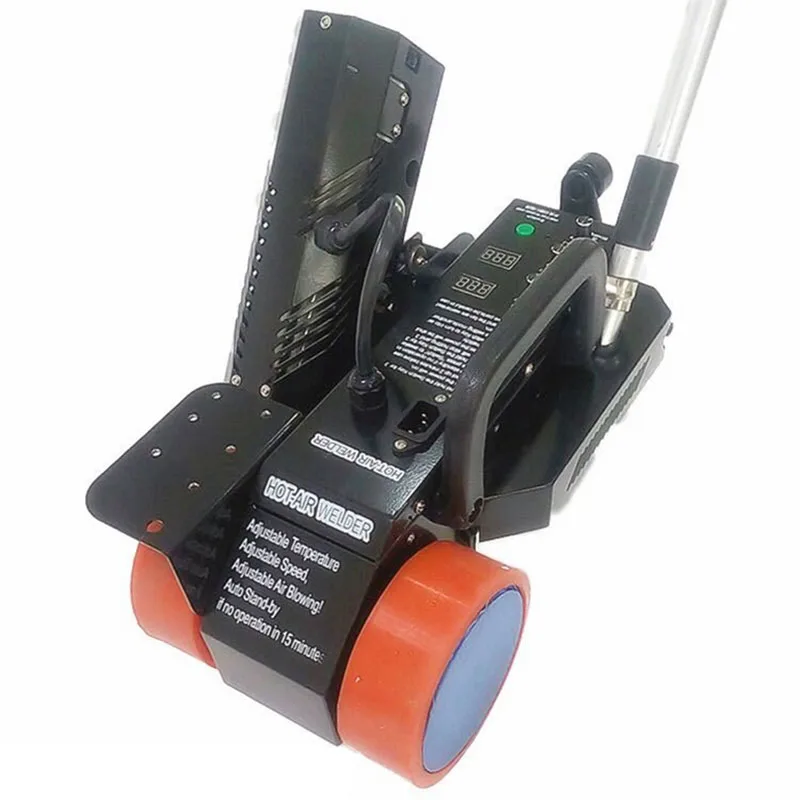

• Place the machine at the overlapped position of the ends of the two inkjet splices, and the rollers are aligned with the edge of the pressure seam;
• Move the tail end handle to the left, insert the hot air nozzle into the top and bottom of the printing splice, and start splicing;
• After the hot air nozzle is inserted into the gap between the upper and lower splicing pictures, the machine will start self-propelled. During the crimping process, you can gently hold the left handle to control the direction to adjust the deviation, and make the edge of the upper splice and the inner side of the nozzle contact ；
• When the splicing progresses to the end of the screen, move the tail end handle to the right to lift the hot air nozzle away from the gap between the upper and lower splices to stop the machine, and you are done.
• Special reminder: After finishing the work, in order to protect the electric heating core from premature aging, cooling must be done: raise the hot air head, reset the temperature adjustment knob to zero, turn off the power button of the machine after 5 minutes, and stop the fan rotation. In case of a special situation at work, such as a sudden power failure, you must first raise the hot air head, and then return the temperature control knob to the zero position, and then consider the power supply problem.
•
• 3. Automatic sleep: If the machine is not operated within 15 minutes, it will automatically enter the sleep state to save energy (automatically stop heating at the twelfth minute, and automatically turn off the power at the fifteenth minute), press ( Select) key will restart.
•
• Note for operation: the operator can take some of the same cloth samples for the splicing splices, and perform the operation test according to the above procedures to find out the satisfactory temperature and speed parameters, and then perform the formal splicing operation. The spliced cloth surface should be kept flat, and the ground at the joints should be kept flat (hard and heat-resistant textures such as cement or porcelain floor tiles are better) to facilitate hot splicing and pressing.
•
• Four, matters needing attention:
• When using this product, always ensure that the work floor is clean and tidy to avoid clutter and accidents.
• The working environment should be good, and the lighting should be maintained. Do not use the machine in a damp and dark place. Do not wipe the machine with a damp paper cloth.
• The work site should be flat and strong enough to safely support the weight of the machine.
• It is forbidden to use the machine in an abnormal operation mode; the hot air sprayed by the hot air nozzle should not face the rubber wheel for a long time to prevent it from being burnt.
• Be sure to turn off the main power switch after finishing the work.
• If a special situation occurs during work, stop using the machine and troubleshoot.
• After the machine is shut down and the power is cut off, repairs and replacement of parts can be carried out, and standard general tools can be used for disassembly.
• In order to ensure safe and reliable splicing, especially for beginners, when taking some splices, perform test exercises according to the operating method, and use them when they are proficient.
• For the sake of safety and prolong life, do not use the machine beyond the limit.
•
• Five, maintenance:
• After opening the package, immediately check whether the machine is damaged or missing components. If so, contact us in time.
• Do not discard the original packaging, pay attention to repack it when transporting, and transport it carefully to reduce vibration.
• Frequently brush the hot air vent with a brush to keep it clean;
• Keep the storage area dry and ventilated to prevent rust;
• Pay attention to keep the air suction grille of the fan clean, pay attention to dust removal in the work and storage area, and avoid blockage of foreign objects to protect the heating system. The hot air blower is not covered by the warranty, please use it carefully.

Why choose us!

1. Factory direct sales, price advantage

2. The high-power splicing adopts a 3-second switch, and the switch will automatically sleep for 150 seconds when it is not working to protect the heating core and save power

3. The air gun adopts isolation mesh cover, the air gun part is as safe as working at high temperature for a long time, and the operation is stable without being hot

4. It adopts high torque motor, precision reducer, super heat-resistant rubber rolling wheel, precision-processed aluminum alloy material, high-performance hot air blower, and the key parts are all reinforced with secondary treatment, so it is strong and durable, and has a simple structure. The structure is modular The components are easy to maintain.
