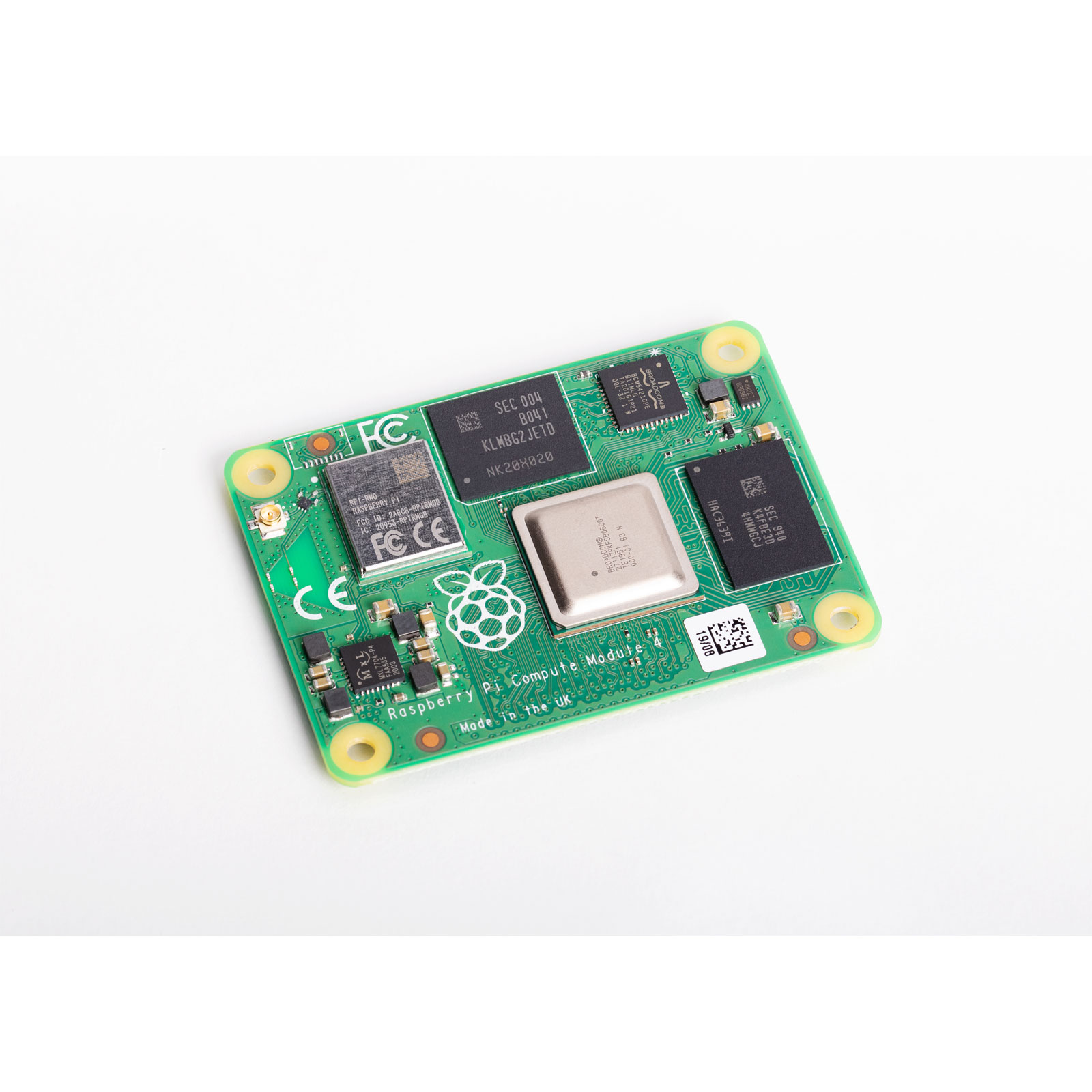

Raspberry Pi SC0692 CM4101008 Compute Module 4 Rev5, 1GB RAM, 8GB eMMC Wireless

The Raspberry Pi SC0692 Compute Module 4 has the computing power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into a wider range of industry style products.

Key features include a Broadcom BCM2711 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decoding at up to 4Kp60, 1GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, and 8GB of eMMC flash.

This product features dual-band 2.4GHz and 5.0GHz Wi-Fi along with Bluetooth 5.0, all with modular compliance certification. This means it can be integrated into final products with minimal additional compliance testing, helping to reduce both development costs and time to market. You can choose to use either the built-in antenna or connect an external antenna kit for greater flexibility.

• Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.1, Vulkan 1.0
• 1GB LPDDR4-3200 SDRAM
• 8GB eMMC Flash memory
• 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
• Bluetooth 5.0, BLE
• On-board electronic switch to select either external or PCB trace antenna
• Operating temperature of -20°C to +85°C
