Features:
NO: Normally open.
N-C: Normally closed.
Precautions:
1.
Do you need to turn on the spindle ?
Never, never, never.
2.
How to distinguish these three cables?
The red wire is VCC, the black wire is GND, and the white wire is IO.
3.
is the concentricity of the probe different every time it is installed?
Because its ER chuck spring clamp cannot guarantee verticality. Every time the probe is installed, even if the concentricity is adjusted to 1 Wire, there will still be deviation when the probe is removed and reinstalled. Therefore, it is to AAA grade drill chucks with higher for (concentricity <= 0.0 05), because many drill chucks in China have fake standards. It is recommended to use a high- for gauge or steel rod to check the gauge after installation. Check. Look at the concentricity. It is to place the micrometer 50mm away from the drill chuck, which is about the distance between our probe ball head and the root of the tool handle.
4.
is the concentricity still poor when I obviously use an AAA chuck?
That's because you bought a virtual label chuck.
Under normal circumstances, if the spindle jumps 0.01, the AAA chuck clamps the milling and the workbench tool holder, the error cannot exceed 0.02, and the maximum error cannot exceed 0.03. There will be a slight angle deviation between the center of the tool holder and the center of the spindle, which will be magnified by the length of the tool holder. Usually, the root of the tool is measured with a calibration gauge, and no large error can be seen, but because the probe needle is about 50mm away from the tool holder, the error will be magnified more. Therefore, you must choose a high- for chuck, which is nothing more than a difference of tens of dollars.
Specifications:

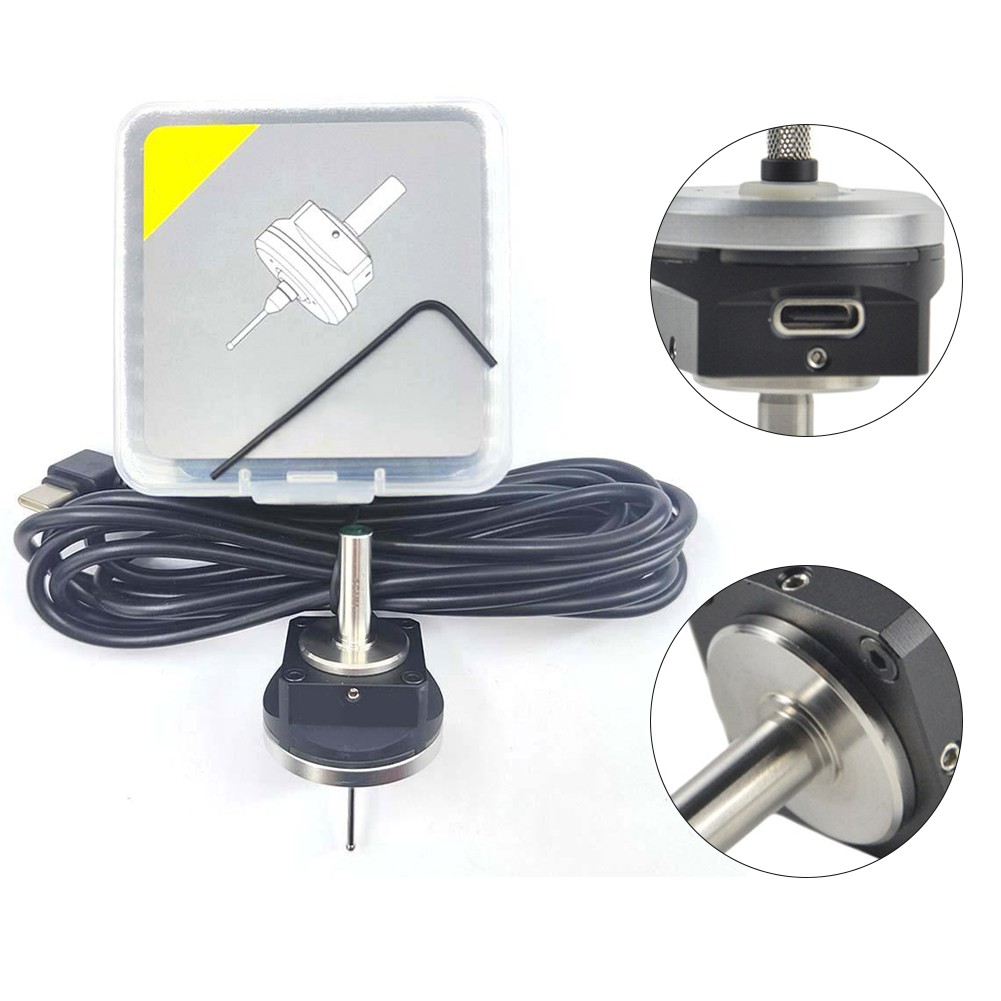

Part name: 3D probe with cable
Material: Probe is stainless steel, accessories are aluminum alloy

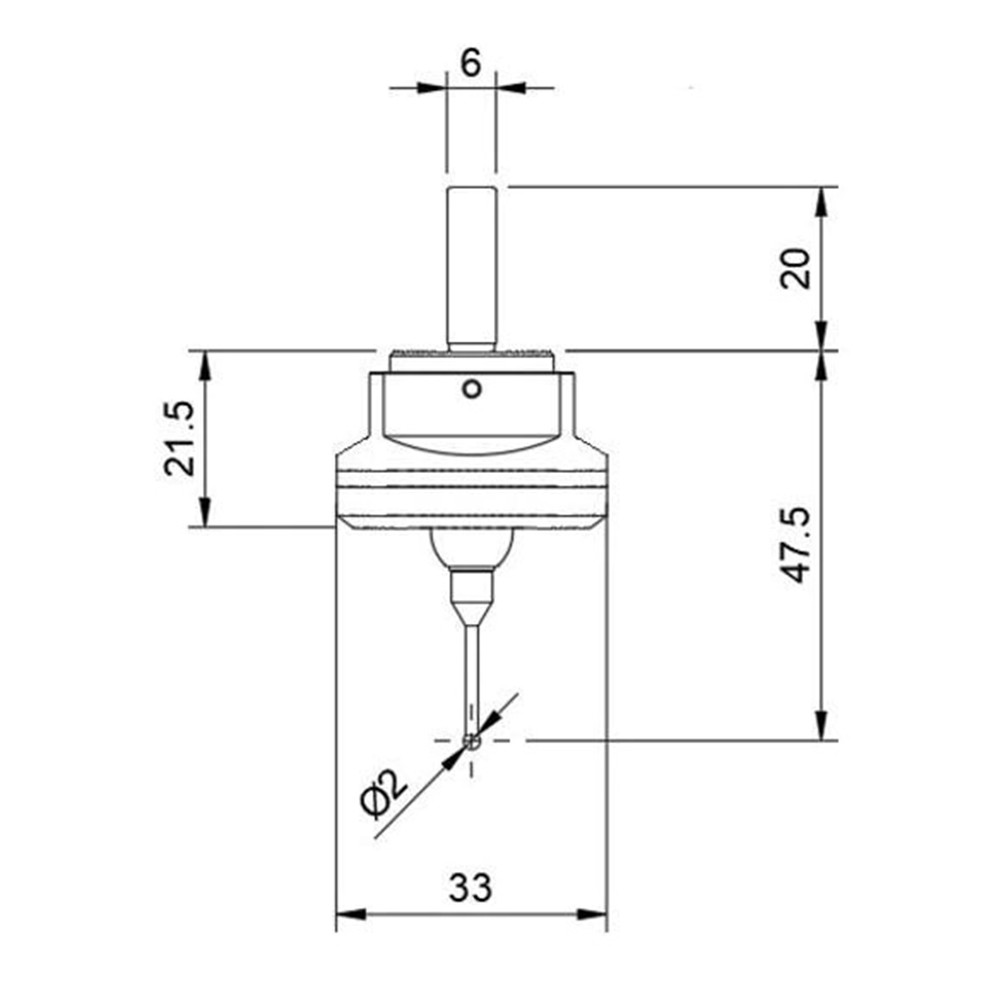

Size: as shown
Color: silver
Model: TP06
Approach direction: ±X, ±Y, +Z
Repeat accuracy: <0.01mm
Feed : 50-200mm/min
Overtravel for protection distance: XY±4mm, Z +2mm
Reliability: Life span is greater than 3 million triggers
Power supply: 5~24V DC
Package contents:
A: 6MM edge finder + 1*wire + 1*wrench (N-C, NO optional)
B: 4MM edge finder（NO） + 1*wire + 1*wrench
C: Needle holder
D: Probe
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
