General

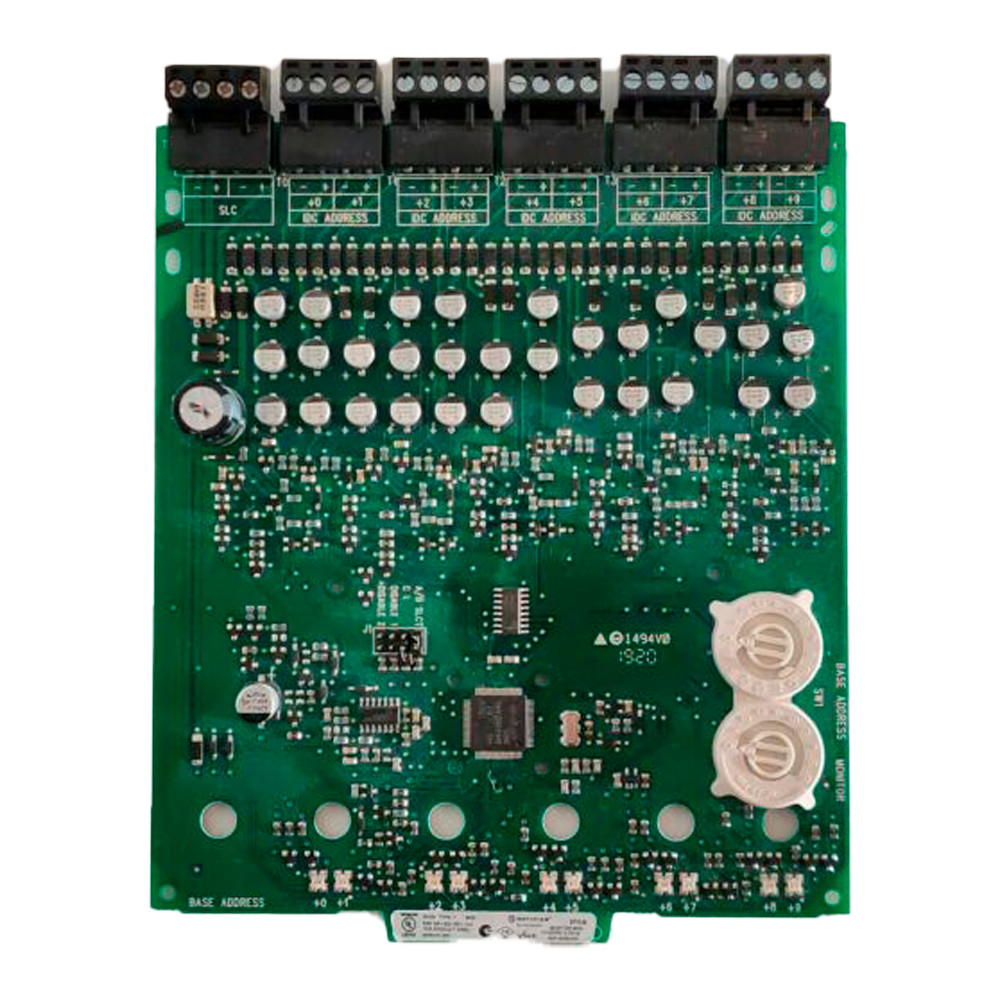

Notifier XP10-M ten-input monitor module is an interface between a control panel and normally open contact devices in intelligent alarm systems such as manual call points, Fire Fan Control contacts, or flow switches. The first address on the XP10-M is set from 01 to 150 and the remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused addresses. The supervised state (normal, open, or short) of the monitored device is sent back to the panel. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground otherwise each monitor operates independently from the others. Each XP10-M module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off. To ensure proper operation, this module should only be connected to a NNotifier Intelligent Fire Alarm Control Panel. All wiring must be installed to conform to the Manufacturers specification and all applicable codes and standards



Features



•Ten addressable initiating device circuits.
• Removable 0.75mm2
 to 1.5mm2
.
• Plug-in terminal blocks.
• Status indicators for each point.
• A maximum of 2 unused addresses may be disabled.
• Rotary address switches.
• FlashScan® or CLIP operation.
• Flexible mounting options.
• Mounting hardware included
