PRODUCT DESCRIPTION
Fire-Lite BB-55F Battery Backbox
Fire-Lite BB-55F Battery Backbox
Features
Rated for batteries 25 to 75 AH. The charger can connect to the Signaling Line Circuit (SLC) of a Fire•Lite addressable intelligent control panel for trouble monitoring.
Mounts in a BB-26 or BB-55F enclosure.
Battery, charger, and AC voltage supervision.
AC loss reporting delay option for 8- or 16-hour delay.
Connectors for trouble input and output — direct CHG-75 troubles. To FACP and allow daisy-chaining of external troubles through the charger without affecting charger operation.
Diagnostic LEDs for monitoring: Primary AC On, Charger.
Trouble, Ground Fault, Charging, SLC Communication,
Low Battery.
Construction and Operation
The CHG-75 consists of a PC board and mounting chassis.
Installation
The CHG-75 – mounted remotely in the BB-26 or BB55F battery backbox. Install the CHG-75 within 20 feet (6.096 m) of the main FACP.
Positioned at the top of the cabinet. Use the supplied self-tapping screws to secure the charger to the backbox.
Positioned at the top center of the cabinet. Use the supplied nuts to mount the charger to the PEM studs located in the backbox.
Product Line Information
Fire-Lite BB-55F Battery Backbox

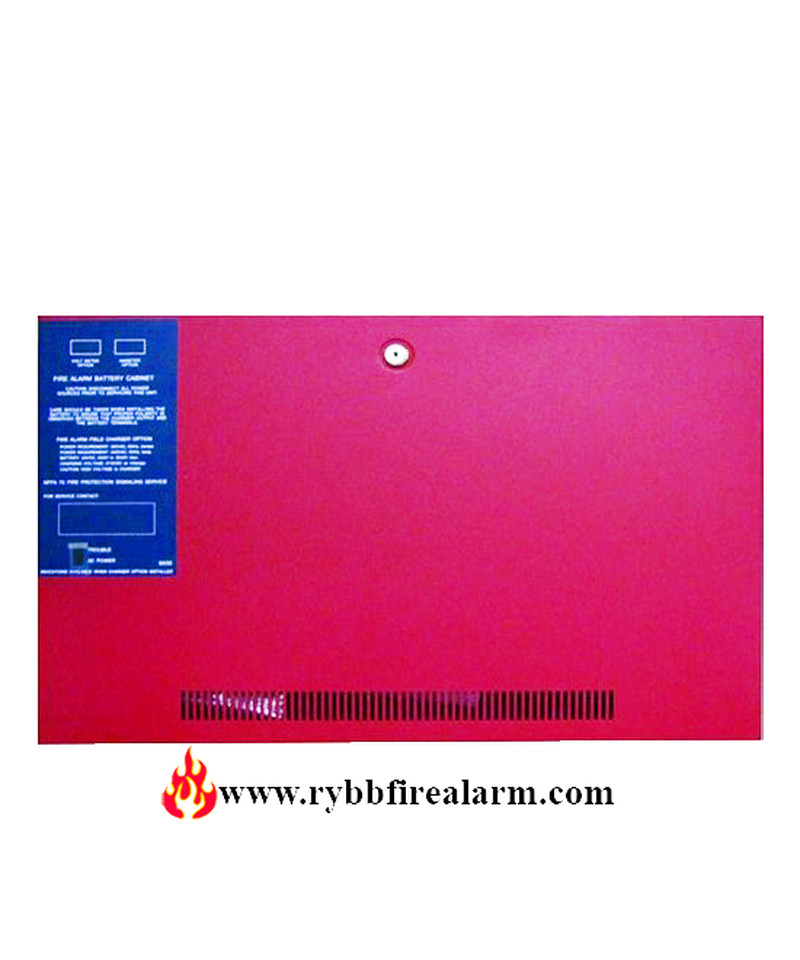

BB-55F: The battery backbox holds up to two BAT-12550 55 AH batteries. Box dimensions: 24.0″ (61.0 cm) wide x 14.0″ (35.6 cm) high x 7.75″ (19.7 cm) deep. Door dimensions: 24.125″ (61.3 cm) wide x 14.25″ (36.2 cm) high x (door adds 0.063″ [approx. 0.16 cm] to depth).
Datasheet
Relative Item
Payment
We accept the following payment methods:
- PayPal
- Visa
- Master Card
- American Express
- Discover
Please contact us if you have any questions.
Shipping Services
We offer the following shipping services:
- USPS Priority Mail (free shipping)
- UPS Next Day Air Saver
- UPS 2nd Day Air
- UPS Next Day Air
If you would like your package shipped differently, please contact us.
Please note: Even if you selected free shipping, your package may still be shipped UPS Ground
International Shipping
- If you are outside the United States and need our articles you can contact us through an Ebay message.
- We offer 4 shipping options if they do not work, please contact us and we will make changes for you.
- We process all orders the same day when we receive the payment before 5:00 PM ET.
- Daily we strive to provide the best service to our buyers and give the highest satisfaction but if for some reason there is an error to receive your purchase please contact us before leaving a negative feedback.
Warranty
Please be aware that we are not authorized distributors. We can not guarantee the featured item will have the manufacturer's warranty or support.
Specifications
- MPN BB-55F
- Type Backbox
- Country of Origin United States
- UPC 744759247902
