Power Supply Module

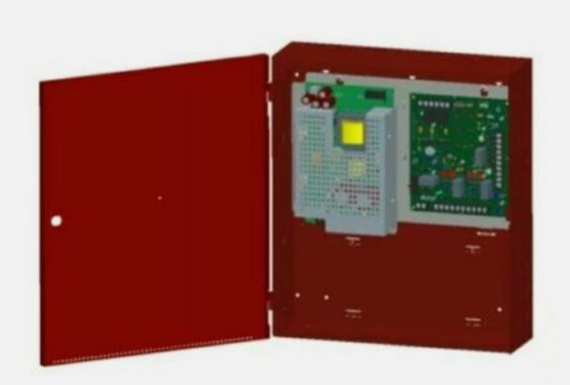

The 300-Watt power supply (Model FP2012-U1) provides primary, regulated (24VDC, nominal) power for normal operation to Desigo 252 / 504-point addressable systems. Filtered and regulated, Model FP2012-U1 is rated 11.5 Amps at 24VDC, nominal. Each 300-Watt power supply incorporates two (2) 6.3A replaceable, non-resettable slow-blow fuses on the primary input, and includes a built-in AC-line filter for surge and noise suppression. Model FP2012-U1 mounts into the Model FHB2005-U1 / R1 back box. For applications requiring greater than 300W of power, the Model FP2013-U1 power supply can optionally power a Model FV2025 or FV2050 voice system. Model FP2013-U1 consists of two (2) power supply units and one (1) interconnection cable, in order to balance total power-supply power. This power-supply configuration can accordingly provide up to 600W at 24VDC. Mounting for Model FP2013-U1 is provided on the back surface inside each FACP’s 3HU back box, Model FHB2005-U1.
