This Listing Is Including:

1 x 4 Row of tubes Full Aluminum Radiator only

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 x 16" Electronic Fan(Includes fans mounting kits)

1 x Thermostat Relay Kit

This Radiator Size:

Shroud+Fan:

Our electric fan has a 120w power motor, which is more powerful and efficient than other inferior fans selling on market. Most fans on eBay have a motor power of 80w, which cannot provide enough cooling for the engine. Moreover, they are usually assembled by the straight blades, it is cheaper and poor-quality and easy to get broken.

1.120W electric motor to provide strong power and high rotation speed

2. S Blade pull push design, to make air flow more efficient and bring more cooling Effect

3. Lightweight and thin volume design, not only to save more engine bay space and also looks very well.

4. Provide extra temperature relay switch.

16" Fan

Voltage: DC 12 Volts

Maximum Fan CFM: 2150 cfm

Wattage:120 Wattage

Thickness (in): 2.500"

Number of Blades: 10 S-Type blades

Maximum Fan RPM: 2,250 rpm

Amp Draw: 10 amps

Thermostat Relay Kit

Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe adapter included.Probe typically threads into radiator, water outlet or manifold.

Description:

Our Radiator is made of AA5052 aircraft aluminum. It is different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

ThisAA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck rugged and durable

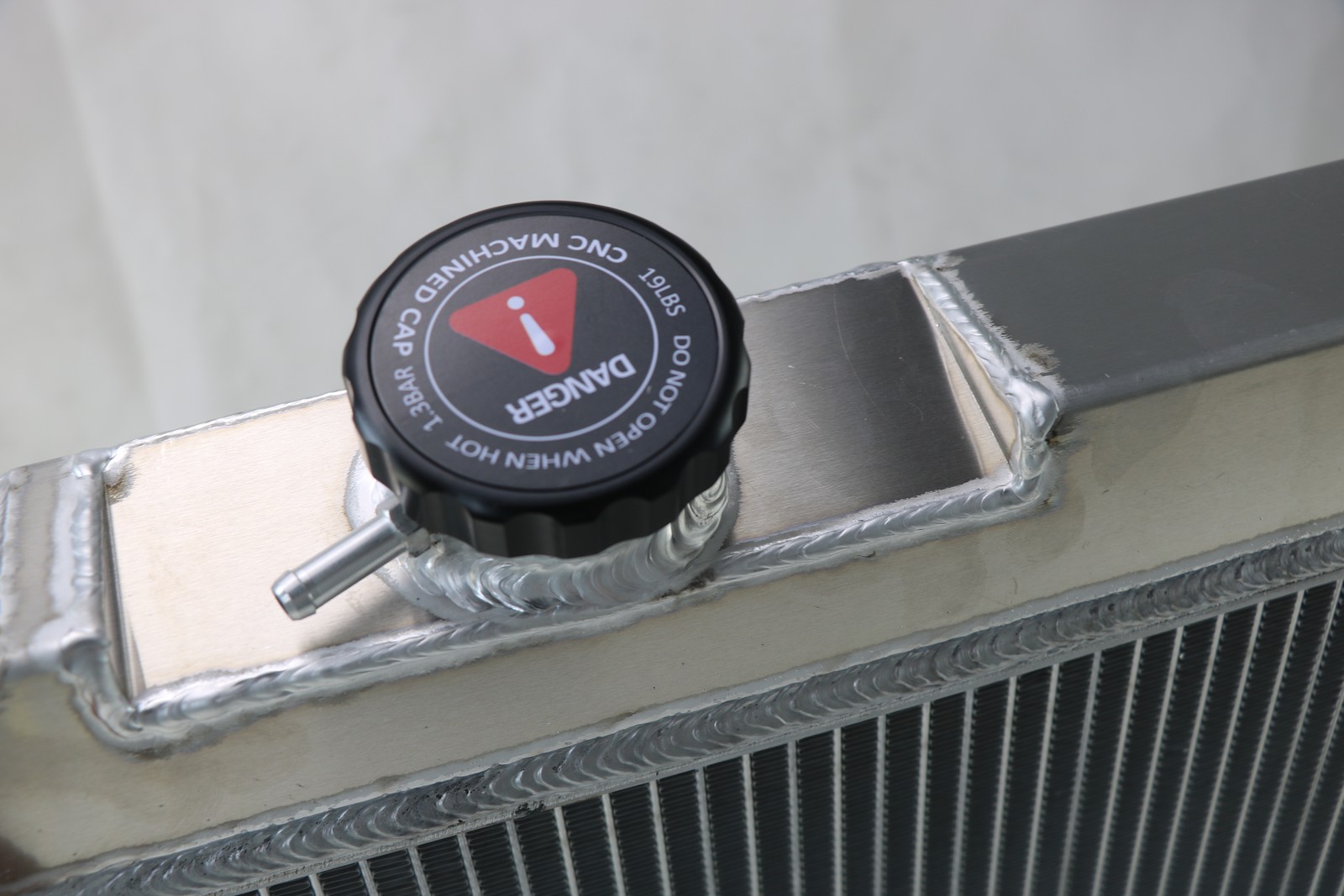

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM style brass petcock drain much better than other plastic one on eBay

7. Carefully crafted to exceptional OE standards for precise fit.
