This auction is for 1 pcs TCXO 0.1ppm high precision Golden plated Oscillator for home audio DIY

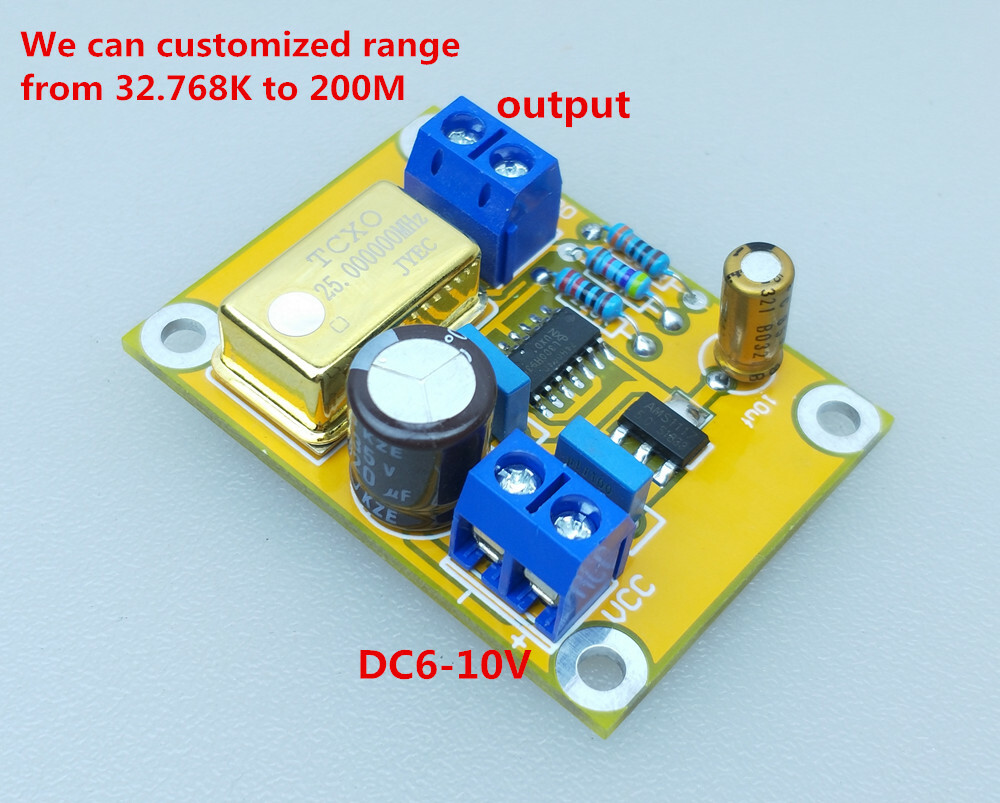

NOTE: If there is no frequency you need in the option list, you can select "other" when ordering, and then leave note when you pay for it, we will customize it for you and install on the buffer board directly.

(If you need datasheet or more questions, please email us.)

TCXO from factory, we provide customs works for TCXO:

(1) Frequency: Range from 32.768KHZ to 200MHZ

example:5MHz, 8MHz, 10.6445MHz, 16MHz, 22.5792MHz, 24MHz,24.576MHz, 25MHz, 49.1520MHz, 80MHz, 100MHz, 125MHz etc.

(2) Wave output: TTL/CMOS by default, we can make Sine Wave if request

(3) Package: DIP14 by default, we can make DIP08

(4) with PLL by default, Pin 1 is NC by default, if need customs requirement such as V control for Pin 1, please email, thanks

>>It can be used for clock source and frequency source in communications equipment and test instrument, use for DAC, CD player, clock etc.on home audio.

Specification for TCXO:

TCXO: Temperature-compensation Crystal Oscillator

Power voltage for TCXO : +5.0V dc(+/- 5%) (if need +3.3Vdc please email)

Power current : 20mA (MAX)

Waveform : TTL/CMOS

Duty cycle : 40/60%

Frequency stability Vs Temp : +/- 1ppm (-10 ~ +60 ℃)

Phase noise : -130dBc/1KHz@10M

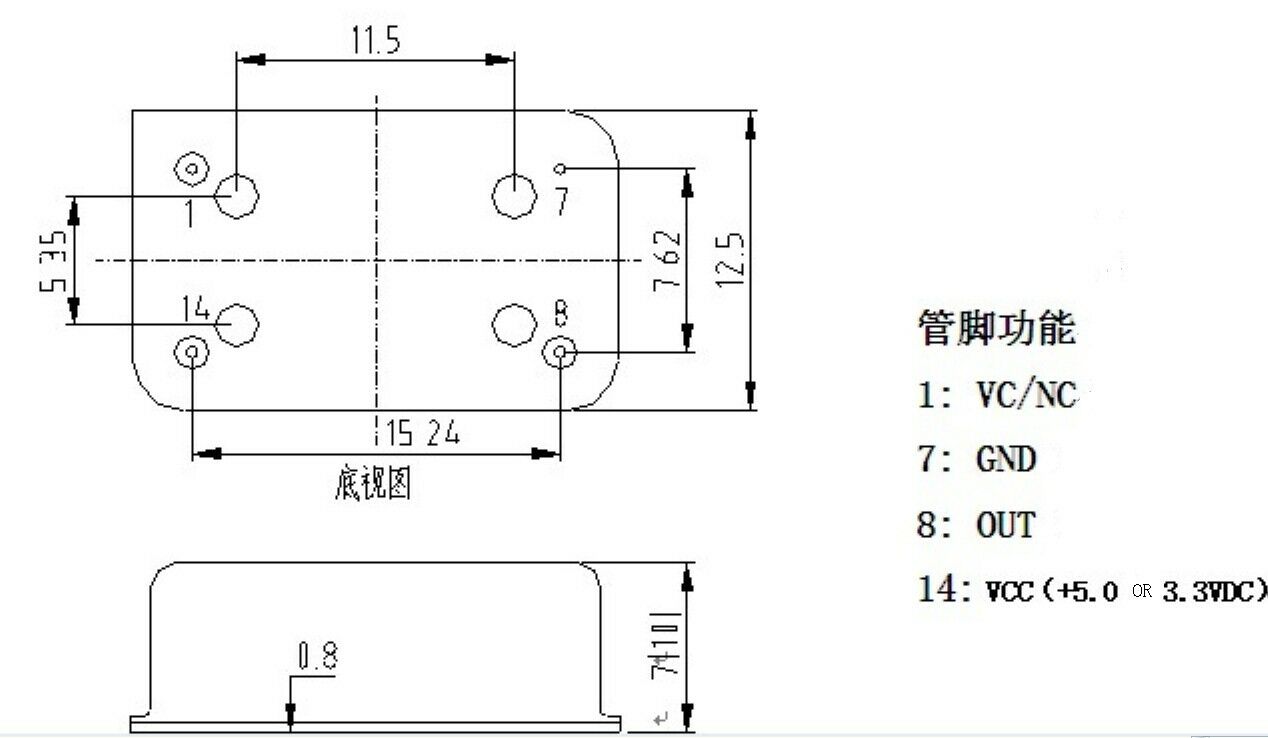

Package : DIP14 (dimension 20.4 x 12.8 x 7.5mm)

Frequency Accuracy: ±0.1ppm Max.

Aging : +/- 2ppm/year

Jitter: about 1ps
