The Topcon RL-H5A Self-Leveling Rotary Laser Package combines accuracy, range, and durability for general construction and site work. With automatic electronic self-leveling, the RL-H5A achieves ±10 arc second accuracy and re-levels itself if disturbed during use. Offering a working range of up to 2,600 ft (800 m) diameter when paired with the LS-80X receiver, it provides a reliable reference for checking elevations, setting forms, and machine-mounted receivers. The visible 635 nm red beam also supports interior applications such as wall, pier, and cabinet alignment. With IP66 protection, it withstands dust, rain, and jobsite abuse, while its battery options deliver up to 60 hours of operation.

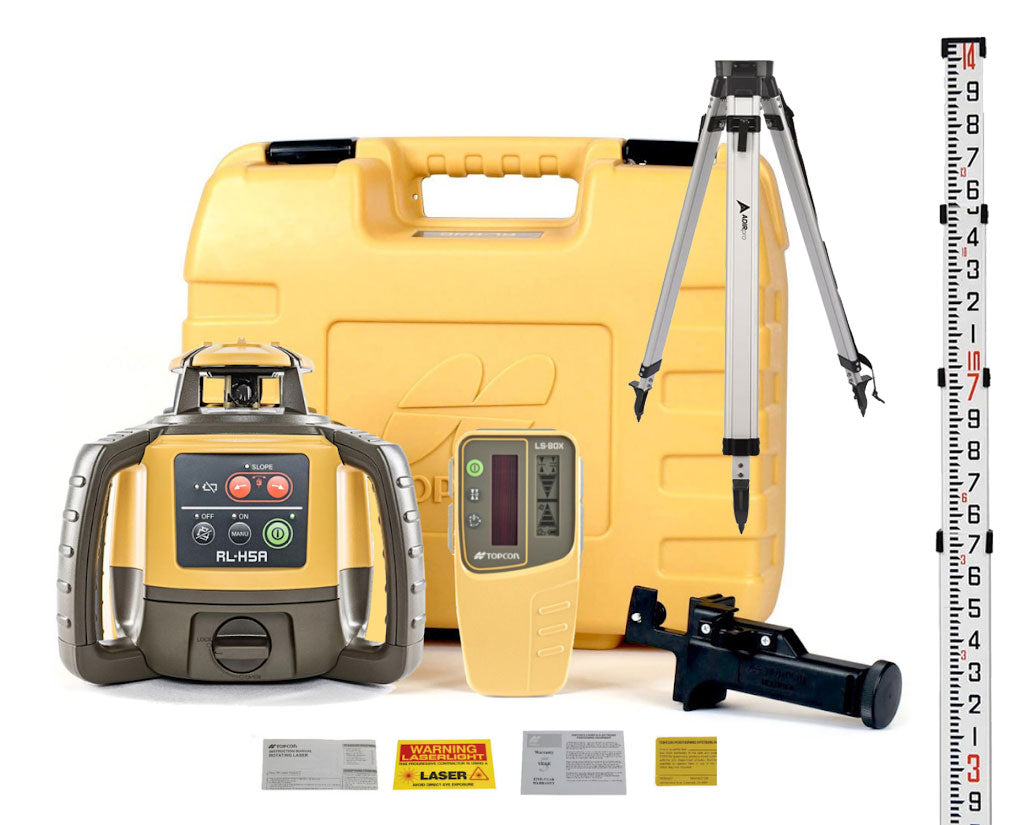

This package includes the RL-H5A laser, LS-80X receiver with holder, hard carrying case, and an aluminum tripod. Customers can configure the package with their choice of grade rod material, length, and graduations. Aluminum rods are available in 9, 14 or 16 ft lengths, while fiberglass rods are available in 13, 20 or 25 ft length. Rods can be ordered in either feet/tenths or feet/inches graduations to match project requirements. This flexibility allows you to select the best rod for your jobsite.

Choose Your Grade Rod

Specifications

• Model: Topcon RL-H5A Self-Leveling Rotary Laser
• Laser Source: 635 nm visible red diode
• Laser Class: Class IIIa (FDA), Class 3R (IEC)
• Operating Range: Up to 2,600 ft (800 m) diameter with LS-80X
• Accuracy: ±10 arc seconds (±1/8 in @ 100 ft)
• Self-Leveling Range: ±5°
• Manual Slope Range: ±5° (single axis)
• Rotation Speed: 600 rpm
• Status Alerts: HI Alert, low battery
• Protection: IP66 dust- and waterproof
• Power Source: (4)x "D" Alkaline Battery (not included)
• Operating Hours: 60 hours
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Dimensions: 104 × 127 × 37 mm
• Warranty: 5 years

In the Box

• RL-H5A laser with Laser receiver, Sensor holder, Tough carrying case
• Aluminum Tripod w/Quick Clamp
• Grade Rod (as per your selection)
