UNI-T UT513A Digital Insulation Resistance Tester Test Meter Megger 1M-1000G OHM 5000V USB Interface
Features
UT513A is an intelligent insulation test instruments, the whole design of the circuit design using computer technology as the core,LSI and digital circuits combined with powerful measurement and data processing software, complete insulation resistance, voltage, low resistance and other parameters measured, stable performance and easy operation.
For on-site power equipment and power supply line measurement and inspection, maintenance and repair of electrical equipment is the ideal tool. Also used in metallurgy, communications, manufacturing, petroleum, defense, power, chemical, and other industries circuit measurement and maintenance.
Technical Parameters
Specifications
Range
Accuracy
Model
UT513A
Insulation Resistance (Ω)
Test Voltage
500V/1000V/2500V/5000V
0%～20%
500V
0.5MΩ~20GΩ
±(3%+5)
1000V
1.0MΩ~40GΩ
±(3%+5)
2500V
2.5MΩ~100GΩ
±(3%+5)
5000V
5.0MΩ~1000GΩ
±(3%+5)
Short Circuit Current
>3.0mA
DC Voltage (V)
600V
±(2%+3)
AC Voltage (V)
600V
±(2%+3)
Features
Auto Range
√
Auto Power Off
√
Secondary Display
√
Low Battery Indication
√
Data Storage
18
Comparison
√
DAR
√
PI
√
USB Interface
√
LCD Backlight
√
Analogue Bar Graph
30
Overload Indication
√
High Voltage Indication
√
Timer
Around 15 Minutes
√
General Characteristics
Power
1.5V Batteries (LR14) x 8 (Does not include batteries)
LCD Size
123mm x 58mm
Product Color
Red and Grey
Product Weight
UT511-1.2Kg, UT512-1.8Kg, UT513A-2Kg
Product Size
202mm×155mm×94mm
Standard Accessories
2 PCs of one plug test lead to one alligator clip (Black and Green), 1 piece of two plugs test lead to one alligator clip (Red), Batteries, USB Cable, PC Software CD, Power Adapter
Standard Individual Packing
Gift Box, Tool Box, User Manual

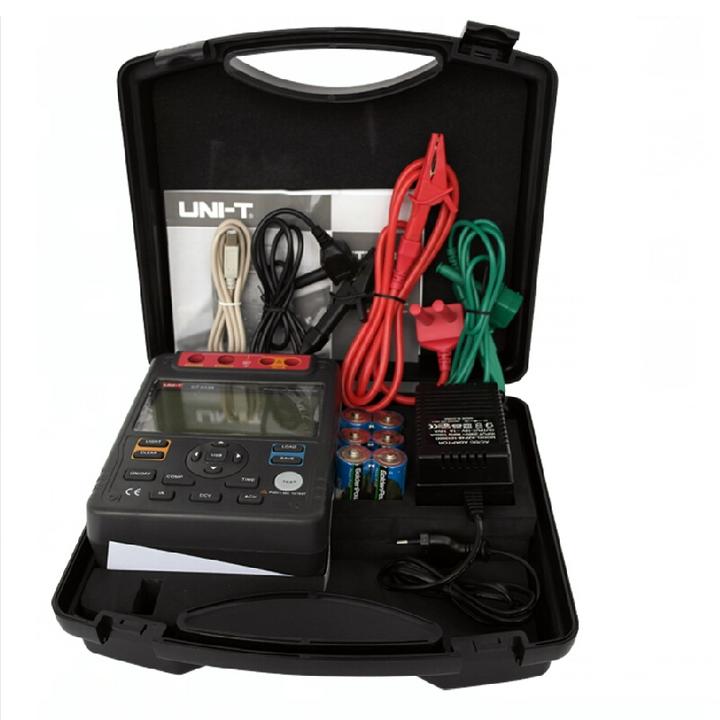

Accessory
2PCs of One Plug Test Lead to One Alligator Clip(Black and Green),
1 PC of Two Plugs Test Lead to One Alligator Clip(Red)

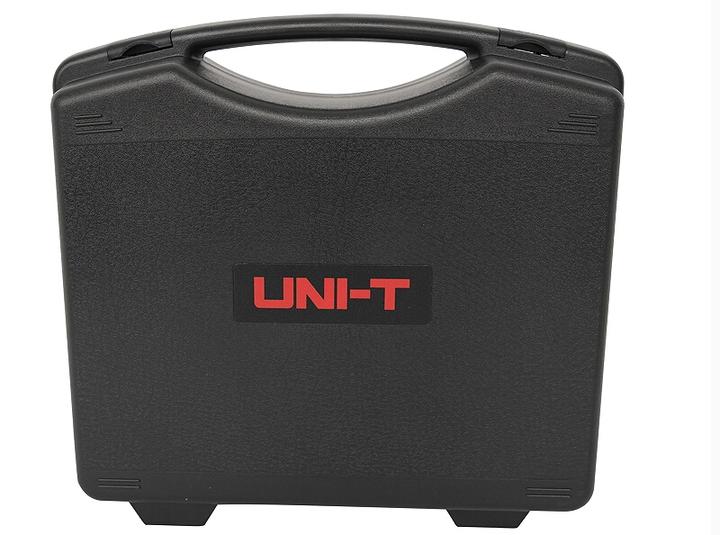

Tool Box,
USB Cable,
PC Software CD,
Power Adaptor(ONLY EU plug for standard kit)

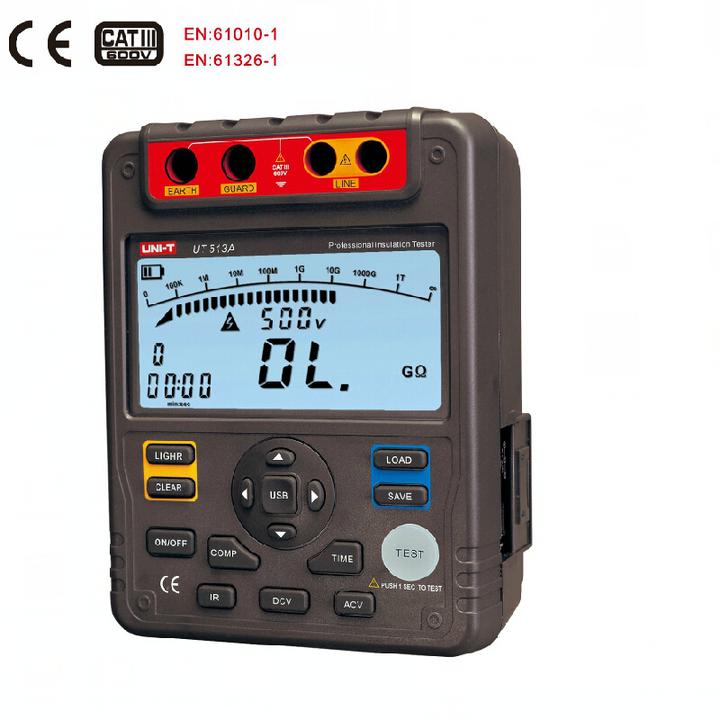

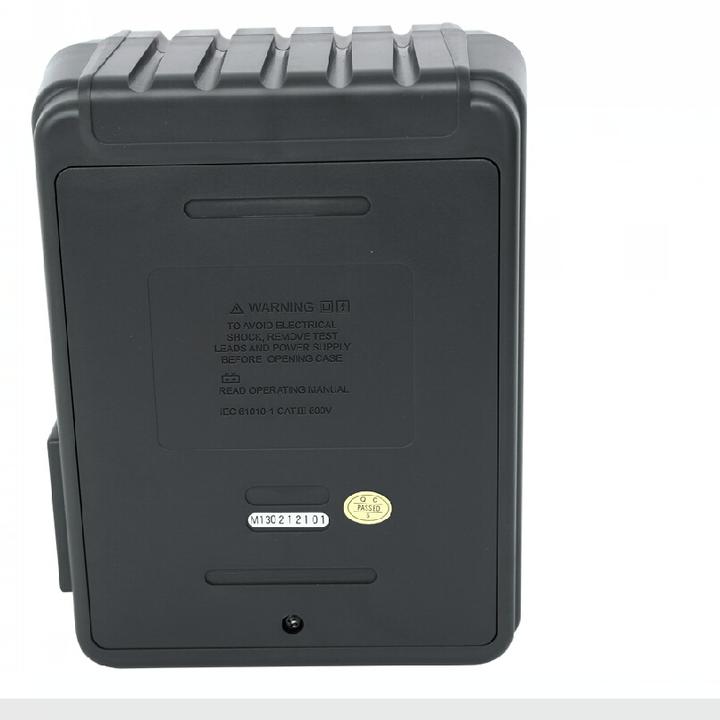

Product Image
Shipping:
We will ship all items within 1-2 working days upon receipt of payment,our goal is: hope you will receive it in short time.
Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.
We will declare customer required value for small taxes .
Warranty&Return Policy:
We encourage all customers to communicate with us through eBay messages.
If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you
A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions
manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.
30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will
be sent to you at our shipping costs if it meets our warranty
