Color: Red

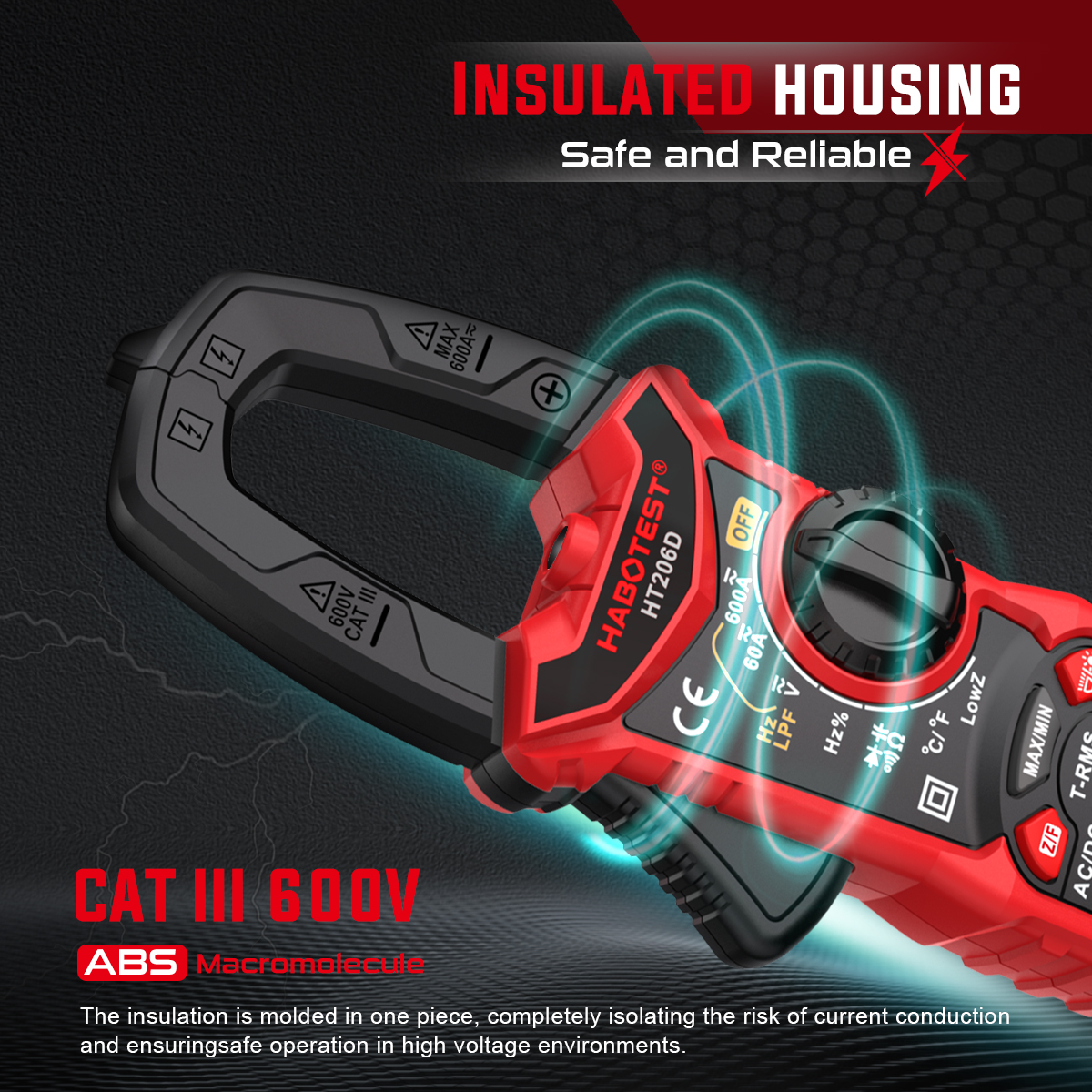

Material: ABS
Display: LCD Display

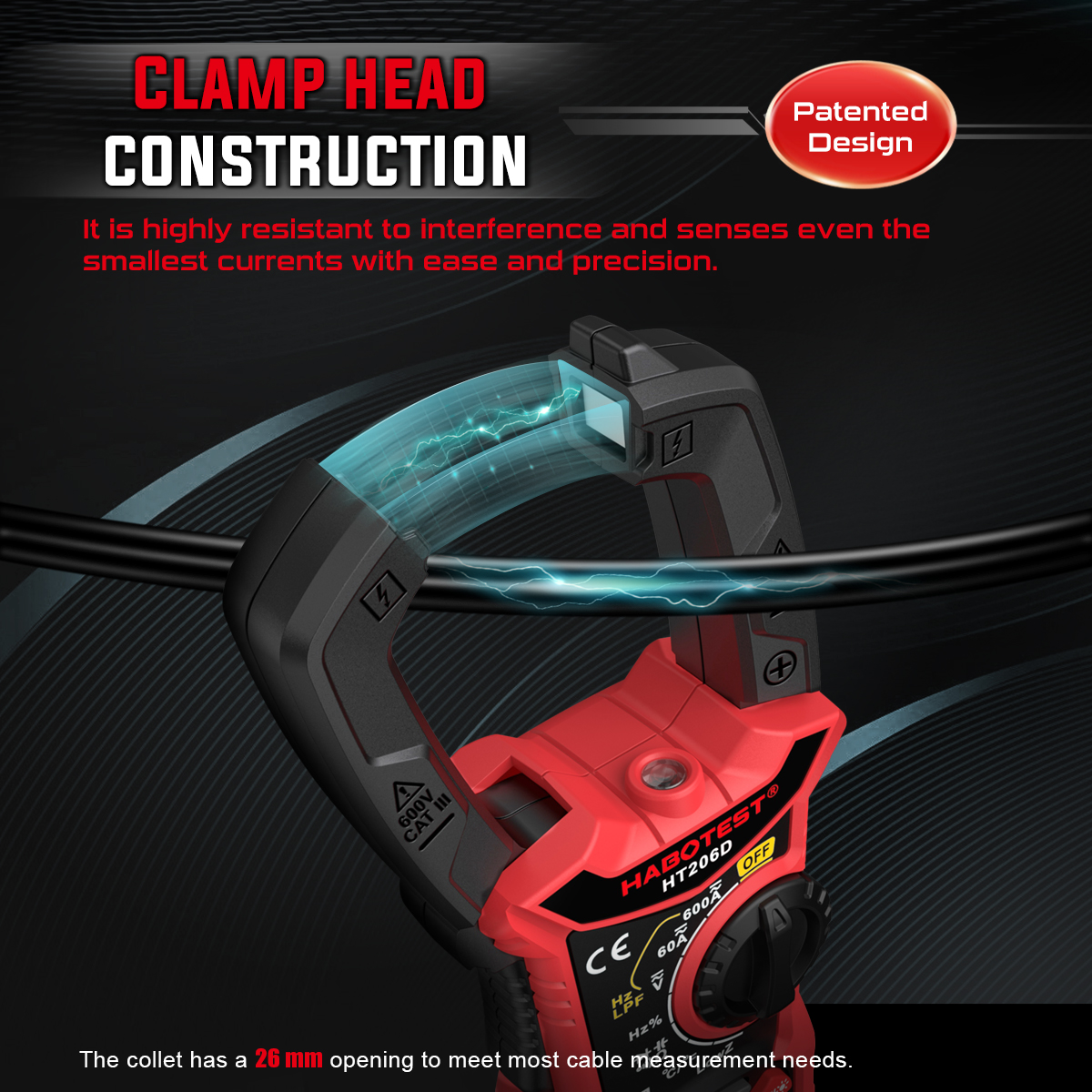

Jaw Opening: 25 mm

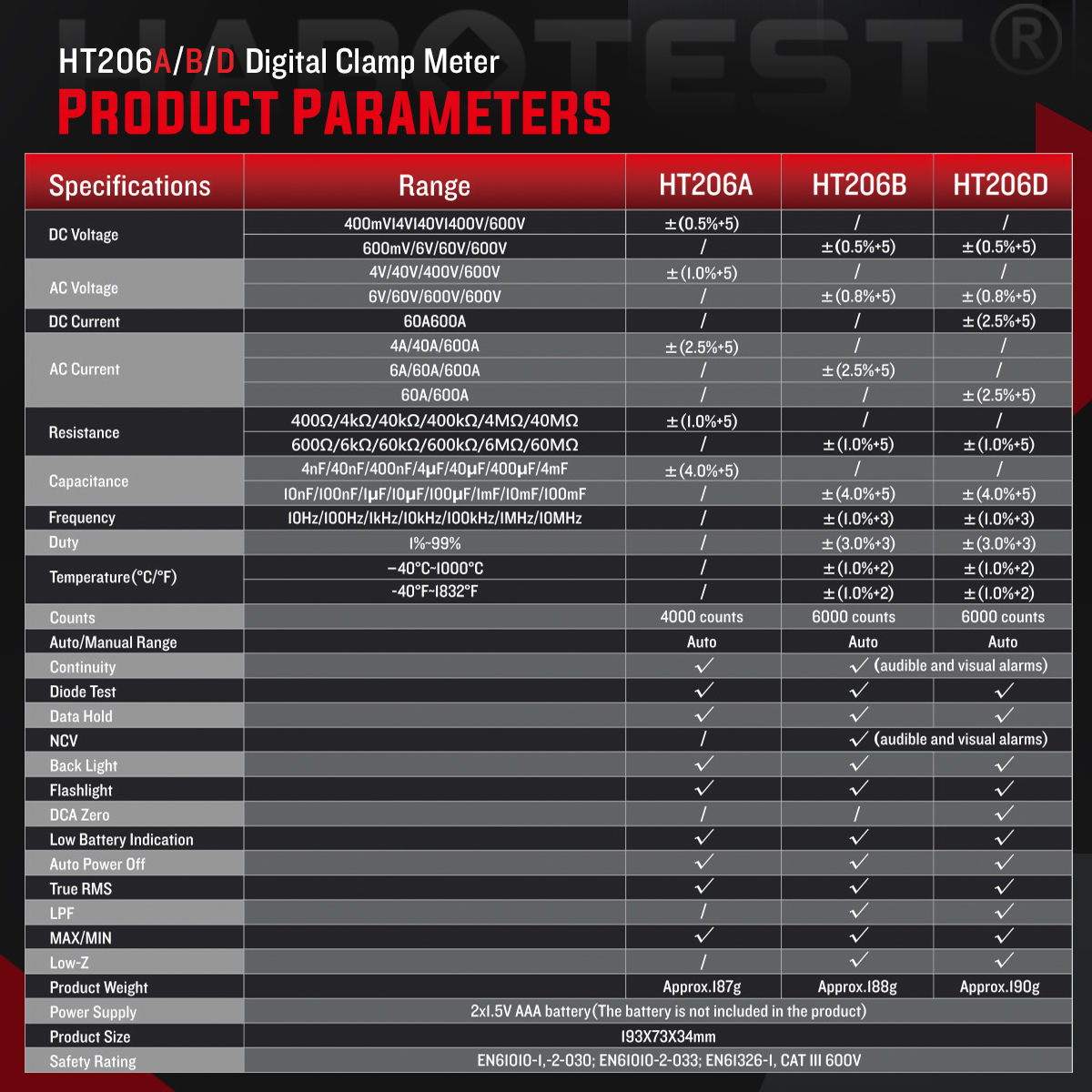

DC Voltage: 600mV/6V/60V/600V (±0.5% reading +5)
AC Voltage: 6V/60V/600V (±0.8% reading +5)

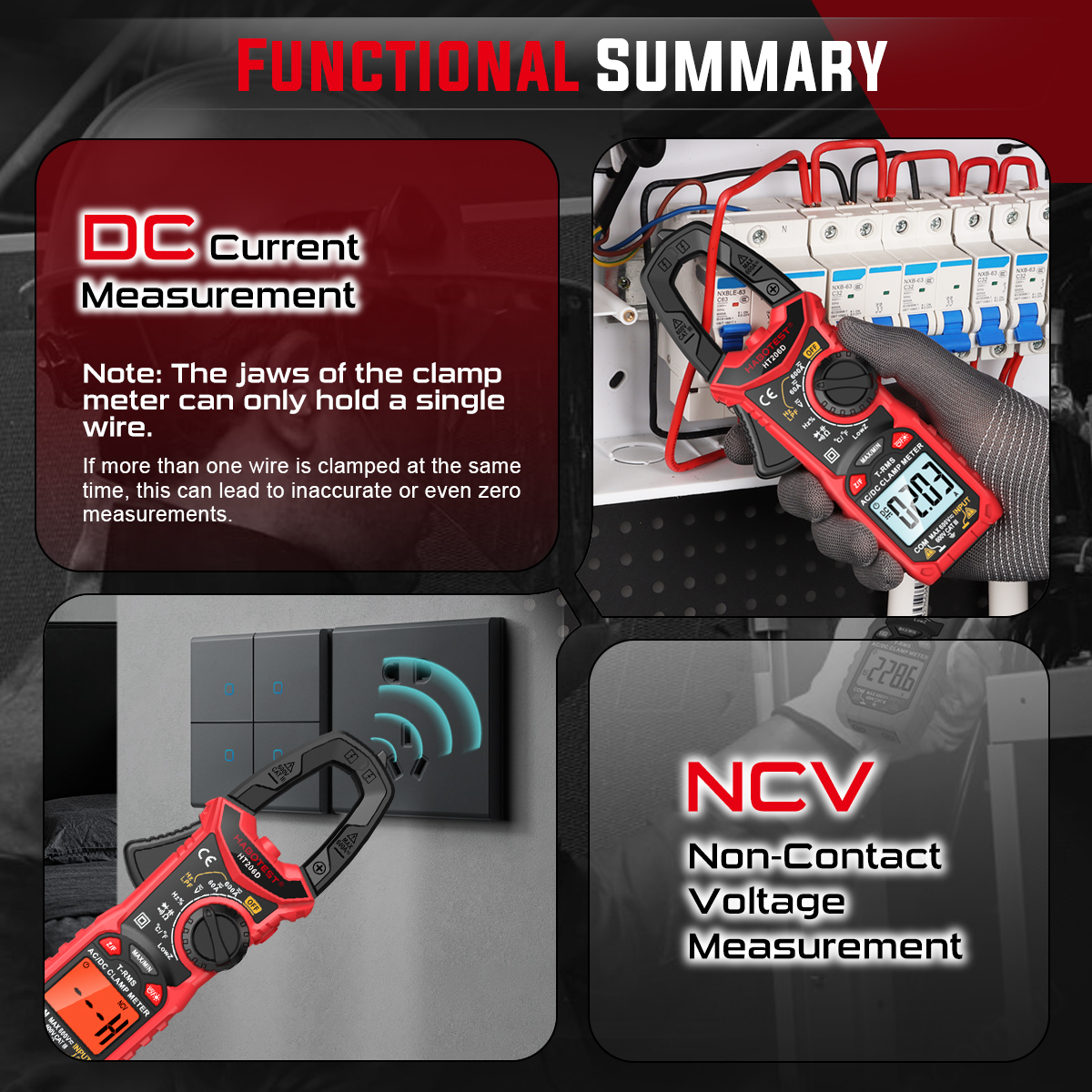

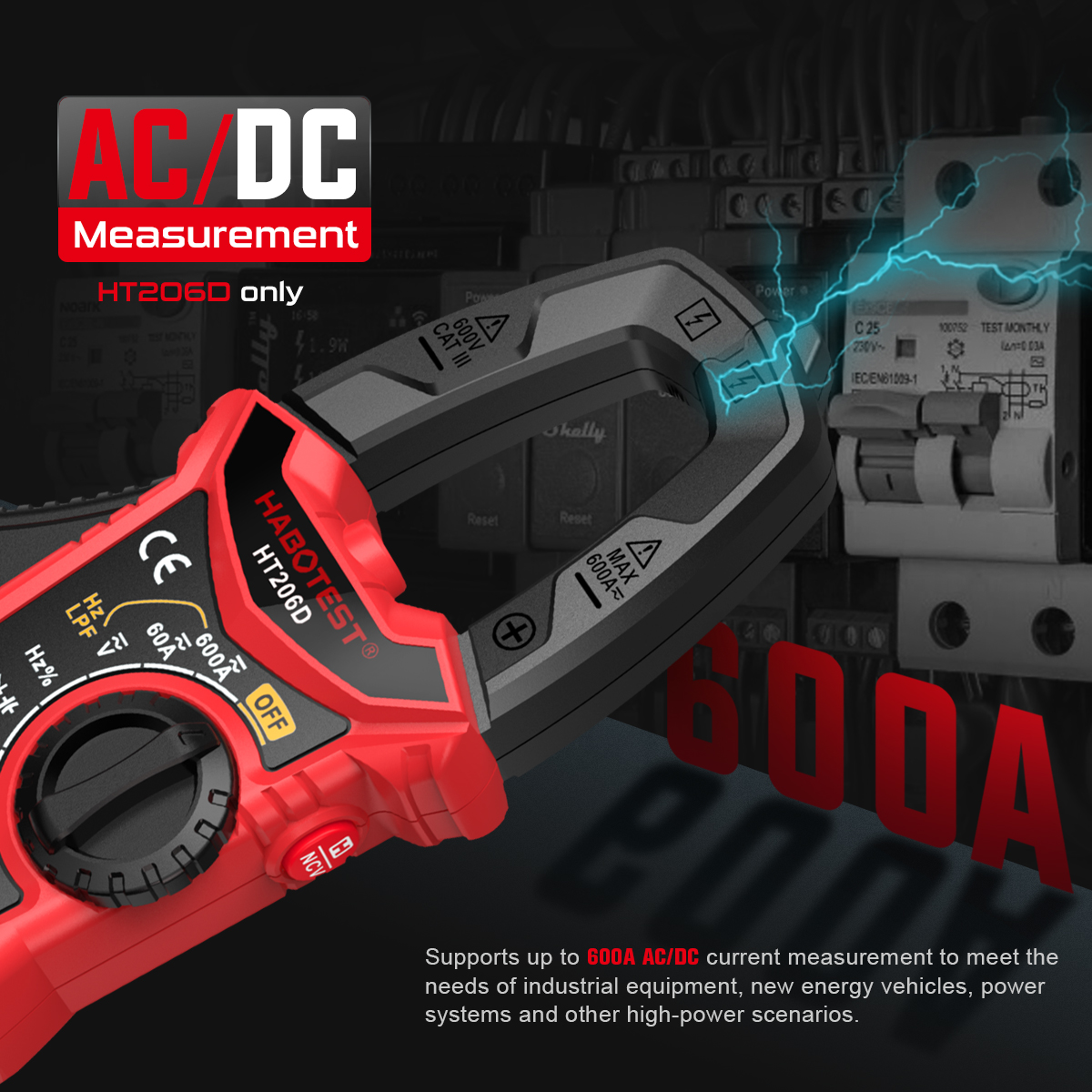

DC Current: 60A/600A (±2.5% +5)
AC Current: 6A/60A/600A (±2.5% reading +5)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ (±1.0% reading +5)
Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
Duty Cycle: 1-99%
Frequency (Hz): 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

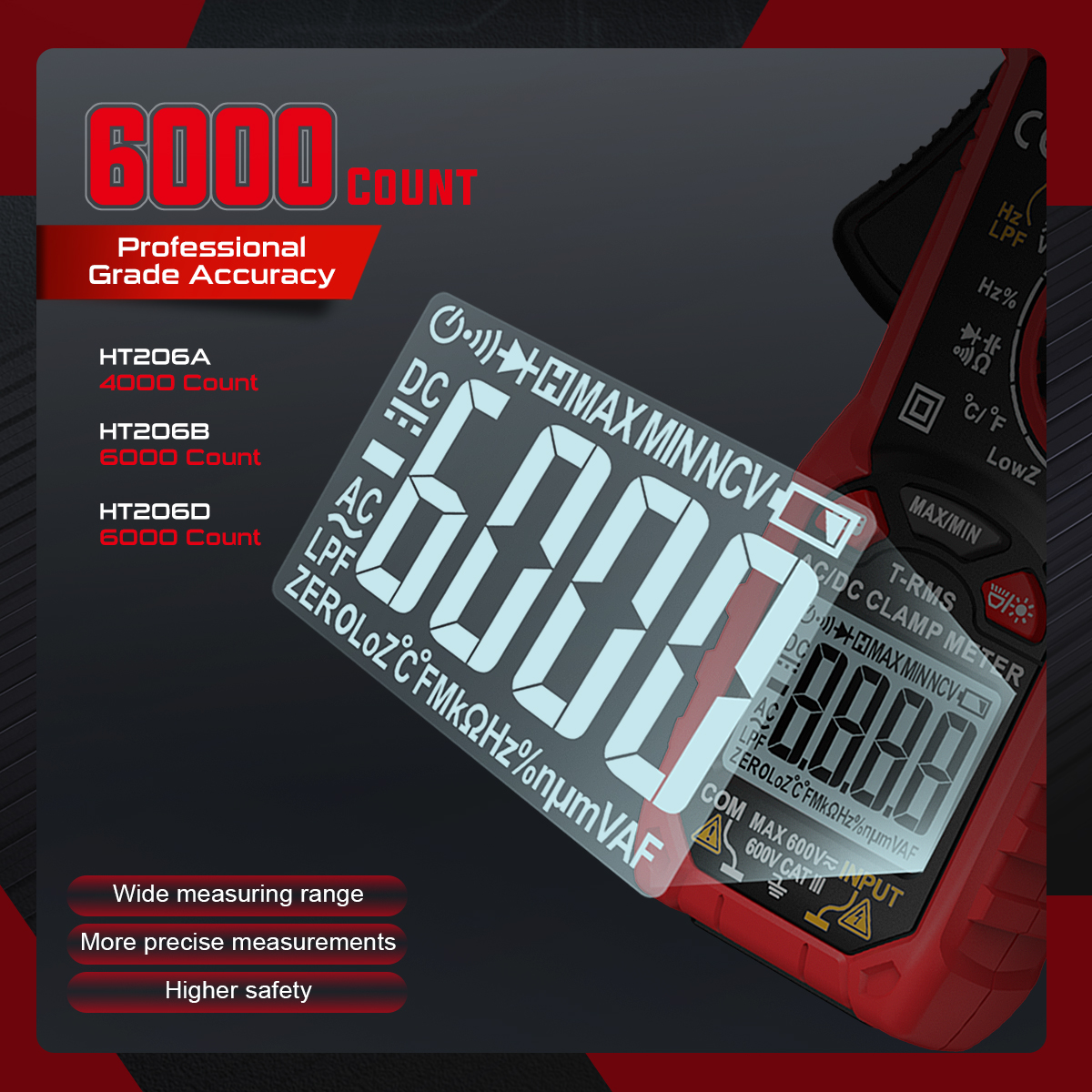

Max Count: 6000. Unit symbols are displayed automatically according to the measurement function range.

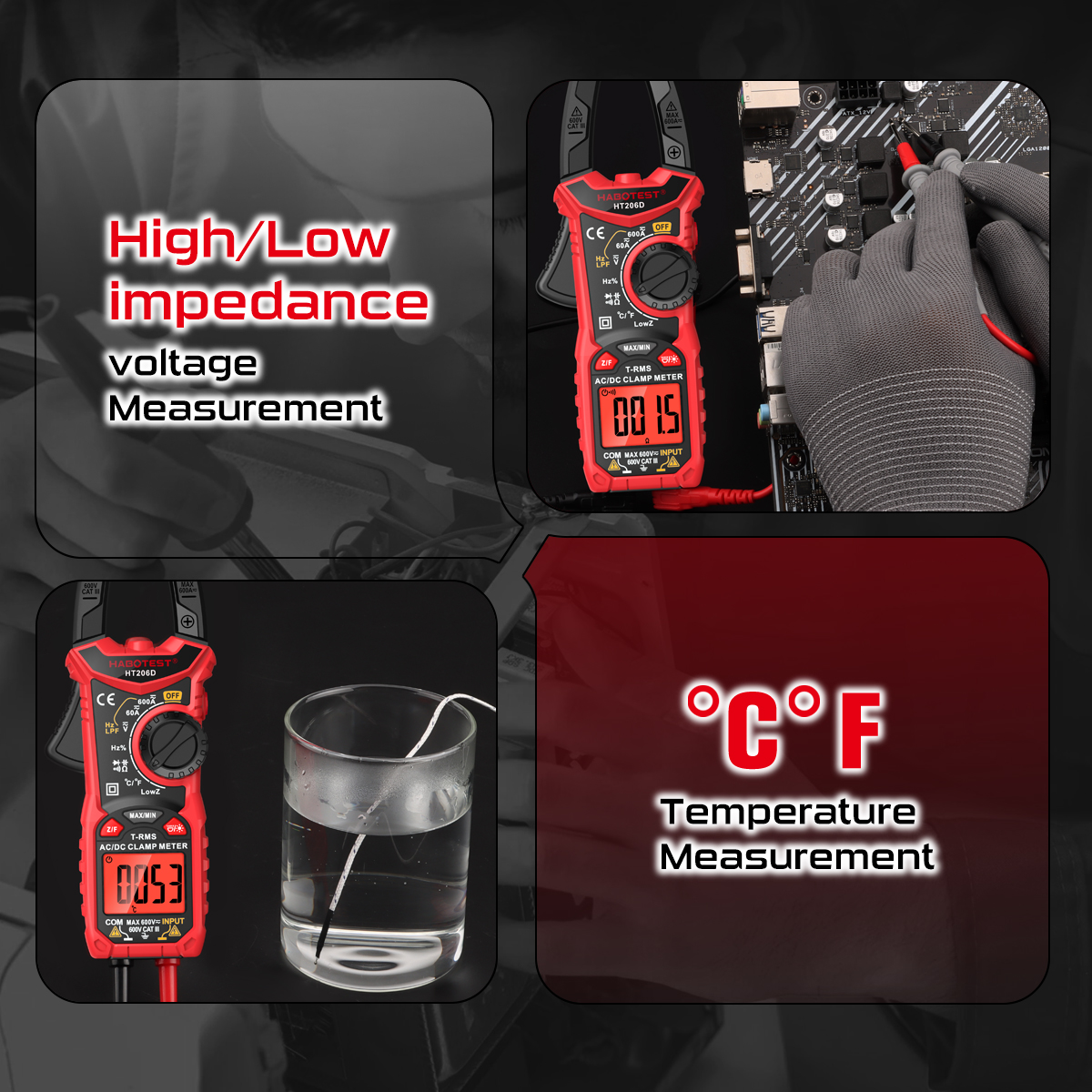

Temperature: -40~1000°C / -40~1832°F
Operating Temperature and Humidity: 0-40°C (<80%RH, non-condensing below 10°C)
Storage Temperature and Humidity: -10-60°C (<70%RH, batteries removed)
Max Voltage Between Terminals and Ground: 600V

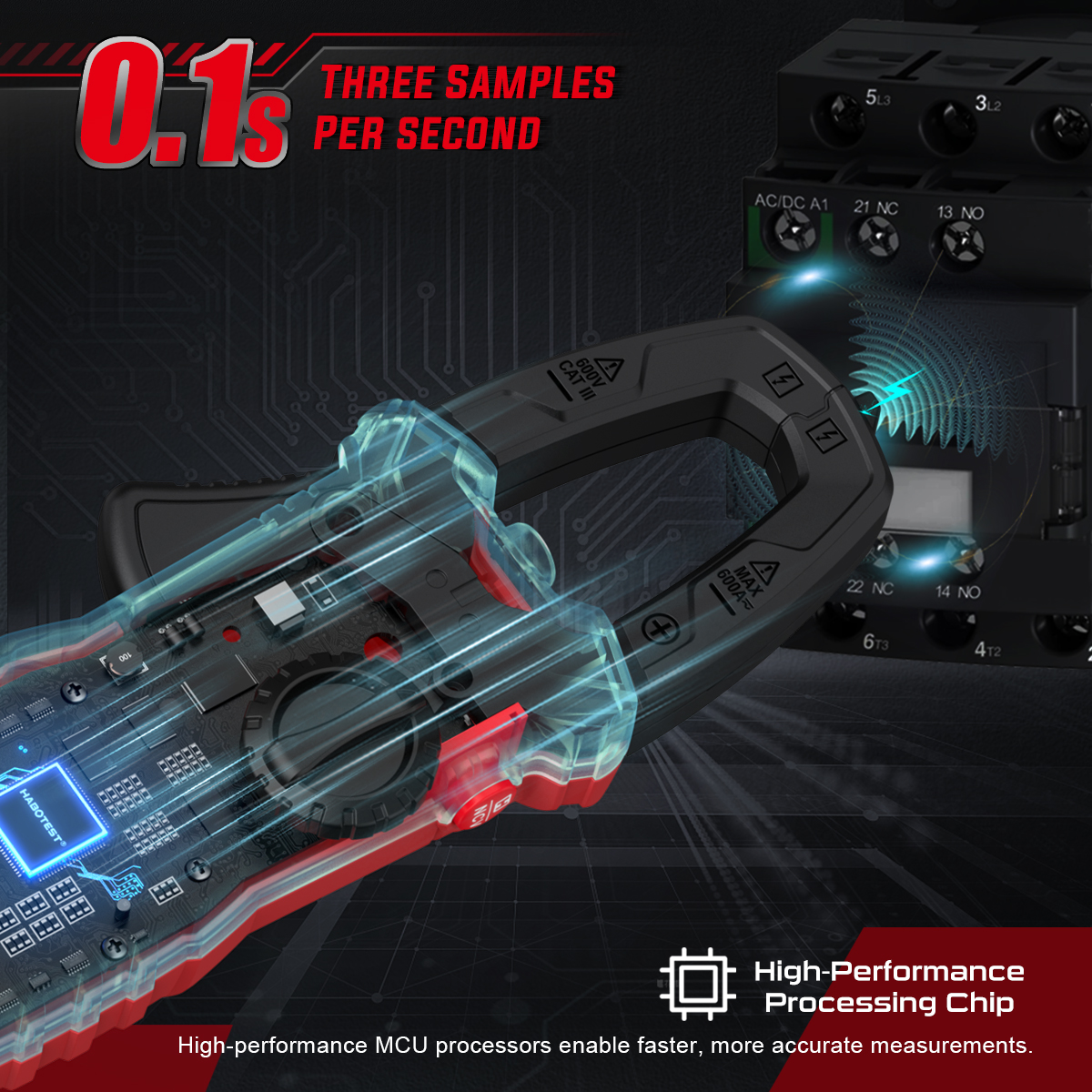

Sampling Rate: Approx. 3 times/sec
Overrange Indication: Displays "OL"

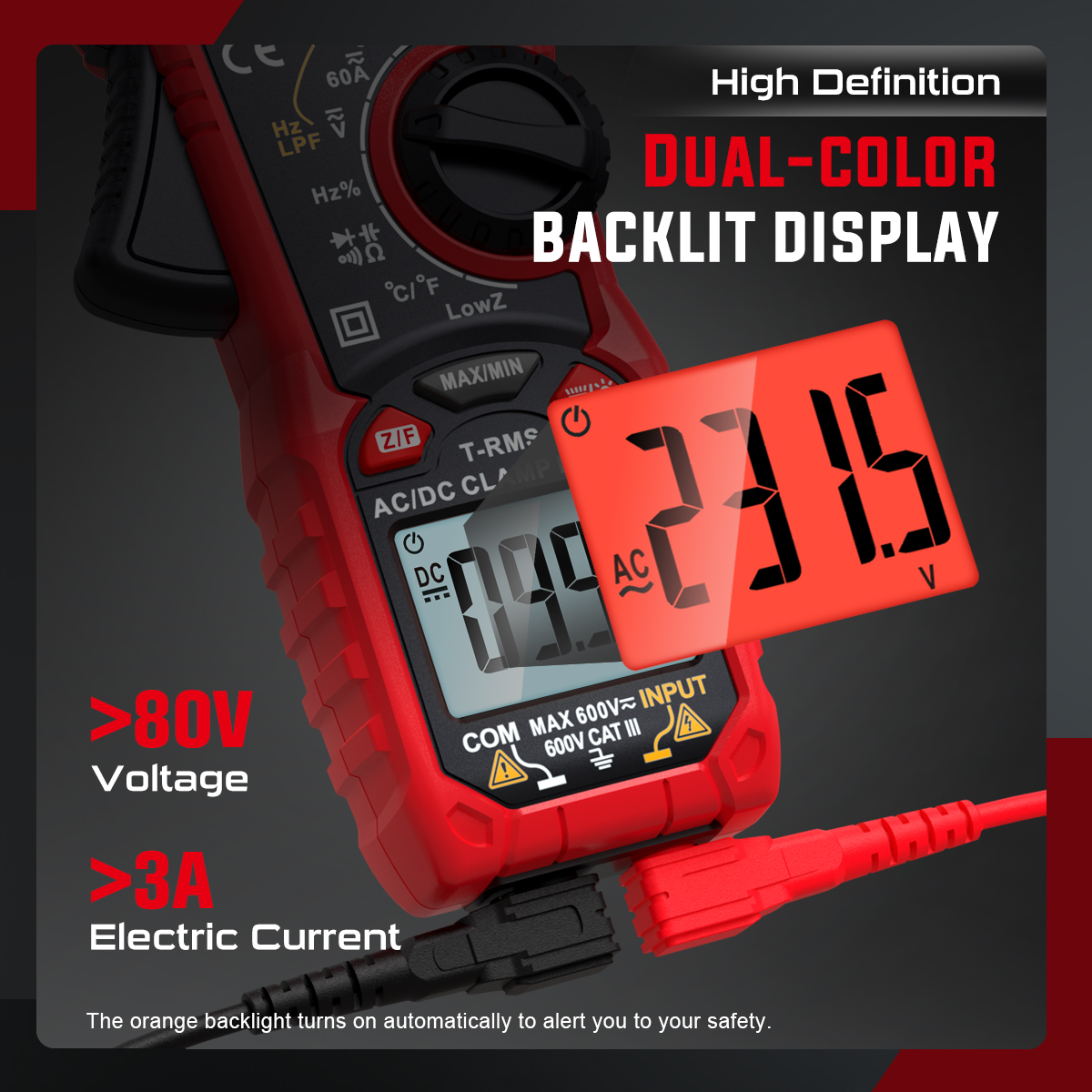

Continuity: Orange backlight on
Power Supply: 2 x 1.5V AAA batteries(not included
Weight: Approx. 188g

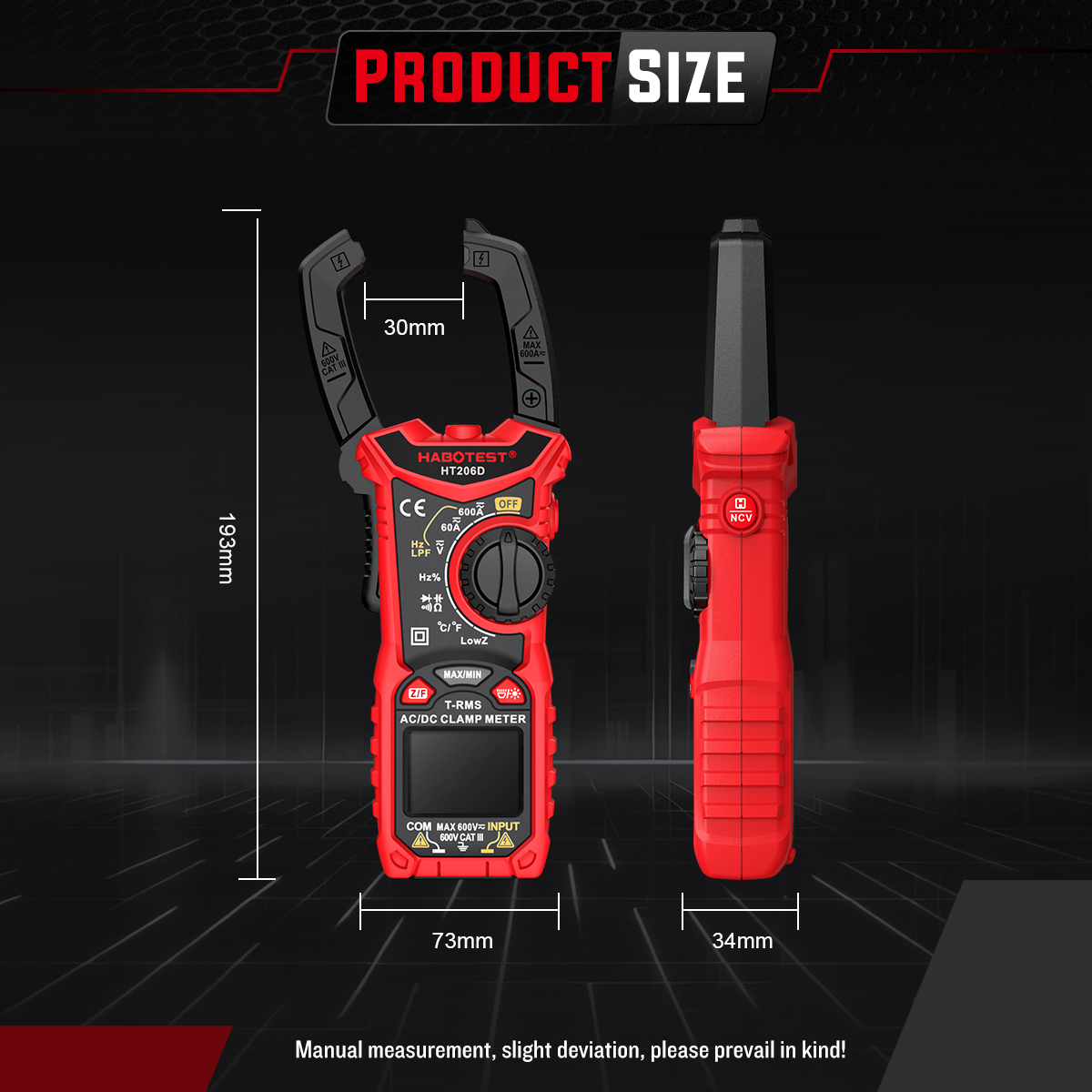

Dimensions: 193×73×34mm
