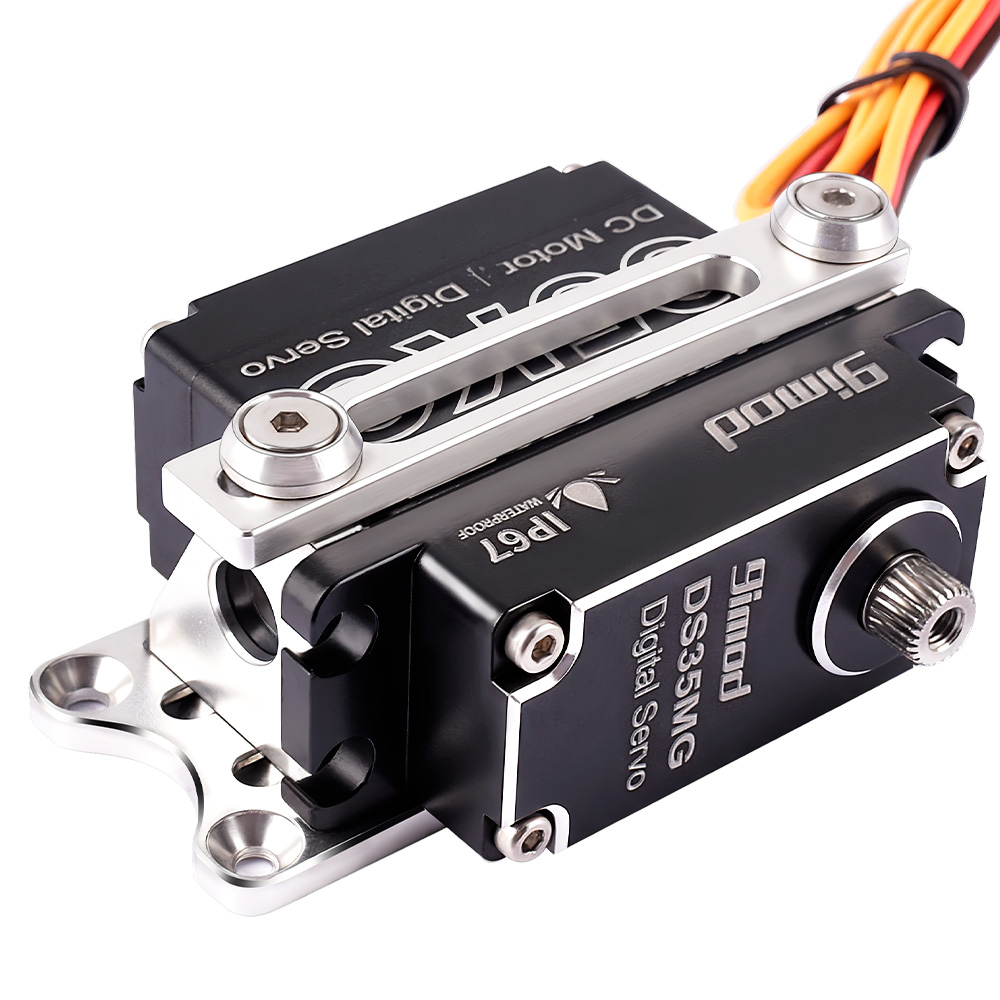

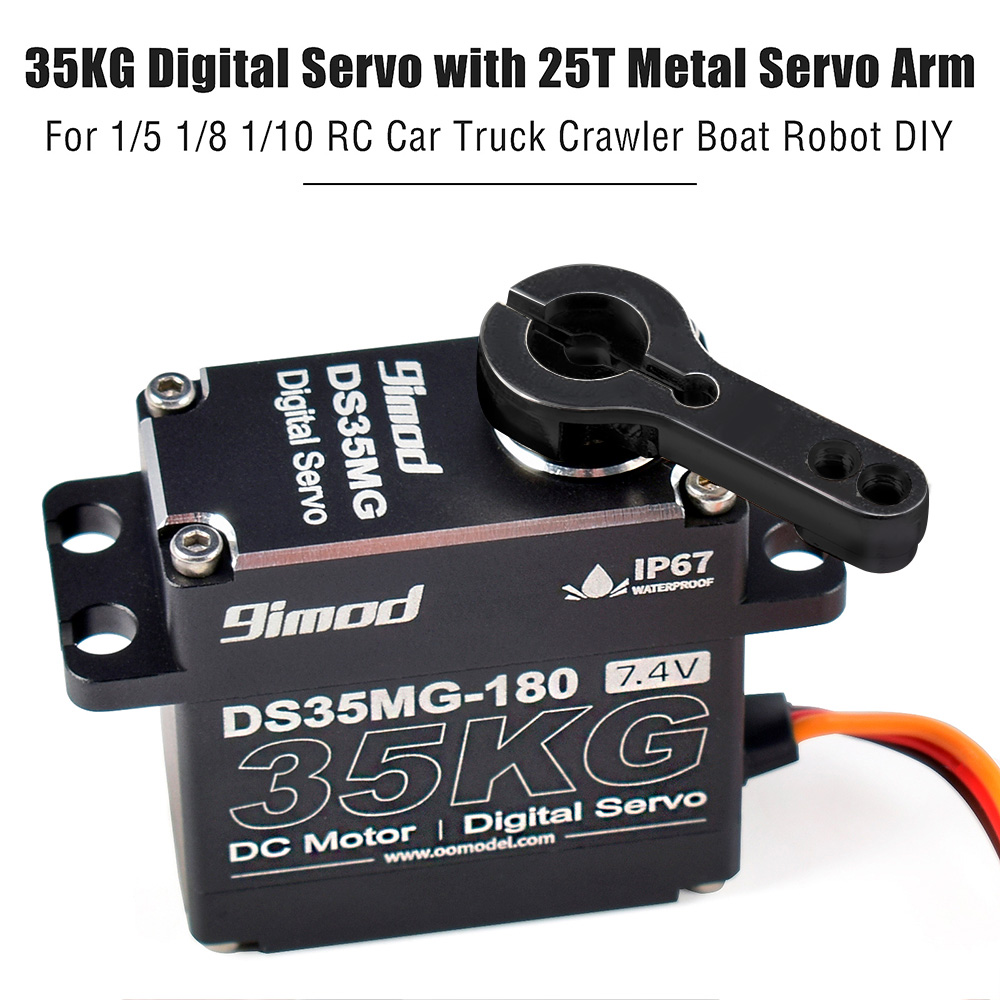

9IMOD 35KG Digital Servo & Servo Bracket Adjustable Servo Fixed Seat 180°/270°Optional IP67 Waterproof For 1/6 1/8 1/10 1/12 RC Car Boat Plane
Features:

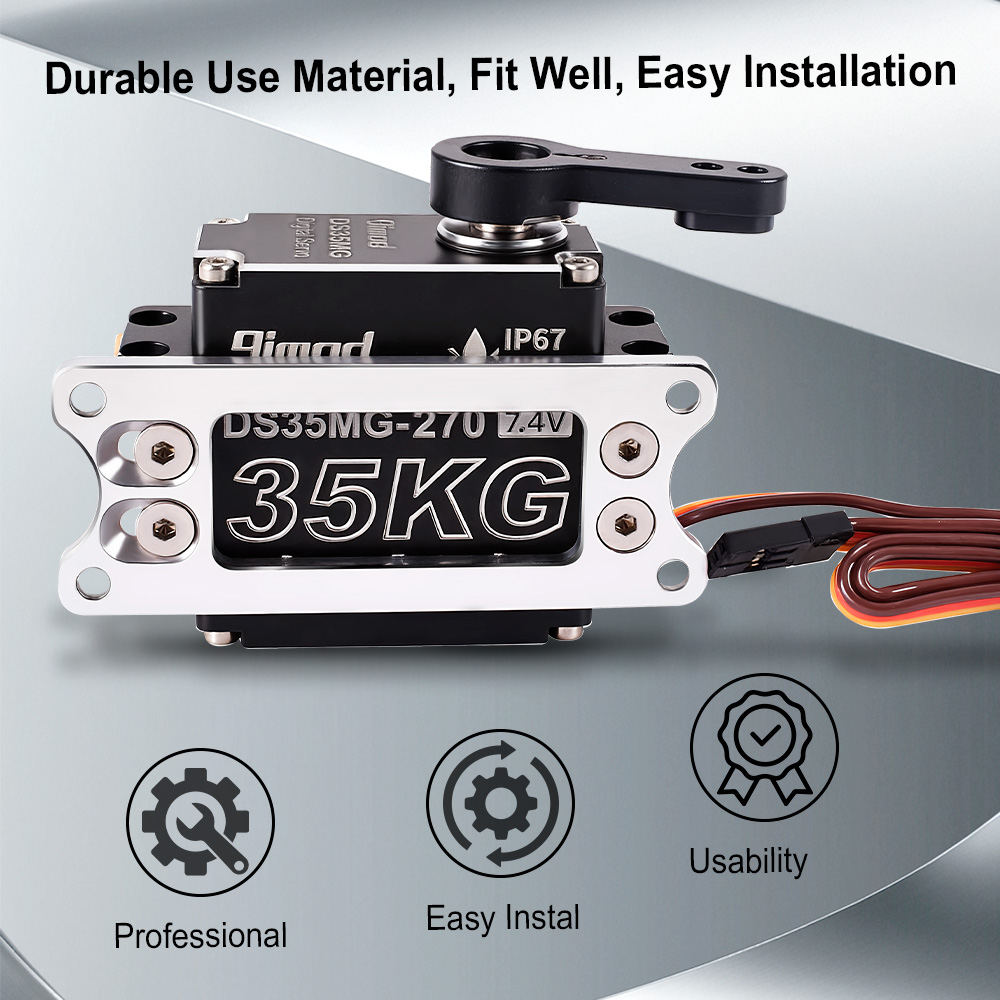

1. Made of high-quality Aluminum Alloy sturdy and durable,Easy for installment.
2. 4.8V -7.4V High voltage,High performance digital High Voltage .

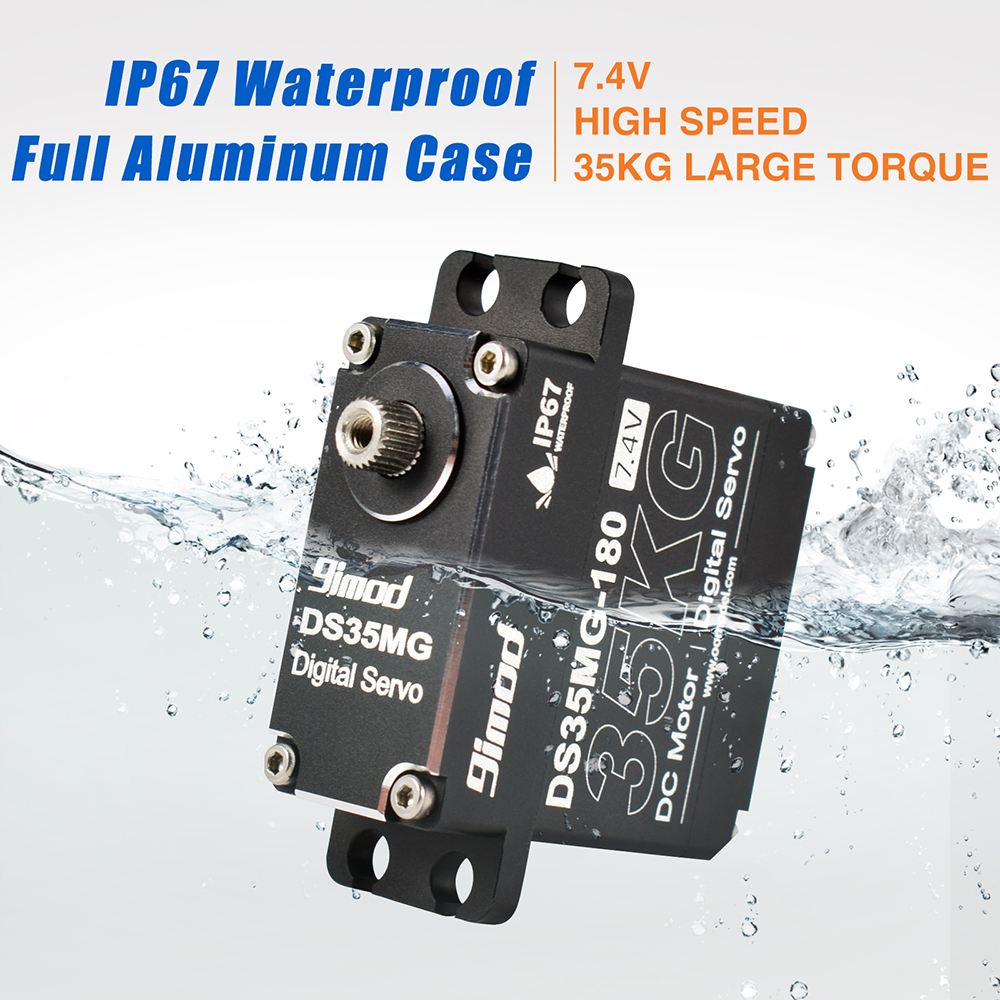

3. Waterproof performance: IP67 waterproof,Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.
4. Widely Use Digital High Torque Servo：This 35kg Waterpoof Servo's maximum torque is up to 35 kg/cm@7.4V.

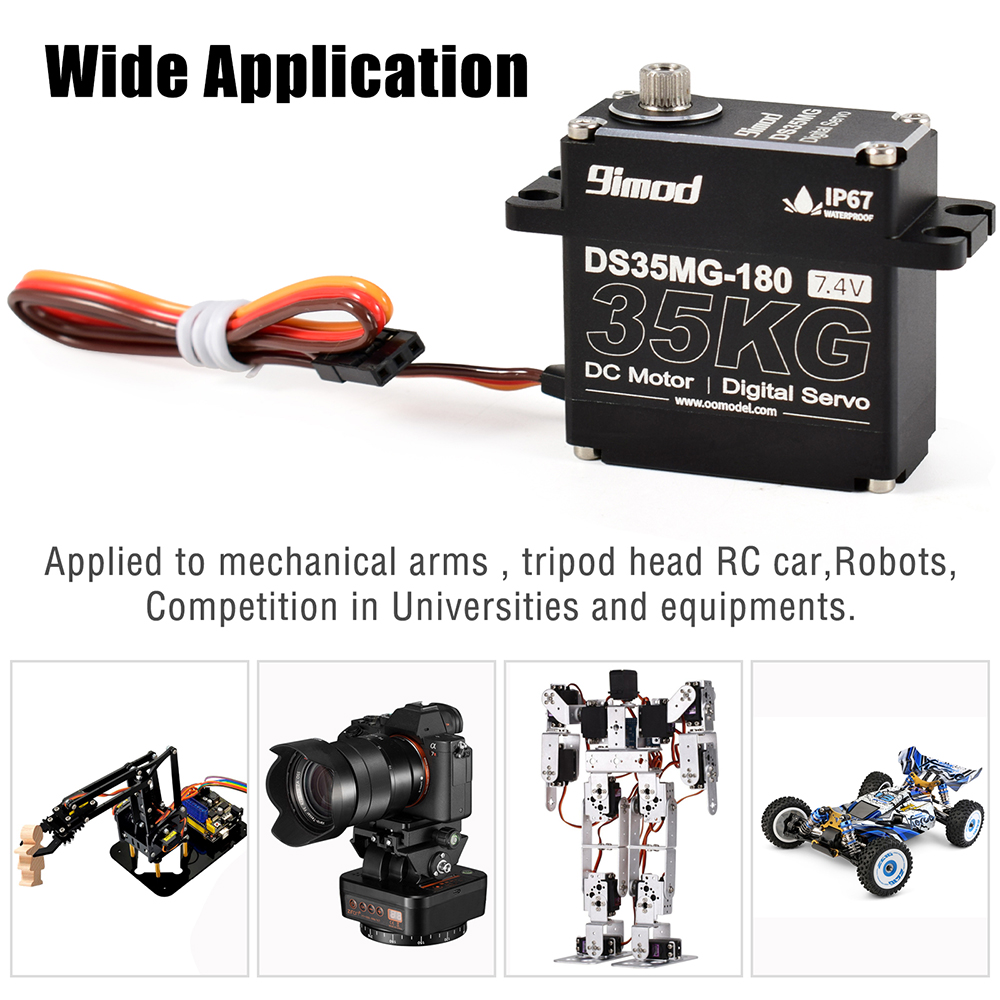

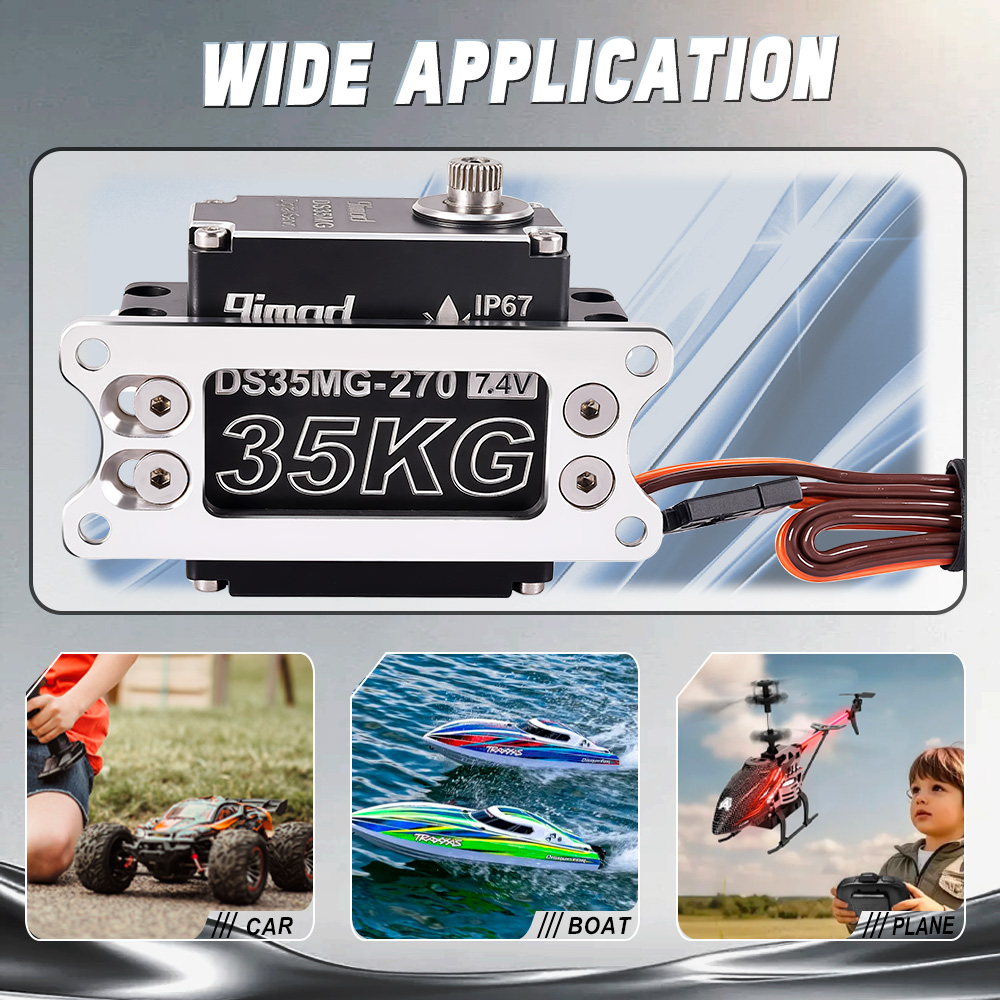

5. Compatible with 1/6,1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.

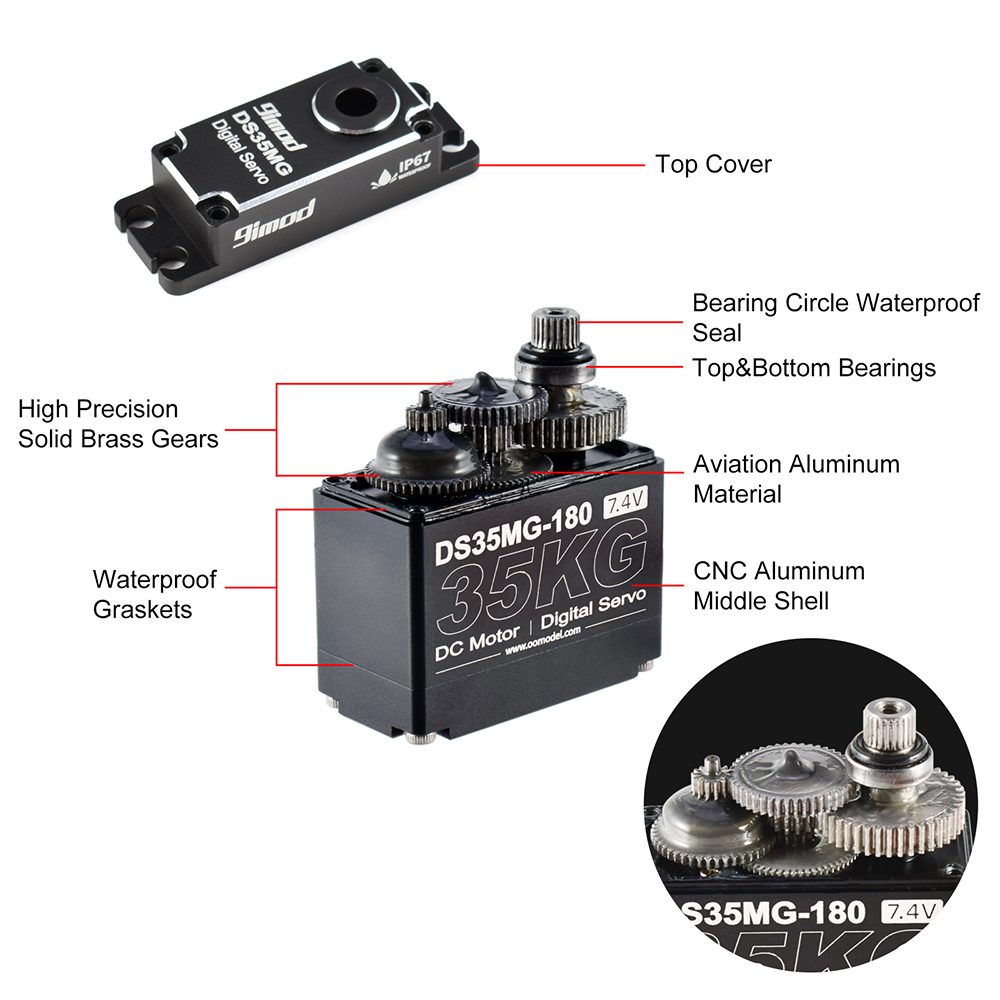

6. Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.
7. High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)

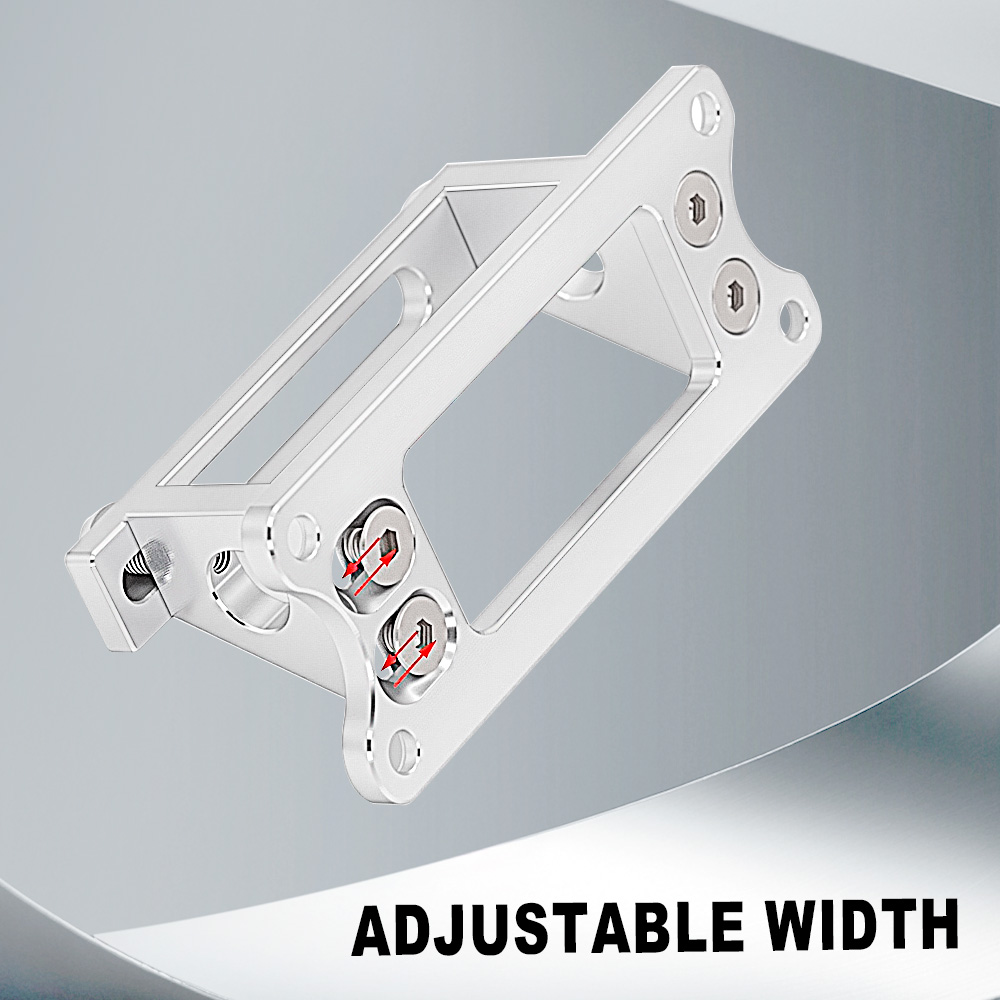

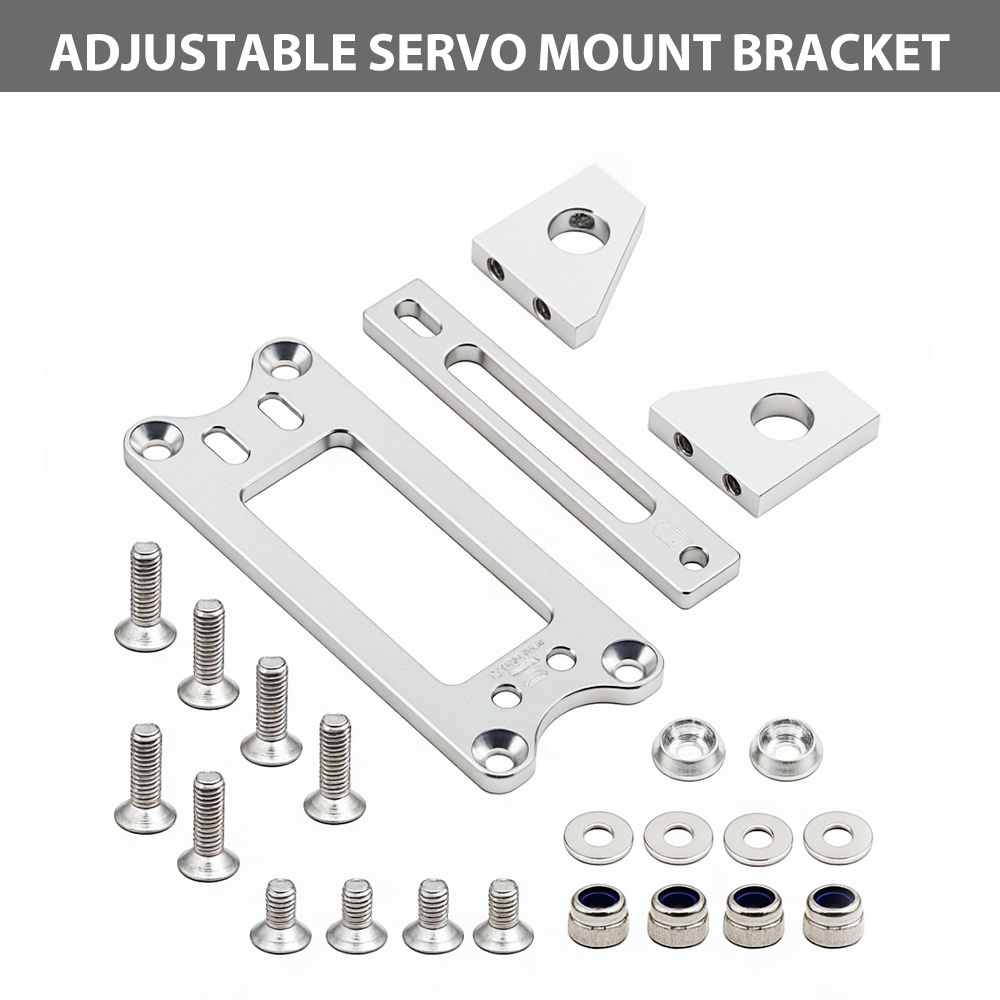

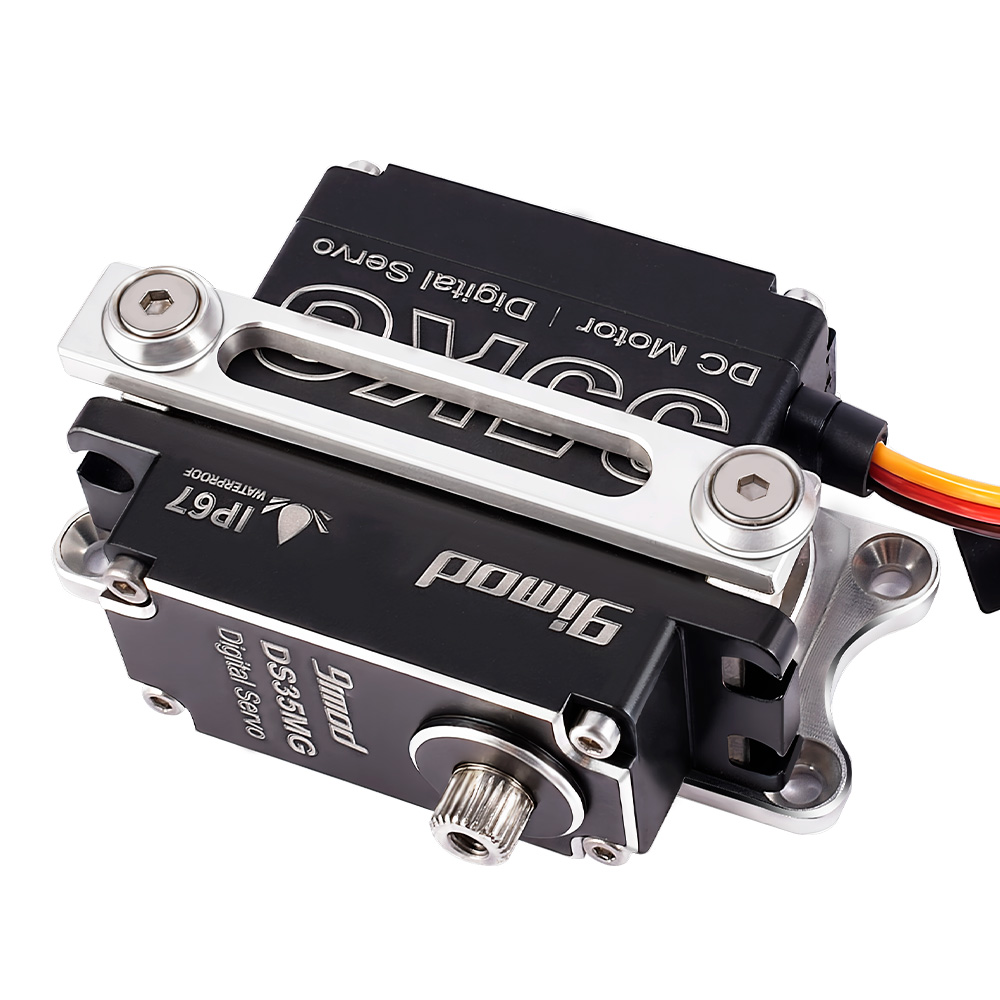

8. The servo Bracket lower bracket base can adjust the width.
Description:
Made of high quality aluminum alloy, durable, hard to be broken,For Compatible with 1/6,1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models Upgraded.
35kg servo Specifications:
Brand:9imod
Model:DS35MG
Color:Black
Control Angle:180°/ 270°optional
Gear Material:Metal Gear
Case Material:Full Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -7.4V
Storage Temperature Range: -30℃～80℃
Operation Temperature Range:-20C°~ +60C°
Circle:＞80000 times without load
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1 optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:DC motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control

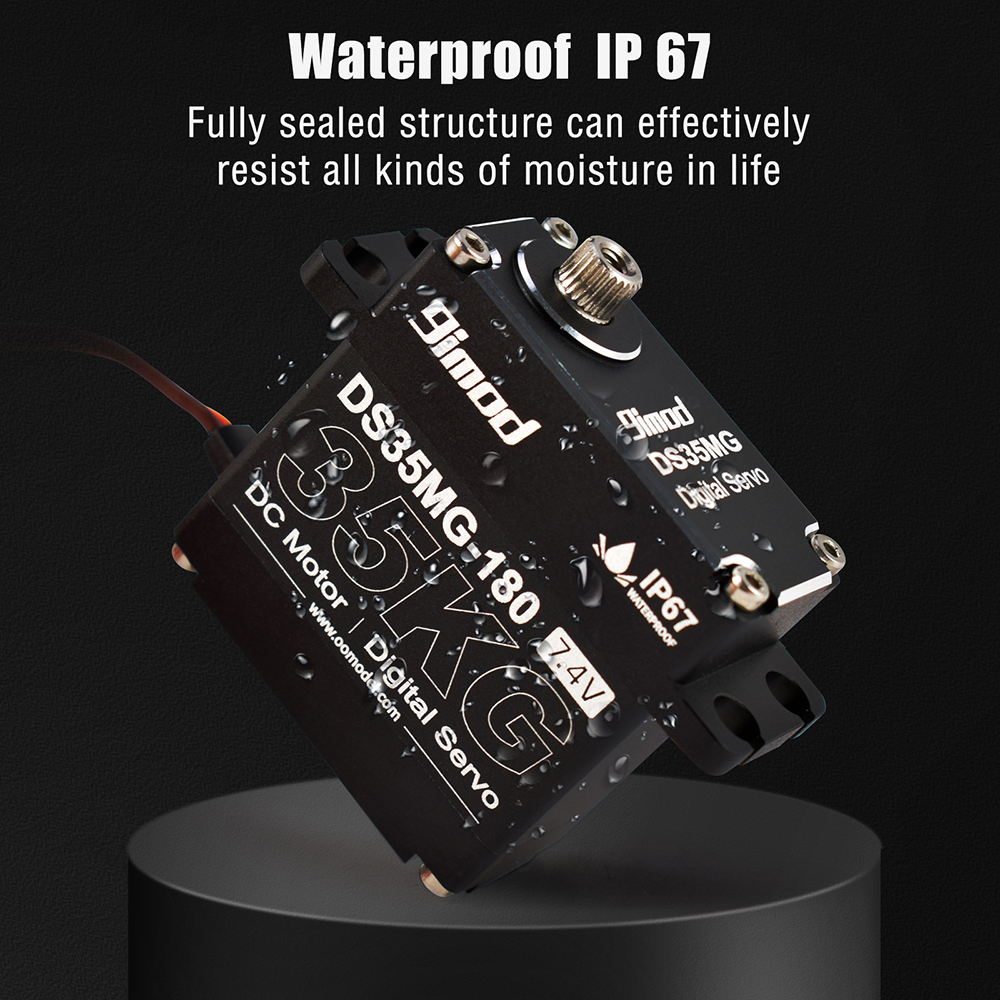

Waterproof performance: IP67

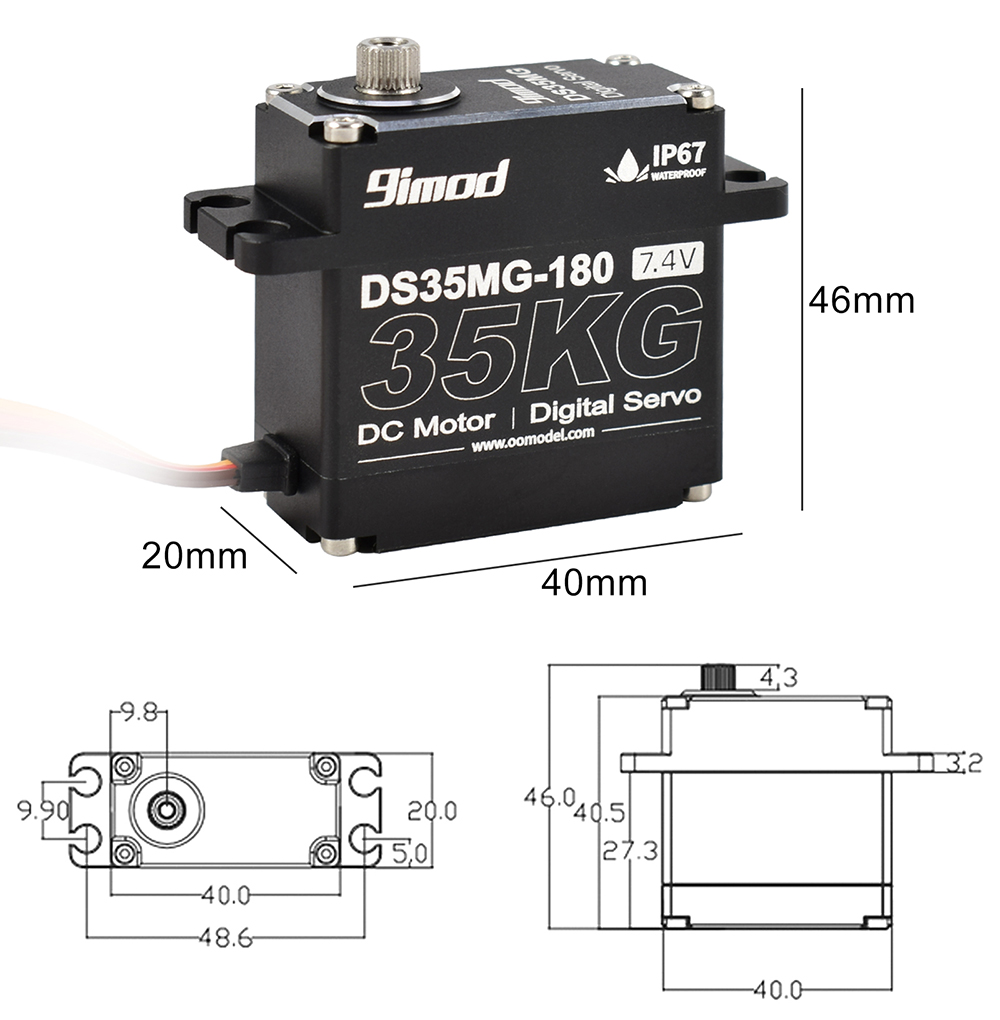

Dimensions:40x20x40.50mm
Weight:80g (without servo horn)

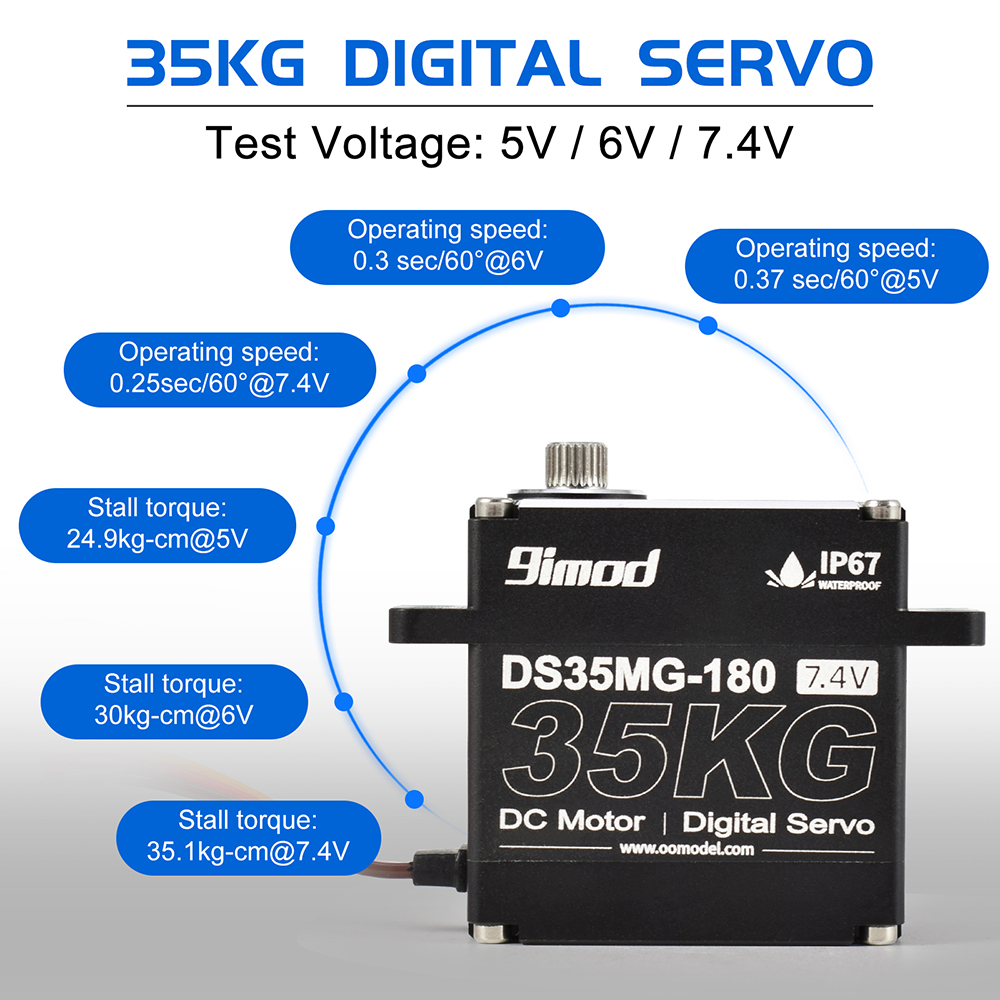

Test Voltage: 5V / 6V / 7.4V
Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@7.4V
Operating speed (at no load):0.37 sec/60°@5V; 0.3sec/60°@6V; 0.25sec/60°@7.4V
Stall torque (at locked): 24.9kg-cm@5V; 30kg-cm@6V; 35.1kg-cm@7.4V
Running Current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V
Dead band width :2µsec
Ball Bearing:2BB
Connector Wire Length: 300MM JR Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Black):Negative
Wire Info (Yellow):S Sinqle
