The Topcon RL-H5A Laser provides dependable accuracy and long-range performance for construction and site leveling tasks. With ±1/16 in accuracy at 100 ft and a working diameter of 2,600 ft (800 m) using the LS-80L receiver, the RL-H5A is a reliable reference for concrete, foundations, excavation, and general layout. Automatic electronic self-leveling and manual slope capability make setup fast and straightforward, while the rugged IP66-rated housing ensures durability in tough jobsite conditions. Powered by four D-cell alkaline batteries, it offers up to 100 hours of operation for uninterrupted productivity.

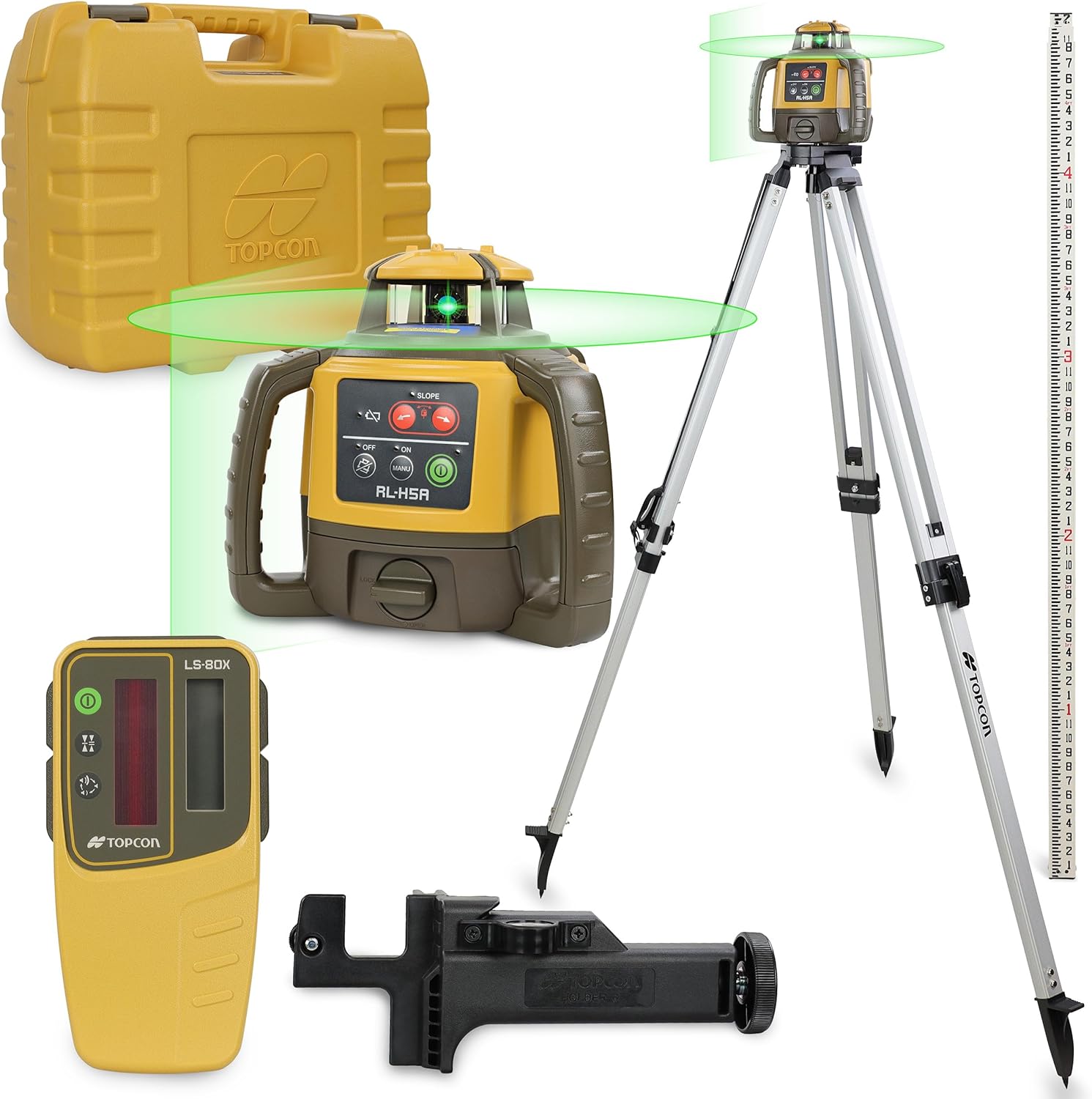

This package includes the RL-H5A rotary laser, LS-80L receiver with holder, an aluminum tripod, and a 16 ft fiberglass grade rod with inches graduations. The fiberglass rod provides extra durability for demanding field environments, while its inches graduations make it ideal for precise grade checks on construction sites.

Specifications

• Model: Topcon RL-H5A Self-Leveling Rotary Laser
• Laser Class: Class IIIa (FDA), Class 3R (IEC)
• Laser Source: 635 nm visible red diode
• Operating Range: 2,600 ft (800 m) diameter
• Accuracy: ±1/16 in @ 100 ft (±10 arc seconds)
• Self-Leveling Range: ±5°
• Manual Slope Capability: Yes
• Rotation Speed: 600 rpm
• Status Alerts: HI alert, low battery
• Battery Options: 4 × D-cell alkaline (100 hrs) or rechargeable NiMH pack (60 hrs)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Protection: IP66
• Warranty: 5 years

In the Box

• RL-H5A laser with receiver, Sensor holder and Tough carrying case
• Aluminum Tripod
• 16 ft Fiberglass Grade Rod (Inches)
