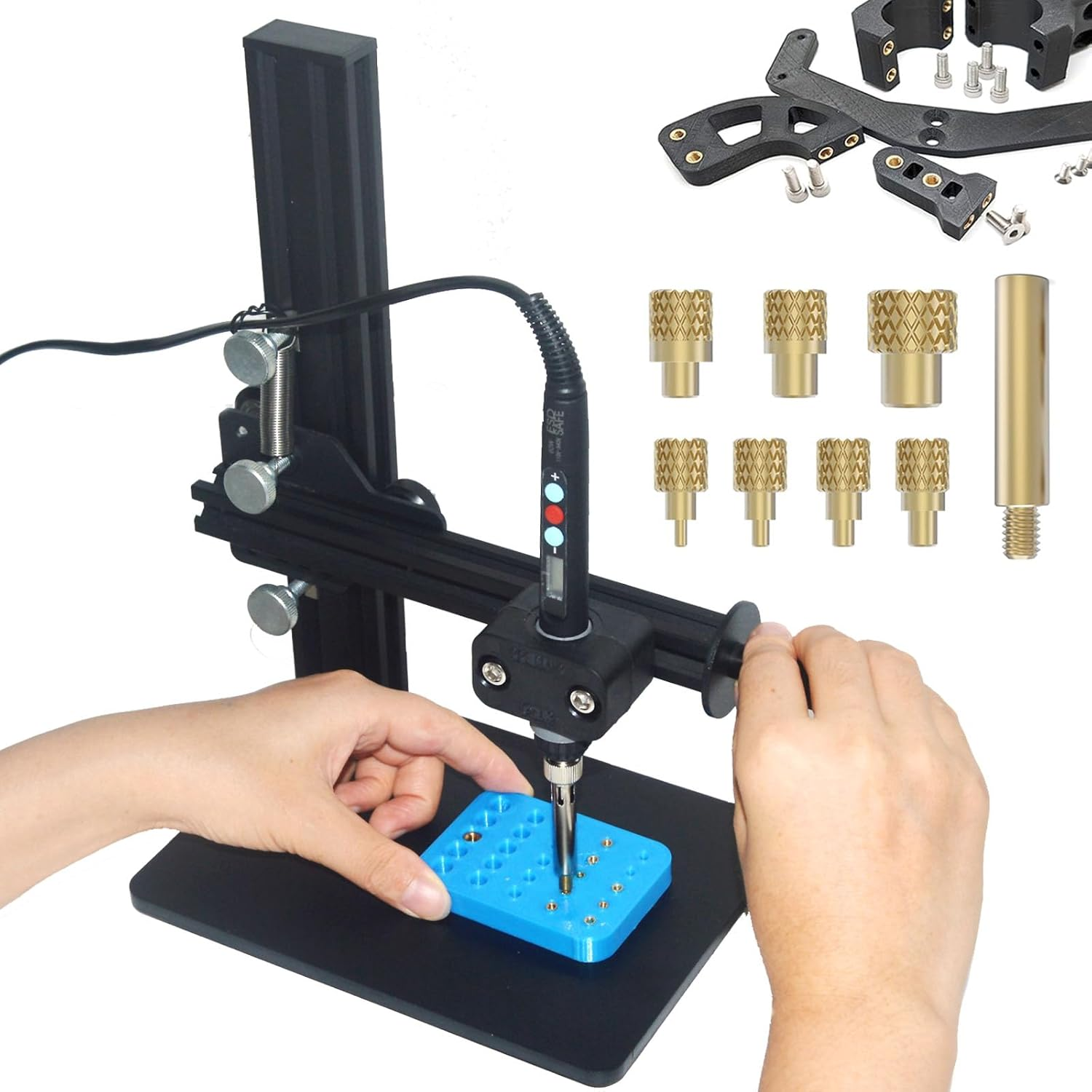

Vertical Heat Pressing Machine,Heat Set Insert Tool,Brass Inserts 3D Printing,Heat Set Insert Tip for Thread Knurled Nut M2/M3/M4/M5/M6(1/4)/M8
Product Details
- The base is made by bending and welding sheet metal, and reinforced welding is added at the bottom, equipped with anti slip foot pads. The -axis is a widened 2040 aluminum profile, which provides sufficient strength when the structure is pressed down. Three large V-shaped pulleys are tightly matched with the 2040 aluminum profile, and only one V-shaped pulley needs to be adjusted to clamp the aluminum profile. The metal tension spring can be used repeatedly without deformation, and it is easier to adjust the insertion height by hand tightening the nut
- The digital soldering iron supports automatic voltage conversion of 110V/220V. Long press the # switch, with a temperature range of 180 ℃ (356 ℉) -500 ℃ (932 ℉). Long press the+- button to continuously adjust the temperature, and comes with a soldering iron tip and silicone protective cover
- Insert Tips M2 M2.5 M3 M4 M5 M6 (1/4) M8 can match the electric soldering iron of ceramic tube D4xL24 on the market
- It can be used fo including PLA, PETG, ABS, PPS, PP, and more, this Machine find applications in 3D printers, molding , automotive plastic shells, and laptop molds Threaded Inserts
- If you have any questions, please feel free to contact us. We will provide the most satisfactory service.
Product description
3DZWMAN Heat Set Insert Tool
Here at 3DZWMAN, we have the most professional engineers and we provide the highest quality after-sales service, so our product is designed to make your creative offerings easier.
Packaging method
For safer transportation, we have disassembled the hot press, but the key positions are pre assembled, and the entire installation process is completed within 10 minutes
Reasonable layout
To avoid damaging the wheel during assembly,it is necessary to adjust the tightness of the wheel,after installation to prevent it from swinging.
Quick heating
Electric soldering iron is equipped with a 60W heating core, with a temperature range of 180 ℃ -500 ℃
Assembly Instructions
We have pre assembled the key parts, and the entire installation process is simple and can be completed in about 10 minutes. After completion, it is necessary to adjust the tension of the profile pulley.
replace the Heat Set Tips
Remove the head of the soldering iron, replace the Heat Set Tips, and determine the required size for installation
Use of electric soldering iron
Long press # to turn on/off the machine, with "+" and "-" indicating the temperature setting. Long press "+" and "-" to quickly adjust the temperature.
Material temperature recommendations
Suggested setting temperature
PLA：180℃-220℃ 356F-428F
PETG：210℃-230℃ 410F-446F
ABS：230℃-250℃ 446F-482F
Nylon: 280℃-350℃ 536F-662F
Design recommendations
We suggest that the depth of the hole position is greater than the height of the nut, and the screw will better bite the nut. Therefore, our Tips design is longer than the height of the nut, so that the heating is more uniform.
| Item model number | ZW -12 |
| Product Dimensions | 10.16"L x 1.97"W x 11.69"H |
| Power Source | 110v |
| Color | Machine Kit |
| Upper Temperature Rating | 500 Degrees Celsius |
| Wattage | 60 watts |
| Material | Aluminum |
| Item Weight | 1.3 Kilograms |
| Voltage | 110 Volts |
| Recommended Uses For Product | Commercial |
1.97 "h x 10.16 "h x 11.69 "h. Weight: 1.3 kg
