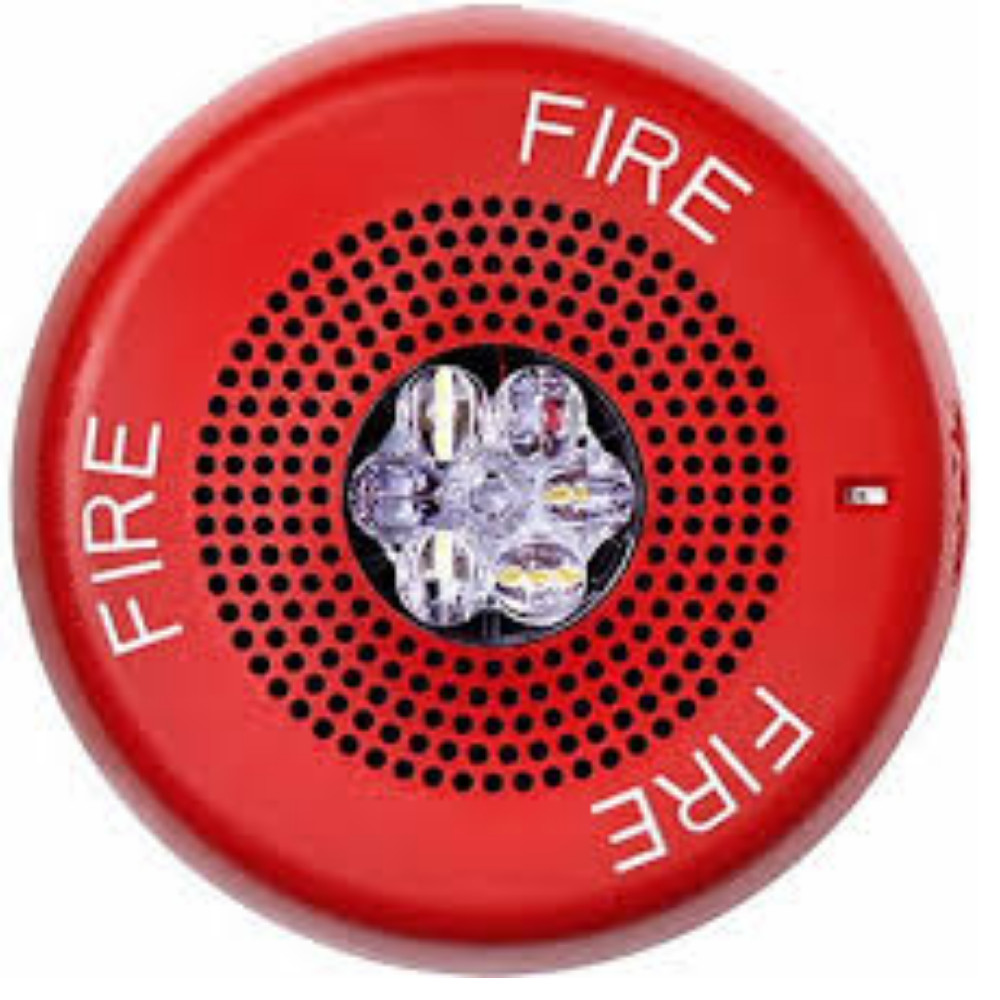

The Wheelock ELSPSTRC is an Eluxa high fidelity ceiling speaker strobe that combines a 25/70 VRMS speaker with an LED multi candela strobe for indoor fire alarm and emergency communications systems. This red FIRE model provides six selectable ceiling candela settings from 15 to 177 cd on 24 VDC/VFWR strobe circuits and five field selectable speaker taps from 1/8 to 2 watts (5 watt at 70V). A supplied ceiling mounting plate with capture hinge supports pre wire/pre test and simple one screw final installation.

Key Specifications:
Type: Eluxa high fidelity ceiling speaker strobe, red housing with FIRE lettering
Core Function(s): Voice and tone notification on 25/70 VRMS speaker circuits with integrated LED multi candela ceiling strobe
Loop/Protocol: 25 or 70 VRMS supervised speaker circuits; strobe on 24 VDC/24 VFWR NACs, compatible with Wheelock synchronization methods
Power: Speaker taps selectable at 1/8, 1/4, 1/2, 1, or 2 watts (5 W at 70V); strobe operates from 16.0 to 33.0 VDC/VFWR with ceiling candela settings of 15, 30, 75, 110, 150, and 177 cd using low current LED design
Indicators/UI: Front finger slide tap selector, tamper resistant candela switch, built in level adjustment, snap on grille cover
Environmental: Indoor use; operating range 32 °F to 122 °F (0 °C to 50 °C); ceiling mounting plate included for pre wire and pre test

Compatible Backboxes & Accessories:
LSPKBB-CR – Red ceiling backbox for Eluxa ceiling speakers and speaker strobes

System Compatibility: Suitable for fire alarm voice evacuation, mass notification, and emergency communications panels that provide 25 or 70 VRMS speaker circuits and are approved for Wheelock Eluxa / Exceder LED3 compatible speaker strobes.
